YIHUA 150W 3005D 5A 30V regulated adjustable DC power supply, YiHua 3005D LCD digital display DC power supply, 220V / 110V adjustable digital display DC power supply for phone motherboard soldering repair, high-accuracy multi-functional switching regulated DC power supply for mobile phone logic board repair. Digitally adjusts current and voltage, which is more stable, and has longer life than traditional potentiometer adjusters.

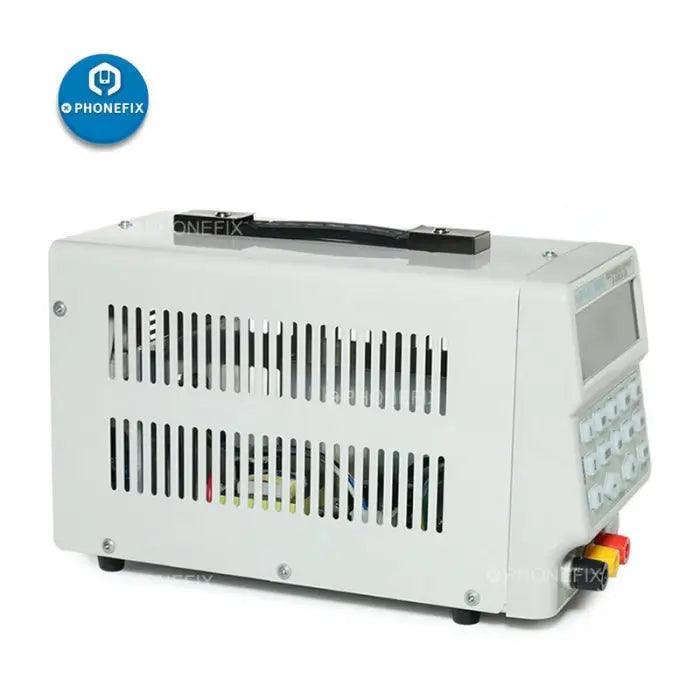

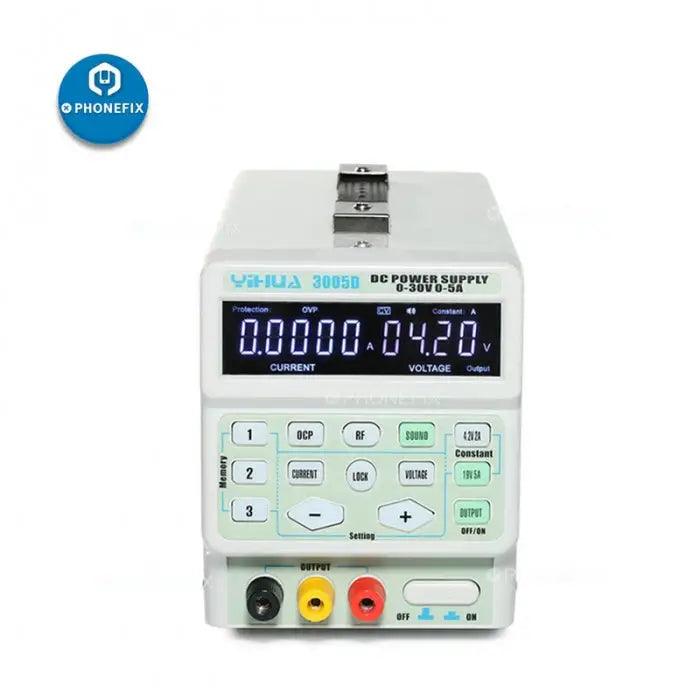

YIHUA 3005D 30V 5A Regulated Adjustable DC Power Supply 220V / 110V
YIHUA 3005D is the second generation of digital program-controlled switching power supply, it used the latest technology and crafts,the is weight it is 50% lighter than the traditional DC power supply, it good for transportation and save the shipping fee, it also effectively avoids too heavy damage the product occurs during transport.
Features :
- Digital program-controlled stabilized switching power supply is designed for use in laboratories, schools, production lines, and electronic repair.
- Small size and is lightweight, which is very easy to transport and carry.
- High efficiency, high load capacity, and low noise and is superior to linear power supplies.
- High voltage stability, small ripple factor, excellent short circuit protection, and over-current protection.

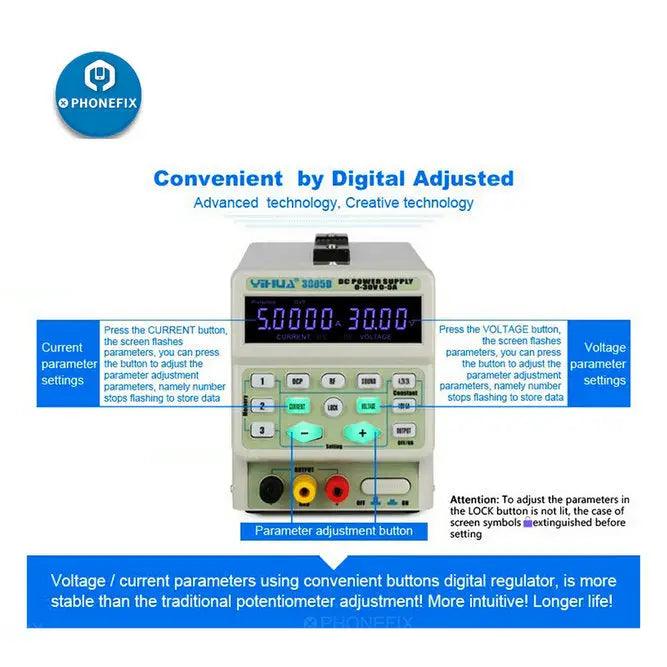

- Digitally adjusts current and voltage, which is more advanced, more stable, and has longer life than traditional potentiometer adjusters.
- Output electronic protector switch, which can easily break the output load.Function set lock that can effectively prevent change of output parameters or change caused by misuse, which makes the product more secure and reliable.
- Mobile phone radio-frequency detection function, which is of a 4.2V 2A/19V 5A fixed output function. Parameters can be displayed by pressing the key, which is fast and convenient. It is an essential tool for cell phone and laptop repair.

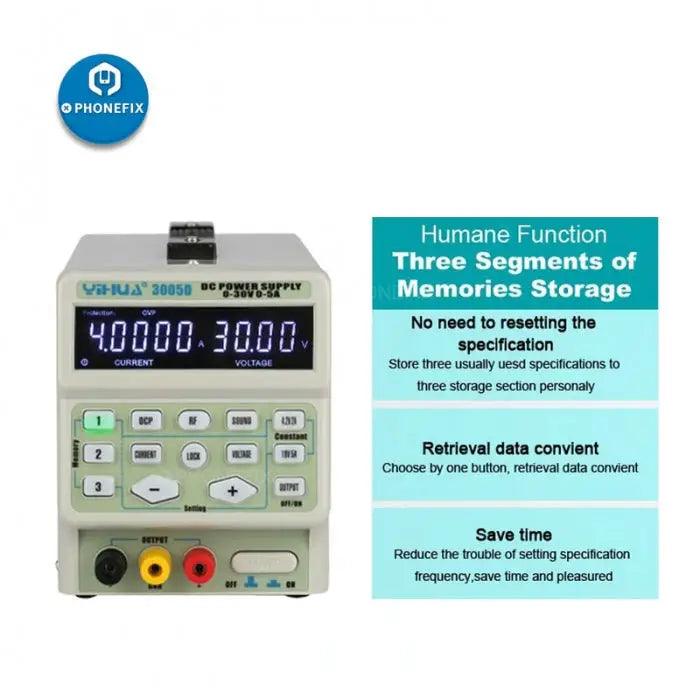

- Three storage memories that can store three sets of frequently used parameters for easy retrieval.
- Output state memory function. When the memory switch is turned on,it can retain the output status before the power switch is turned off. For example, when the power is in the output state, turn off the power switch, and when the power switch is turned on the next time the power supply will directly output the voltage. When the memory switch is turned off, it will not retain the output state when the power switch is turned off. Every time the power switch is turned on, the output key must be pressed to output voltage.
Specification :
- Output Power: 150W
- Export voltage: Continuously adjustable from 0 to 30V (resolution is 0.01V)
- Voltage export accuracy: ±0.02V
- Recovery time: 100uS
- Constant current value : 0~5A
- Constant output current : Continuously adjustable from 0 to 5A (resolution is 0. 0001A)
- OCP current value: 0-5A Accuracy: ±0.01A
- Signal test frequency range: 30~1800MHZ including cell phone signal test
Package includes :
- 1pcs x YiHua DC Power Supply
