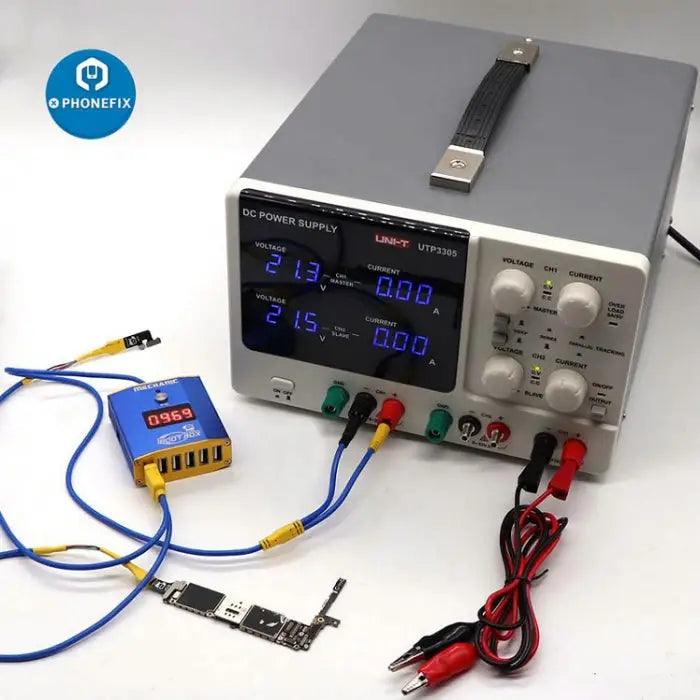

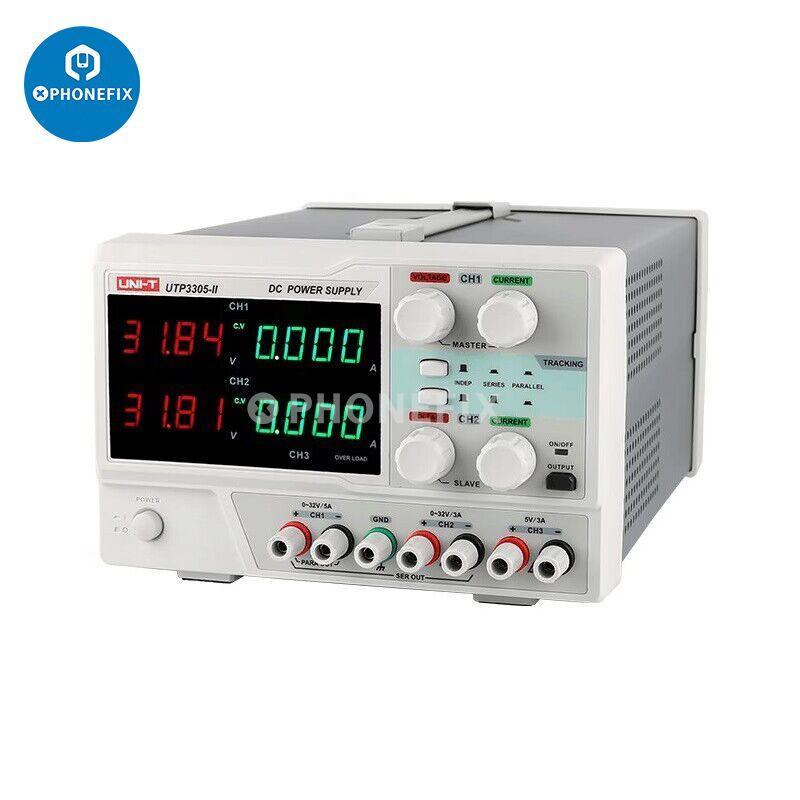

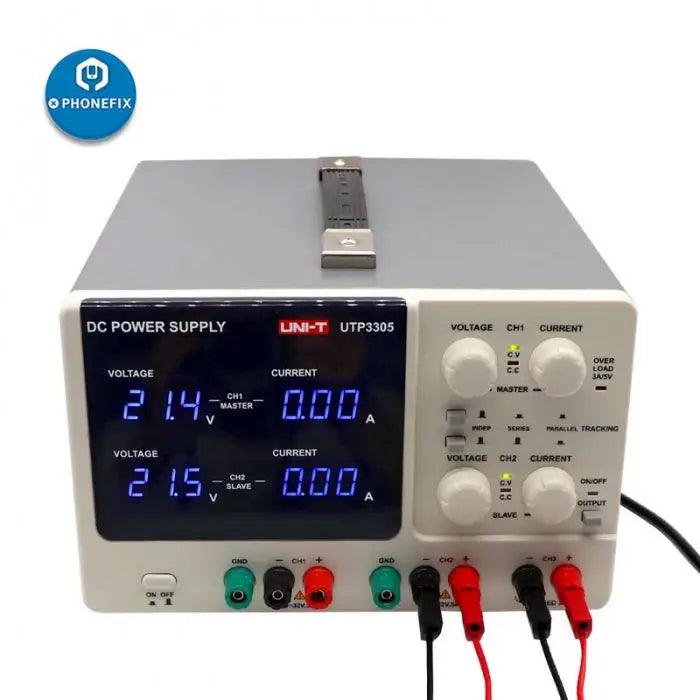

UNI-T UTP3305 Dual channel DC Power Supply 32V 5A Precision Variable. UNI-T UTP3305-II power supply with two adjustable channels of 160W power ranging from 0-32V and 0-5A and a fixed channel with fixed outputs of 5V and 3A.
Note: UNI-T UTP3305 has been discontinued, now it's the upgraded version UNI-T UTP3305-II.
Parameters: Model: UTP3305-II. Output voltage: CH1/CH2: 0-32V, CH3: 5V. Output current: CH1/CH2: 0-5A, CH3: 3A. Output power: 335W. Load regulation: CV<0.01%+3mV，CC≤0.2%+3mA. Ripple and noise: CV≤1mVrms; CC≤3mArms. Output regulates resolution CV: 10mV (typical), CC: 1mA (typical). Tracking bias: ±(0.1% of reading+30mV). CC:±(0.3% of reading+10mA). Reliability MTBF(e): ≥2000hrs. Power Input voltage: 115V AC/230V AC; Frequency: 47Hz-63Hz. Product color: White and grey. Product size (W×H×D) 319mm×146mm×226mm. Product net weight 10.5kg.
Features: 1. High-precision four-digit voltage and current display, 10mV/1mA. 2. Low rippleise. 3. Constant voltage/current, OVP, OCP, OTP, reverse polarity protection. 4. Parallelries output function. 5. Output on/off control. 6. Intelligent temperature control fan. 7. Display 4 windows, LED. 8. Display mode 4-bit voltage and current dual display. 9. CH1 and CH2 master-slave tracking in series. 10. UNI-T UTP3305-II Three-channel linear DC power supply featuring tracking, constant voltage/current, series/parallel output, temperature controlled cooling fan, and over voltage/current protection.
