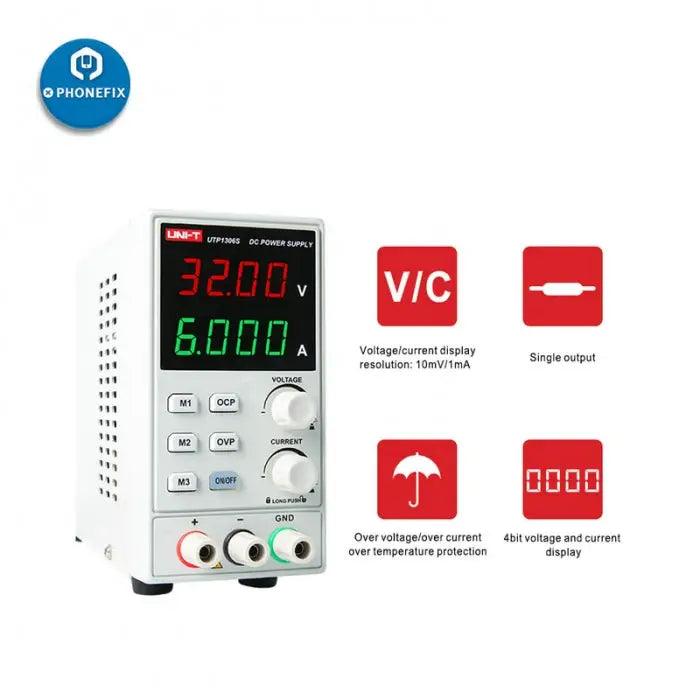

UNI-T UTP1306S adjustable DC power supply single AC 32V/6A 220V input DC power supply, UTP1306S single-channel linear DC power supply for phone repair, adjustable DC power supply switch 0~32V/0~6A AC 220V 50Hz, Mini LED digit display DC power supply are single-channel linear DC power supplies with low ripple/noise, overload protection and constant voltage/current features.
UNI-T UTP1306S 0-32V 0-6A Adjustable Linear DC Power Supply Single Channel DC Power Supply.

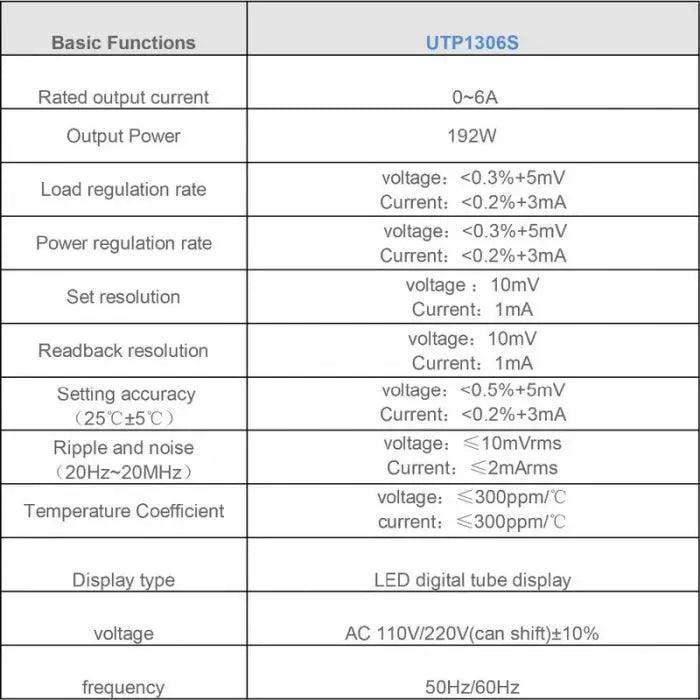

Specification:
- Model: UTP1306S
- Rated output current: 0~6A
- Output Power: 192W
- Load regulation rate voltage: <0.3%+5mV
- Current: <0.2%+3mA
- Power regulation rate voltage: <0.3%+5mV
- Current: <0.2%+3mA
- Set resolution voltage: 10mV
- Current: 1mA
- Readback resolution voltage: 10mV
- Current: 1mA
- Setting Accuracy (25℃±5℃)
- Voltage: <0.5%+5mV
- Current: <0.2%+3mA
- Ripple and Noise (20Hz~20MHz) Voltage: ≤10mVrms
- Current: ≤2mArms
- Temperature Coefficient
- Voltage: ≤300ppm/℃
- Current: ≤300ppm/℃
- Display Type: LED digital tube display
- Voltage: AC 220V (can shift) ±10%
- Frequency: 50Hz/60Hz
Package includes:
- 1pcs x UTP1306S DC Power Supply
