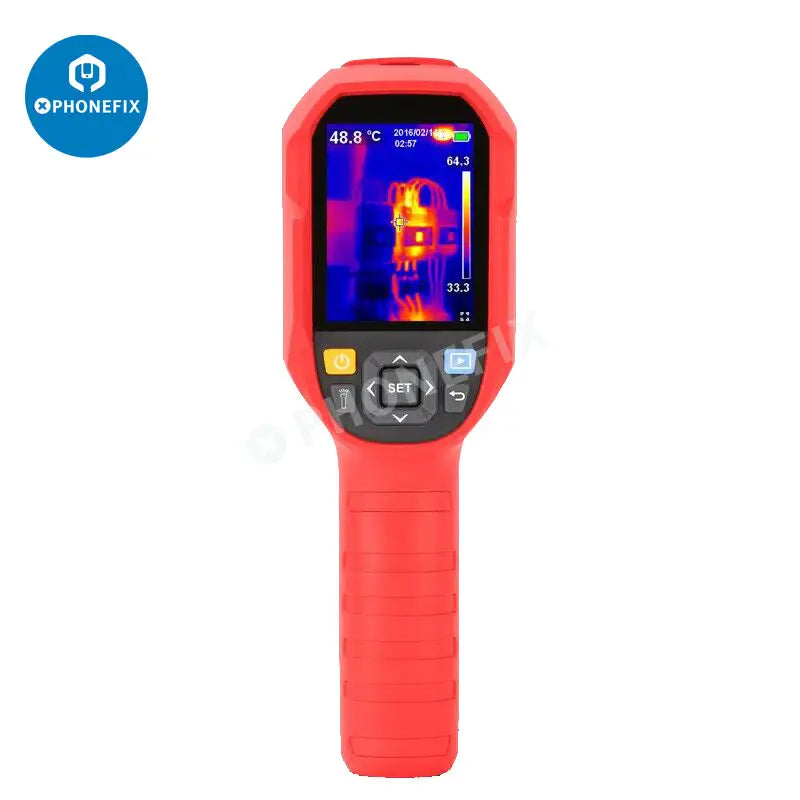

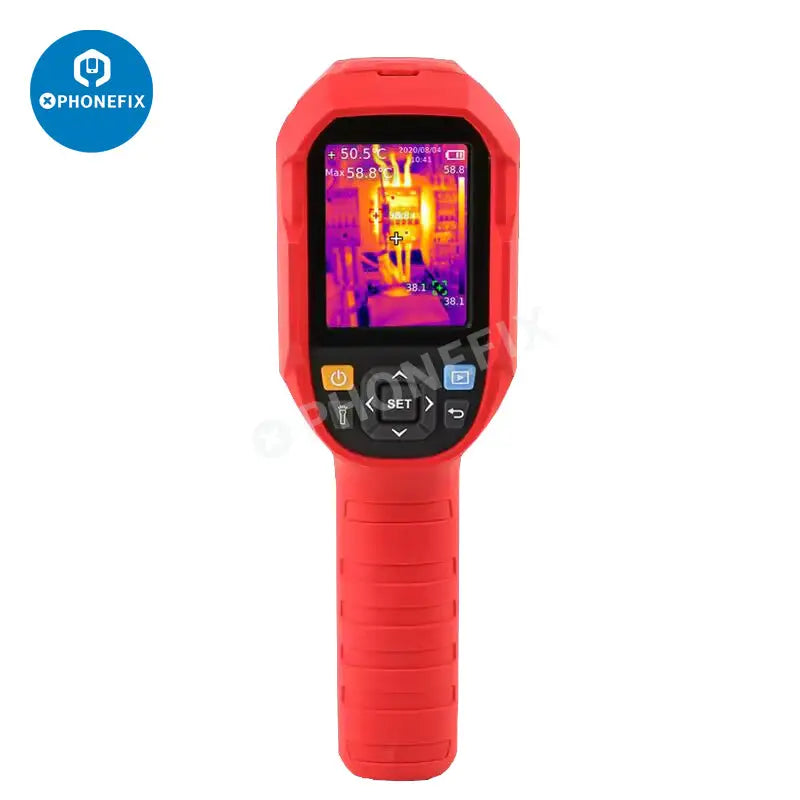

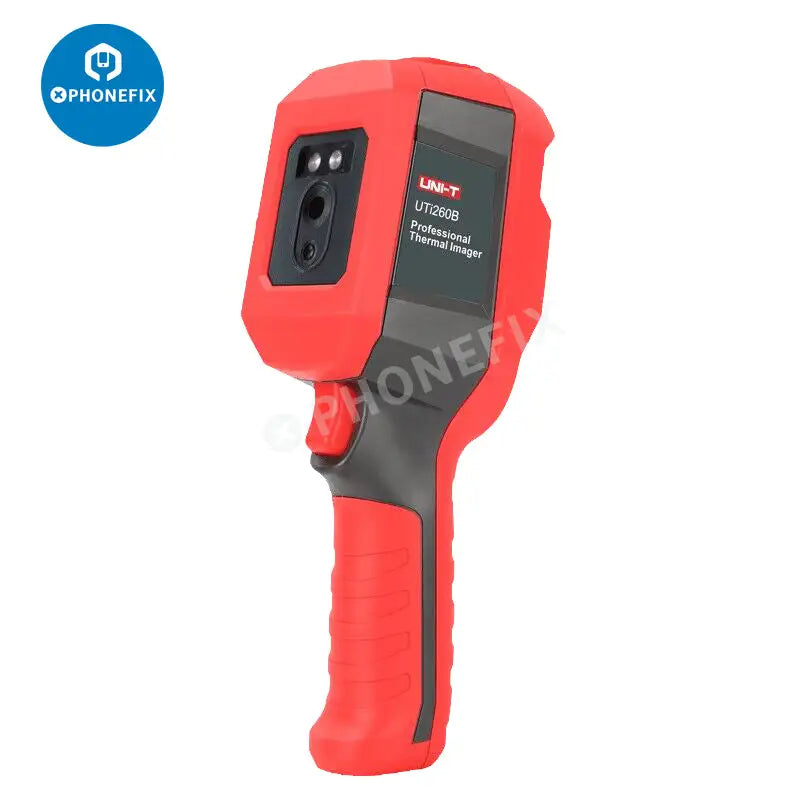

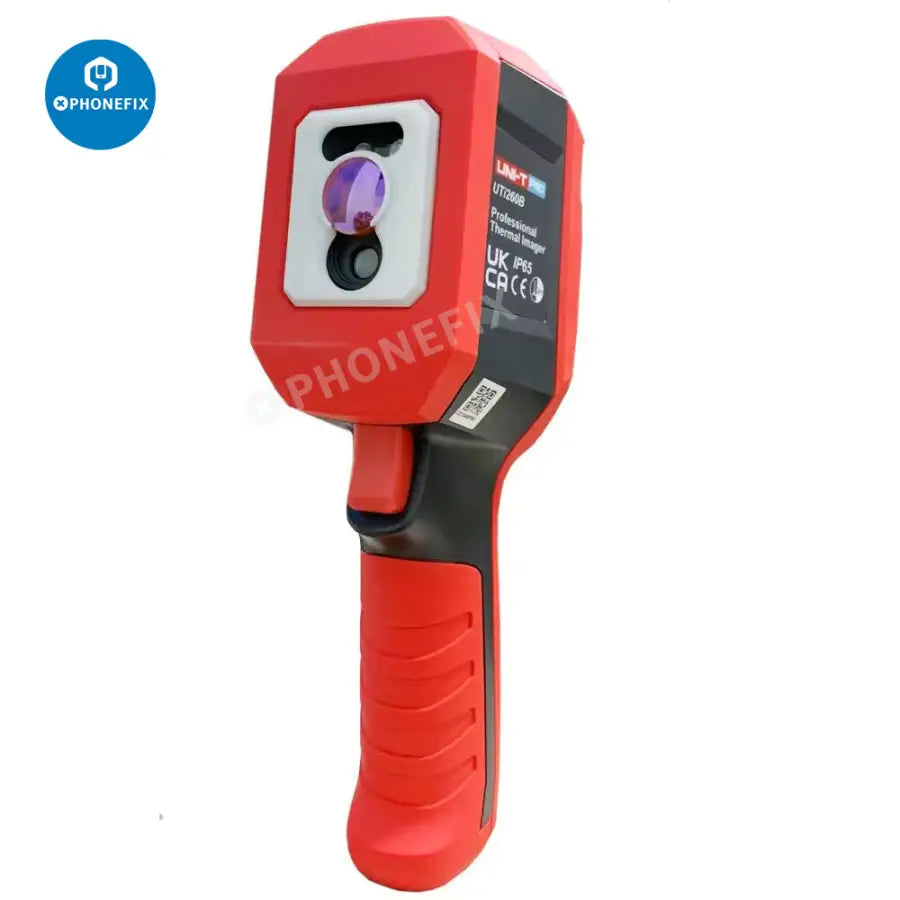

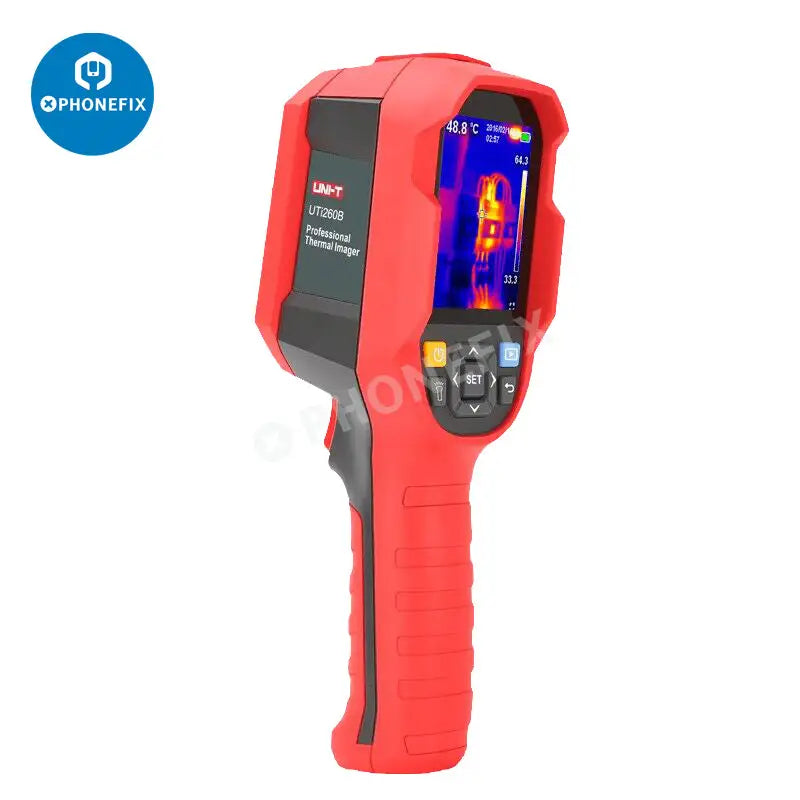

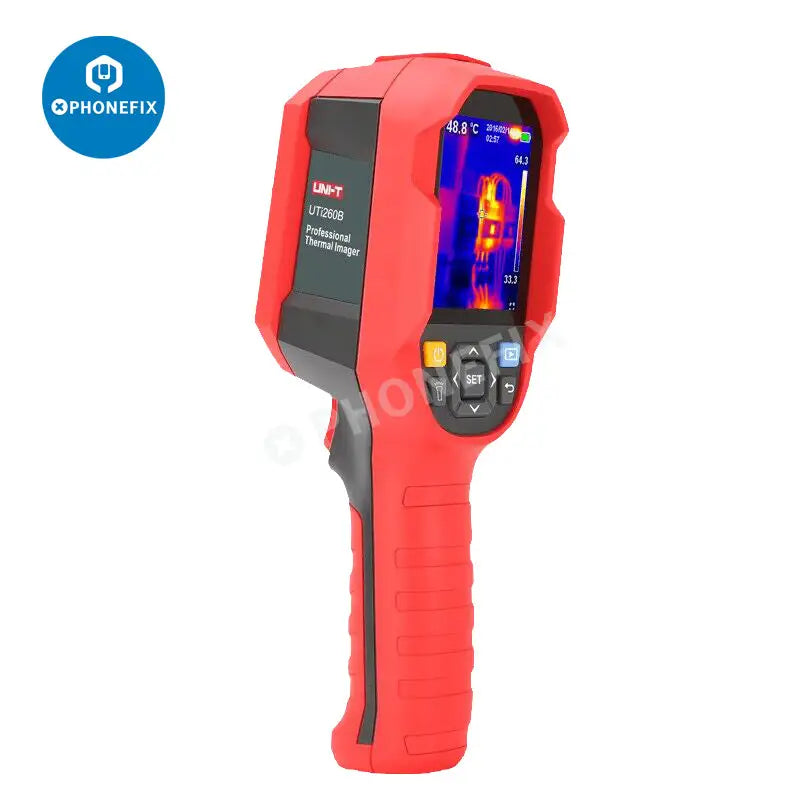

UNI-T UTi260B handheld thermal imaging camera with -20℃~550℃ wide temperature range and 256×192 pixels higher IR resolution for motherboard fault detection, diagnosis and repair. UNI-T UTi260B heavy duty thermal imager with a built-in rechargeable battery, includes 7 color palettes and thermal, visual image, fusion and picture in picture four display modes for mobile phone repair.
Specification: Display: 2.8-inch TFT LCD (320×240). IR resolution: 256×192. Field of view(FOV): 56°×42°. Thermal sensitivity(NETD): ≤50mK. Spatial resolution(IFOV): 3.8mrad. Frame rate: ≤25Hz. Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉. Accuracy: ±2℃ or ±2%. Emissivity: 0.01~1.00 adjustable (0.95 default). Focus: Focus Free. Digital camera resolution: 640×480. On screen analyzer: Point 3. Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC). Image modess: Thermal, Visual image, Fusion, PIP. Hi/Lo temperature alarm: Icon, LED flashlight.
Features: 1. Durable and user-friendly. 2. Auto alarm for high/low temperature. 3. Auto tracking for hot spot/cold spot. 4. Image capture. 5. PC software analysis and real-time image projection 6. Rechargeable fixed Li-ion battery(3.6V 5000mAh). 7. Battery operation time ≥ 6 hours. 8. Type-C USB. 9. IP rating: IP65. 10. 1/4”Tripod Mounting Hole. 11. 2m drop proof 12. Up to 32GB Micro SD card. 13. Image/Video storage format: BMP. 14. It adopts a UFPA detector to ensure excellent infrared resolution and a rich variety of palette modes. 15. Applications: PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building HVAC inspection etc.
Tip: UTi260B charging voltage/current is limited to 5V/2A!
