LINCSeek SuperCam Thermal Camera for Mobile phone Motherboard PCB Fault Detection. Qianli Super Cam X 3D Thermal Imager Camera And Qianli Super Cam Y 3D Infrared Thermal Imaging Analyzing Camera Motherboard Fault Diagnosis Tool. Mechanic TI-08 3D Thermal Imager Camera And LINCSeek Fifth Generation IIT ShortCam Mini Clamping Infrared Thermal Imager Circuit Board Troubleshooting Tool.

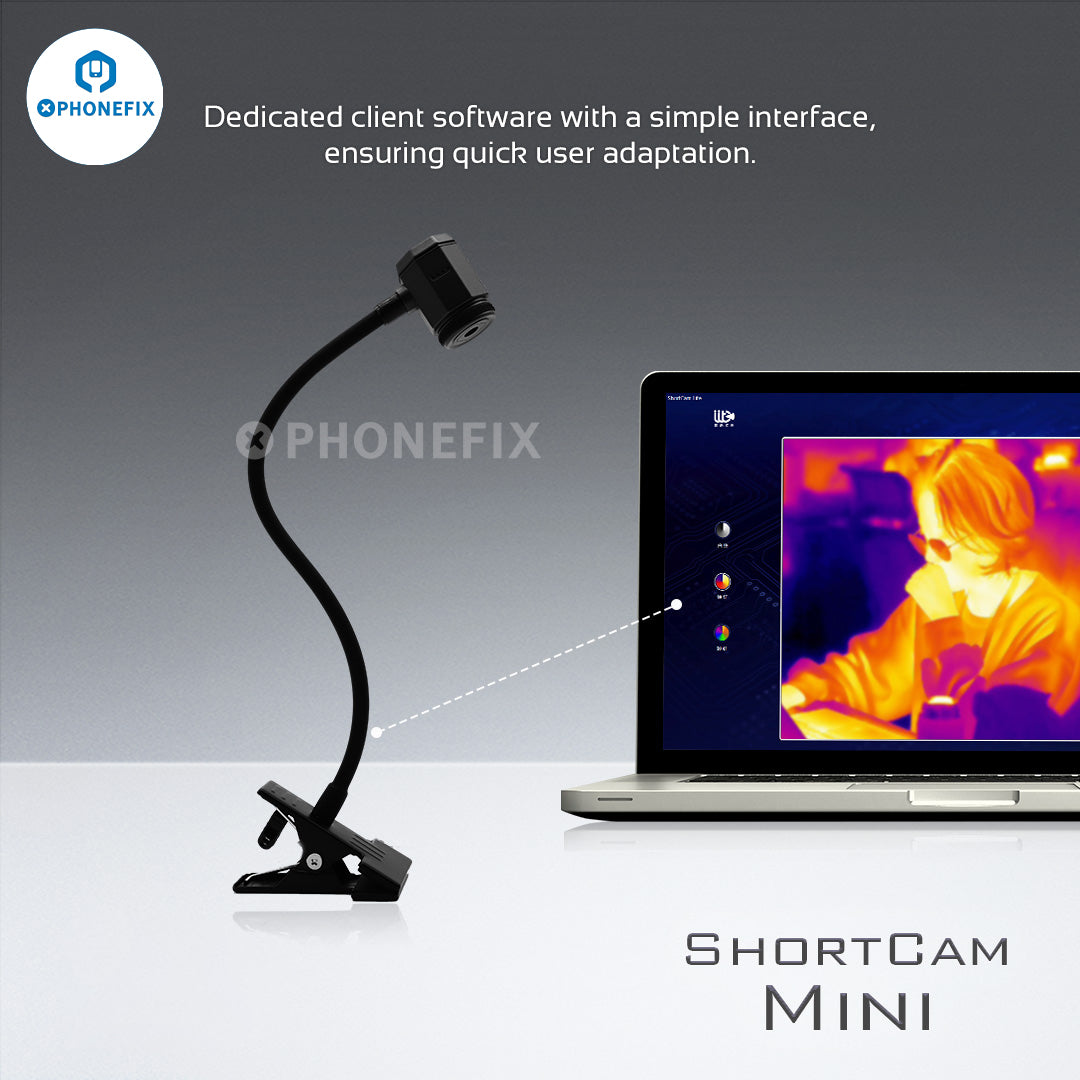

ShortCam Mini Thermal Imager Specification:
Model: AS21 Mini.
Resolution: 256*192.
Wavelength range: 7.5um-13.5um.
Camera angle: 25°-18°.
Display mode: Thermal imaging.
Connector type: Type-C, USB2.0.
Weight: lens-36g, body-200g.
Length: flexible gooseneck-30cm.
Lens specifications: diameter-34mm, hight-47.5mm, lantern-shaped.
Temperature measurement range: -20℃-550℃.
Temperature measurement distance: 5cm-25cm.
Supported platforms: desktop/laptop windows 7/10/11.

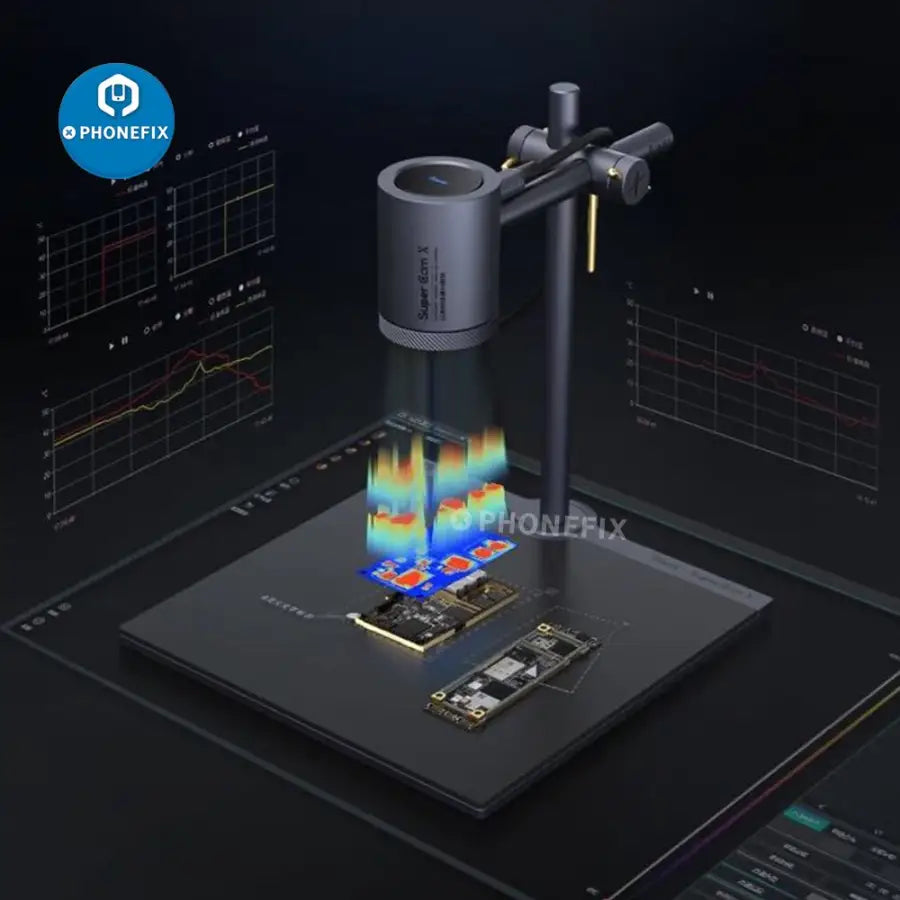

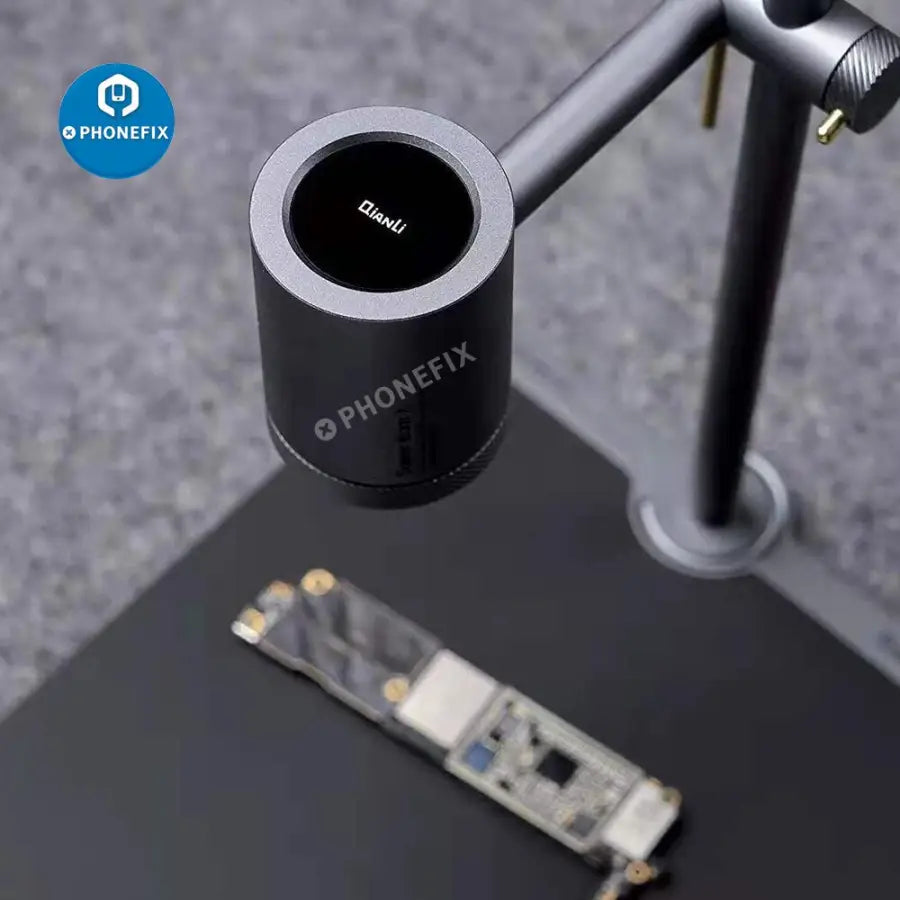

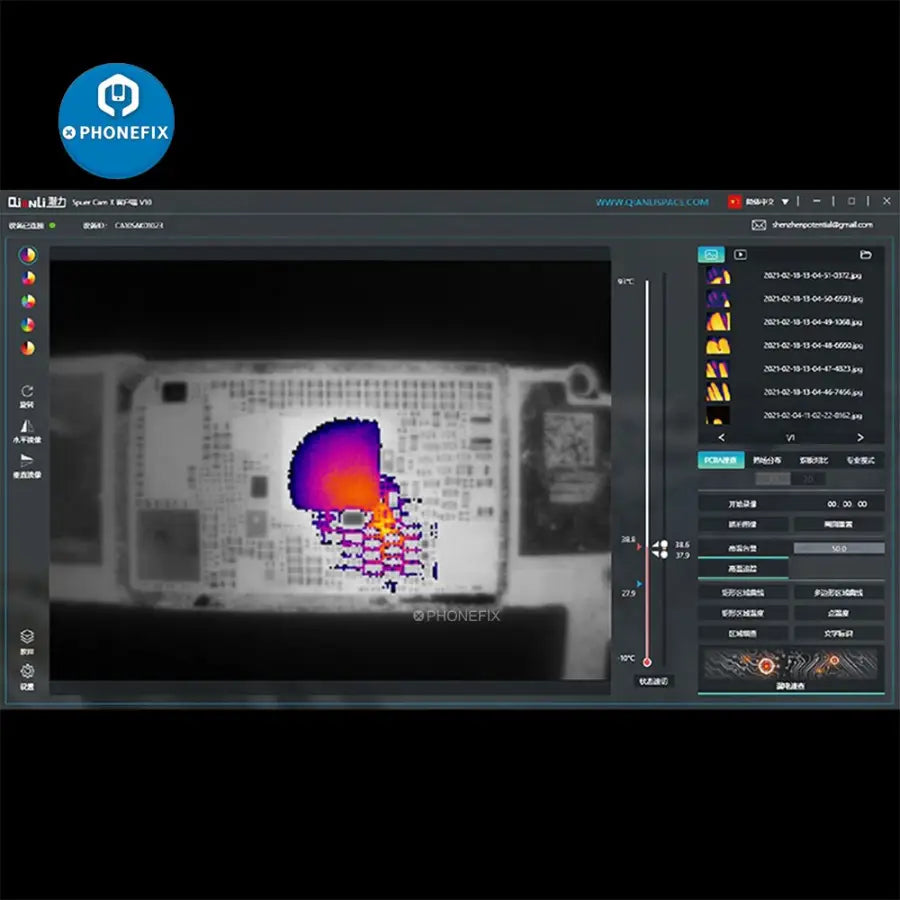

Qianli Super Cam X 3D Thermal Camera Specification:
Resolution: 52000 (260x200).
Wavelength range: 7-14um.
Camera angle: 42°x 32°.
Frame frequency: 25hz.
Bracket size: 150x160x161.5mm.
Input voltage: 5V DC.
Power consumption: <250mw.
Display mode: infrared thermal imaging.
Port type: Type-C to USB.
Image storage format: JPG(640X480).
Video storage format: MP4.
Temperature measurement function: full frame temperature measurement.
Temperature measurement distance: 2MM-∞.
Temperature measurement accuracy: ±5℃ or ±5%.
Temperature range: -20℃-120℃.
Storage temperature range: -15℃ - +60℃.
Humidity: 95% Relative temperature.

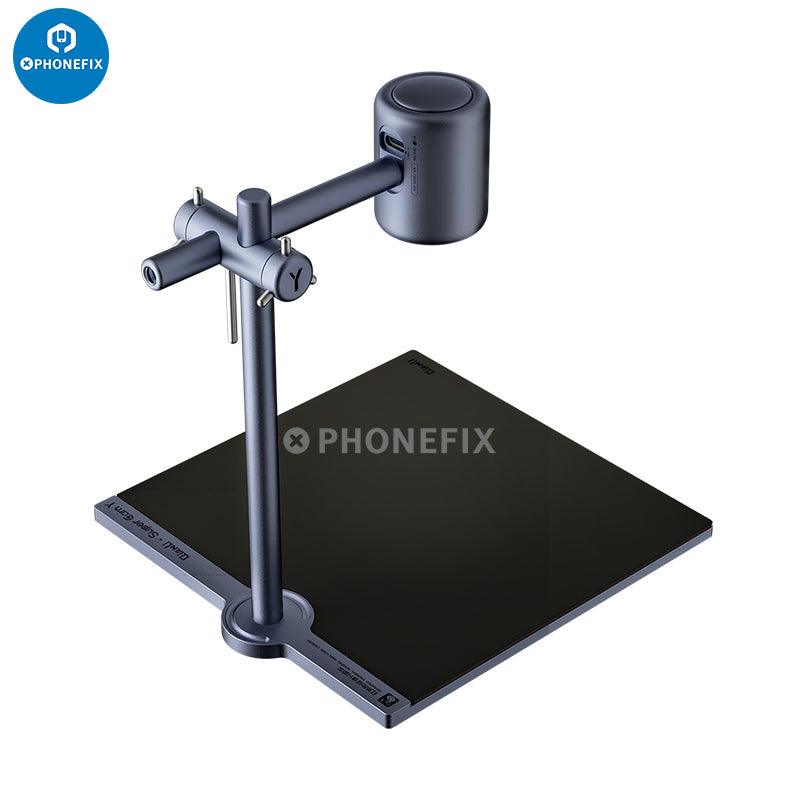

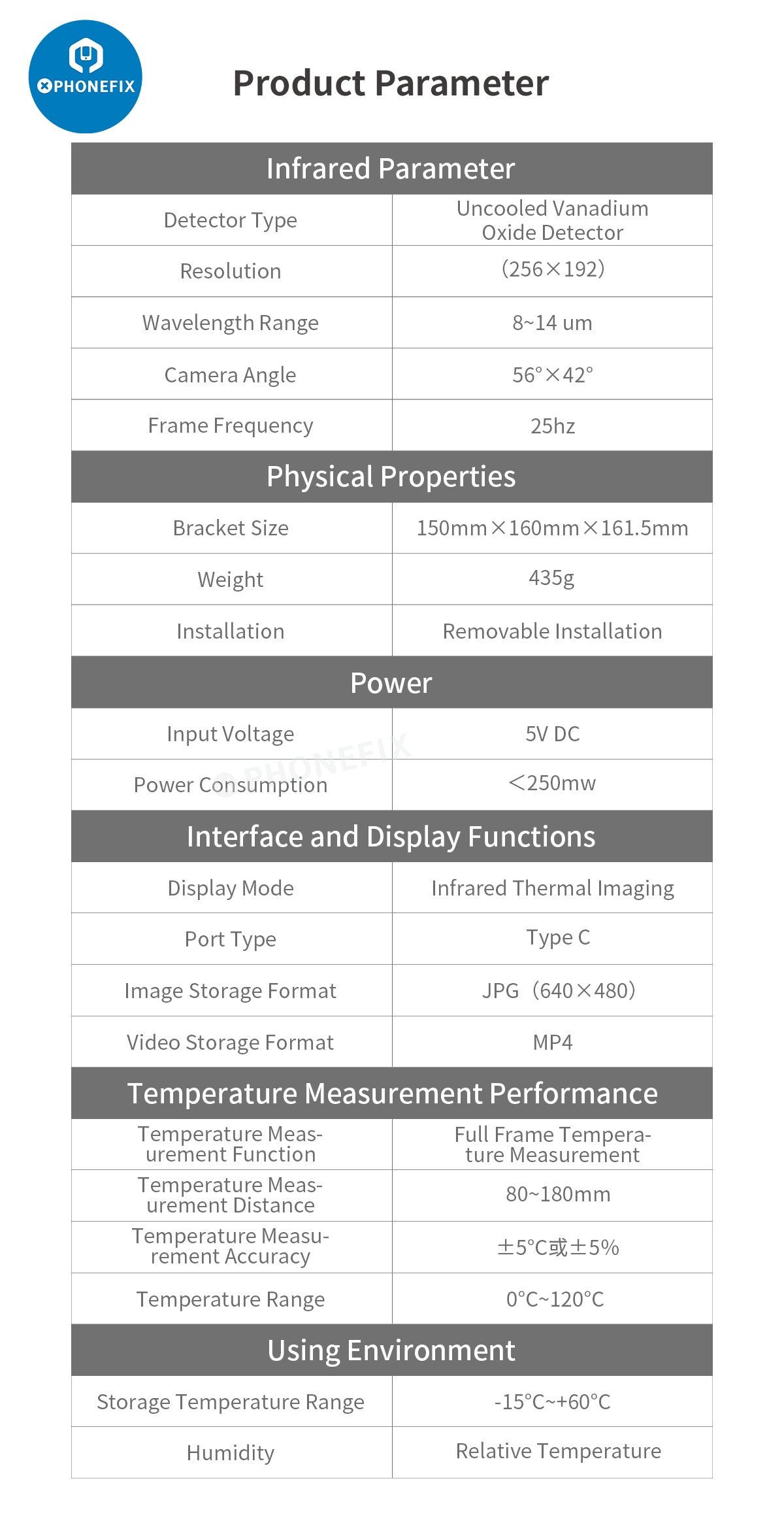

Qianli Super Cam Y 3D thermal camera specification:
Resolution: 256x192.
Wavelength range: 8-14um.
Camera angle: 56-42 degree.
Frame frequency: 25hz.
Bracket size: 150x160x161.5mm.
Input voltage: 5V DC.
Power consumption: <250mw.
Display mode: infrared thermal imaging.
Port type: Type-C.
Image storage format: JPG(640X480).
Video storage format: MP4.
Temperature measurement function: full frame temperature measurement.
Temperature measurement distance: 80-180mm.
Temperature measurement accuracy: ±5℃ or ±5%.
Temperature range: 0℃-120℃.
Storage temperature range: -15℃ - +60℃.
Humidity: Relative temperature.

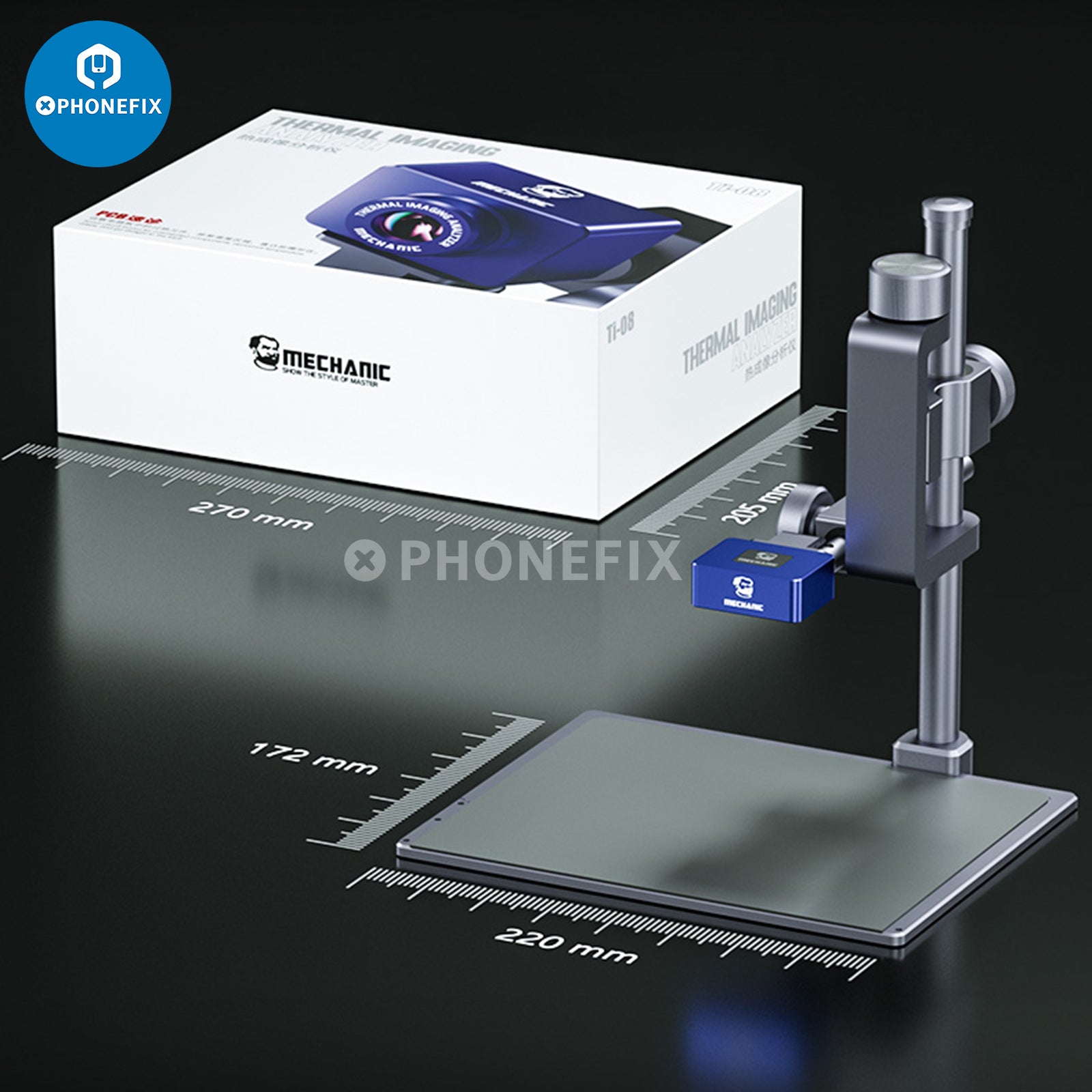

Mechanic 3D Infrared Thermal Imaging camera specification:
Product model: TI-08.
Resolving power: 256x192 pixels.
Temperature measurement distance: 30mm-150mm.
Device interface: USB Type-C.
Lens field of view angle: 56x42.
Image storage format: JPG.
Video storage format: MP4.
Field: 3D thermal field release analysis visual display of temperature changes.

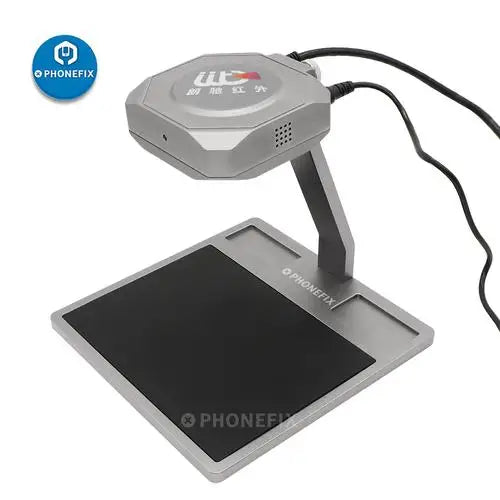

LINCSeek SuperCam Thermal Camera Specification:
Model: IIT ShortCam.
Resolution: 160x120.
Wavelength range: 7.5-13.5um.
Camera Angle: 61.8ºx49.5º.
Visible part of the parameters: resolution 1920x1080.
Display Mode: Visible / Infrared Thermal Imaging / Dual Optical Interlace positioning.
Power: Input power voltage 5-26V DC.
Power consumption: 2.2W (maximum 3W).
Temperature function: full temperature.
Infrared Thermal Camera Features:
1. Maximum temperature range
2. Test area maximum temperature
3. Test area minimum temperature
4. Minimum temperature range
5. Can adjust the angle of the visible light camera
6. Adjustable fusion of infrared thermal imaging and visible light image is clearer image
7. Switchable display mode
8. You can capture pictures taken by PCB and save the data of infrared imaging.
9 can record images taken by PCB and save data of infrared thermography
10. Turn on quick check to quickly find the hottest place.
