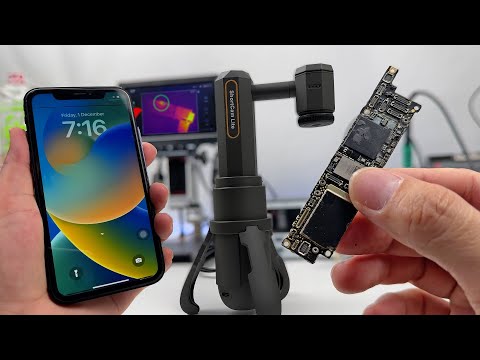

Sunshine TB-03S infrared rapid thermal camera for Mobile Phone PCB short circuit diagnosis tool. 2023 New IIT ShortCam Lite Thermal Imaging Camera Motherboard Fault Diagnosis Instrument compatible with microscopes mobile phones and laptops. IIT ShortCam Lite and TB-03S thermal imager for diagnosing motherboard IC faults such as short circuit, overheating, etc. Sunshine TB-03S Mini Clamp-Type Infrared Thermal Imaging PCB Rapid Diagnosis Instrument.

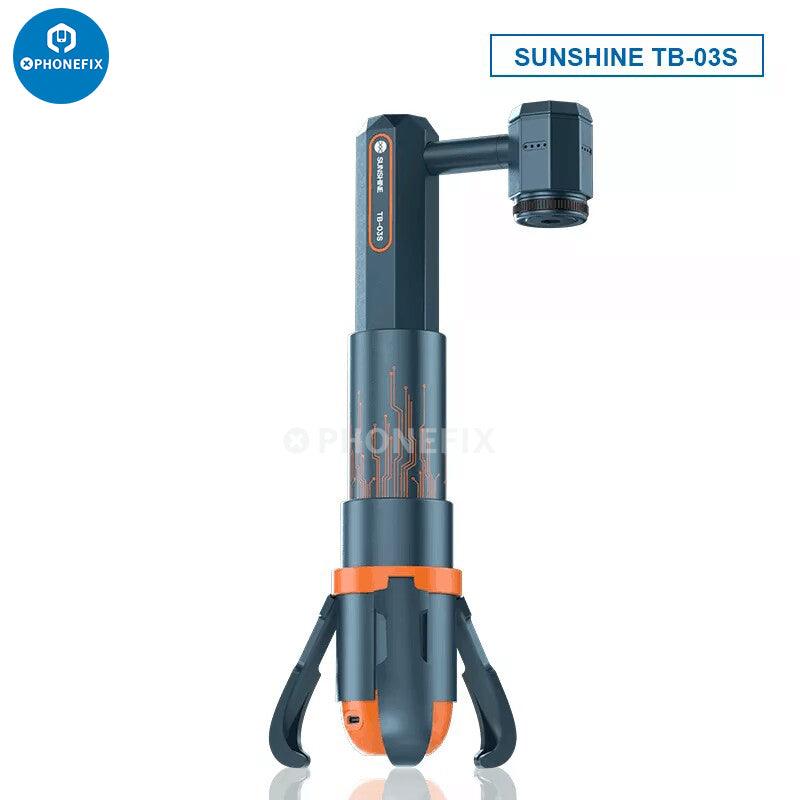

Sunshine TB-03S Features:

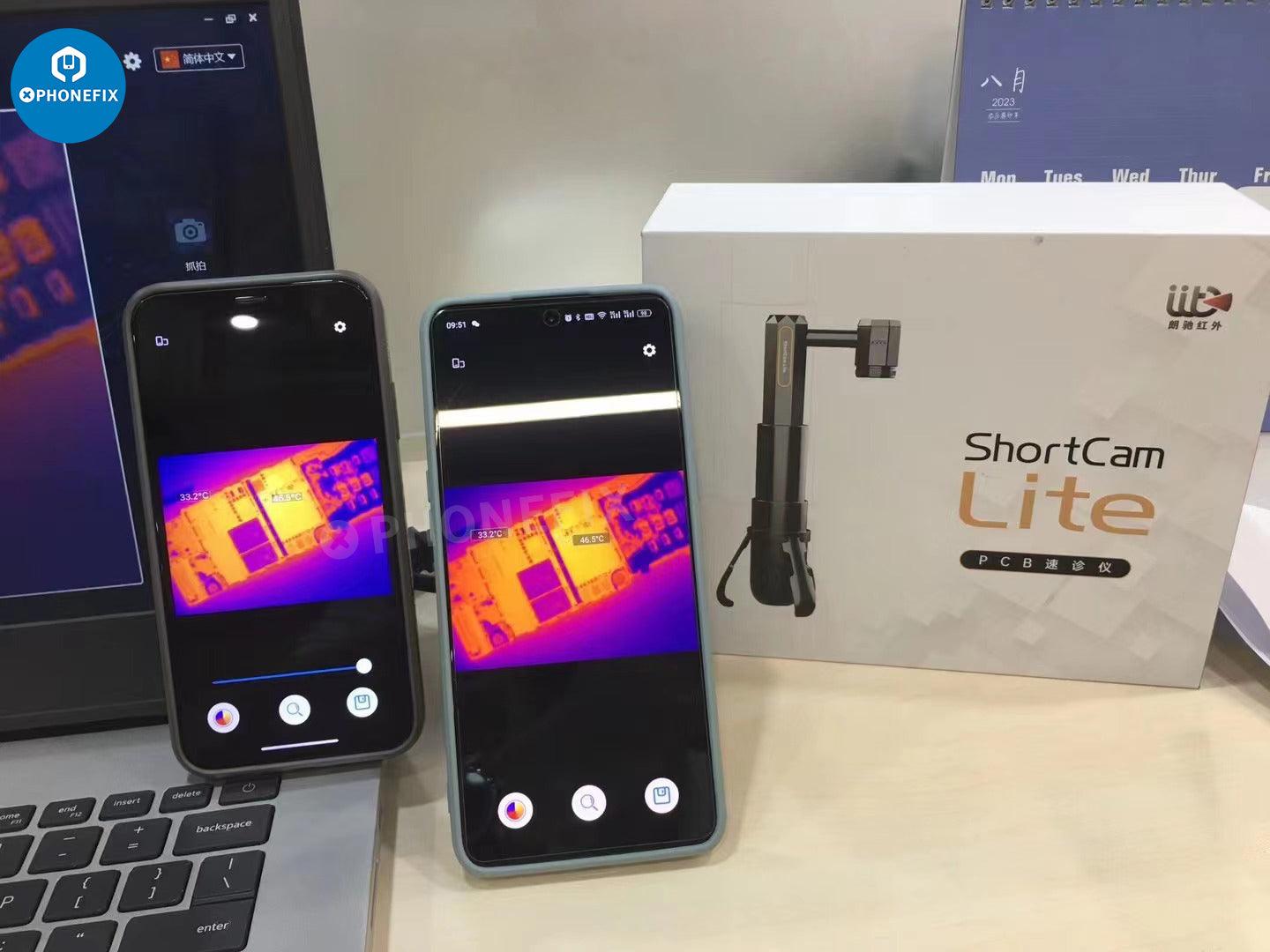

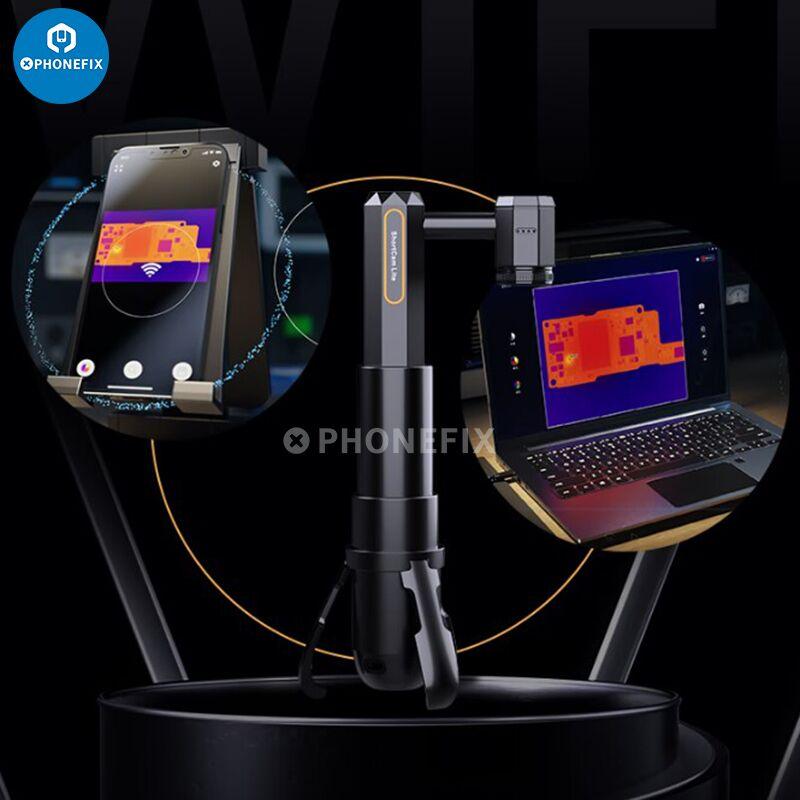

- TB-03S infrared rapid thermal camera supports multi-platform client connections such as iPhone mobile phones, Android mobile phones, and laptops.

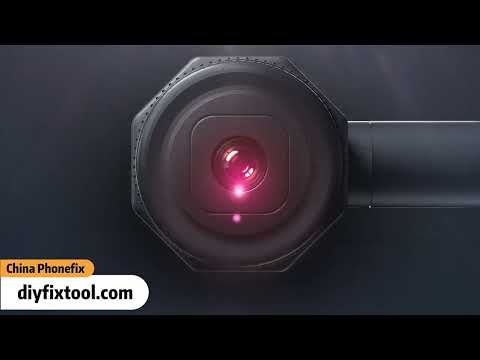

- The infrared lens is detachable and can be installed on the microscope through a special bracket.
- The bracket can be flexibly stretched to adjust the height, which is convenient for storage, comprehensively improves the user experience, and meets the needs of different scenarios.
- High-definition thermal imaging / multi-platform support / detachable infrared lens / adjustable bracket.

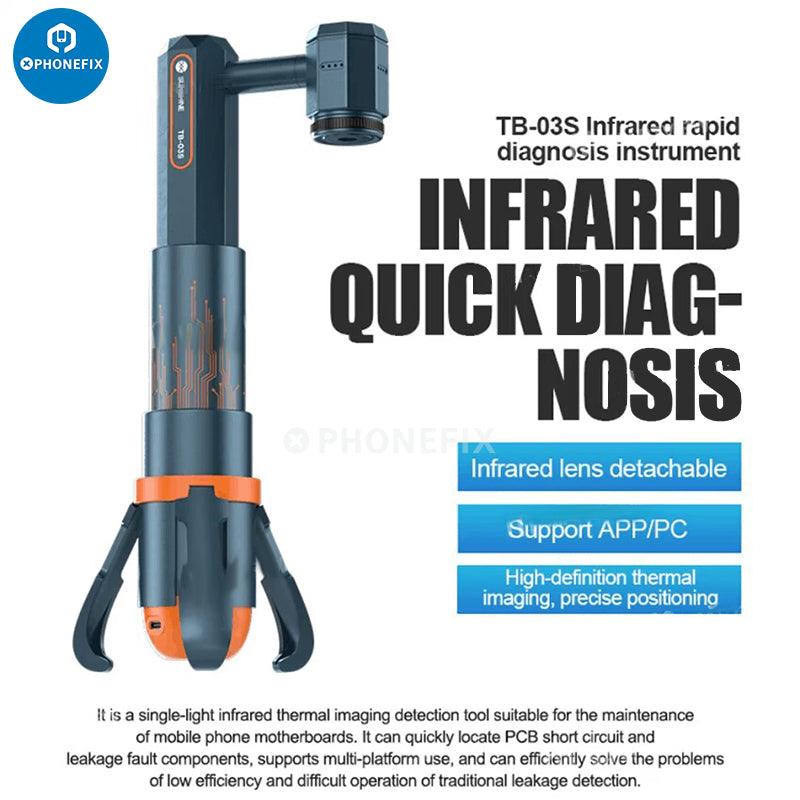

- It is a single-light infrared thermal imaging detection tool suitable for the maintenance of mobile phone motherboards.
- It can quickly locate PCB short circuit and leakage fault components, supports multi-platform use, and can efficiently solve the problems of low efficiency and difficult operation of traditional leakage detection.

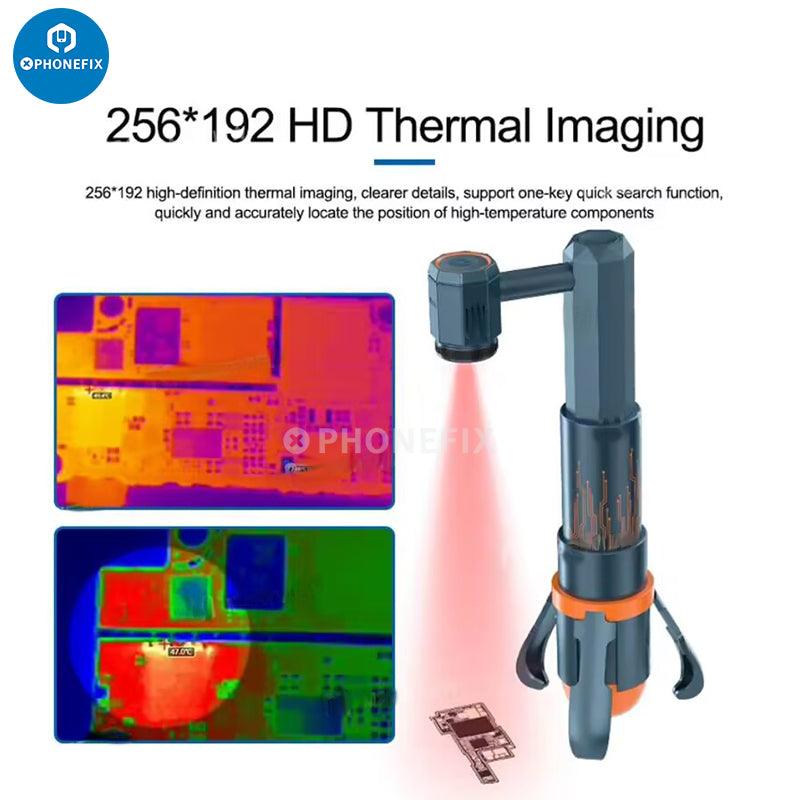

- 256*192 high-definition thermal imaging, clearer details, support one-key quick search function, quickly and accurately locate the position of high-temperature components.

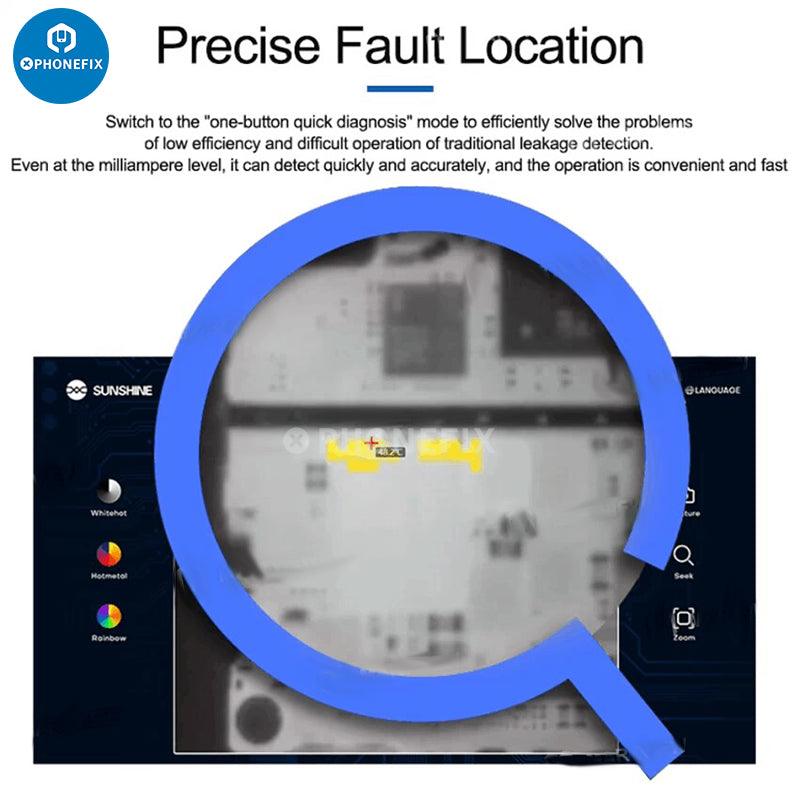

- Switch to the "one-button quick diagnosis" mode to efficiently solve the problems of low efficiency and difficult operation of traditional leakage detection. Even at the milliampere level, it can detect quickly and accurately, and the operation is convenient and fast.

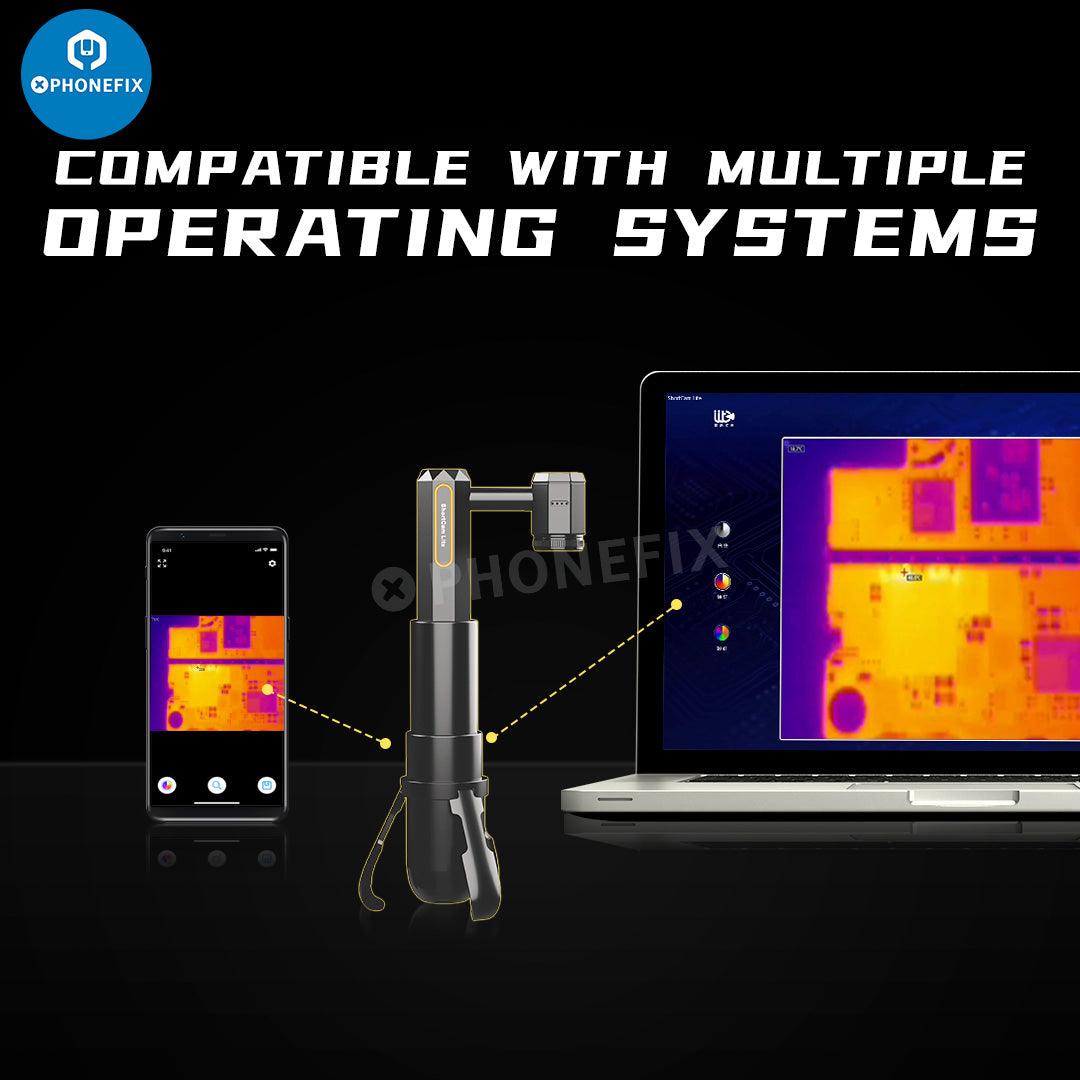

- Compatible with multiple operating systems, with WIFI function, it supports multi-platform client connections such as IP mobile phones, Android mobile phones, and laptops.

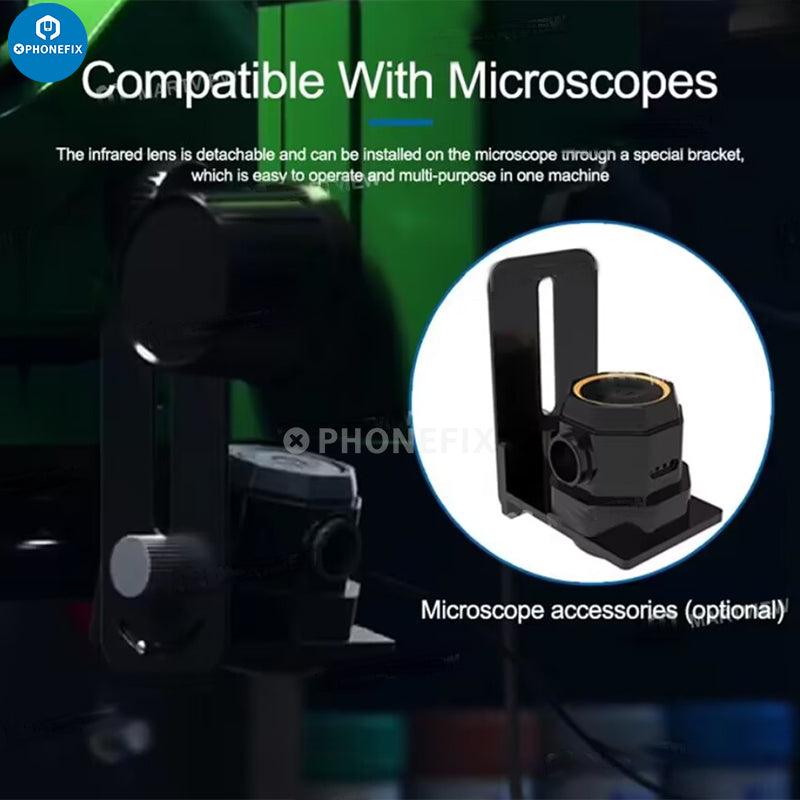

- The infrared lens is detachable and can be installed on the microscope through a special bracket, which is easy to operate and multi-purpose in one machine.

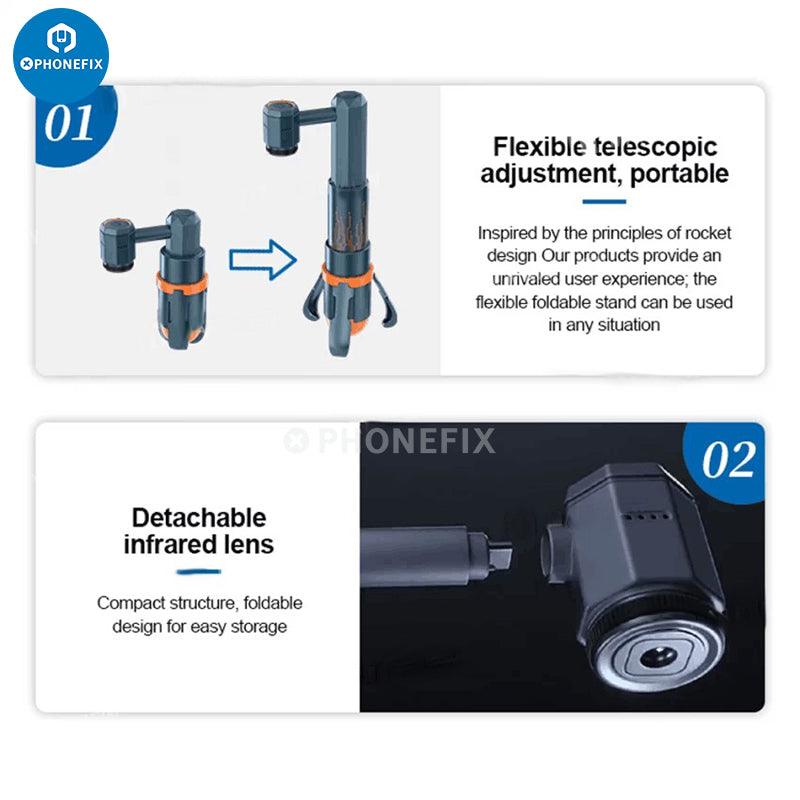

- Flexible telescopic adjustment, portable, inspired by the principles of rocket design Our products provide an unrivaled user experience; the flexible foldable stand can be used in any situation.
- Detachable infrared lens, compact structure, foldable design for easy storage.
Sunshine TB-03S Mini Features:

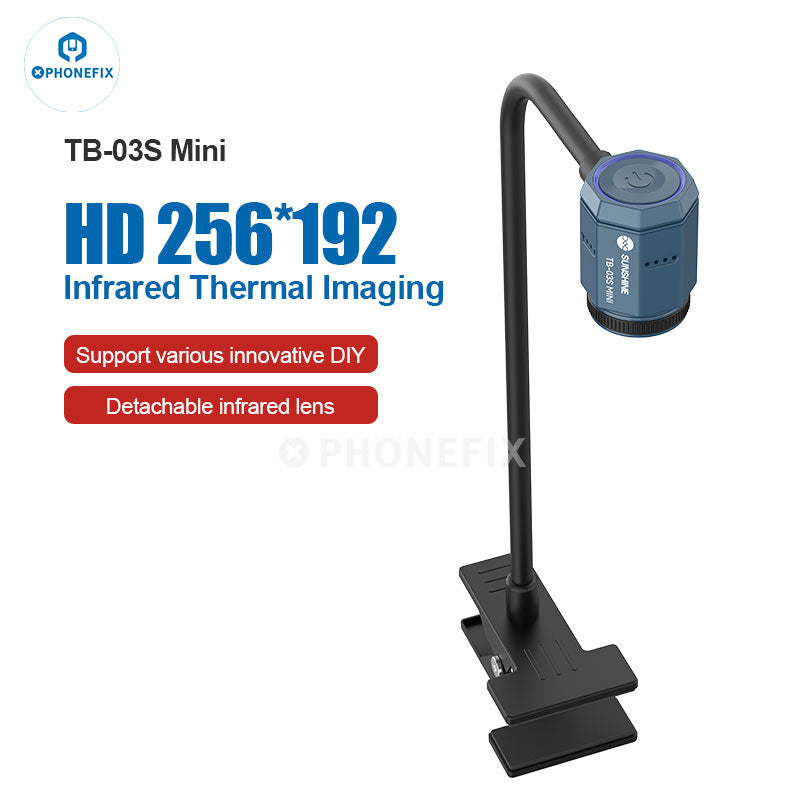

- TB-03S Mini HD Infrared thermal imaging supports various innovative DIY and detachable infrared lens.
- It is used in many scenarios such as circuit board inspection, house inspection, industrial equipment inspection, visitor monitoring, etc.

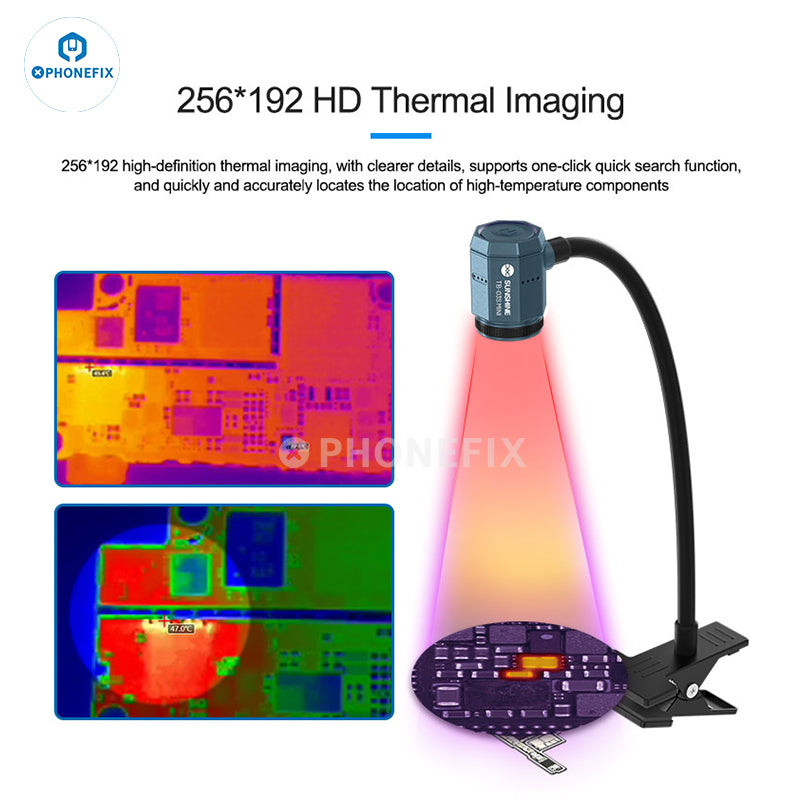

- 256*192 high-definition thermal imaging, with clearer details, supports a one-click quick search function and quickly and accurately locates the location of high-temperature components.

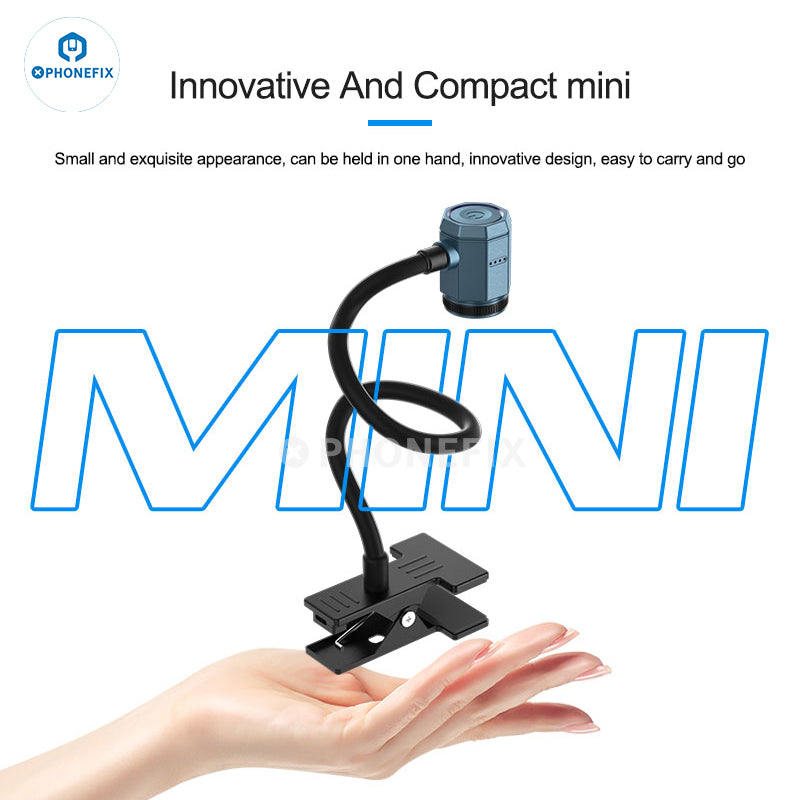

- Small and exquisite appearance, can be held in one hand, innovative design, easy to carry and go.

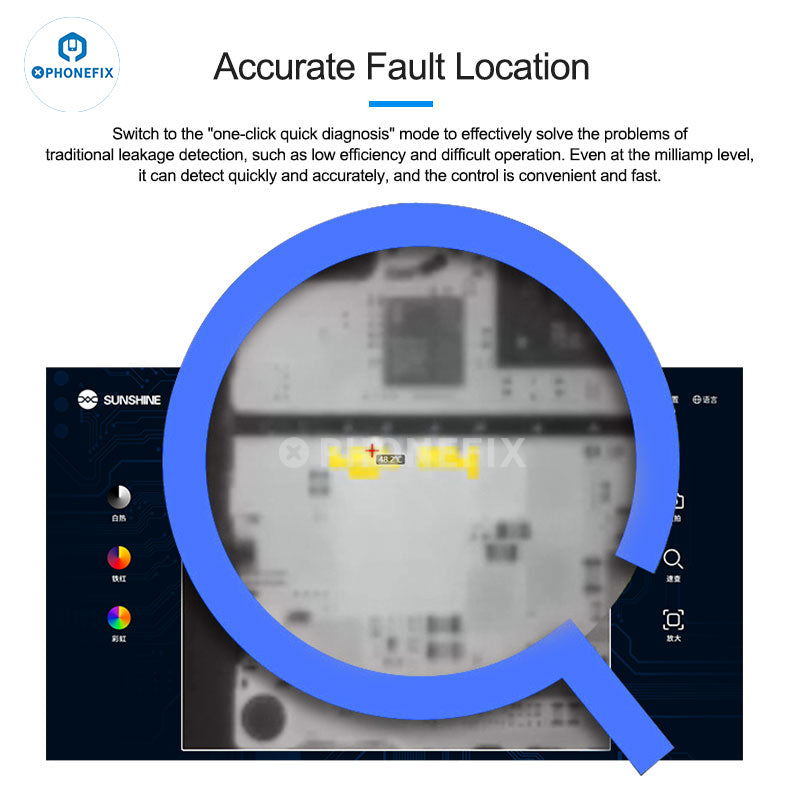

- Switch to the "one-click quick diagnosis" mode to effectively solve the problems of traditional leakage detection, such as low efficiency and difficult. operation. Even at the milliamp level, it can detect quickly and accurately, and the control is convenient and fast.

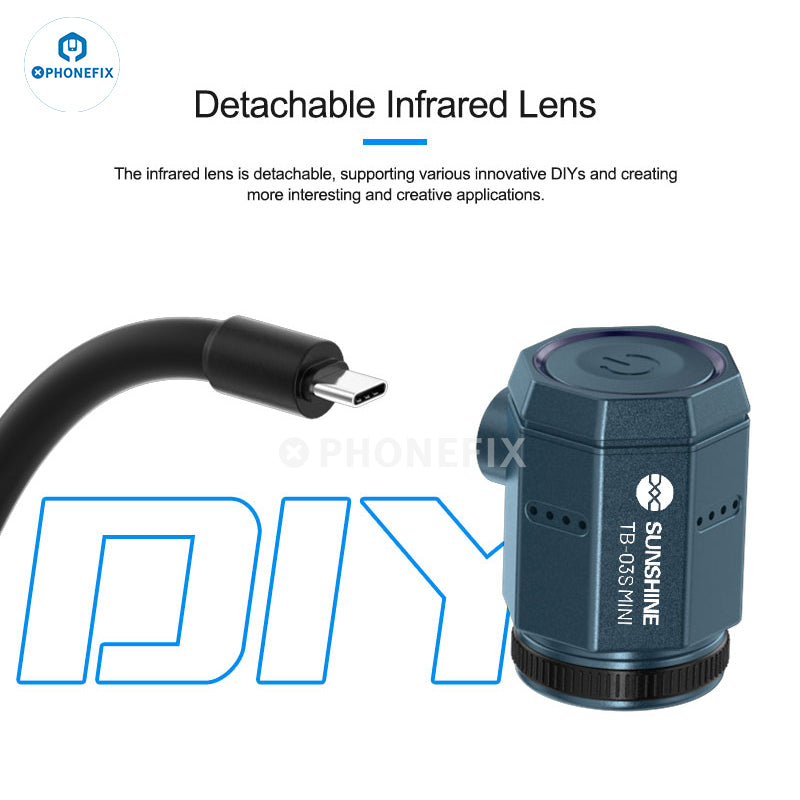

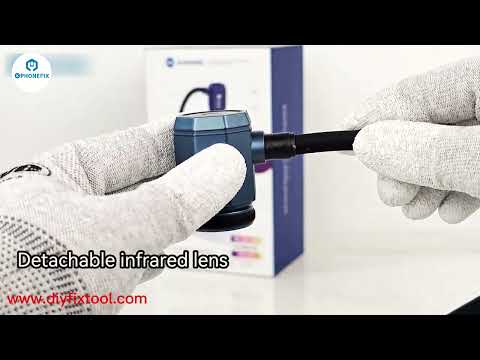

- The infrared lens is detachable, supporting various innovative DIYs and creating more interesting and creative applications.

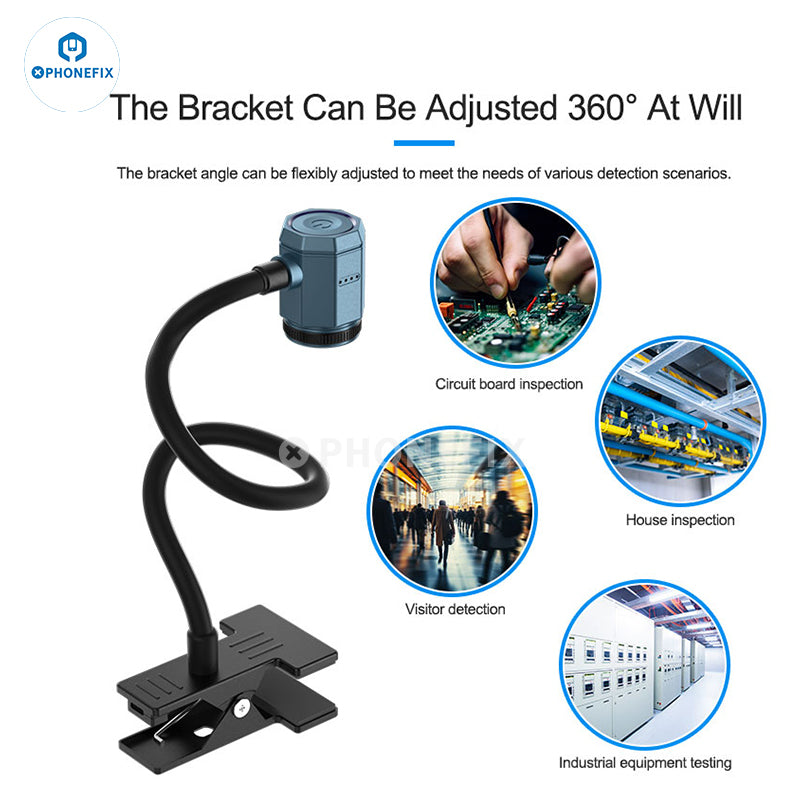

- The bracket can be adjusted 360° at will, and the bracket angle can be flexibly adjusted to meet the needs of various detection scenarios.

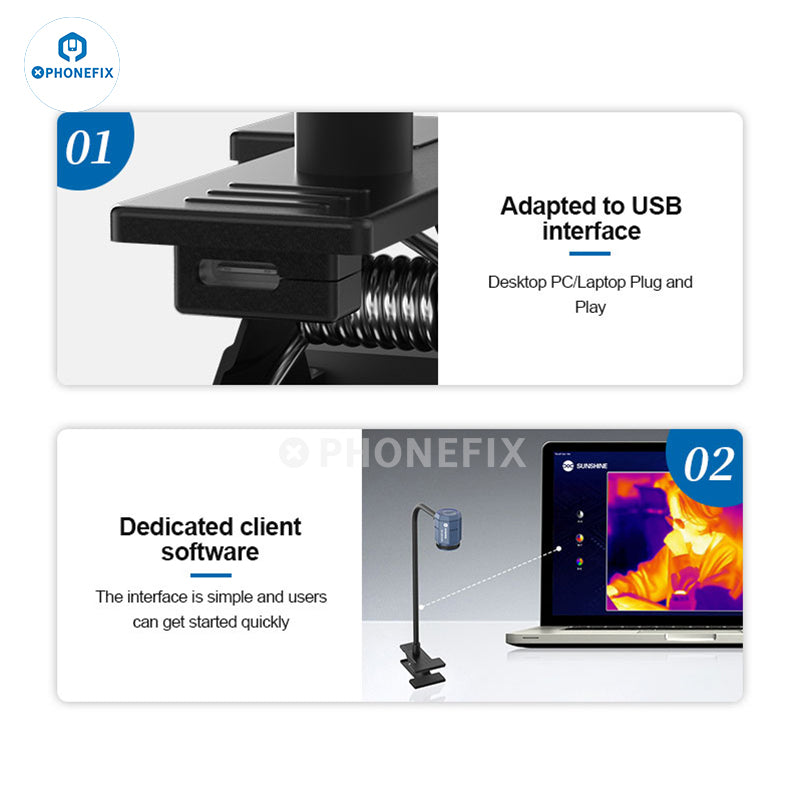

- Dedicated client software, the interface is simple and users can get started quickly.

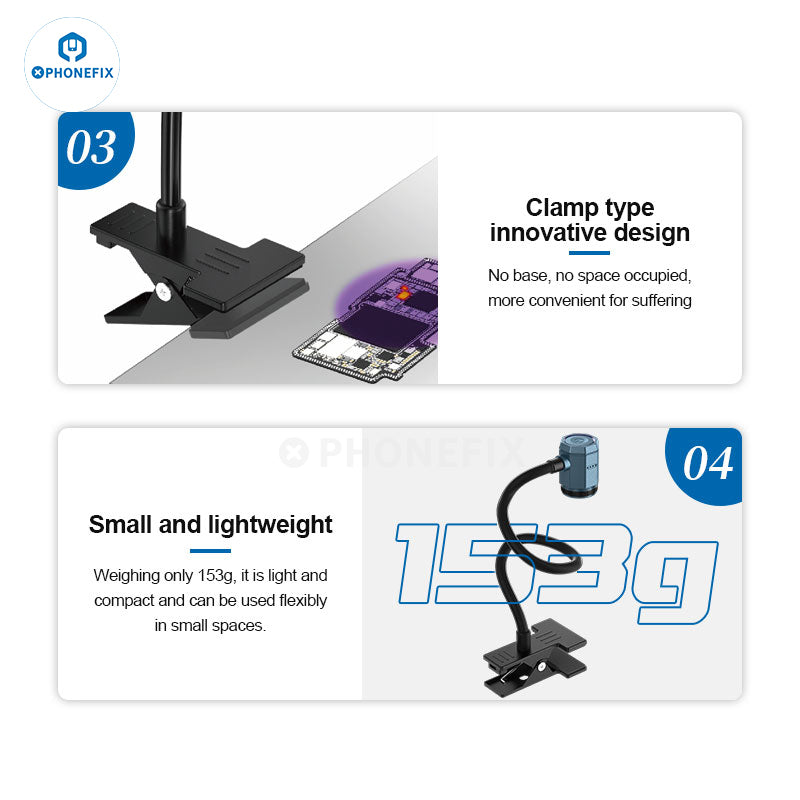

- Clamp-type innovative design, no base, no space occupied, more convenient for suffering.
- The interface is simple and users can get started quickly.

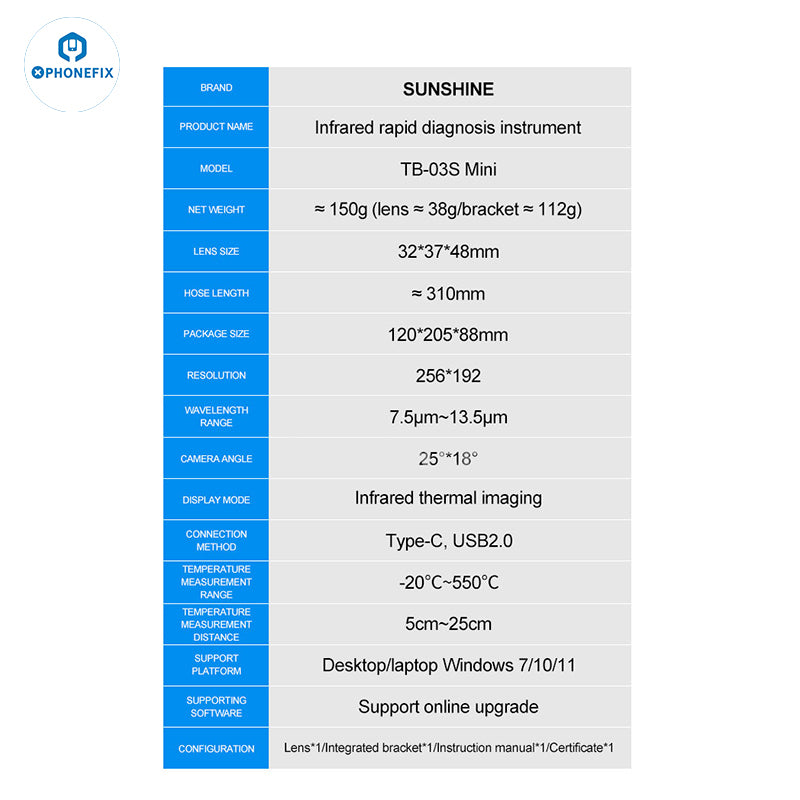

Specification:
Brand: SUNSHINE
Product Name: Infrared rapid diagnosis instrument
Model: TB-03S Mini
Net Weight: ≈153g (Lens≈38g/Bracket≈155g)

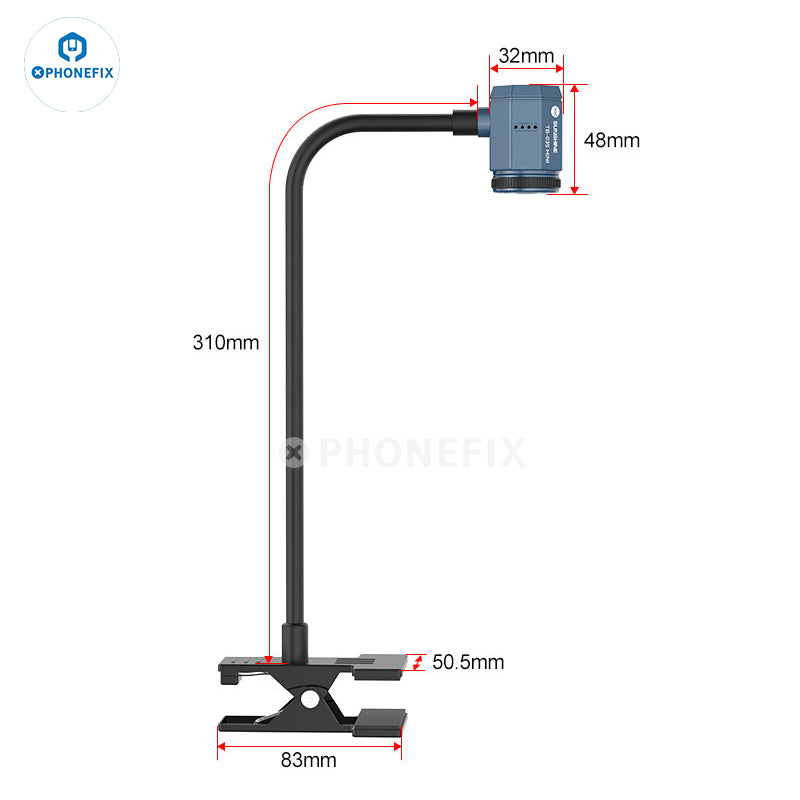

Lens Size: 32*37*48mm
Hose Length: ≈310mm

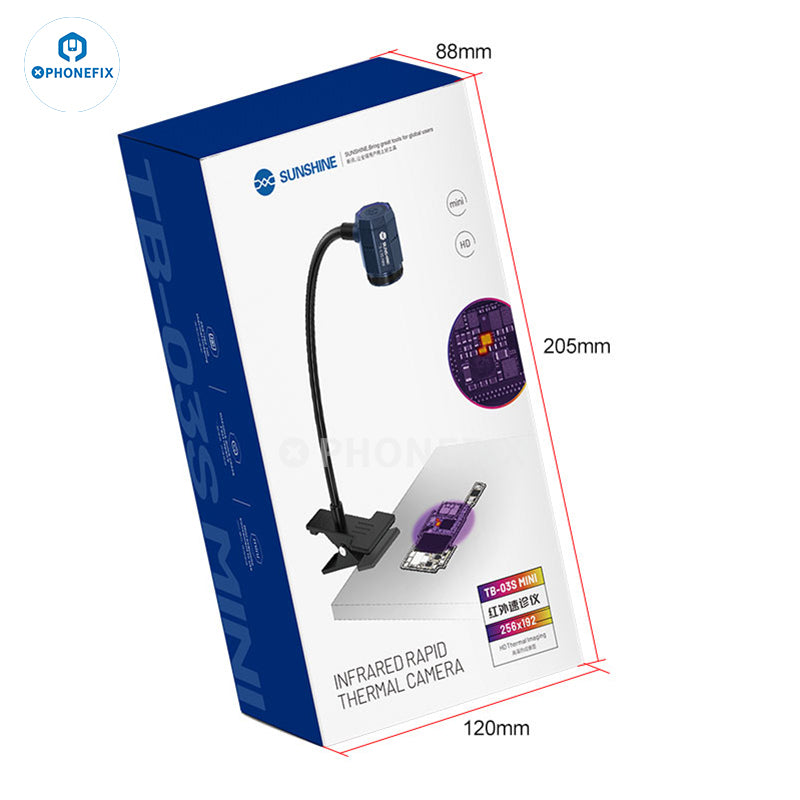

Package Size: 120*205*88mm
Resolution: 256*192
Wavelength Range: 7.5μm~13.5μm
Camera Angle: 25°*18°
Display Mode: Infrared thermal imaging
Connection Method: Type-C, USB 2.0
Temperature Measurement Range: -20°C~550°C
Temperature Measurement Distance: 5cm~25cm
Support Platform: Desktop/Laptop Windows 7/10/11
Supporting Software: Support online upgrade.
