SUNSHINE P-3005A 30V 5A DC power supply for mobile phone repair. SunShine P1 Pro Max Intelligent Voltage Regulator Power Supply With QC PD Fast Charging Port Waveform Display For Motherboard Short-circuit Fault repair, battery welding, current and voltage monitoring, etc. Kailiwei 3005D 30V 5A multifunctional DC stabilized power supply for phone repair. TBK 217 30V 5A DC Regulated Power Supply With 4-Channel Storage Curved And Hyperbola Display.

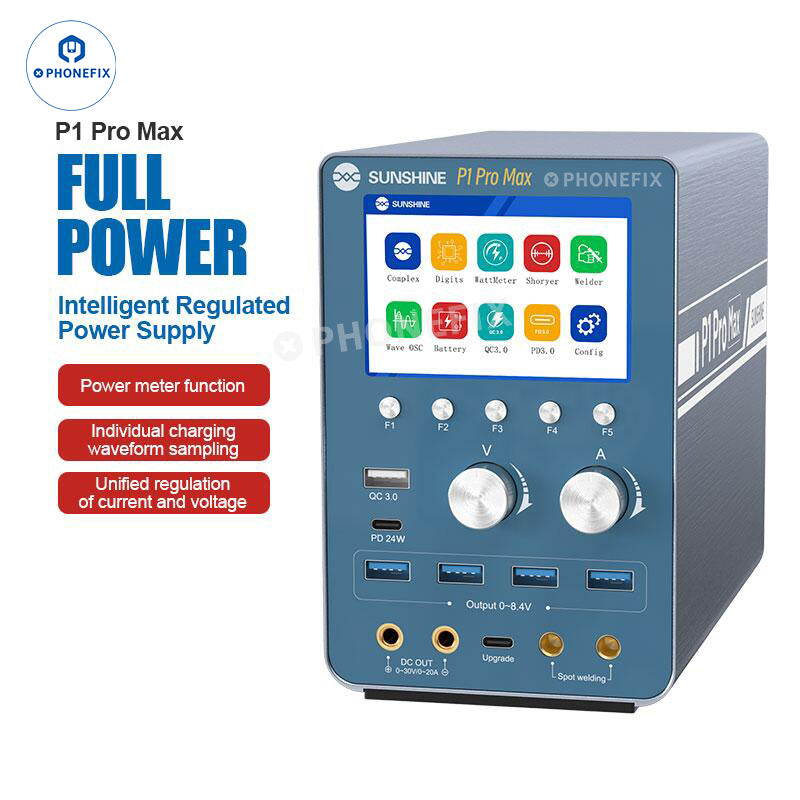

Sunshine P1 Pro Max Power Supply Features:
1. Sunshine P1 Pro Max intelligent regulated power supply, power meter function, individual charging waveform sampling, unified regulation of current and voltage.
2. Infinitely expandable, intelligent comprehensive monitoring, short circuit detection, powerful spot welding, fast charging protocol, intelligent voltage stabilization, powerful and all-encompassing.
3. Double pulse powerful spot welding, supports precision welding of electronic components, battery plate replacement, lithium battery nickel sheets, etc.; the first/second pulse duration can be customized.
4. Short circuit detection and repair, solve the short-circuit fault repair of mobile phones and various electronic devices, quickly switch three-way voltage, and support free adjustment of current and voltage.
5. Can be used in many fields such as burn-in, battery spot welding, battery startup, battery testing, QC fast charging, PD fast charging, waveform display, power meter, remote upgrade, comprehensive regulated output, etc.
6. Can be used in many fields such as burn-in, battery spot welding, battery startup, battery testing, QC fast charging, PD fast charging, waveform display, power meter, remote upgrade, comprehensive regulated output, etc.
7. Supports PD/QC fast charging protocol, real-time detection of fast charging voltage and current, separate charging current waveform sampling, more powerful functions
8. Supports iPhone/Android battery protocol, and one-click power-on test of the motherboard, making maintenance more convenient.
DC unified output waveform display, the startup power supply is connected to the main power output, the current and voltage are adjusted uniformly, and the main power waveform interface switches between multiple ranges (1.2A/2.4A/4A/6A/12A).

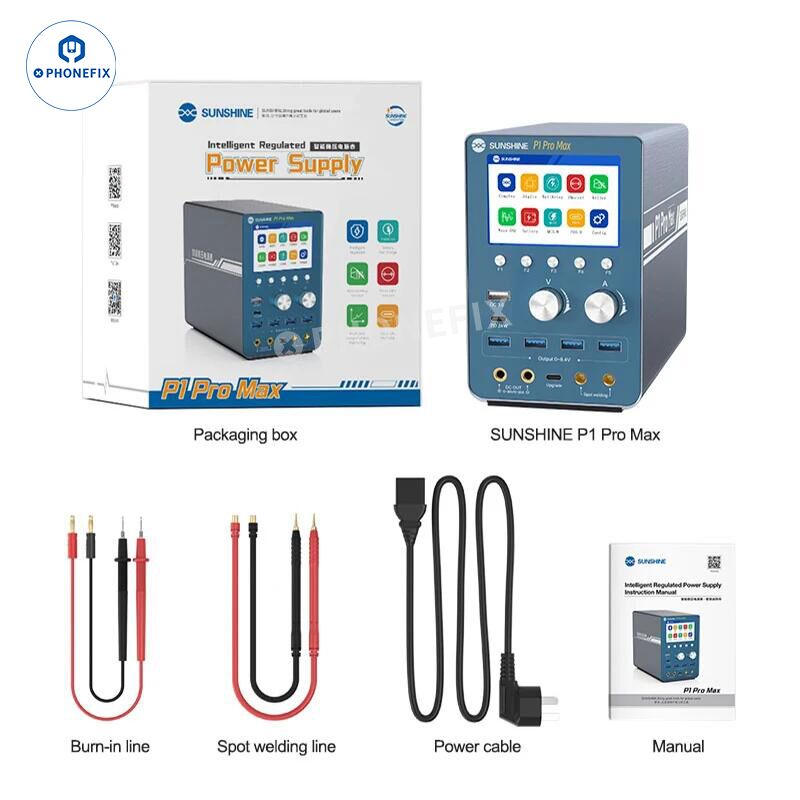

P1 Pro Max Specification:
Model: Sunshine P1 Pro Max Intelligent regulated power supply
Burning Cord Length: About 630mm
Spot Welding Line Length: About 415mm
Power Cord Length: About 1490mm
Input Voltage: 100V-240V 50/60Hz
Total Output Power: 250W
Main Voltage: 0-30A
Main Current: 0-20A
Fast Charge: PD/QC3.0
Power Supply Output Voltage at Startup: 0-8.4V
Power on Power Output Current: 0-6A
Display Resolution: Voltage 0.01V; Current 0.001A
Working Conditions (Temperature): 0-40℃
Working Conditions (Relative Humidity): 80%
Storage Conditions (Temperature): -10-70℃
Storage Conditions (Relative Humidity): 35%-45%

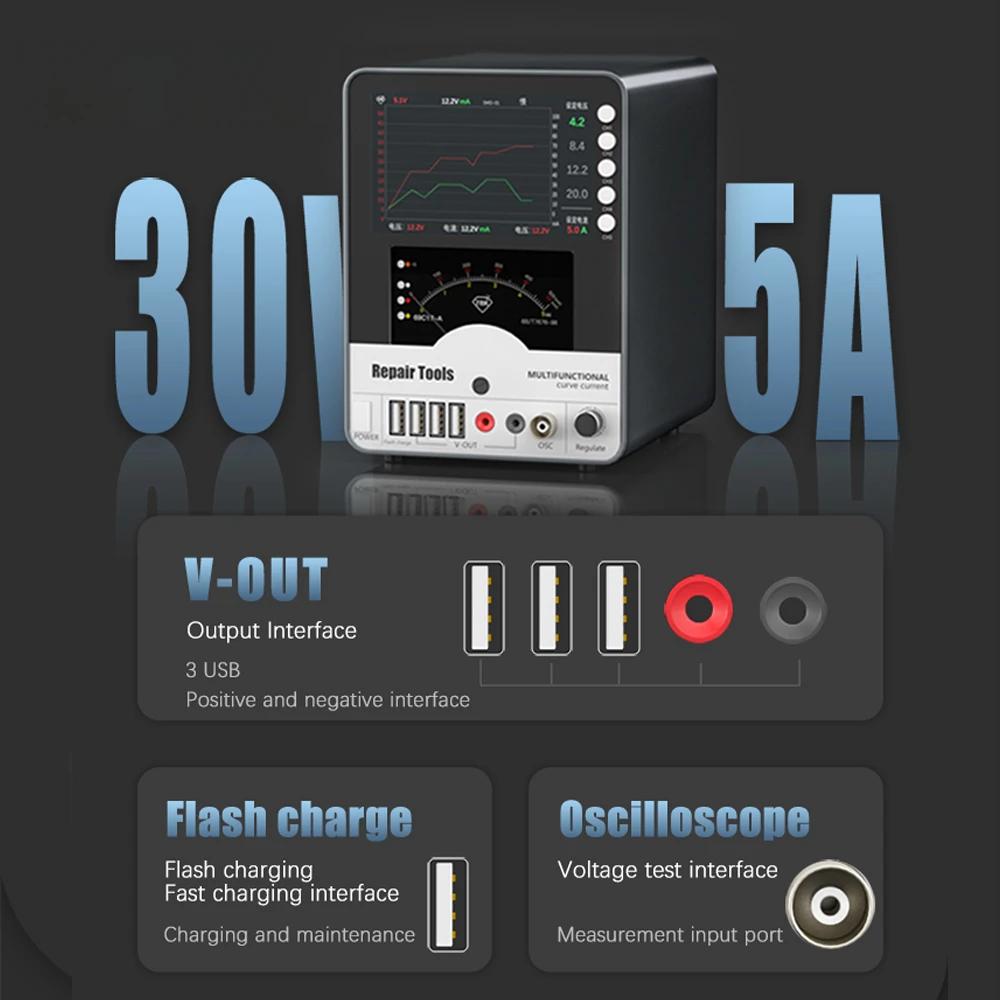

TBK 217 Features:
1. 30V-5A high-frequency output, adjustable DC regulated power supply, provide high efficiency for your electronic devices, and reliable power solutions.
2. Curved DC regulated power supply, 30V-5A 3-in-1 meter, four-channel storage, current-voltage double hyperbola, constant voltage limiting current.
3. Current and voltage hyperbolic display, helps you better understand current and voltage changes in circuits.
4. Three speeds of the curve are adjustable, the three gears of slow, medium, and fast can be adjusted at will for a faster understanding.
5. Multiple port charging, compatible with a variety of devices, fast charging/normal charging, compatible with multiple device protocols.
6. Four groups of storage, the corresponding channel, four groups are adjustable and can store data, allowing you to choose more conveniently.

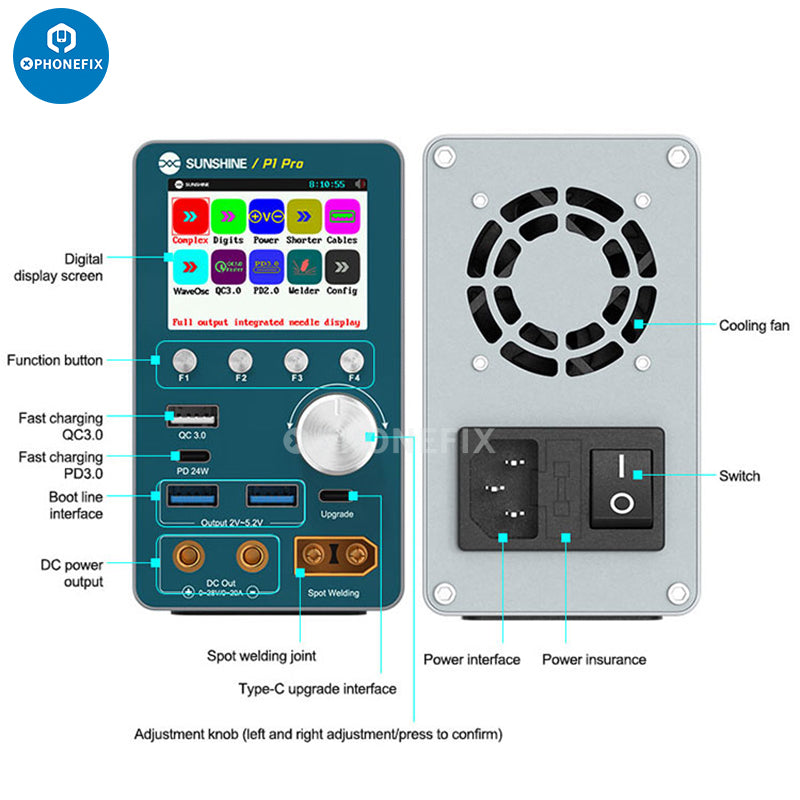

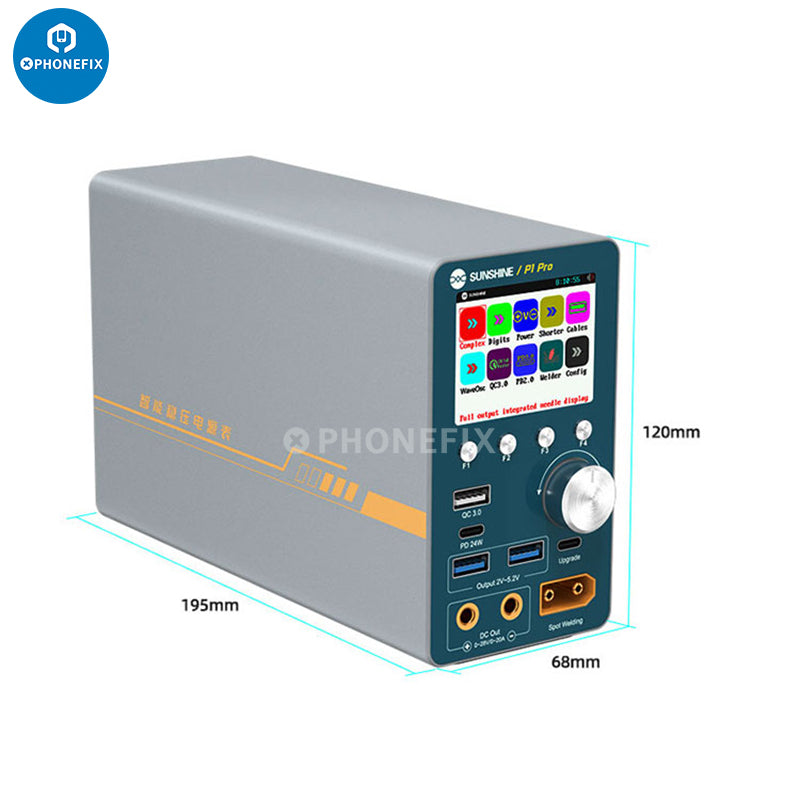

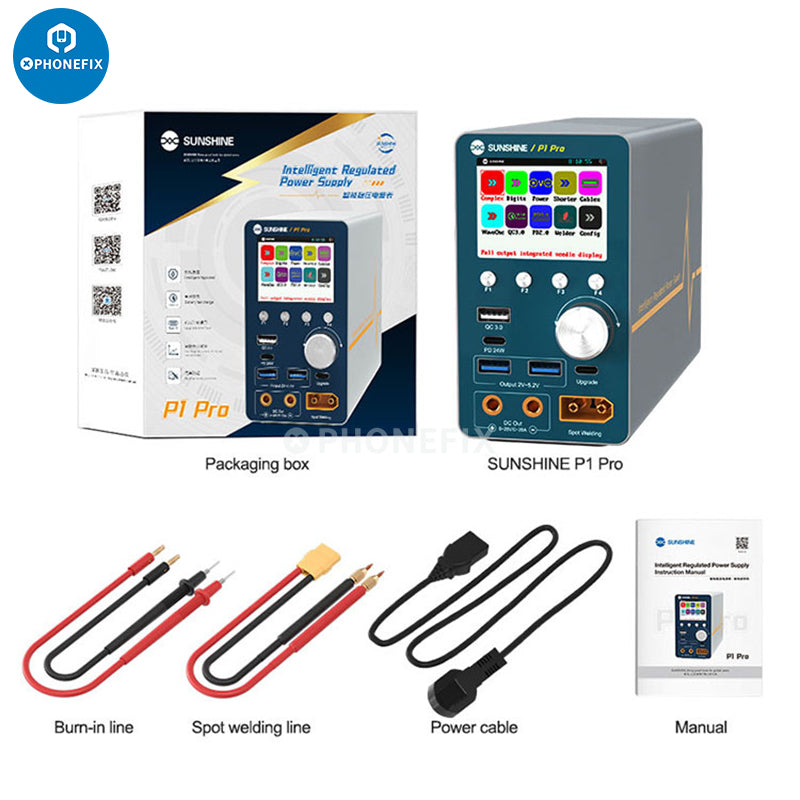

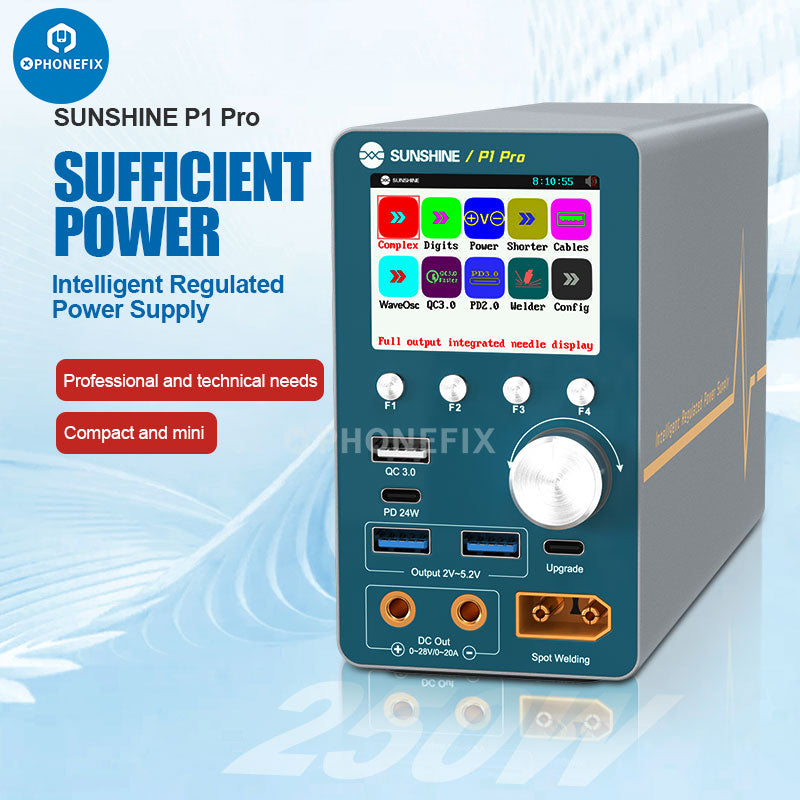

SunShine P1 Pro Features:
1. Sunshine P1 Pro can be used in many fields such as burn-in, battery spot welding, battery start-up, QC fast charging, PD fast charging, waveform display, remote upgrade, comprehensive voltage stabilization output, etc.
2. Supports precision welding of electronic components, battery plate replacement, lithium battery nickel sheets, etc.; the first/second pulse duration can be customized.
3. Solve the short-circuit fault repair of mobile phones and various electronic devices, quickly switch three-way voltage, and support free adjustment of current and voltage
4. Supports PD/QC fast charging protocol, real-time detection of fast charging voltage and current, more powerful functions
5. Supports iPhone/Android battery protocol, and one-click power-on test of the motherboard, making maintenance more convenient
SunShine P1 Pro Parameters:
Product name: Intelligent regulated power meter.
Input voltage: AC 100~230V 50/60Hz.
Total output power: 250W.
Mains voltage: 0-28V.
Main supply current: 0-20A.
Fast charge: PD/QC3.0.
Power supply output voltage at startup: 2-5.2V.
Power supply output current at startup: 0.45-6A.
Display resolution: Voltage 0.01V Current 0.001A.
Working conditions (temperature): 0-40℃.
Working conditions (relative humidity): 80%.
Storage conditions (temperature): -10-70℃.
Storage conditions (relative humidity): 35%-45%.

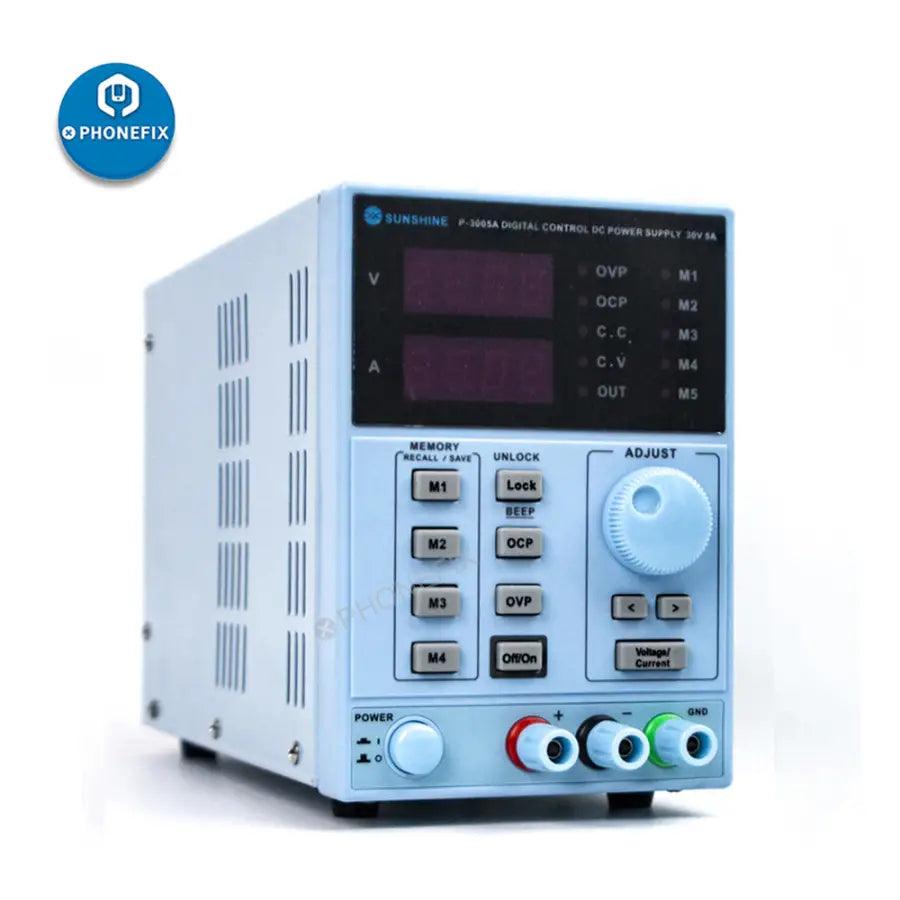

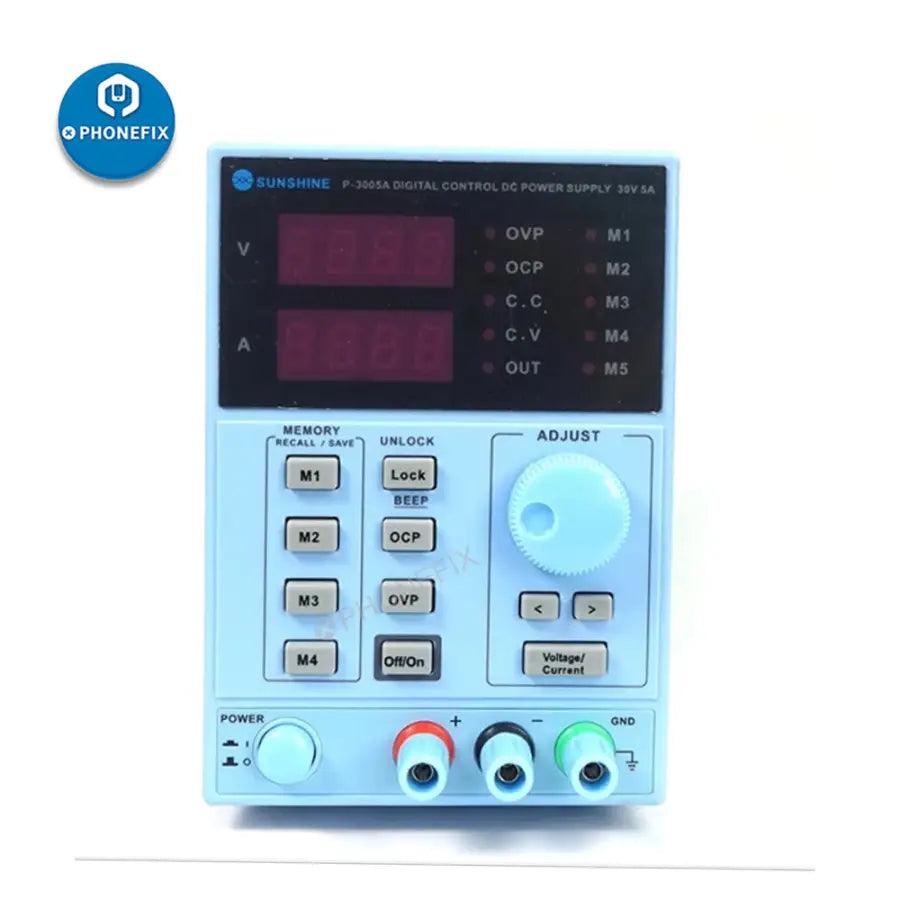

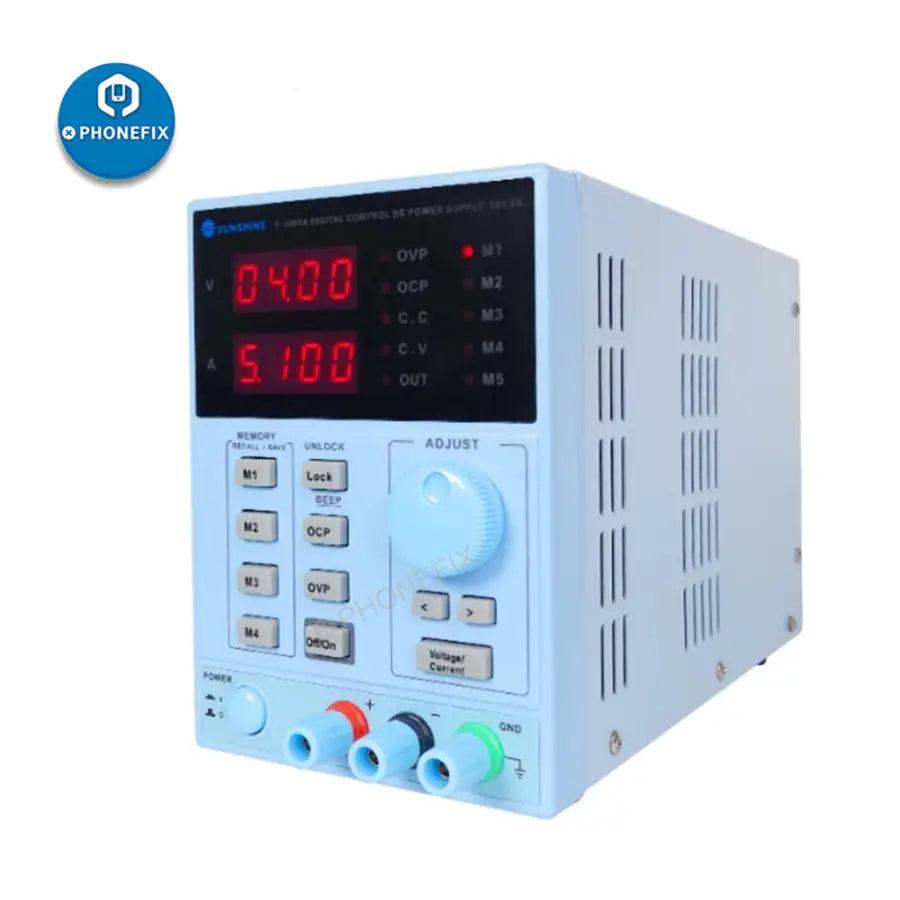

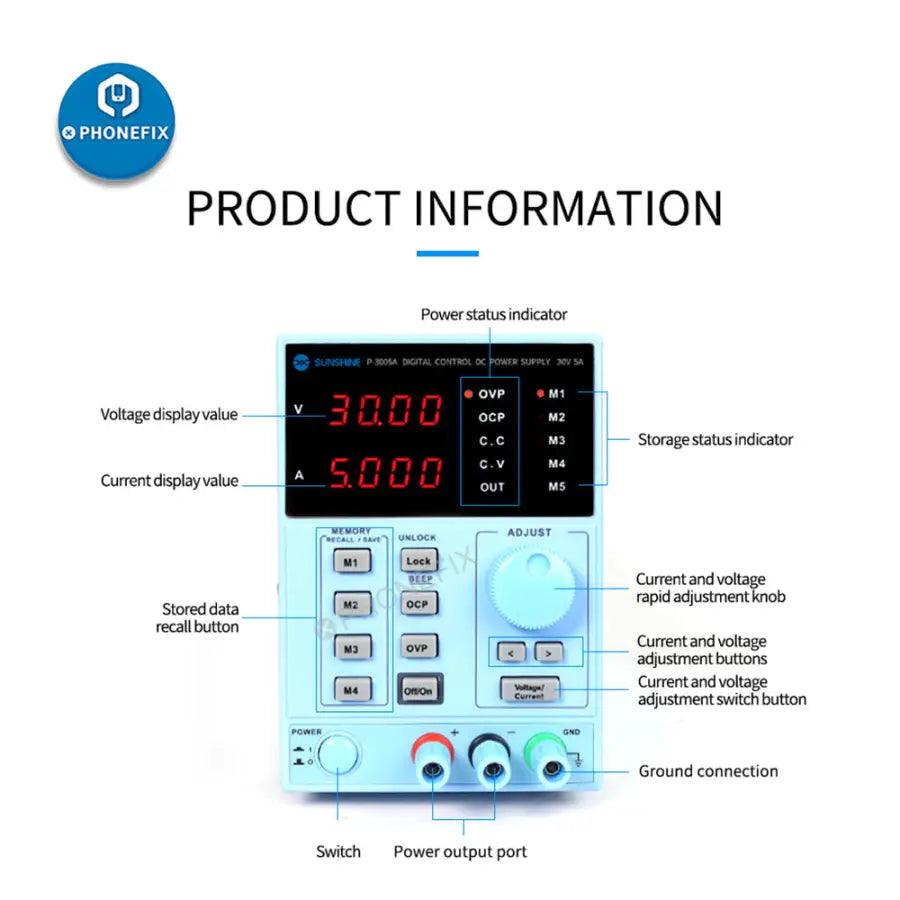

SUNSHINE P-3005A Features:

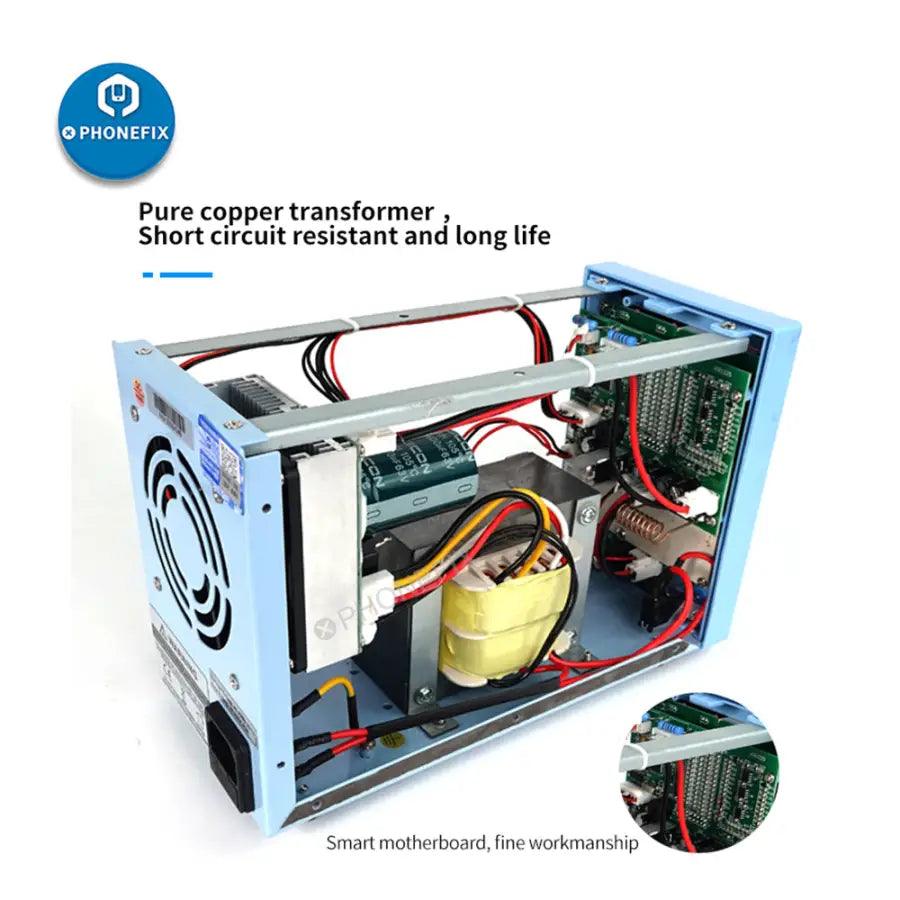

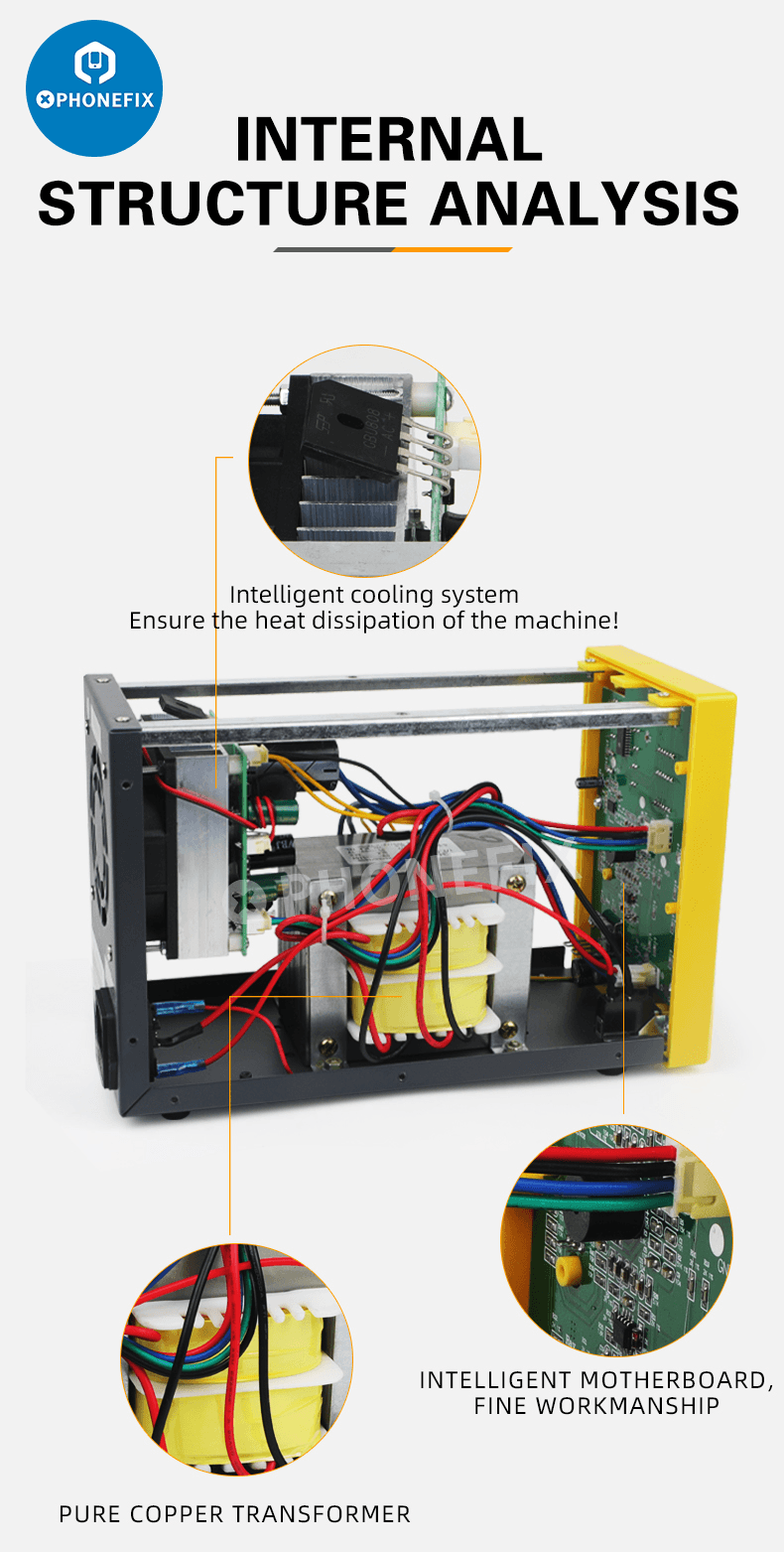

- The 5A adjustable dc power supply is high quality and high-power transformer, the machine power is enough, can really achieve the voltage output 30V, current output 5A, and can accurately set the protection current size.
- 4 Bit accurate control and display, bring more precise control, and constant pressure flow protection mode, effective protection of the safety of the load.
- The whole process circuit after the factory has more than 10 years of continuous improvement and innovation, precise control, mature technology, high safety, stable and reliable by users at home and abroad is certainly.

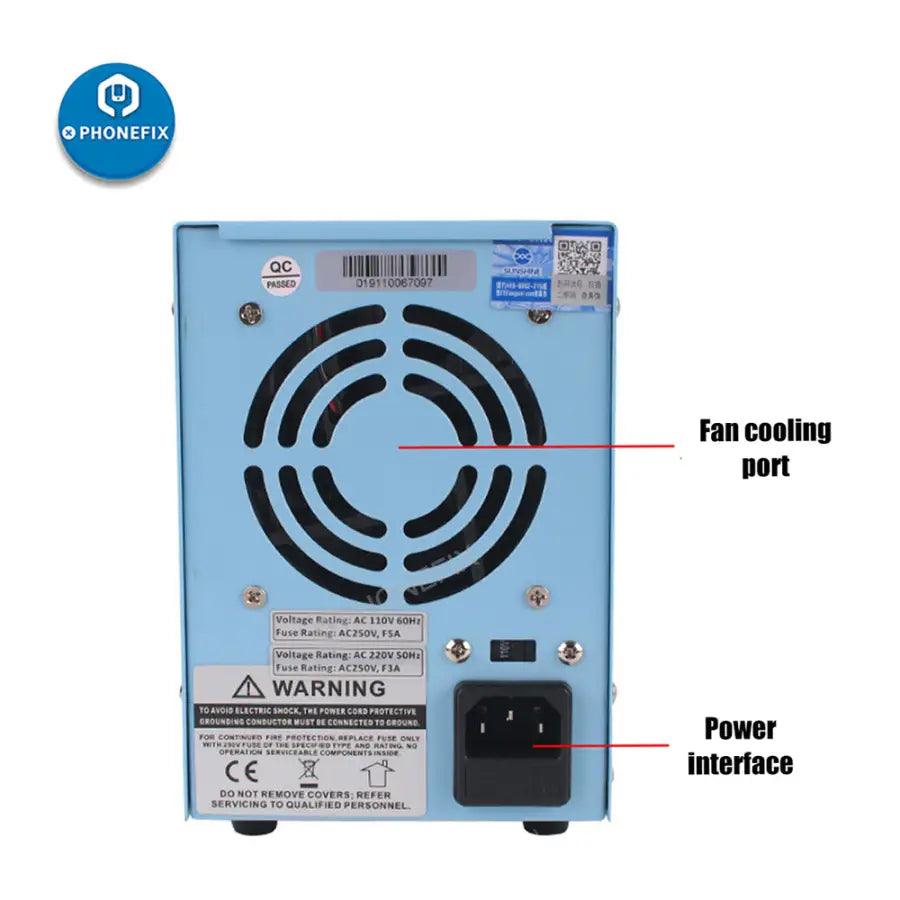

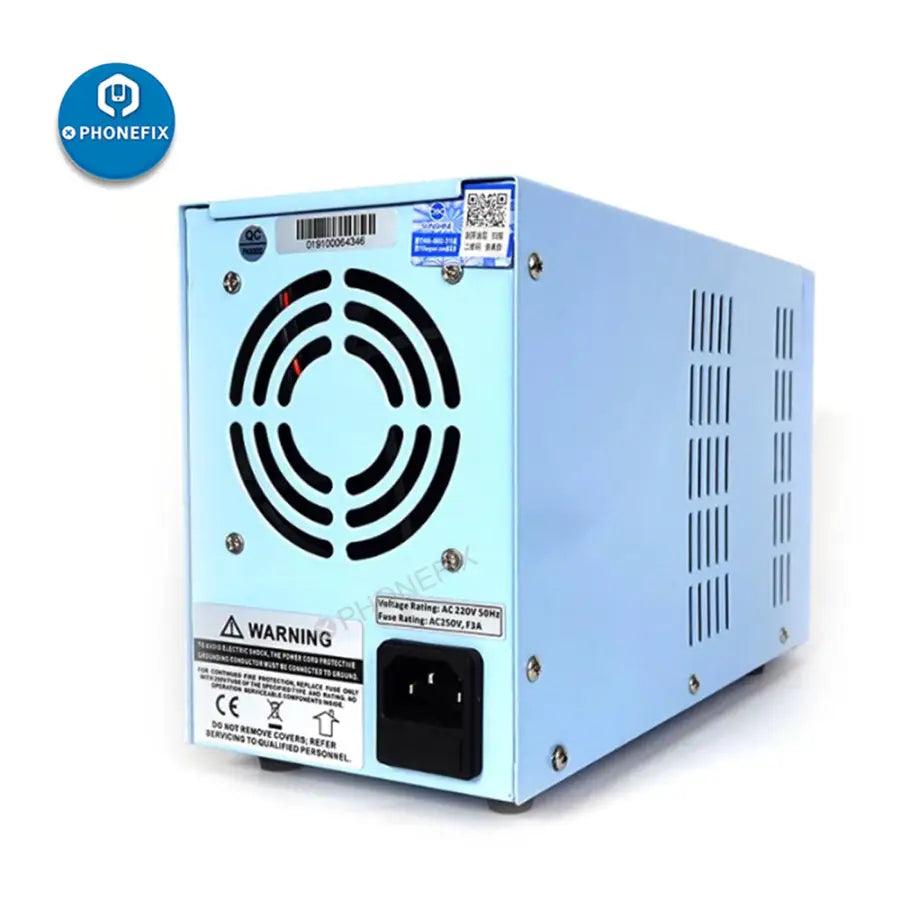

- 4 built-in temperature control protection circuit, when the machine internal heating temperature of over 40 degrees, the cooling fan will automatically run, when the power is connected to load more than the maximum load of the machine will automatically protect, stop output, effectively protect the use of power supply safety, extended service life.
SUNSHINE P-3005A Parameter:
- Supply voltage AC220V ±10% frequency (50hz )
- Working condition temperature -10°C-40°C, relative humility≤90%
- Storage condition temperature -10°C-40°C, relative humility≤80%
- Voltage 0-30V
- Current 0-5A
- Protection types circuit protection,overload and over high temperature protection.
Product Specification:
- Product Name: NC programmable DC Power Supply
- Model: P-3005A
- Product Size: 110 (W) *156 (H)*260 (D) mm
- Weight: 4.5kg
- Output Voltage: 0-30V
- Output Current: 0-5A
- Number of channels: single channel
- Output resolution: Voltage: 1mV Electric current: 1mA
- Display Type: Voltage/Electric current/4 digit digital display
- Load Effect: Voltage: ≦0.01%+2mV Electric current: ≦0.02%+10mA
- Power supply effect: Voltage: ≦0.01%+3mV Electric current: ≦0.02%+3mA
- Set Accuracy: Voltage: ≦0.5%+20mV Electric current: ≦0.01%+ 10mA
- Ripple: Voltage: ≦2mVrms Electric current: ≦3mArms
- Output Temperature Coefficient: Voltage: ≦150ppm Electric current: ≦150ppm

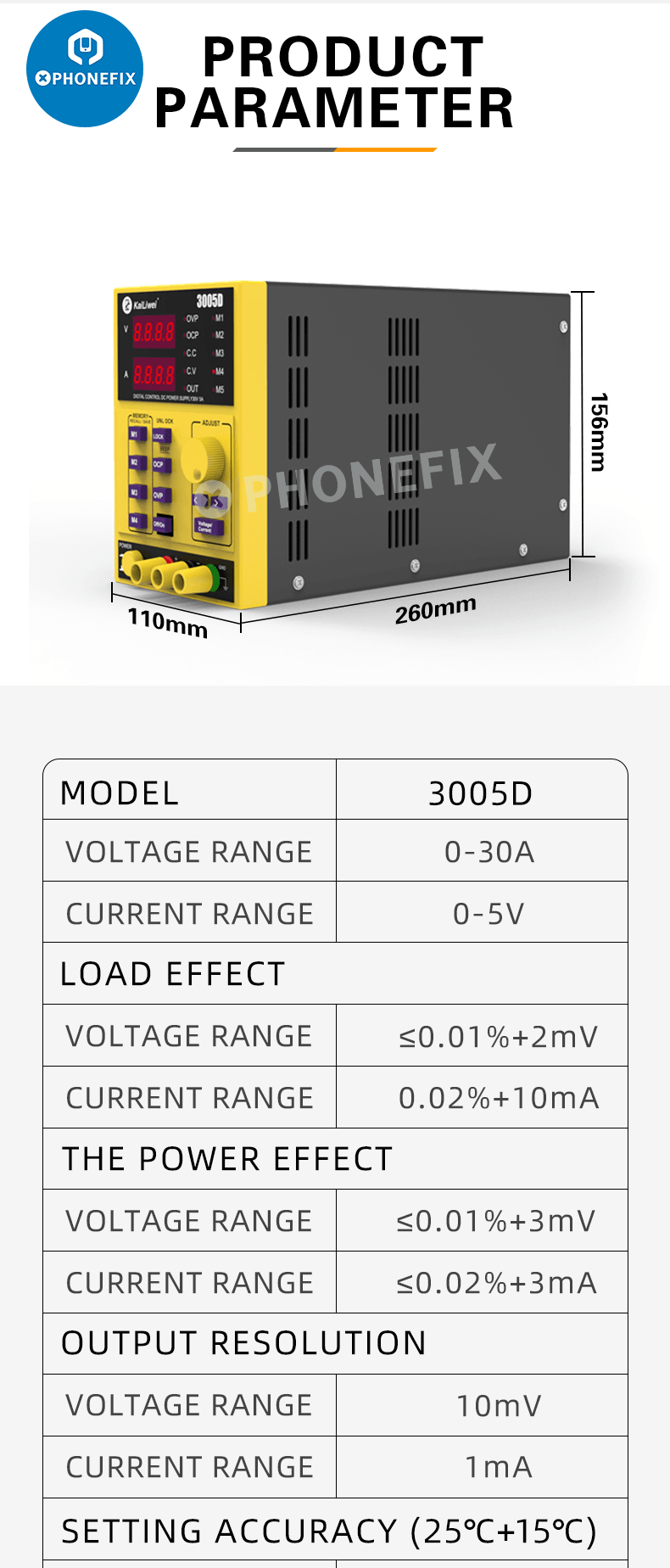

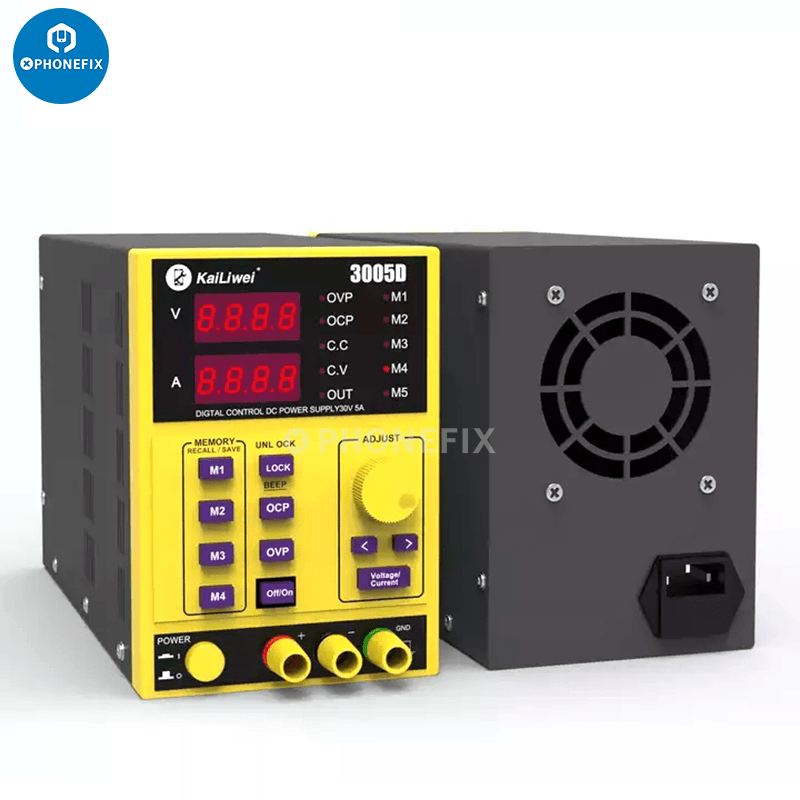

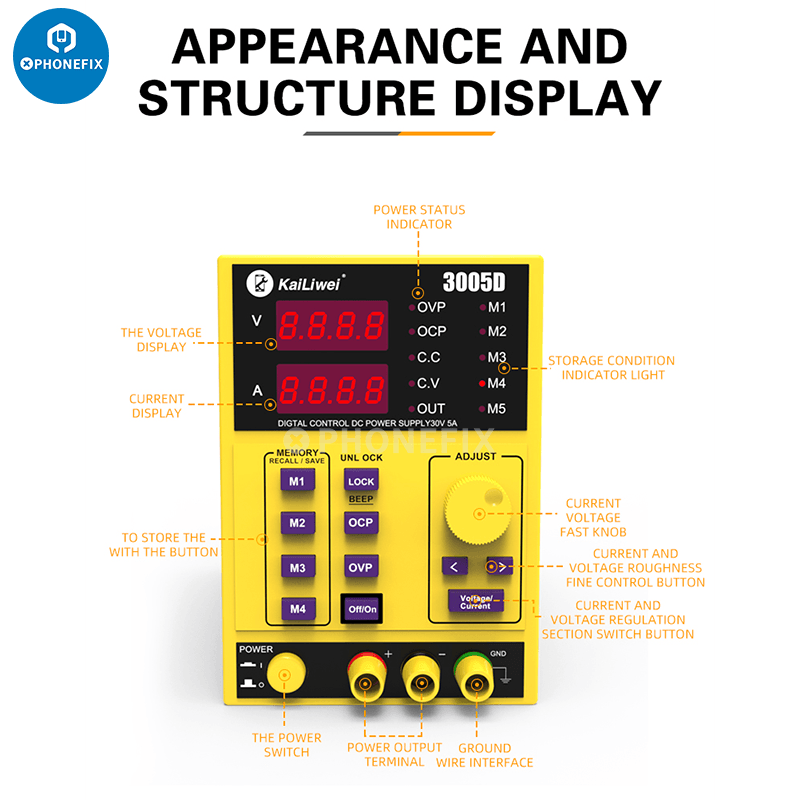

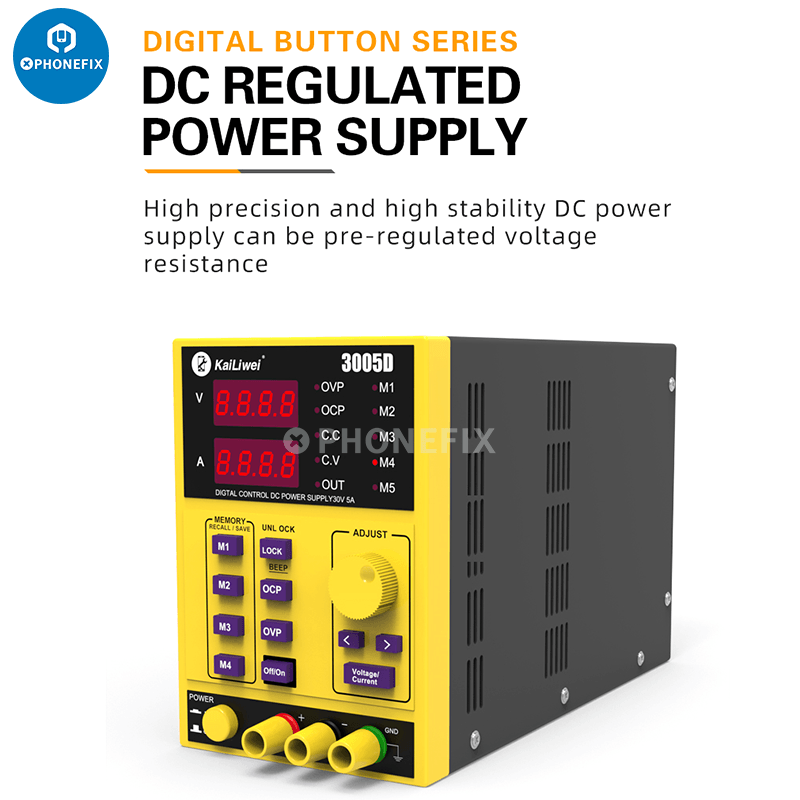

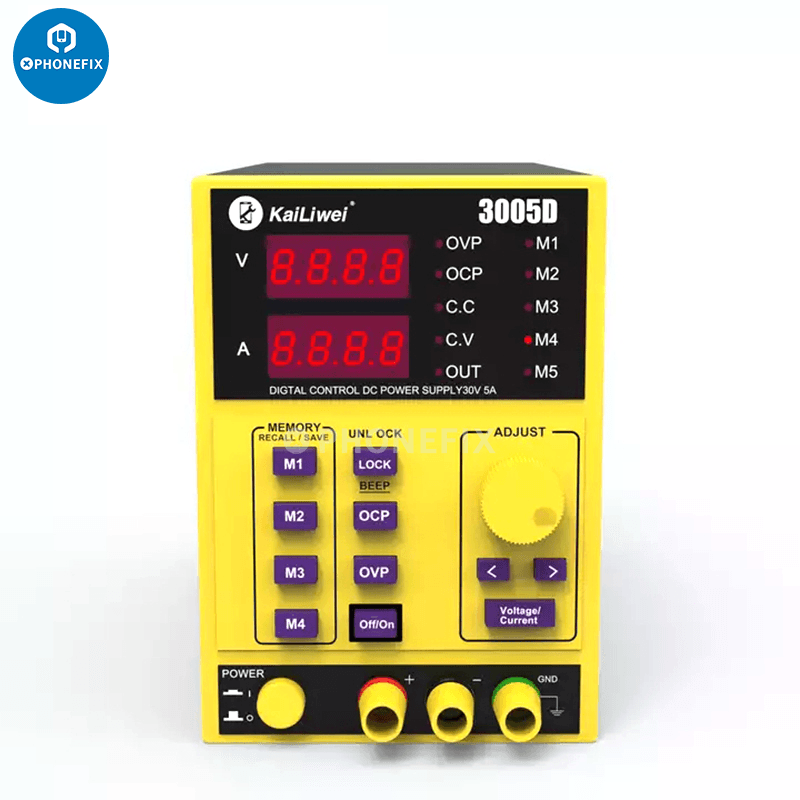

Kailiwei 3005D Specification:
Kailiwei 3005D CNC DC power supply.
4 groups of memory.
4 digital display for current and voltage .
Intelligent overcurrent protection *Stable constant.
Intelligent overcurrent protection.
Stable constant pressure, constant current.
Numerical lock function.
Numerical storage function.
Warranty:
- 1 Years warranty.
- As usual, the shipping fee is high. If return China to repair, is not worth the money.
- So we could support technology and give you the spare parts along with the product.
