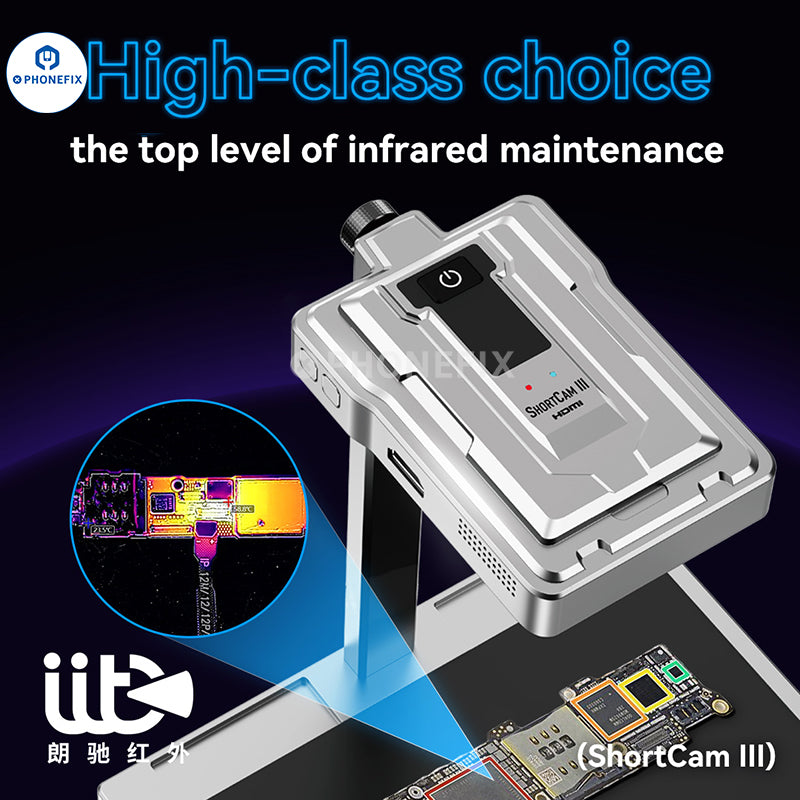

ShortCam III 4K ultra HD PCB thermal imager with dual-light imaging and HDMI video output for mobile phone motherboard fault diagnosis and quick electric leakage detection, etc. Foldable Shortcam III infrared thermal camera ultra-wide viewing angle, built-in program, plug and play, can be used on Apple iOS, Android phones and laptops via WIFI and Type-C.
Features:
1. 2024 ShortCam III thermal camera upgraded features: double folding design, ultra-wide viewing angle, full-area scanning, WIFI connection, 4K high resolution, HDMI video output, seamless switching with microscope, dual-light imaging, quick leakage detection.
2. Alloy body drop-resistant and durable, excellent heat dissipation and EMC performance.

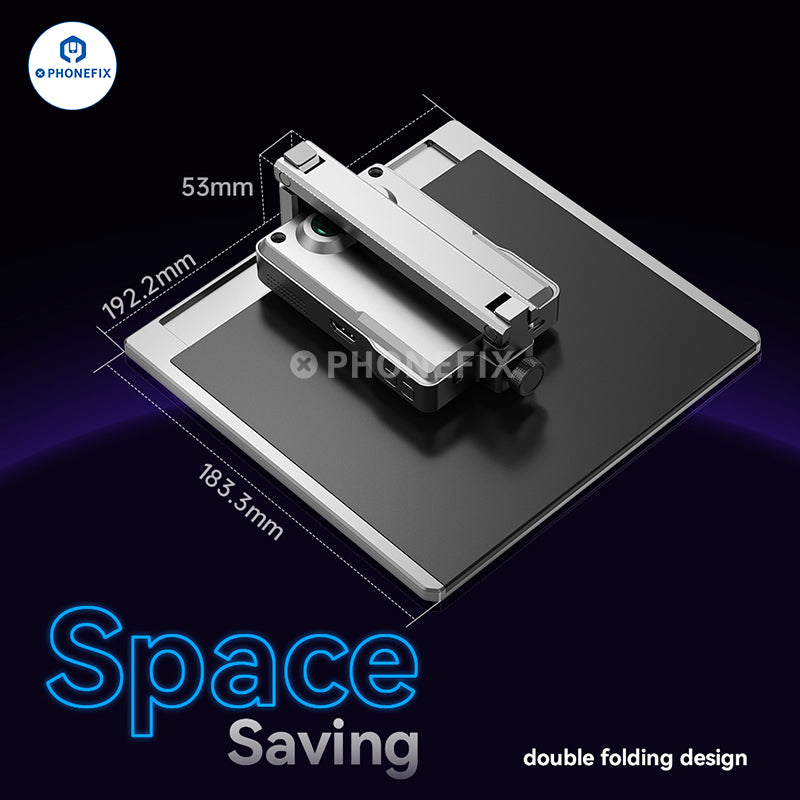

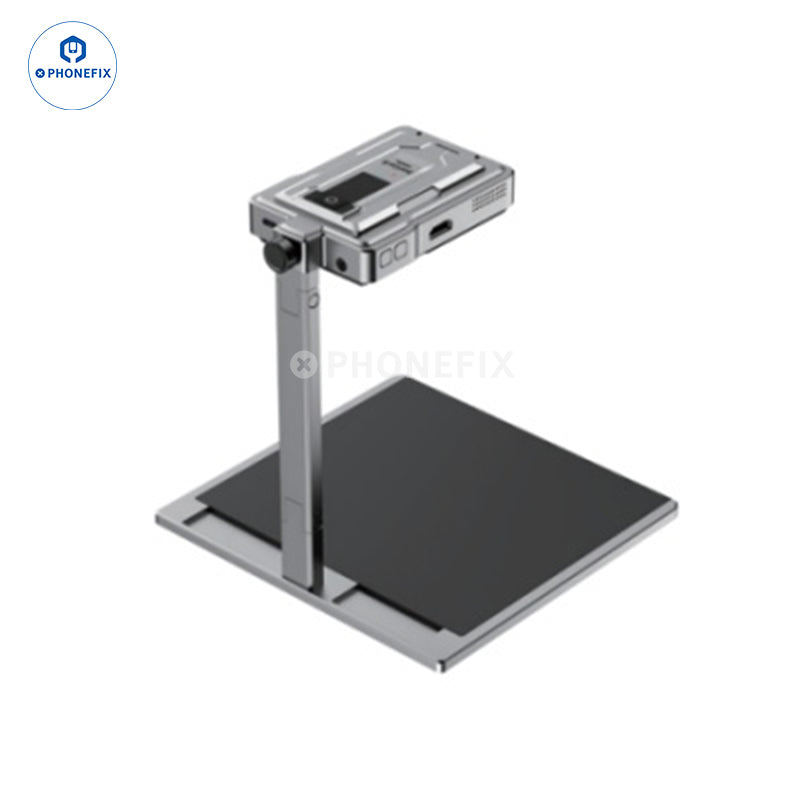

3. The bracket can be folded twice, saving space and convenient to use.

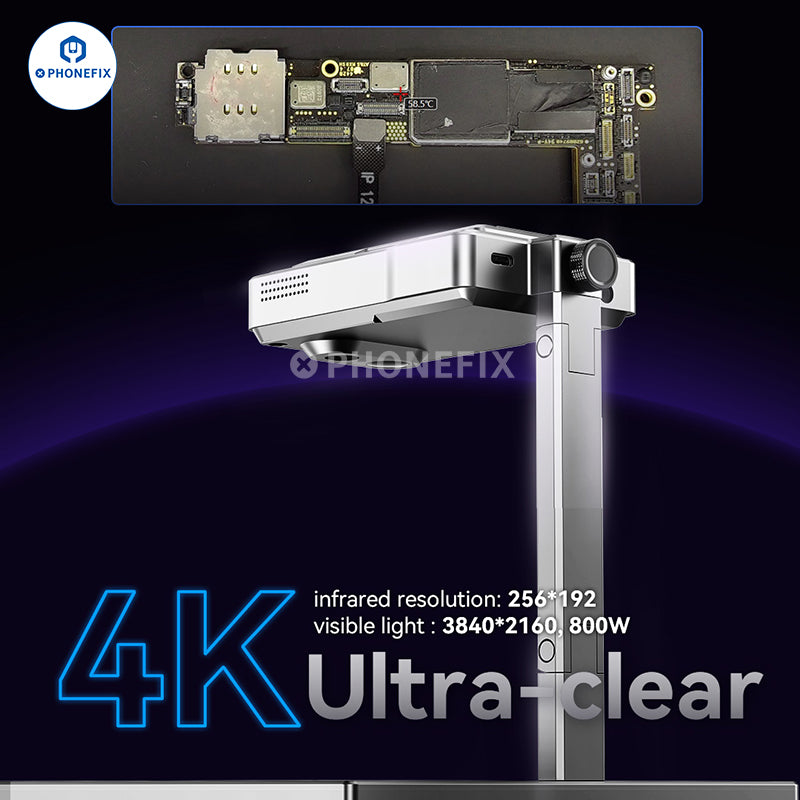

4. 256*192 high resolution, 4K ultra-clean display, suitable for all kinds of fault diagnosis.

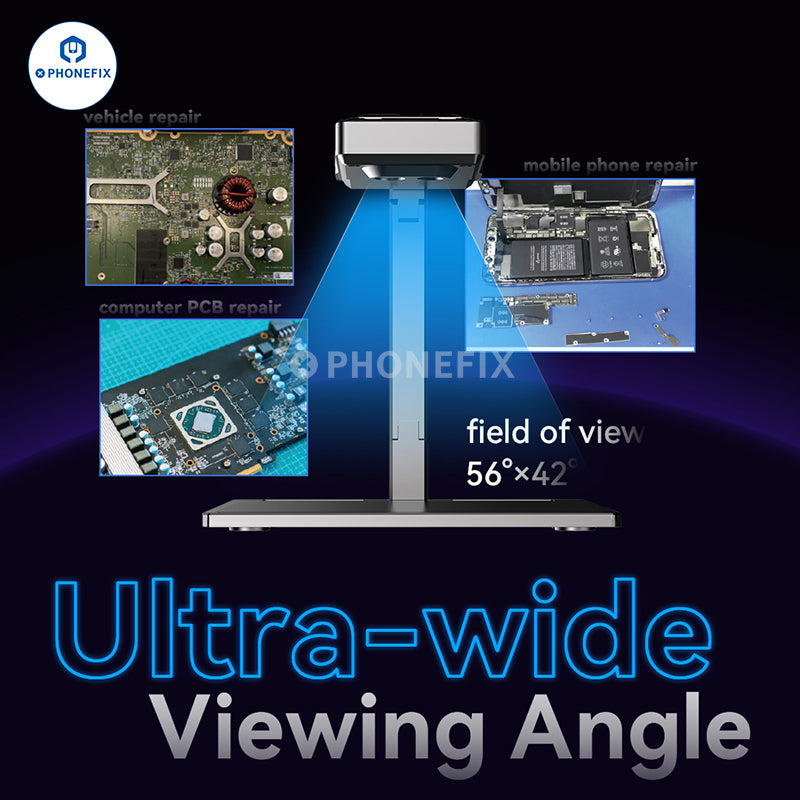

5. Ultra-wide field of view, can be detected at different sizes of PCB, one for all APP scenarios such as mobile phone, computer and vehicle motherboard repair.
6. Dual-light imaging, quick leakage detection, it supports same time display of visible light and infrared, and can easily "quickly check" the temperature rise caused by tiny leakage.

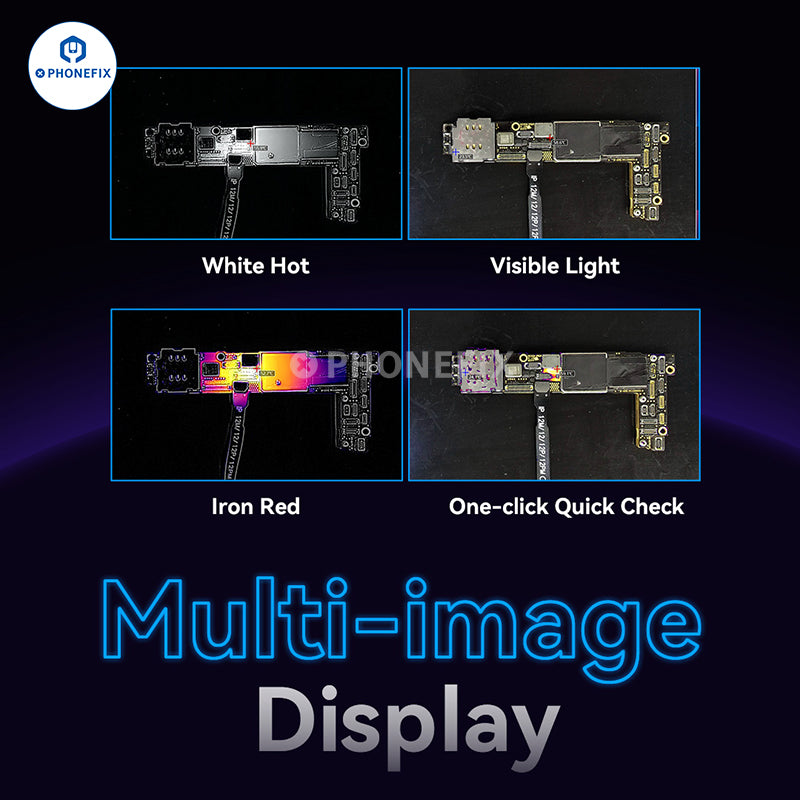

7. Multiple image display modes: thermal imaging, white hot, iron red, visible light, dual-light fusion and one-click quick check.

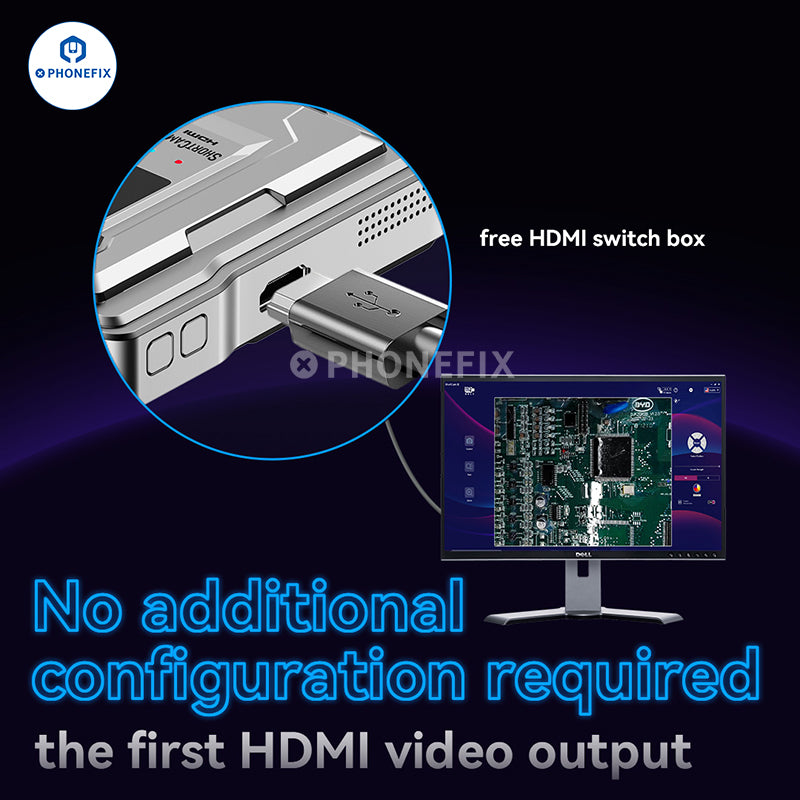

8. HDMI display, quick switching between microscope and display screen.

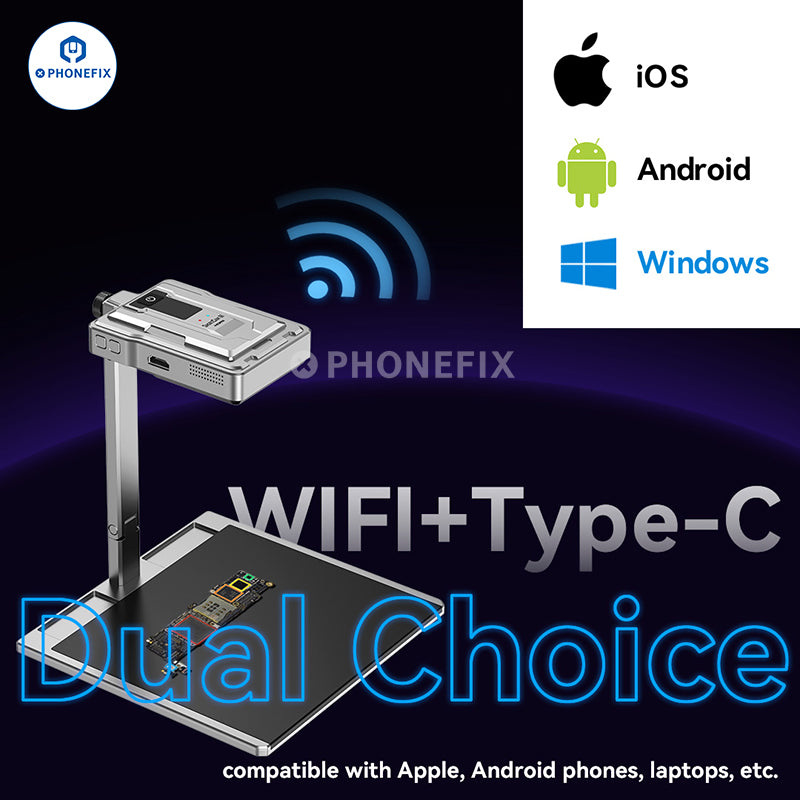

9. Built-in program, no configuration required, just plug and play, it can be connected to Apple iPhone iOS, Android phones and laptops via WiFi and type-c cable.

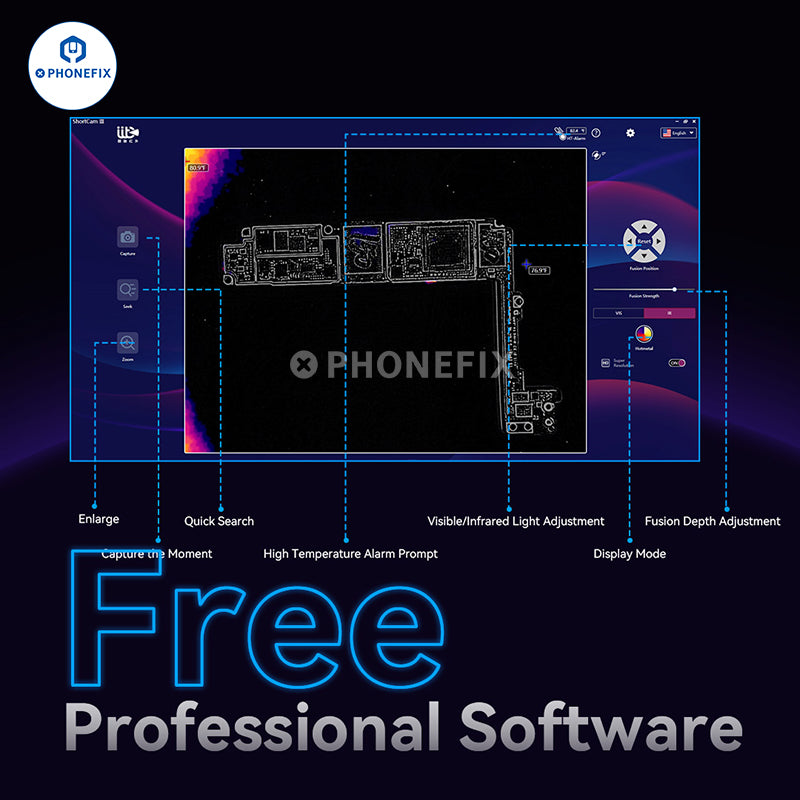

10. Equipped with PC and mobile App client analysis software, supports multiple devices to be connected and used at the same time.
11. Simple software interface, real time faculty records check.
12. Application: mobile phone repair, digital reviews, vehicle repair, graphics card repair, process test, electric circuit board repair, BGA chip repair, etc.

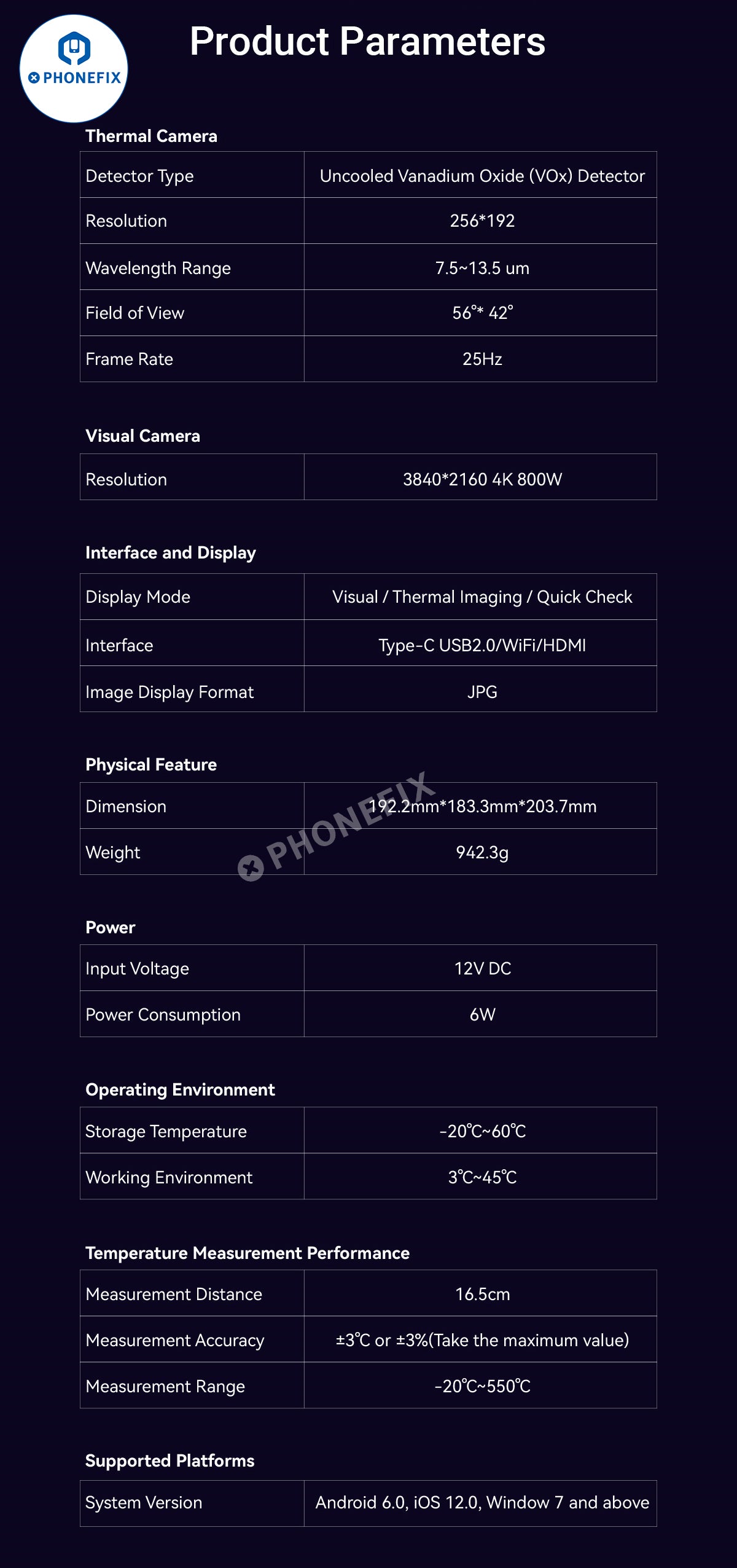

Product Parameters:
Thermal Camera
Detector Type: Uncooled Vanadium Oxide (VOx) Detector.
Resolution: 256*192.
Wavelength Range: 7.5~13.5um.
Field of View: 56°* 42°.
Frame Rate: 25Hz.
Visual Camera
Resolution: 3840*2160 4K 800w.
Interface and Display
Display Mode: Visual / Thermal lmaging / Quick Check.
Interface: Type-C USB2.0/WiFi/HDMI
Image Display Format: JPG
Physical Feature
Dimension:192.2mm*183.3mm*203.7mm
Weight: 942.3g
Power
Input Voltage: 12V DC
Power Consumption: 6W
Operating Environment
Storage Temperature: -20℃~60℃
Working Environment: 3℃~45℃
Temperature Measurement Performance
Measurement Distance: 16.5cm
Measurement Accuracy: ±3℃ or ±3%(Take the maximum value)
Measurement Range: -20℃~550℃
Supported Platforms
System Version: Android 6.0, iOS 12.0,Window 7 and above

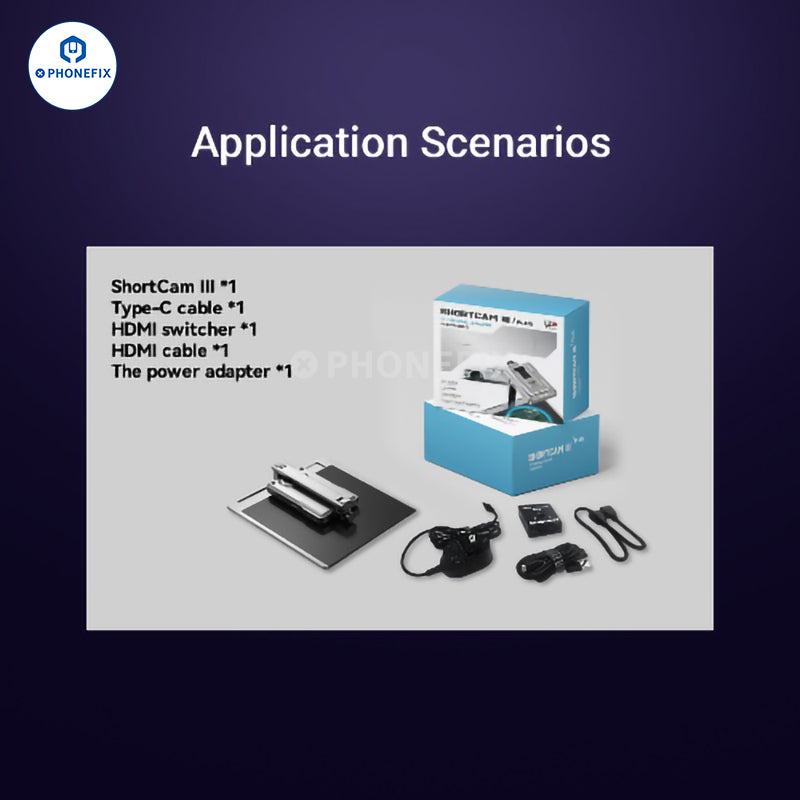

Package Lists:
HDMI cable x1
ShortCam IlI x1
Type-C cable x1
HDMI switcher x1
The power adapter x1
