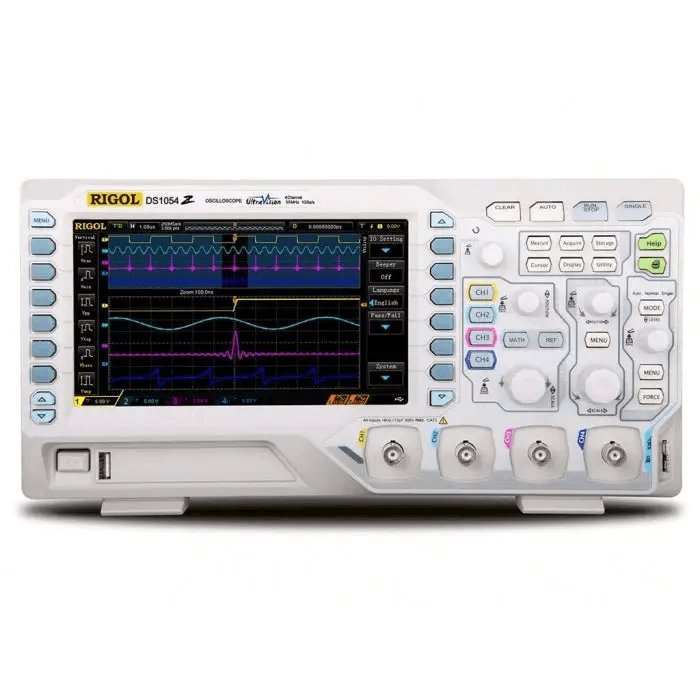

RIGOL DS1054Z entry-level digital oscilloscope - 50MHz, Rigol DS1054Z 100m digital storage oscilloscope with four channels, 50 MHz digital oscilloscope with 4 channels plus 12 Mpts memory, 1 GS/s sampling rate, Rigol DS1054Z is one of the most popular entry-level oscilloscopes available.
Rigol DS1054Z Entry-level Digital Oscilloscopes with 4 ChannelsProduct Features :

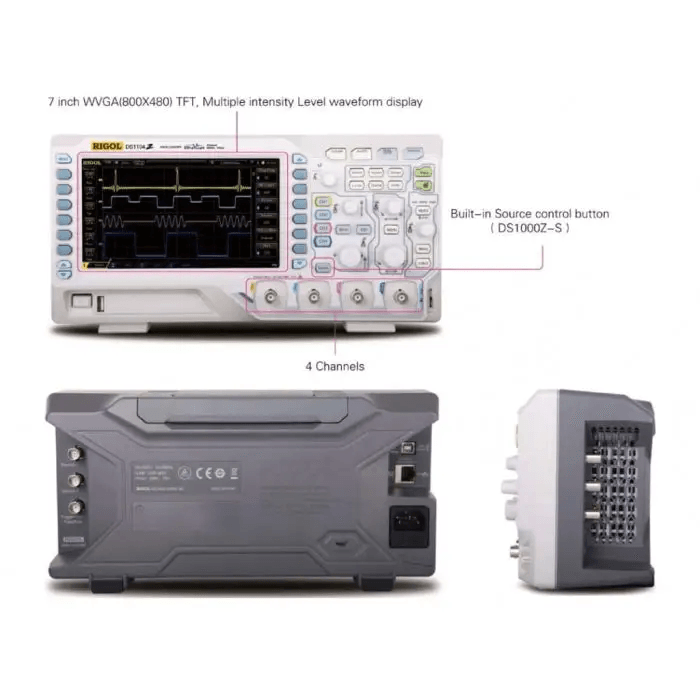

- 7-inch WVGA(80X480), the TFT is simple and intuitive, and displays multi-level waveform grayscale
- Simple and clear panel, simple and intuitive, easy to operate
- Hand-held handle/portable design, more convenient to carry
- Machine vents, built-in temperature control fan
- With 4 Channels, a bandwidth of 100 MHz
- Several built-in mathematical functions
- Now includes FREE software bundle BND-MSO/DS1000Z built into the unit
- Ultra Vision: Deeper memory 12 Mpts upgradable to 24 Mpts via a software key
- Up to 30,000 wfms/s Waveform capture rate

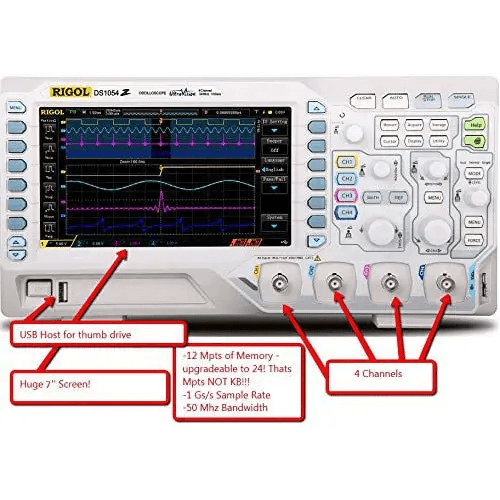

- USB HOST, USB DEVICE, LAN, Aux (TrigOut /PassFail)
- Incredible display with multi-Level intensity grading display
- Real-time waveform Record,Replay, function (Opt.)
- A variety of Math Functions
- FFT function standard
- A variety of Trigger Functions
- Optional Serial Bus Triggering and Decoding
DS1054Z digital storage Oscilloscope:
- Channel: 4 channels
- Max real-time Sampling rate: 1GSa/s
- Analog Bandwidth: 50MHz
- Max Storage depth: 24Mpts
- Max waveform capture rate: 30,000wfms/s
- Dimensions: 313*122*161mm (L*W*H)
Package includes :
- 1pc x Rigol DS1054Z digital oscilloscope
- 2pcs x Probes
- 1pc x USB Cable
- 1pc x Power cord
- 1pc x Quick start (user manual)
