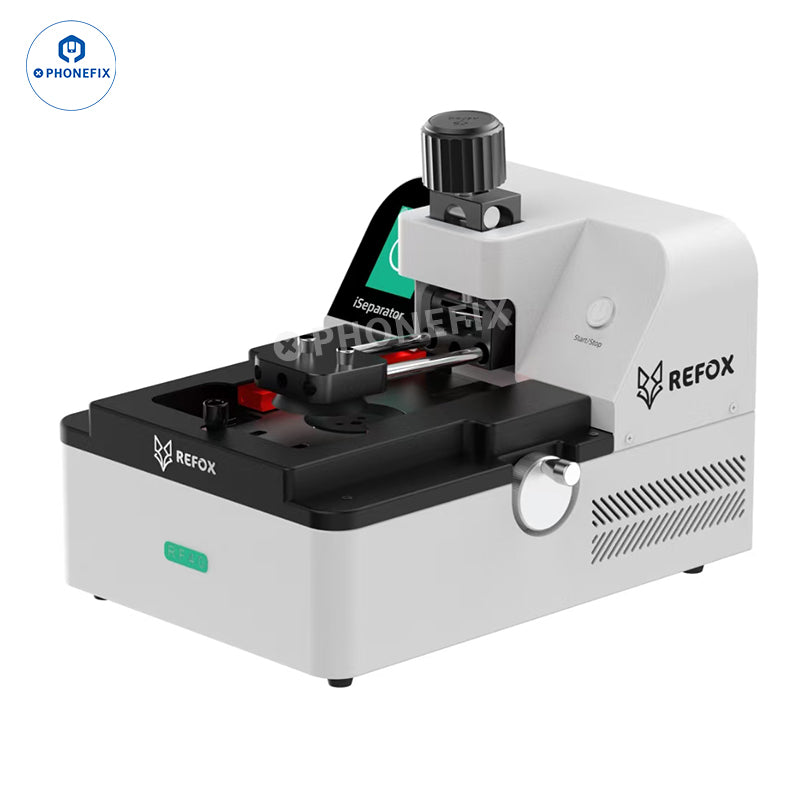

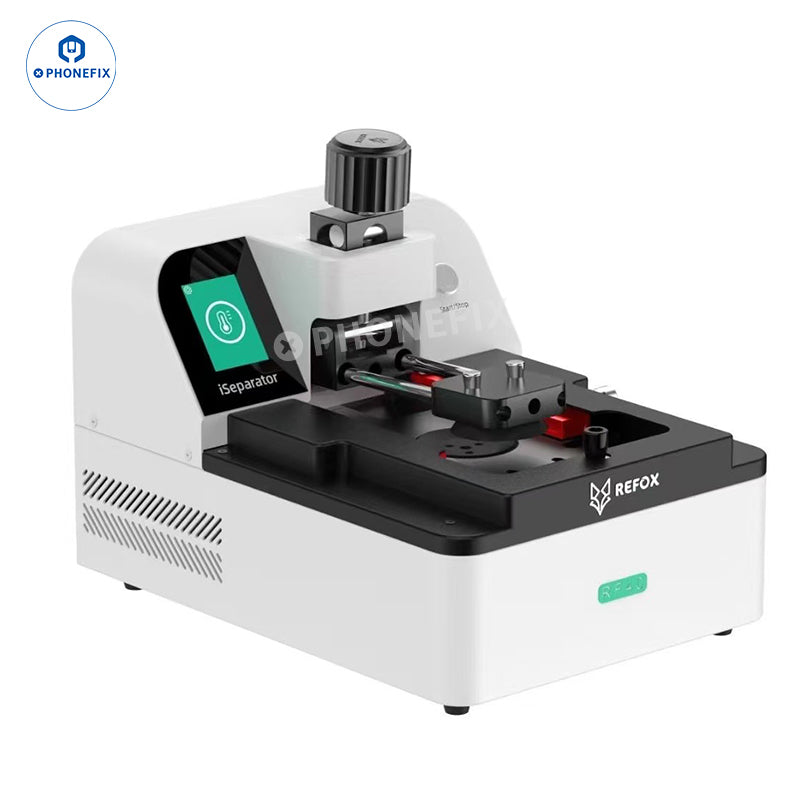

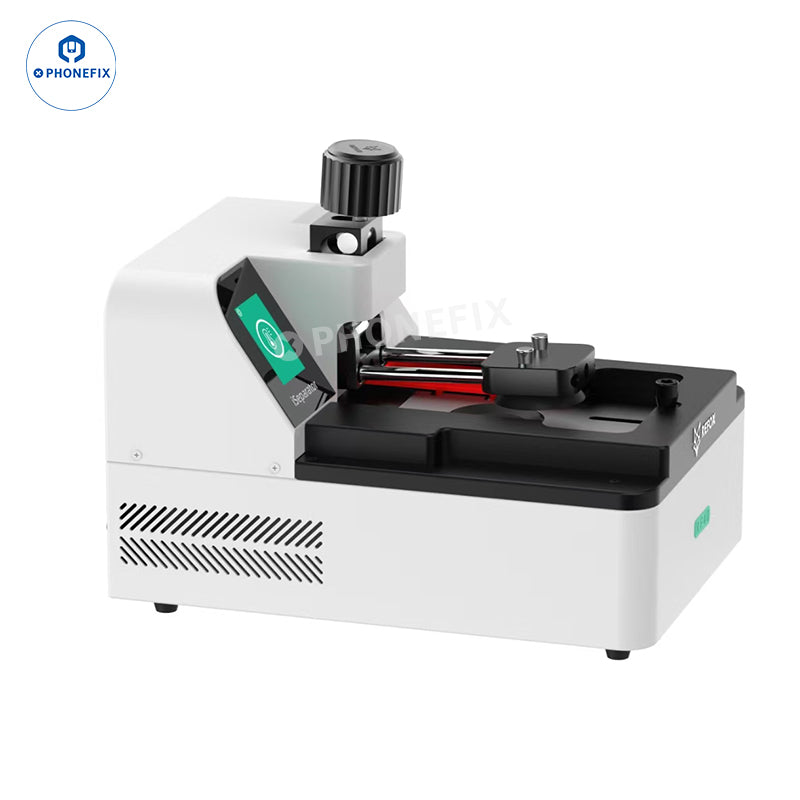

REFOX RF40 iSeparator LCD Heating Separator Mobile Phone Screen Lifting Machine with iPhone universal mold for iPhone 6-16 Pro Max screen separation. Refox RF40 iSeparator built-in vacuum pump and upper-lower suction cups, one-button constant temperature heating of the phone edge frame for iPhone LCD screen removal without damaging the flex cable.
Features:
1. Universal Mold: Suitable for all iPhone models.
2. Precise Screen Lifting Adjustment: Prevents cable damage during screen removal.
3. Built-in Vacuum Pump: Strong suction from both upper and lower suction cups firmly secures the phone.

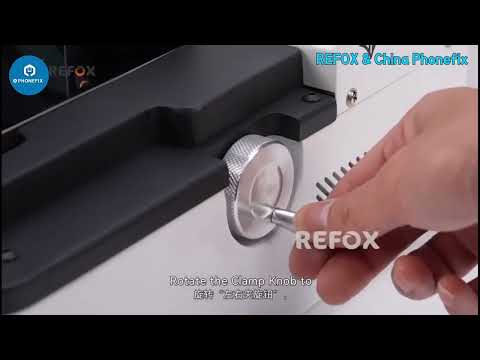

4. Manual Clamp Adjustment: Reduces jamming problems that can occur with motor-controlled clamps.
5. Constant Temperature Heating: Heats only the frame at a constant temperature, protecting other phone components.
6. Suitable for all iPhone series: iPhone 6/6P/6S/6SP/7/7P/8/8P/X/XS/XR/XS MAX/11/11 Pro/11 Pro Max/12/12mini/12 Pro/12 Pro Max/13/13 mini/13 Pro/13 Pro Max/14/14 Plus/14 Pro/14 Pro Max/15/15 Plus/15 Pro/15 Pro Max/16/16 Plus/16 Pro/16 Pro Max.
Please Note:
1. REFOX RF40 iSeparator does not support the disassembly of mobile phones with broken screens, exploded screens, or broken shells.
2. The device temperature is high during operation. It is recommended to wear gloves during operation to avoid accidental contact and burns.
3. After use, it is recommended to turn off the power to prevent the machine from overheating or damage due to long-term use.

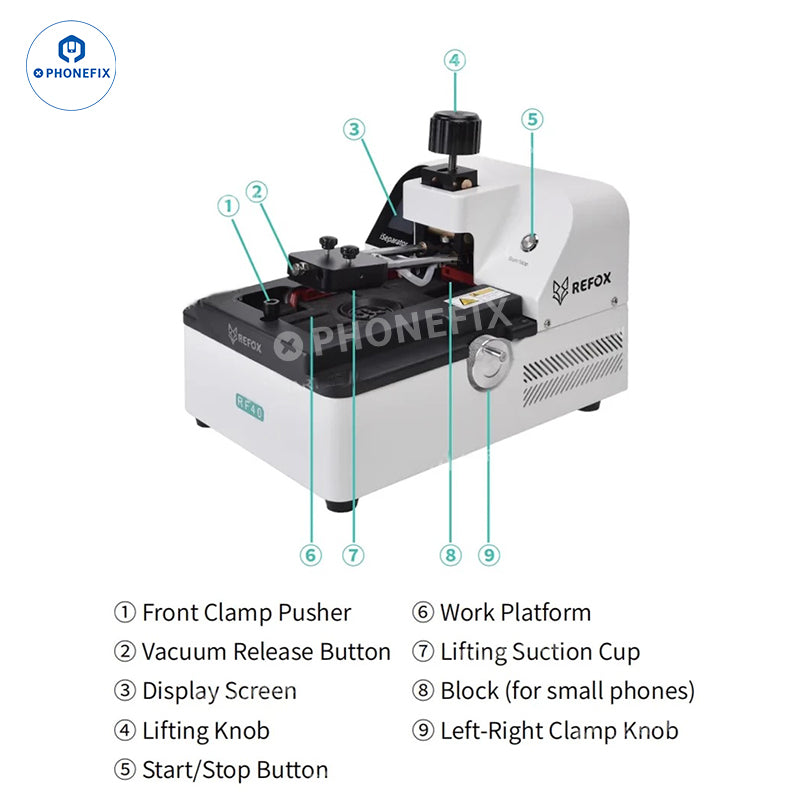

Control Interface:
1. Turn on the power, turn on the rear power switch, the screen lights up and displays the logo screen.
2. After the logo screen appears for two seconds, the standby screen is displayed (no heating, vacuum pump does not work).
3. Press the metal switch, the screen enters the preheating interface, and the machine starts to heat to the set temperature.
4. After the preheating is completed, the interface switches to the heating state and starts the countdown.
5. When the countdown reaches zero, you can start to disassemble the screen. After the screen is disassembled, manually press the metal switch to return to the standby interface (screen 2). (If there is no key operation within 5 minutes, it will automatically return to the standby interface and cancel the heating state.)
6. In the standby state, click the setting icon to enter the setting interface.
Recommended settings:
● XY axis heating temperature: 80℃.
● Vacuum setting: maximum 50Kpa.
● Heating time: 60-300.
7. Click the value to enter the value adjustment interface.
8. Click "Restore factory settings" to enter the factory reset confirmation interface.
Product Parameters:
Name: REFOX RF40 iSeparator Phone Screen Heating Separator.
Working Voltage: 110V/220V.
Power: 400W.
Product Size: 310*244*250.5mm.
Packaging Size: 375*300*320mm.
Net Weight: 8KG.
Gross Weight: 9KG.
Packing List:
1 X RF40 iSeparator.
1 X Power cord.
1 X Block(for small phones).
1 X Manual.
