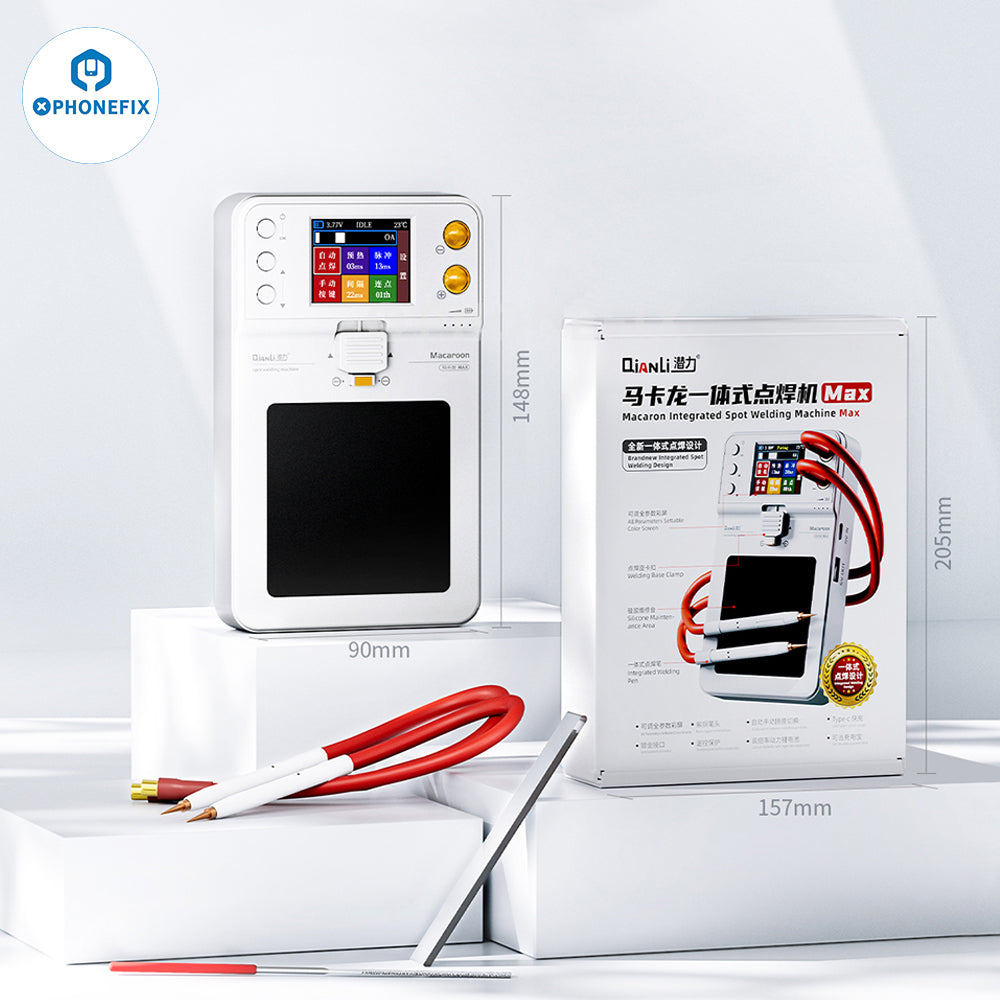

QianLi Macaron Max Spot Welding Machine Portable Integrated Double Pulse Battery Spot Welder. Qianli Macaron Max spot welder with battery fixture board for iPhone 11-15 Pro Max battery pop-up issue repair.
Specification:
Brand: QianLi Macaron Max.
Output Current: 650A(Max).
Input Interface: Type-C charging port.
Input Parameters: 5V.
Battery Capacity: 4000mAh/65C.
Battery Type: Rechargeable polymer physical battery.
Note: QianLi Macaron 2Gen Spot Welder has been discontinued, the upgraded version is QianLi Macaron Max Spot Welder.
Note: The spot welder has build-in battery, which can only be sent out by special mail post. And some regions cannot send due to customs policy.

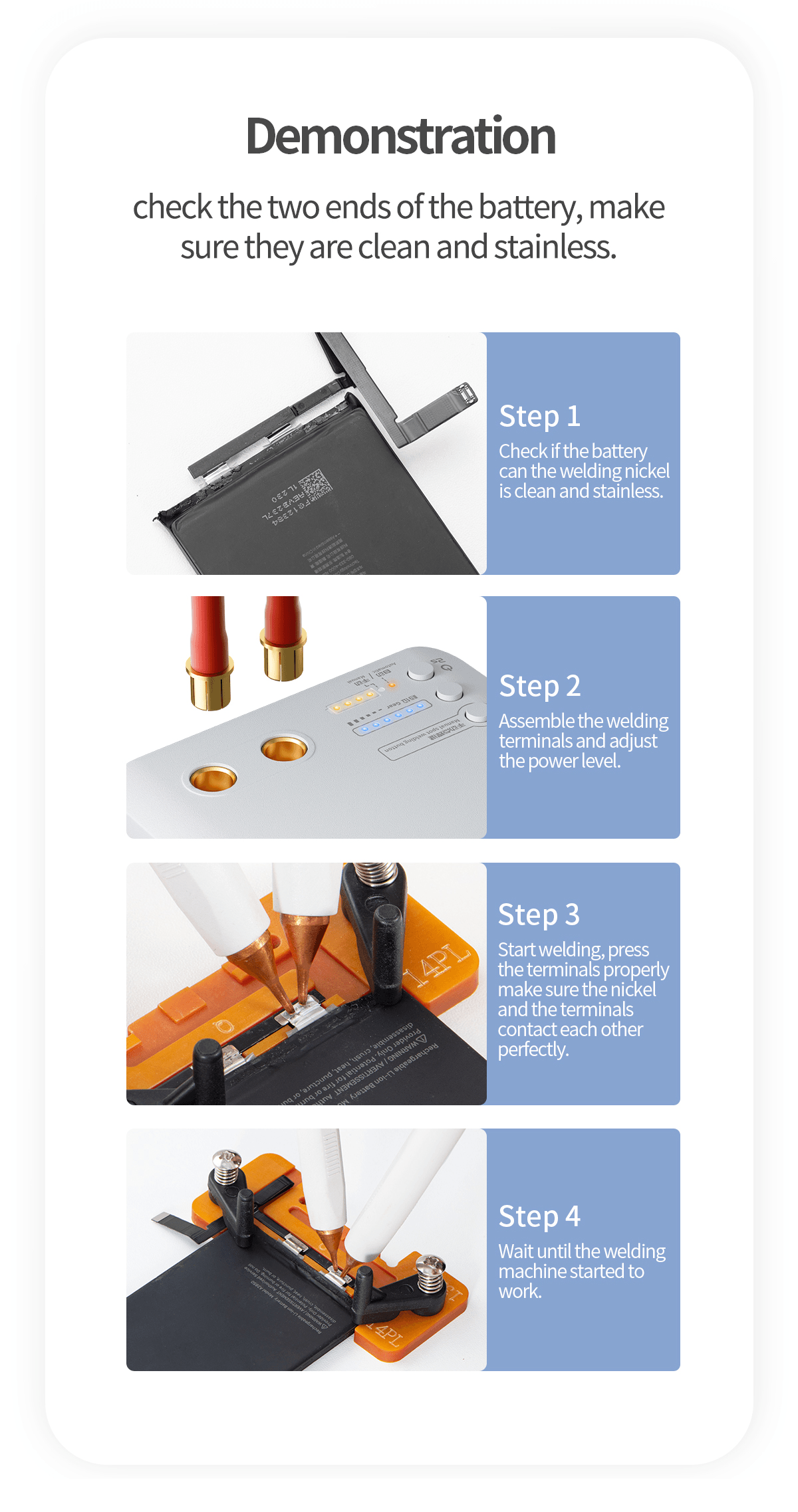

Instructions:
1. Place the battery cell on the silicone maintenance area of the spot welding machine, adjust the welding base clamp to clamp the welding part of the battery cell.
2. By selecting the "up" and "down" buttons, and confirming with the "OK" button, then the parameters of Preheat, Pulse, HtGap, and Times (continuous welding spot) can be adjusted to the appropriate spot welding power.

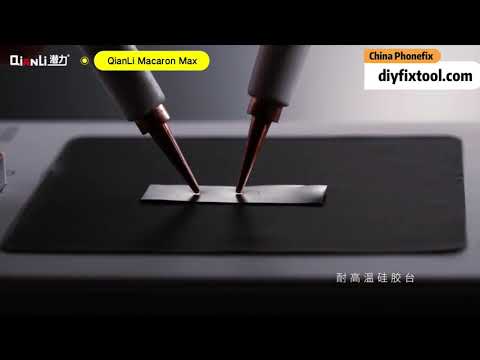

3. Press the spot welding pen appropriately to ensure that the welding terminal is in good contact with the nickel sheet, without floating or poor contact, complete the welding after the current output.
Features:

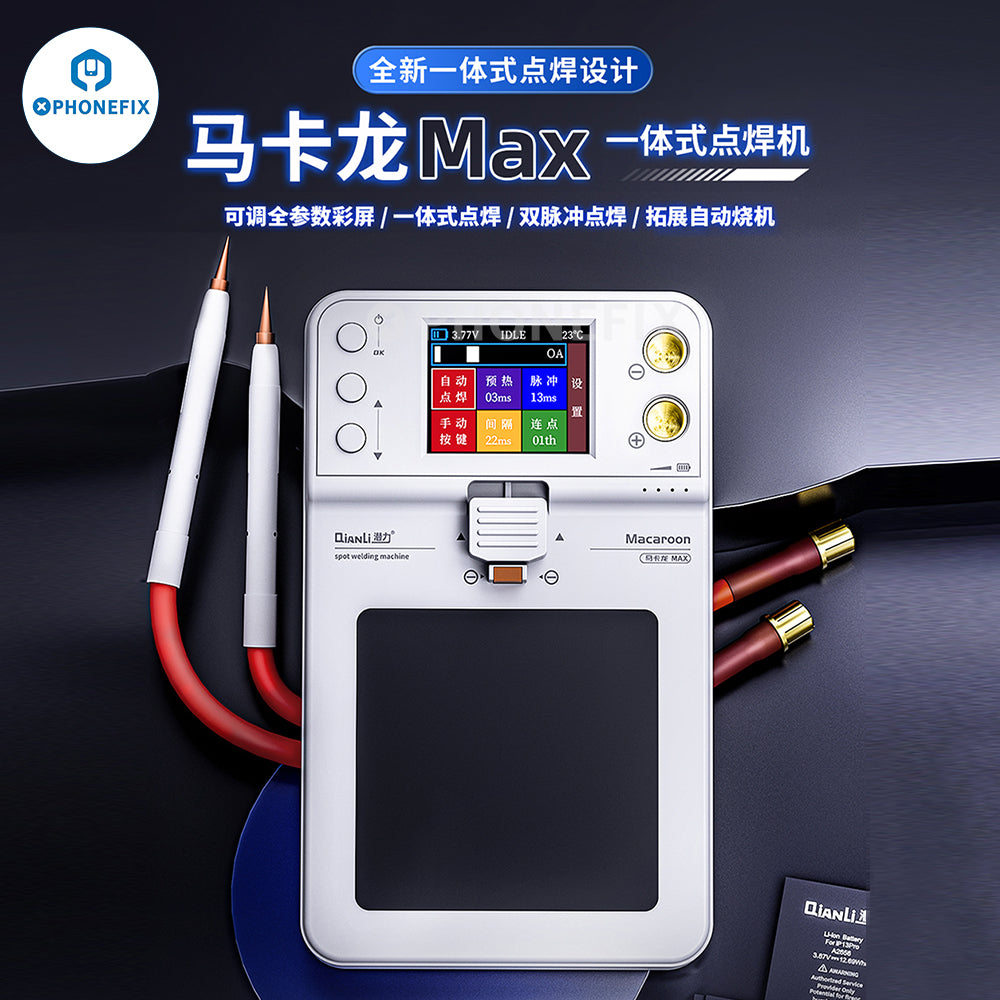

1. Macaron Max integrated spot welding machine, all parameters settable color screen, integrated spot welding, double pulse spot welding, auto burn-out.
2. No need for separate external fixtures, a new attitude toward products, minimalist design, and more stable operation.
3. Output a preheating pulse first, and then output the main pulse spot welding after a period, which is firm stable and reliable.

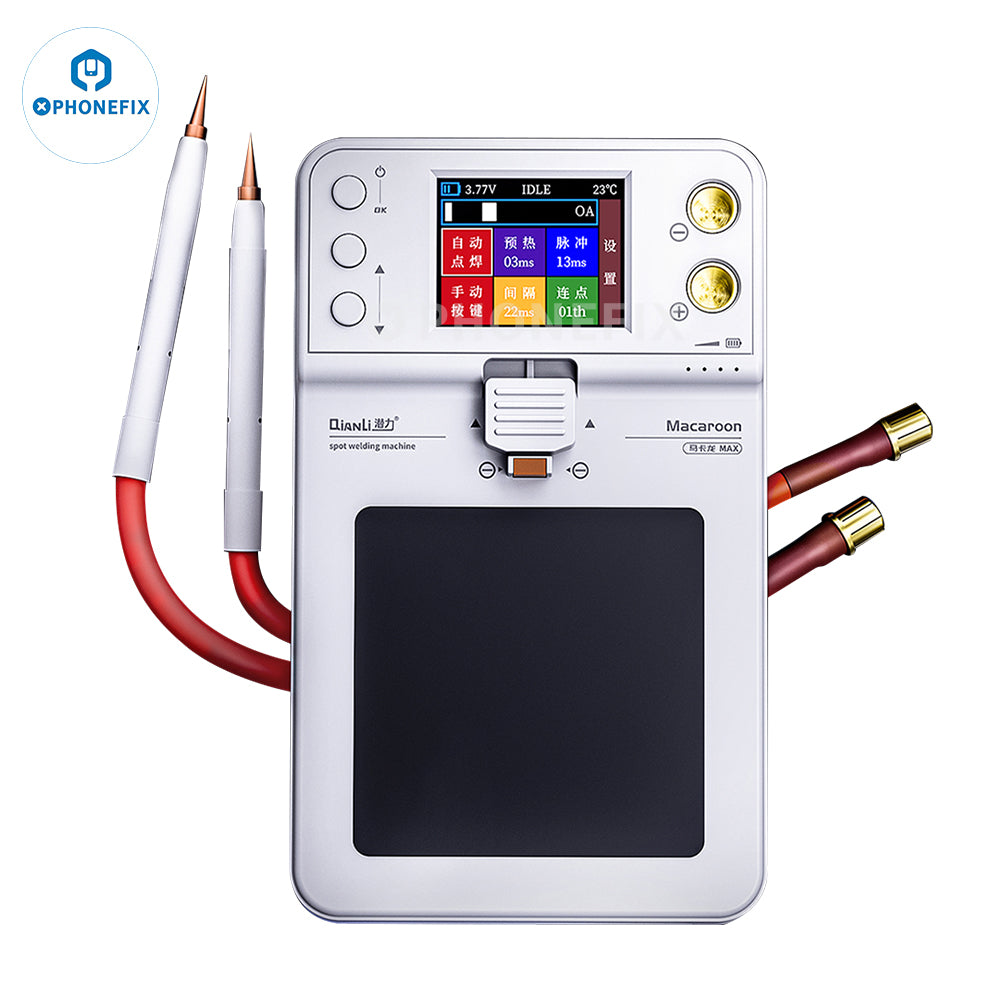

3. The color screen enables real-time visualization of spot welding parameters: Preheat, Pulse, HtGap, and Times (continuous welding spot); The mechanical button in the design supports adjusting spot welding parameters as needed.
Option:
1. QianLi Macaron spot welding machine.
2. QianLi Macaron Max Spot Welder machine.

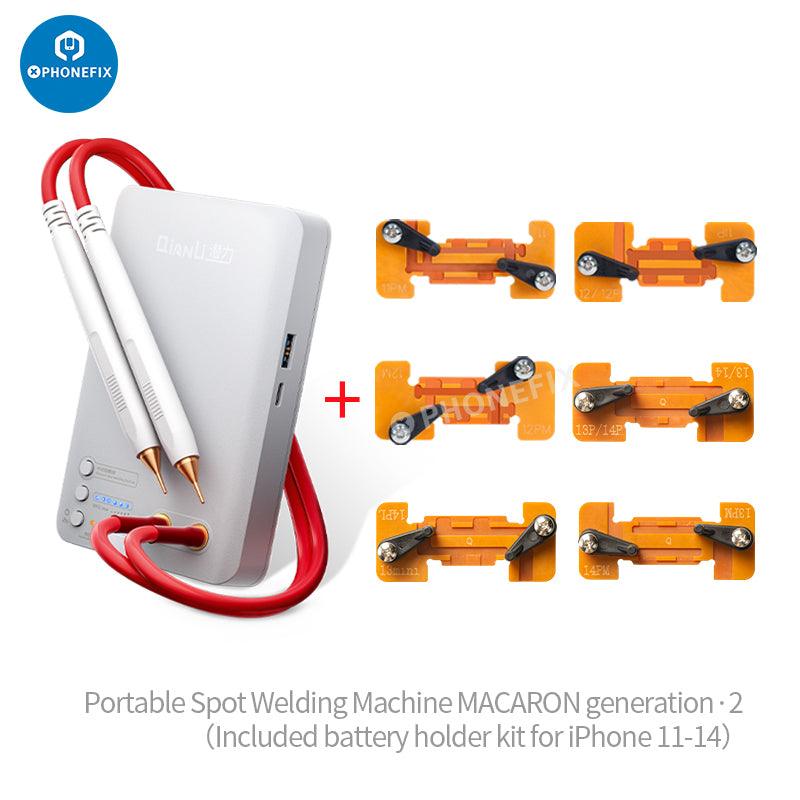

3. QianLi Macaron spot welding machine with iPhone 11-12 series battery fixture.

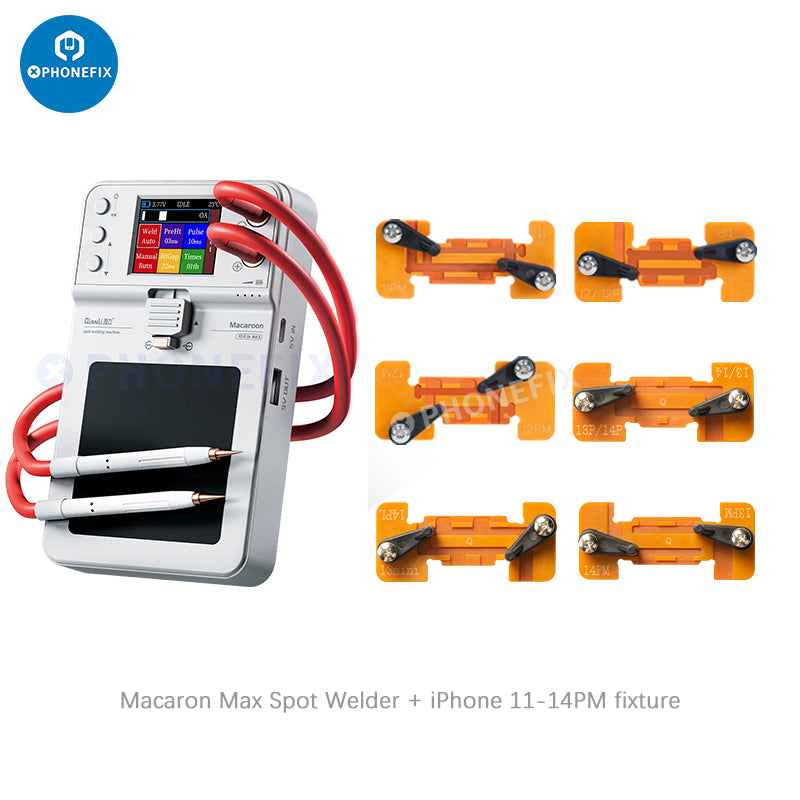

4. QianLi Macaron spot welding machine with iPhone 11-14 series battery fixture.

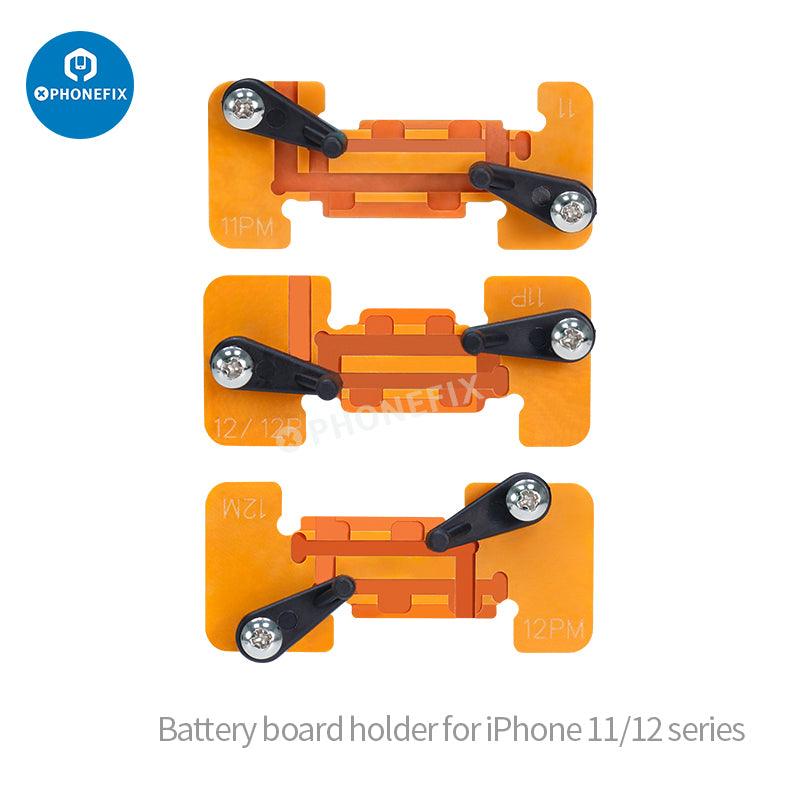

5. Qianli Mega-idea iPhone 11-12 Pro Max battery welding fixture.
6. Qianli Mega-idea iPhone 13-14 Pro Max battery welding fixture.
Compatible:
- Battery 18650 and other cylinder- shaped, NI-MH battery cadmium nickel battery, etc.
- Phone battery corn spot welder.
- Stainless steel is less than 0.12 mm.
