Description

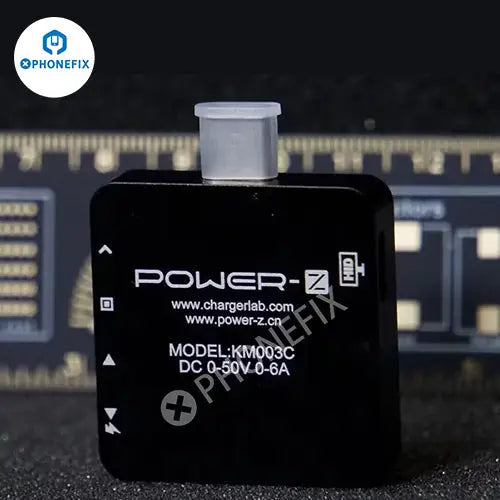

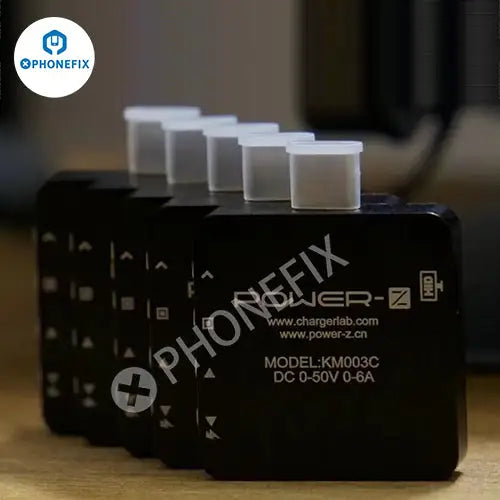

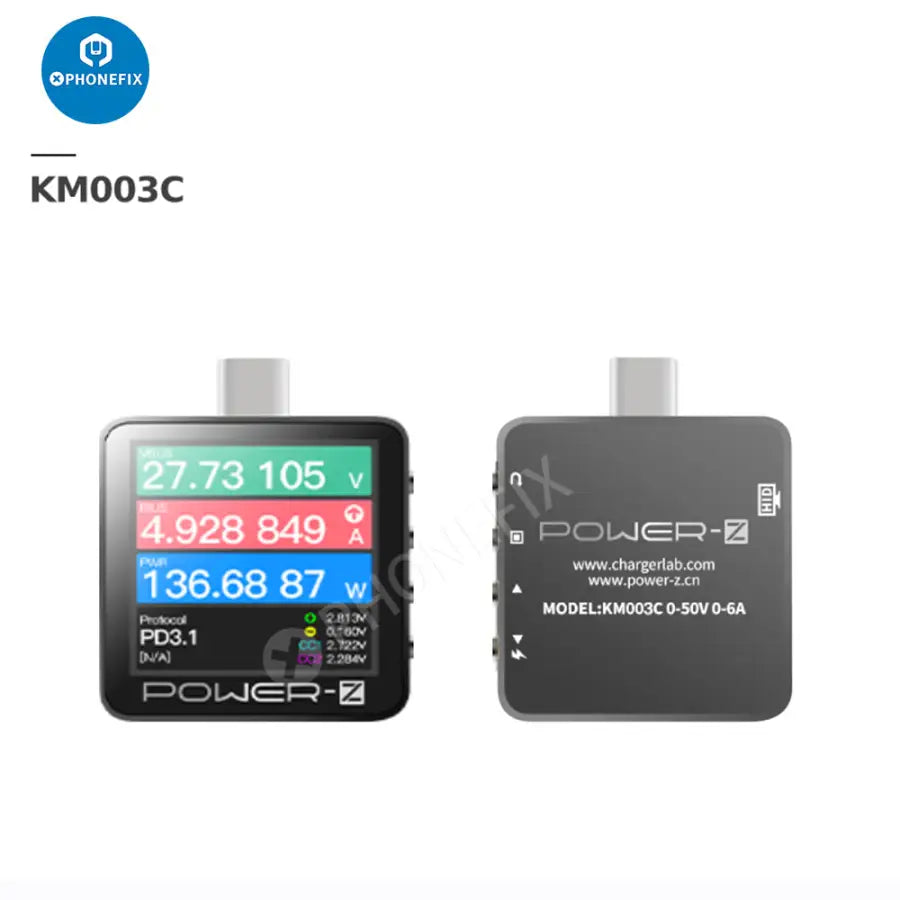

POWER-Z KM003C 0-50V 0-6A Portable USB C Tester PD3.1QC5.0 Digital Voltmeter Ammeter Power Bank Tester. Power-z KM003C Portable USB-C Tester PD 3.1 QC 5.0 Digital Voltmeter Ammeter Power Bank detector,Brand New Chargerlab Power-z KM003C USB-C Tester PD3.1QC5.0 Digital Voltmeter Ammeter Power Bank Tester.
Features:
1. The newly upgraded ChargeLAB POWER-Z KM003C fast charging tester supports USB PD3.1.
2. The new USB PD3.1 fast charging standard will support up to 48V voltage output and increase the charging power to 240W at the same time.
3. For Apple 140W charger to support 5V, 9V, 15V, 20V and 28V.
4. Support protocol detection: PD3.1, QC4, QC5, SCP, FCP, AFC, VFCP, SVOOC, MTK, EPR and UFCS.
5. 1.54" screen size, 240x240 resolution, high brush high brightness, screen upgraded again.
6. Added functions such as for Super-VOOC, VIFC, and QC5 to detect and deceive.
7. Larger ROM space, more expansion capabilities, M4 chip blessing, faster processing capabilities, high-level.
8. The machine has a PD packet catching function.

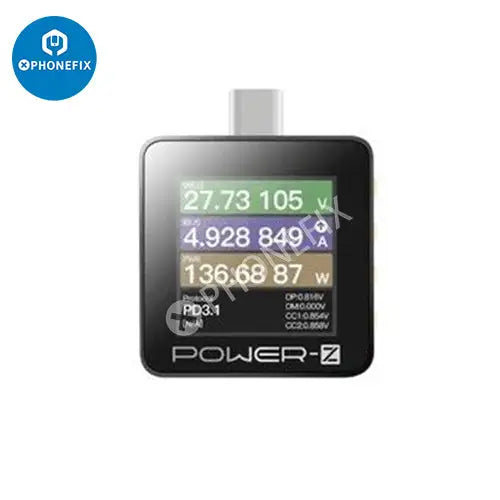

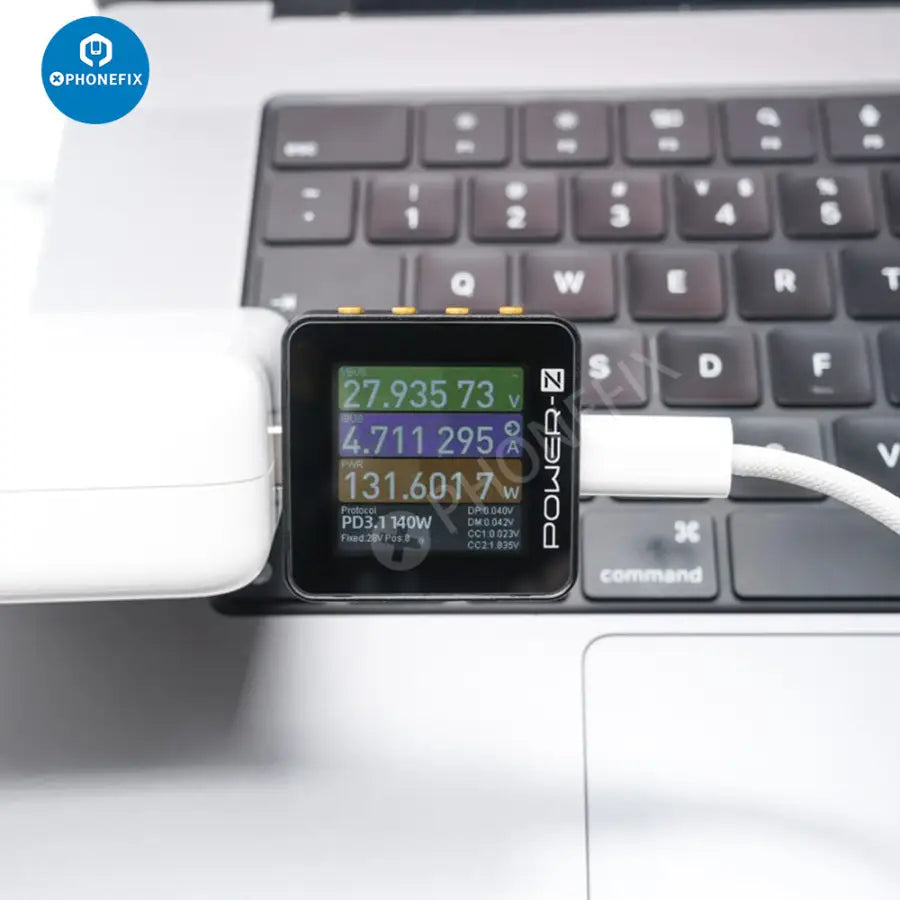

9. The main page displays the voltage, current, and power in order from top to bottom, and the lower-left corner displays the charging protocol that may be in use.
10. The display page can switch 4sps, 15sps, 60sps, and 1Ksps refresh rate.
11. It can display the working curve of voltage and current during charging; the working waveforms of D+ and D- and CC1 and CC2.
12. Support for fast charging protocol detection, currently supported protocols include: for FCP, SCP, AFC, QC3.0, QC4+, QC5, PD3.1, PD3.0, PPS, Apple 2.4A, VOOC, SVOOC, VIFC, UFCS, etc.
13. Data cable wire detection, by reading the information of the E-marker chip inside the wire, the power and transmission performance supported by the wire can be obtained.
14. For Apple charger SN code reading.
15. Offline recording of charging data, you can use a single machine to record the data changes of the device during charging, and store it in the form of data, users can call and review on the host computer, and export charts.
16. Support the host computer, the host computer is a very powerful function extended to the PC side, including data reading, recording, and exporting functions, as well as protocol decoy voltage regulation, PD protocol analysis, upgrade tester firmware, and other functions. Supports multi-camera simultaneous operation, in principle, there is no limit on the number. At present, the host computer only supports systems for WIN10 and WIN11.
Specifications:
1. Number of offline record groups: 4MB internal storage.
2. Capacity energy maximum group: 15-40.
3. Accuracy: 0.00003.
4. HD interface: Type-C. Test interface type: Type-C.
5. ADC: 20 Bit.
6. Screen: 1.54-inch, 240x240 resolution, IPS material, supports gravity sensing.
7. Power failure life: 5s.
8. Processor: for ARM Cortex-M4 192MHz.
9. Case material: CNC aluminum case.
10.Support PD3.1, English, Chinese language.
11. Operation type: Key
12. Power supply, communication port: Type-C (5V)
13. Interface internal resistance: about 20mΩ
14. Typical operating current: 15~50mA
15. Voltage accuracy: 0.00002V. Voltage range: 0-50V.
16. Current accuracy: 0.00003A. Current range: 0-6A
17. Operating temperature: -10 to 60°C.
18. Support Apple charger SN code reading.
19. Upper computer: new interface, 4K picture quality, 10 million data, 10,000,000 packet cathcing function.
Function introduction:
Quick Start:
1. Insert the Type-C port of the Power-Z into the charging port of the mobile phone
2. Insert the original charger into the C port at the bottom of the Power-Z
3. Turn on the power to start using, easily monitor charging voltage, current, power and other data

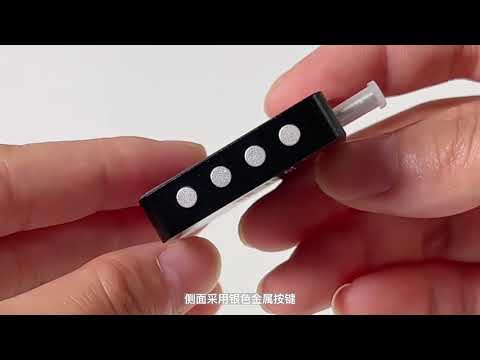

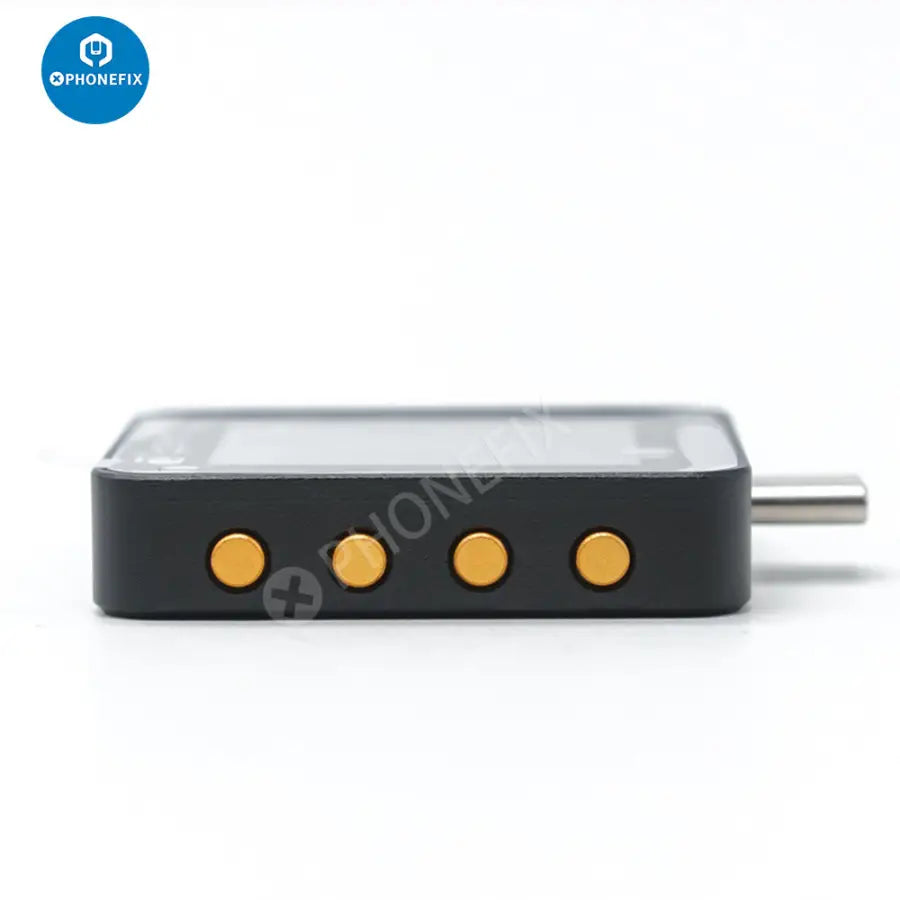

Key Description" (top to bottom):
Button 1: Return, the main interface adjusts the text display direction
Button 2: OK, the main interface adjusts the data refresh frequency
Button 3: Previous page, the cursor moves up
Button 4: next page, cursor down
Precautions:
1. The QR code manual will appear when you first open it, you can choose to skip it and "start using" directly.
2. The current firmware version is the test firmware, there are some minor bugs that do not affect the use, please forgive me. Some unfinished features and issues will be added and fixed in subsequent updates.
3. HID is a data interface, used to connect to the host computer and PC suite (for the time being only Windows). It can be used for 5V power supply during testing, which is more stable.
4. The official version of the manual will be updated synchronously with the official firmware.
Features:
1. The newly upgraded ChargeLAB POWER-Z KM003C fast charging tester supports USB PD3.1.
2. The new USB PD3.1 fast charging standard will support up to 48V voltage output and increase the charging power to 240W at the same time.
3. For Apple 140W charger to support 5V, 9V, 15V, 20V and 28V.
4. Support protocol detection: PD3.1, QC4, QC5, SCP, FCP, AFC, VFCP, SVOOC, MTK, EPR and UFCS.
5. 1.54" screen size, 240x240 resolution, high brush high brightness, screen upgraded again.
6. Added functions such as for Super-VOOC, VIFC, and QC5 to detect and deceive.
7. Larger ROM space, more expansion capabilities, M4 chip blessing, faster processing capabilities, high-level.
8. The machine has a PD packet catching function.
9. The main page displays the voltage, current, and power in order from top to bottom, and the lower-left corner displays the charging protocol that may be in use.
10. The display page can switch 4sps, 15sps, 60sps, and 1Ksps refresh rate.
11. It can display the working curve of voltage and current during charging; the working waveforms of D+ and D- and CC1 and CC2.
12. Support for fast charging protocol detection, currently supported protocols include: for FCP, SCP, AFC, QC3.0, QC4+, QC5, PD3.1, PD3.0, PPS, Apple 2.4A, VOOC, SVOOC, VIFC, UFCS, etc.
13. Data cable wire detection, by reading the information of the E-marker chip inside the wire, the power and transmission performance supported by the wire can be obtained.
14. For Apple charger SN code reading.
15. Offline recording of charging data, you can use a single machine to record the data changes of the device during charging, and store it in the form of data, users can call and review on the host computer, and export charts.
16. Support the host computer, the host computer is a very powerful function extended to the PC side, including data reading, recording, and exporting functions, as well as protocol decoy voltage regulation, PD protocol analysis, upgrade tester firmware, and other functions. Supports multi-camera simultaneous operation, in principle, there is no limit on the number. At present, the host computer only supports systems for WIN10 and WIN11.
Specifications:
1. Number of offline record groups: 4MB internal storage.
2. Capacity energy maximum group: 15-40.
3. Accuracy: 0.00003.
4. HD interface: Type-C. Test interface type: Type-C.
5. ADC: 20 Bit.
6. Screen: 1.54-inch, 240x240 resolution, IPS material, supports gravity sensing.
7. Power failure life: 5s.
8. Processor: for ARM Cortex-M4 192MHz.
9. Case material: CNC aluminum case.
10.Support PD3.1, English, Chinese language.
11. Operation type: Key
12. Power supply, communication port: Type-C (5V)
13. Interface internal resistance: about 20mΩ
14. Typical operating current: 15~50mA
15. Voltage accuracy: 0.00002V. Voltage range: 0-50V.
16. Current accuracy: 0.00003A. Current range: 0-6A
17. Operating temperature: -10 to 60°C.
18. Support Apple charger SN code reading.
19. Upper computer: new interface, 4K picture quality, 10 million data, 10,000,000 packet cathcing function.
Function introduction:
Quick Start:
1. Insert the Type-C port of the Power-Z into the charging port of the mobile phone
2. Insert the original charger into the C port at the bottom of the Power-Z
3. Turn on the power to start using, easily monitor charging voltage, current, power and other data
Key Description" (top to bottom):
Button 1: Return, the main interface adjusts the text display direction
Button 2: OK, the main interface adjusts the data refresh frequency
Button 3: Previous page, the cursor moves up
Button 4: next page, cursor down
Precautions:
1. The QR code manual will appear when you first open it, you can choose to skip it and "start using" directly.
2. The current firmware version is the test firmware, there are some minor bugs that do not affect the use, please forgive me. Some unfinished features and issues will be added and fixed in subsequent updates.
3. HID is a data interface, used to connect to the host computer and PC suite (for the time being only Windows). It can be used for 5V power supply during testing, which is more stable.
4. The official version of the manual will be updated synchronously with the official firmware.
