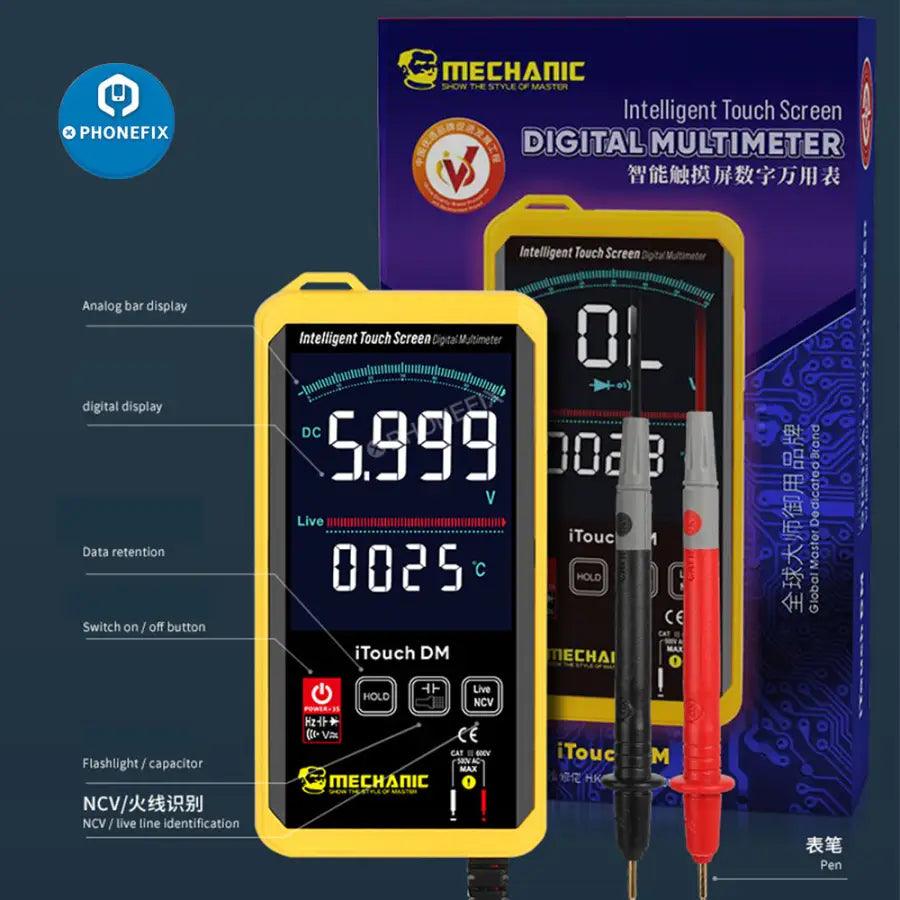

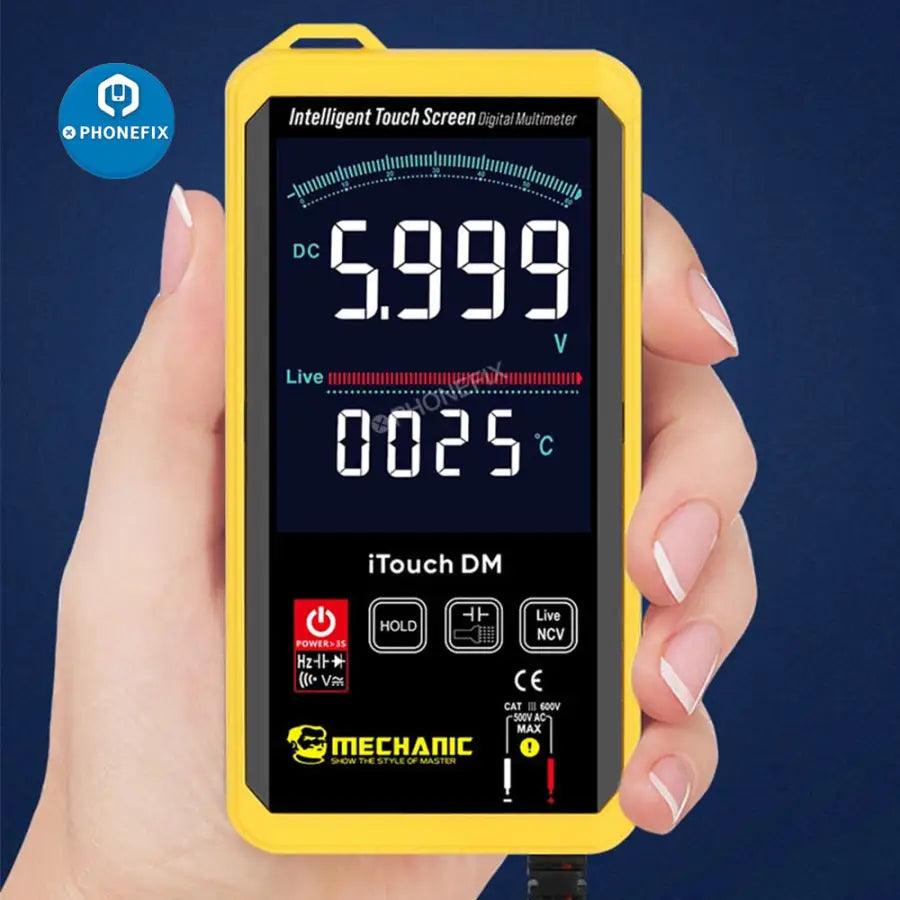

MECHANIC iTouch DM intelligent touch digital multimeter, with 3.2-inch LCD HD display / AC DC temperature display / diode / Firewire Frequency / Resistance / Capacitor test flashlight function, NCV function precision touch / three displays on one screen
MECHANIC iTouch DM Intelligent Digital Multimeter For Mobile Phone Repair
Features: Touch measurement, automatic recognition, mini portable, integrated large screen display, high-definition display effect
Product Functions :

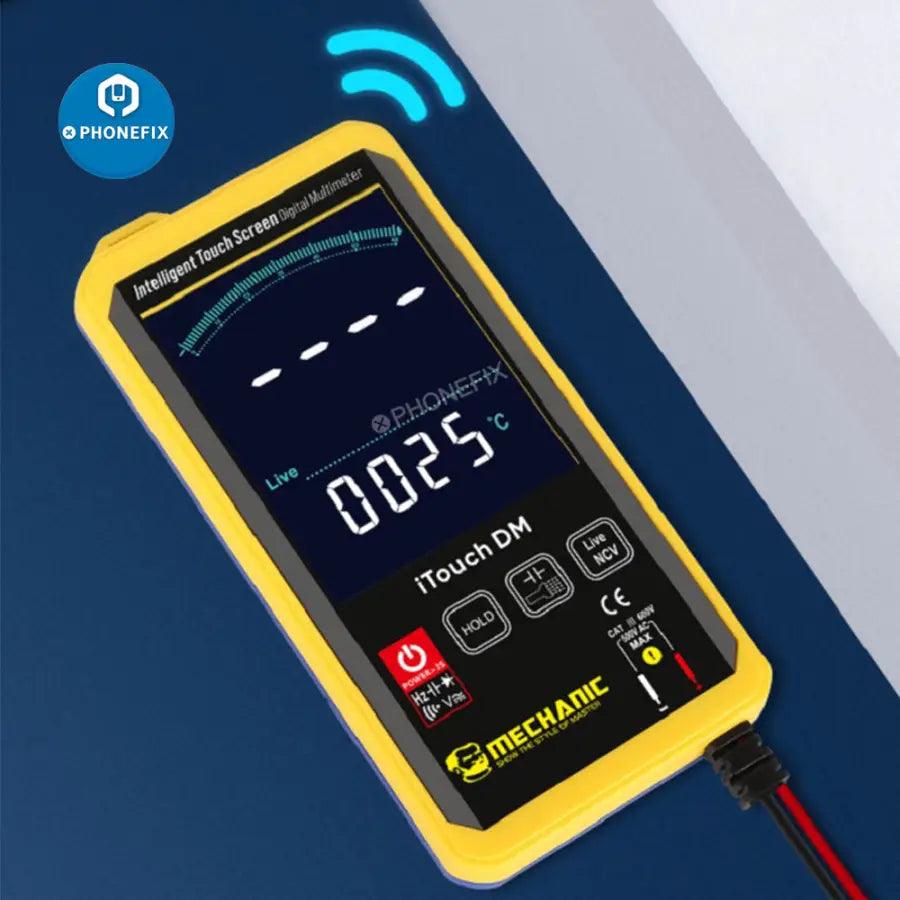

- Voltage detection - NCV no-touch voltage detection : Built in high sensitive voltage probe, and the strength of signal will display on the screen
- Intelligent touch- One touch switch : Touch control measurement, automatic recognition, automatic measurement double high-speed chip measurement is more accurate.

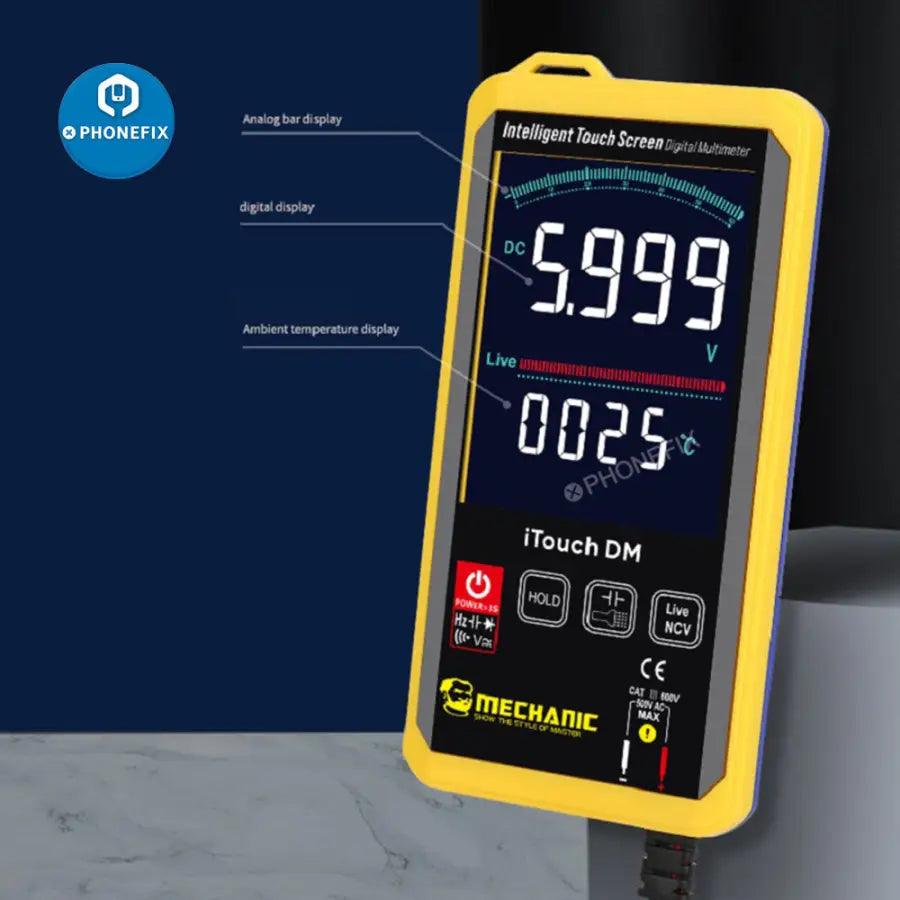

- Three displays in a same screen : Double analog display, real-time temperature, true virtual value, display in a screenIntegrated large screen LCD display, HD effect, clear reading, overload protection.
- One click lighting- Flashlight : Not limited to dark environments, easy to measure, convenient and and worry-free.

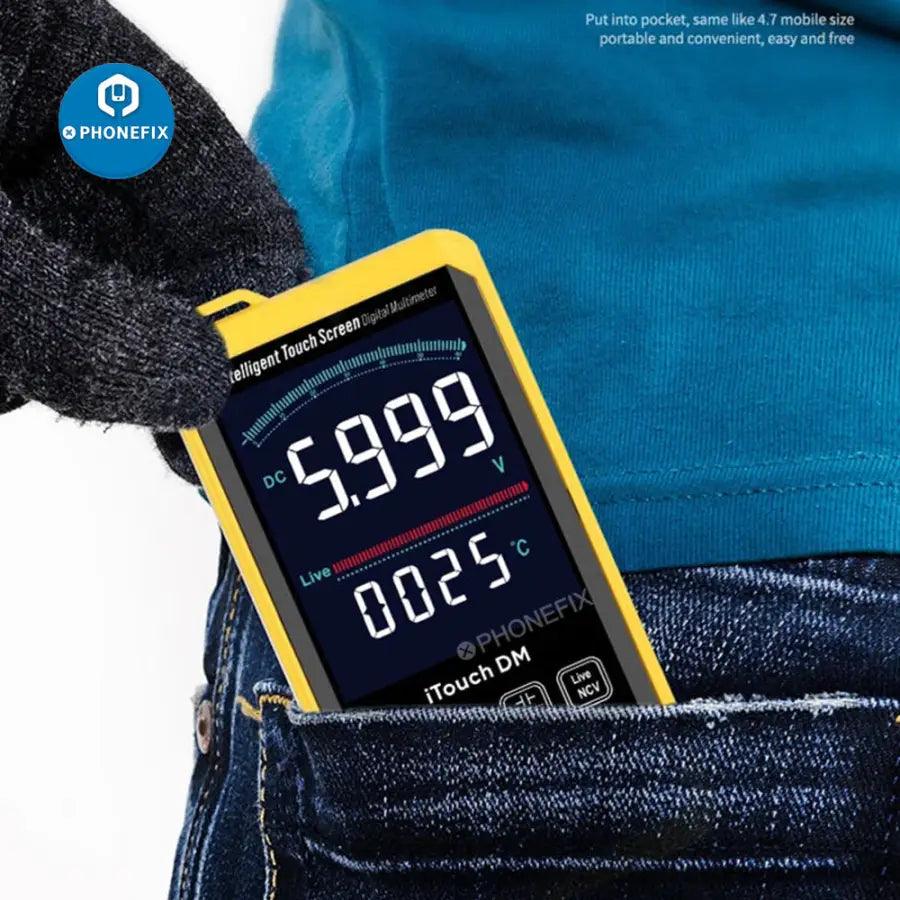

- Mini size : Put it in your pocket, the size is the same as the 4.7 mobile phone size, easy and convenient to carry.
Product Specification :
- Brand: MECHANIC
- Product Type: Smart touch screen digital multimeter
- Model: iTouch DM
- Dimensions: 137*68*17mm
- Purpose: dedicated to electricians, professional technicians, students and
- households
- Measurement functions: DC voltage/AC voltage, DC current/AC current, resistance, Capacitor, diode (4.2V high voltage output)
- Auto range: diode, triode, continuity test, temperature detection,
- Intelligent automatic voice report, manual/true effective value, average value
- DC Voltage Mileage: 6V/60V/600V/1000V ±(0.5%+3)
- AC Voltage Range: 6V/60V/600V/750V ±(0.8%+10)
- Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/8MHz ±(0.1%+3)
- Resistance Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+5)
- Capacitance Range: 10nF/100nF/1uF/10uF/100uF/1mF/10mF/60mF ±(3.5%+20)
- Maximum Display: 5999
- Sampling Rate: 3 times/sec
- Net Weight: 173g
- Gross Weight: 205g
- Packing Size: 103*165*34mm
- Standard Accessories: OA test lead, manual, certificate, packing box
-
Note: Multimeter without 1.5V battery (2 sections)
Package List :
- 1pc x Mechanic iTouch DM Digital Multimeter
