2023 IIT ShortCam Mini Thermal Camera DIY Clamping Infrared Thermal Imaging Device Motherboard Faults Inspection Repair Tool. IIT ShortCam Lite Thermal Imaging Camera Motherboard Fault Diagnosis Instrument, such as high temperature short circuit, etc. LINCSeek IIT Short Cam Thermal Camera is specifically designed for mobile phone motherboard fault detection and diagnosis, also for notebooks, tablet computer motherboards, and other electronic motherboard CPU ICs, etc. IIT ShortCam Lite infrared thermal camera compatible with microscopes, making repairs easy and efficient.
LINCSeek ShortCam Infrared Thermal Imaging for detecting thermal hot-spots (abnormal temperature) on the motherboard PCB of electronic equipment. LINC Seek ITT ShortCam Thermal Camera can diagnose and repair damaged or malfunctioning components or short circuits failure.
ShortCam Mini Thermal Imager Specification:
Model: AS21 Mini.
Resolution: 256*192.
Wavelength range: 7.5um-13.5um.
Camera angle: 25°-18°.
Display mode: Thermal imaging.
Connector type: Type-C, USB2.0.
Weight: lens-36g, body-200g.
Length: flexible gooseneck-30cm.
Lens specifications: diameter-34mm, hight-47.5mm, lantern-shaped.
Temperature measurement range: -20℃-550℃.
Temperature measurement distance: 5cm-25cm.
Supported platforms: desktop/laptop windows 7/10/11.
Software: support online upgrade.
Accessories: integrated clamp and cable, warranty card, quality inspection card.
IIT ShortCam Mini software and manual: https://drive.google.com/file/d/10KKJ4jxETtKb98RF_2RjW3e4GFL46qOs/view?usp=drive_link
ShortCam Mini Features:

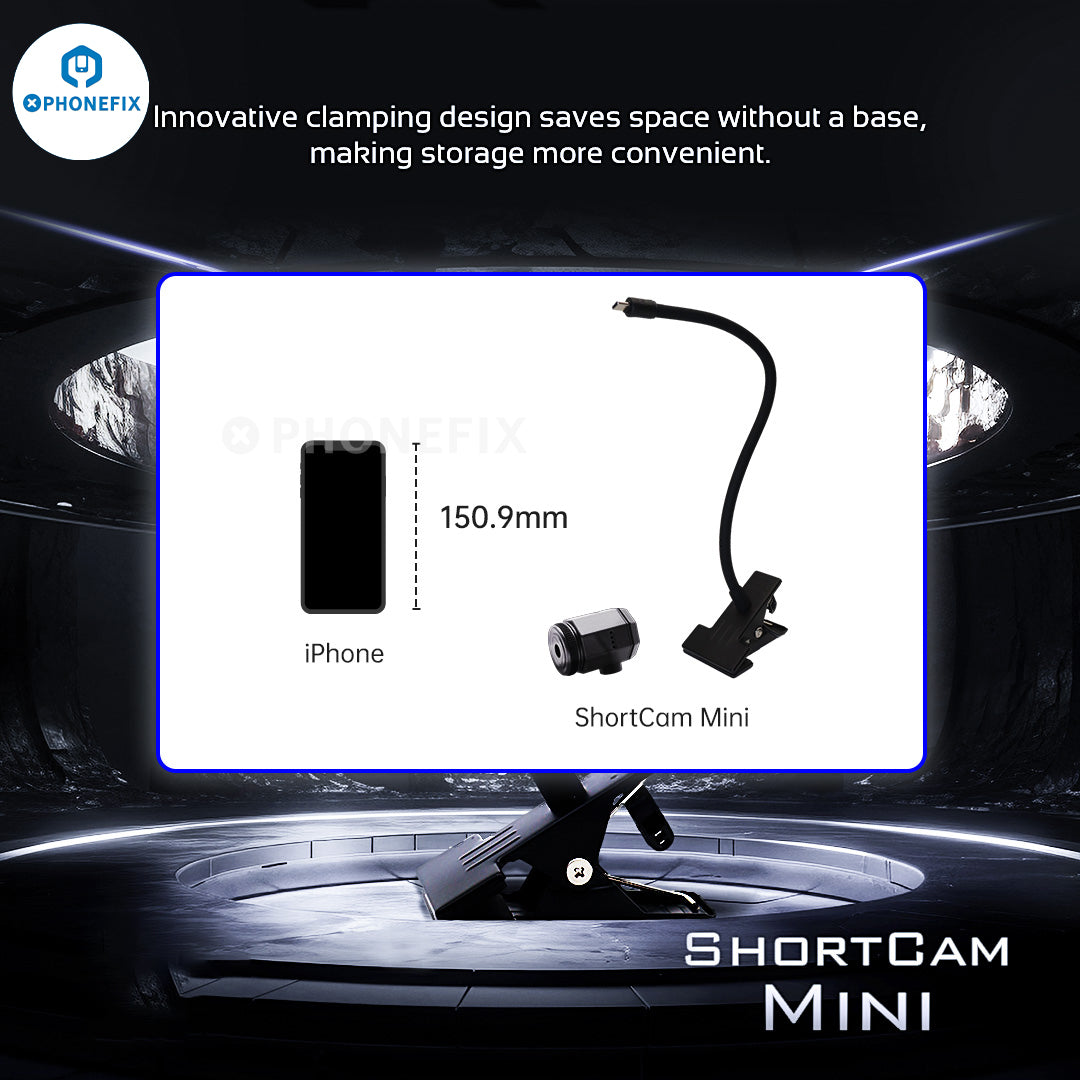

1.ShortCam Mini Infrared Thermal Imager with clamping design, no base required, saving space and making storage more convenient.
2. Detachable infrared lens, allowing for various innovative DIY options to create more interesting and creative applications.

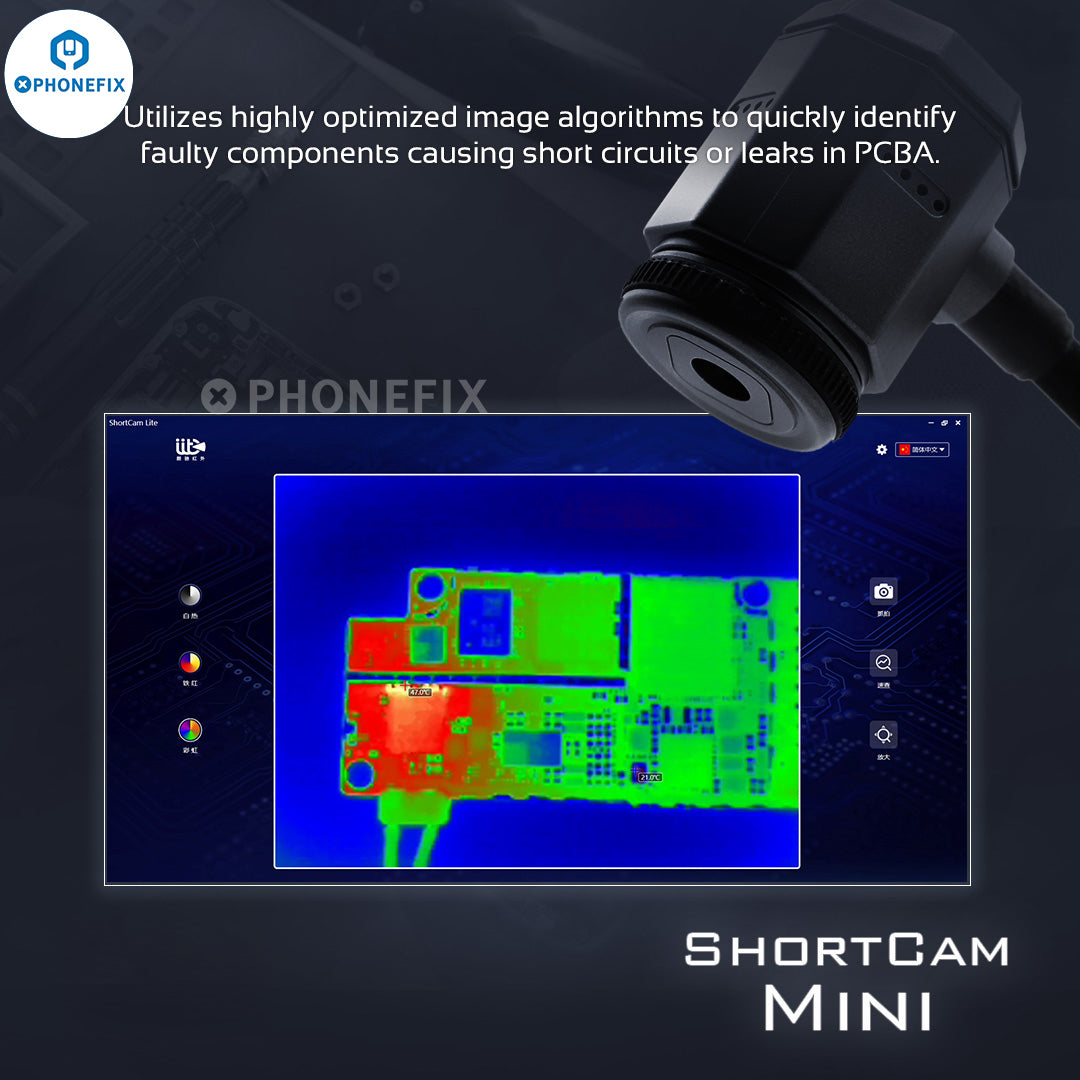

3. Utilizes highly optimized image algorithms to quickly identify faulty components causing short circuits or leaks in PCBA.
4. Dedicated client software with a simple interface, ensuring quick user adoption.
5. Compatible with USB interface, plug-and-play for desktops or laptops.
6. Lightweight, easy to carry and use.

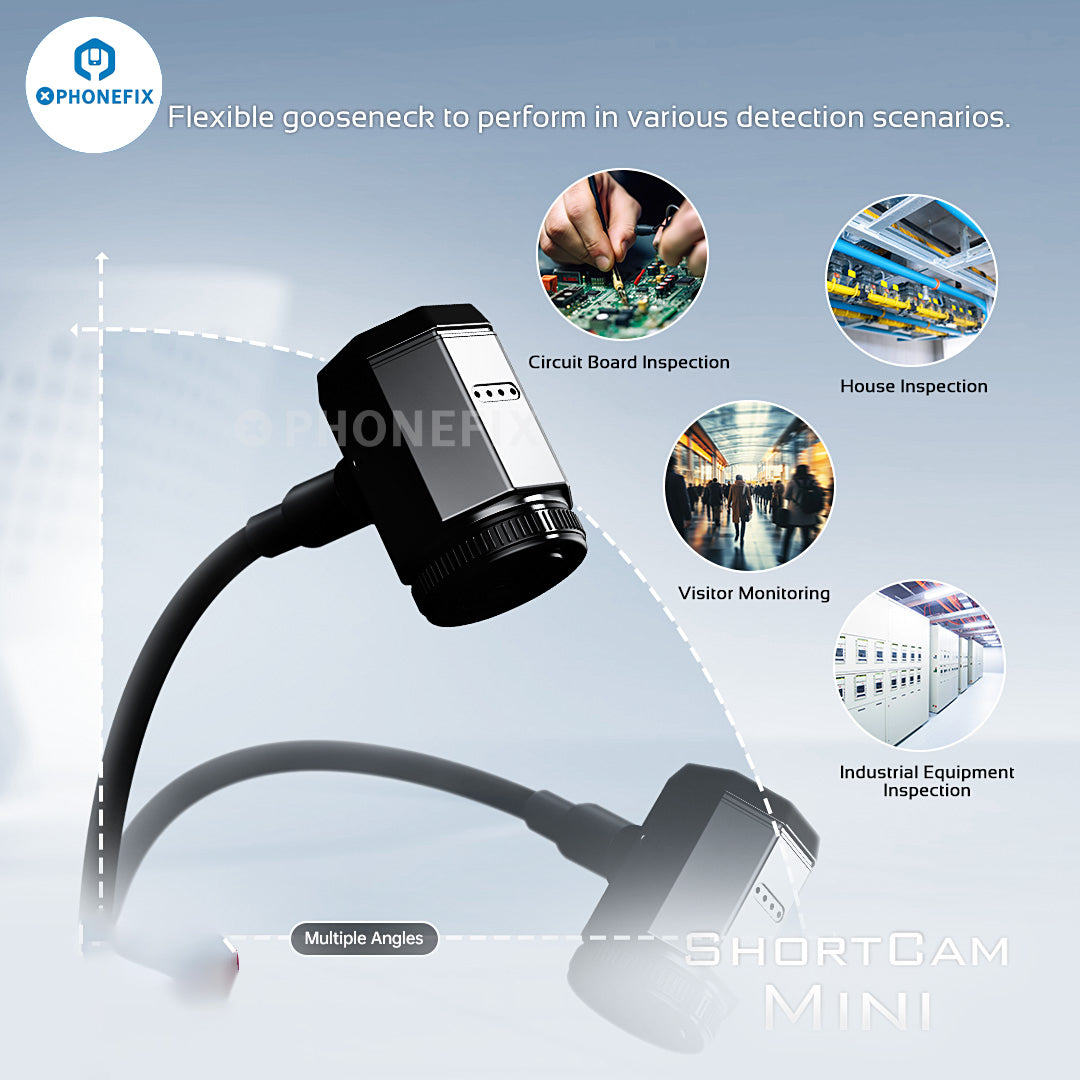

7. Flexible gooseneck to perform in various detection scenarios, like circuit board inspection, industrial equipment inspection, visitor monitoring, house inspection, ect.
ShortCam Lite Specification:
Sensor type: Uncooled VOx Detector.
Resolution: 256*192.
Wavelength range: 7.5-13.5um.
Field of view: 25°*18°.
Display mode: Thermal camera.
Interface: Type-C.
Image display format: JPG.
Input voltage: 5V DC.
Power consumption: 2.5W.
Storage temperature: -20℃-60℃.
Working environment: 3℃-45℃.
Humidity: 95% relative humidity.
Temperature measurement distance: 5cm-25cm.
Temperature measurement accuracy: ±5°C or ±5% (Take the maximum value).
Temperature measurement range: -20°C-550°C.
Package size: 190mmx157mmx73mm.
Software: https://drive.google.com/file/d/1v7v3Fd24jRlXp6G0CgQKgf7pjWpYc7AT/view?usp=sharing
ShortCam Lite Features:
1. 256x192 high-definition thermal imaging. Determine the precise location of abnormally high temperature components and visualize the faults in real-time.
2. Pinpoint precision in locating electrical leaskage. Detects electrical leakage in a snap, making repairs easy and efficient.
4. One-click quick diagnosis function, switch to the "one-click quick diagnosis" mode to reveal electrical leakage with enhanced visibility and efficiency.
4. Compact and foldable design for easy storage and use.
5. Compatible with multiple operating systems. Equipped with WIFI function, seamlessly connects with Apple iPhone Android phones and laptops.

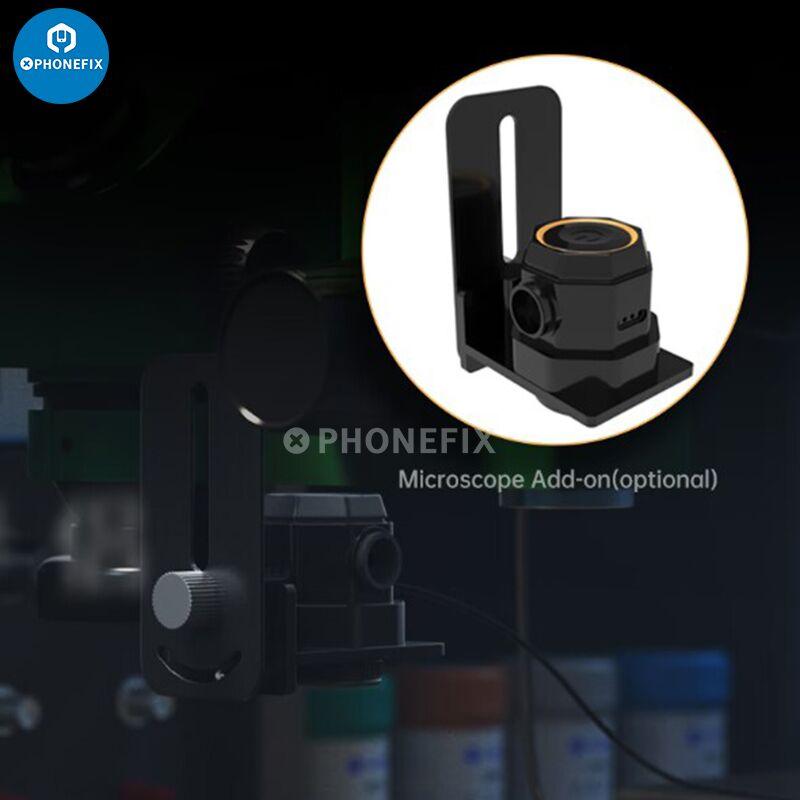

6. Compatible with microscopes, with a detachable infrared lens for seamless integration with microscopes.
7. Applications: cell phone motherboard repair, computer motherboard repair, hard disk data recovery, smartwatch repair, logic board BGA SMD repair, ect.
Note: The Microscope dedicated bracket is not included in the ShortCam Lite package.
IIT ShortCam Specification:
Resolution: 160x120
Wavelength range: 7.5-13.5 μm
Lens angle: 57° x 44°
Visible part of the parameters: resolution 1920x1080
Display Mode: Visible / Infrared Thermal Imaging / Dual Optical Interlace positioning
Power: Input power voltage 5-26V DC
Power consumption: 2.2W (maximum 3W)
Temperature function: full temperature.
Software: https://drive.google.com/file/d/1cHgsCIQ63qIO0QY_MwM5rtmpN_EU97CY/view?usp=sharing
IIT ShortCam Features:
1. Detect the motherboard chip, resistor and capacitor running temperature by the powerful PC intelligent analysis software and intelligent algorithm;
2. Fastly Locate the capacitance of micro current leakage, short-circuit position;
3. Through the analysis of normal / abnormal motherboard comparison mode, quickly and accurately identify the problem chip, help phone fix technician troubleshooting motherboard, greatly improve the efficiency and accuracy of maintenance of the new generation of overhaul equipment.
Note: The device supports only Microsoft systems (windows). Easy to use. Connect the device and install the software that can be used. When used, the motherboard needs connected power.
