i2C intelligent desoldering station PCB heating module for
iPhone X-14 Pro Max PCB BGA soldering and desoldering repair, Tin planting platform for iPhone X-14 Pro Max, i2C desoldering station BGA heating module

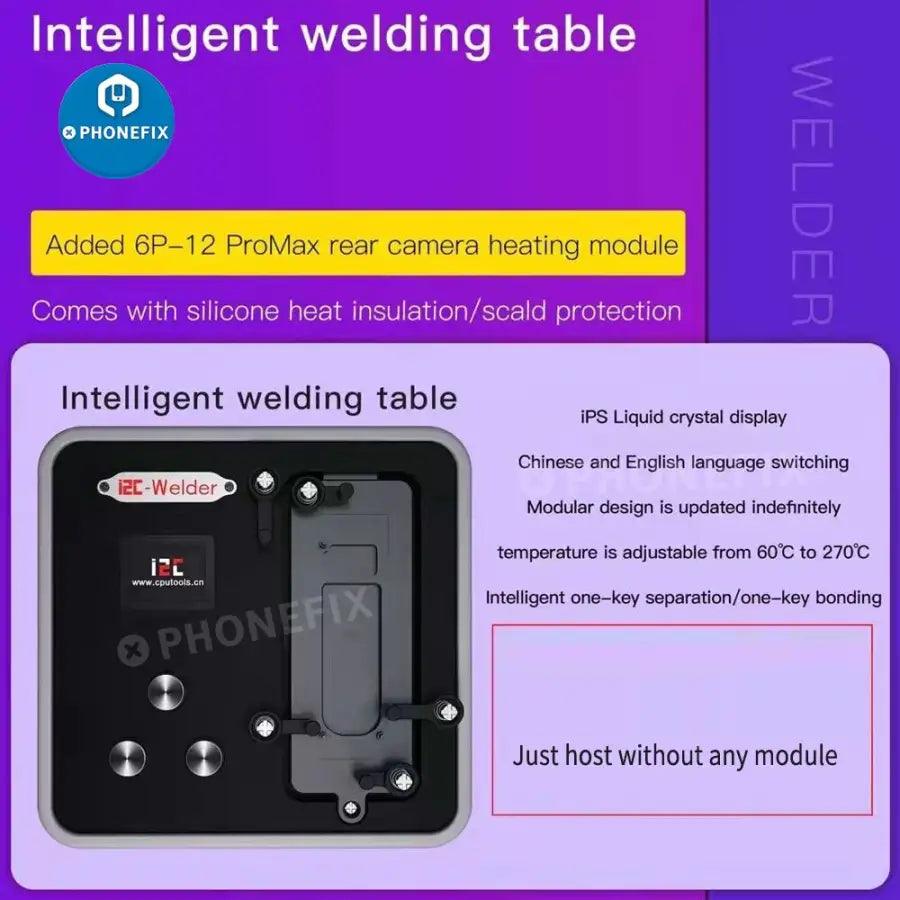

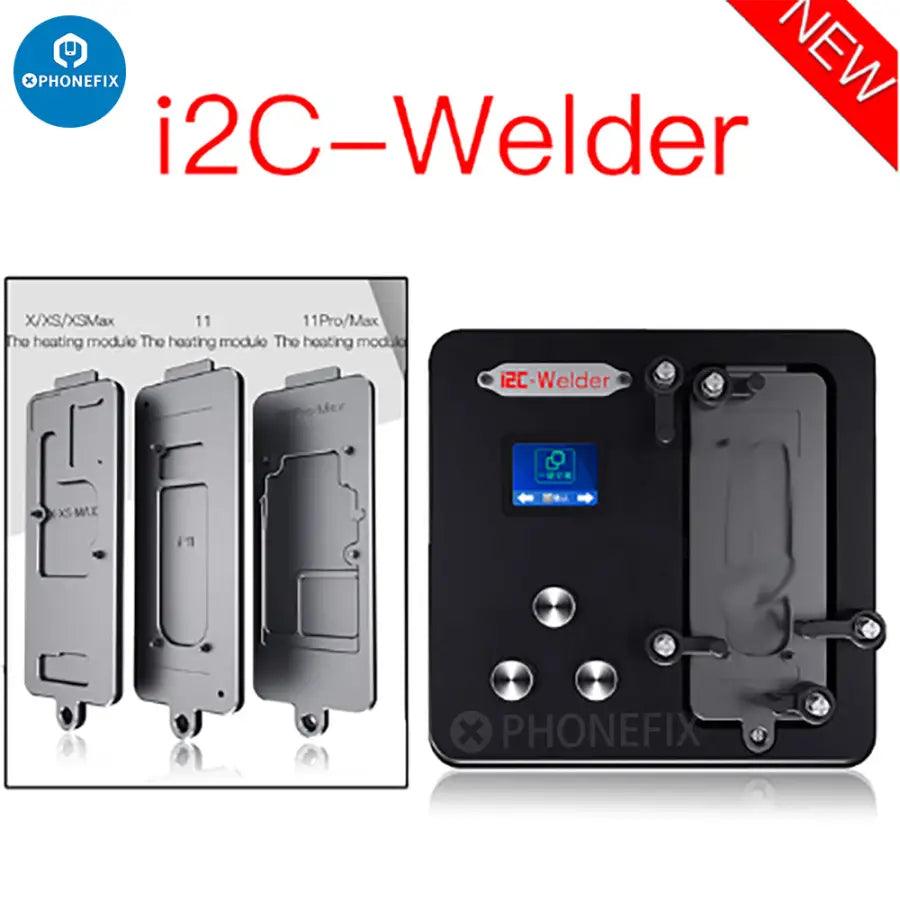

Intelligent Welding Station Preheating Module For iPhone BGA PCB Board Soldering Desoldering Repair.i2C-Welder Features :
- Good detail makes good quality
- Intelligent temperature control
- For soldering / desoldering
- Rapid heating, can be heated to 270℃

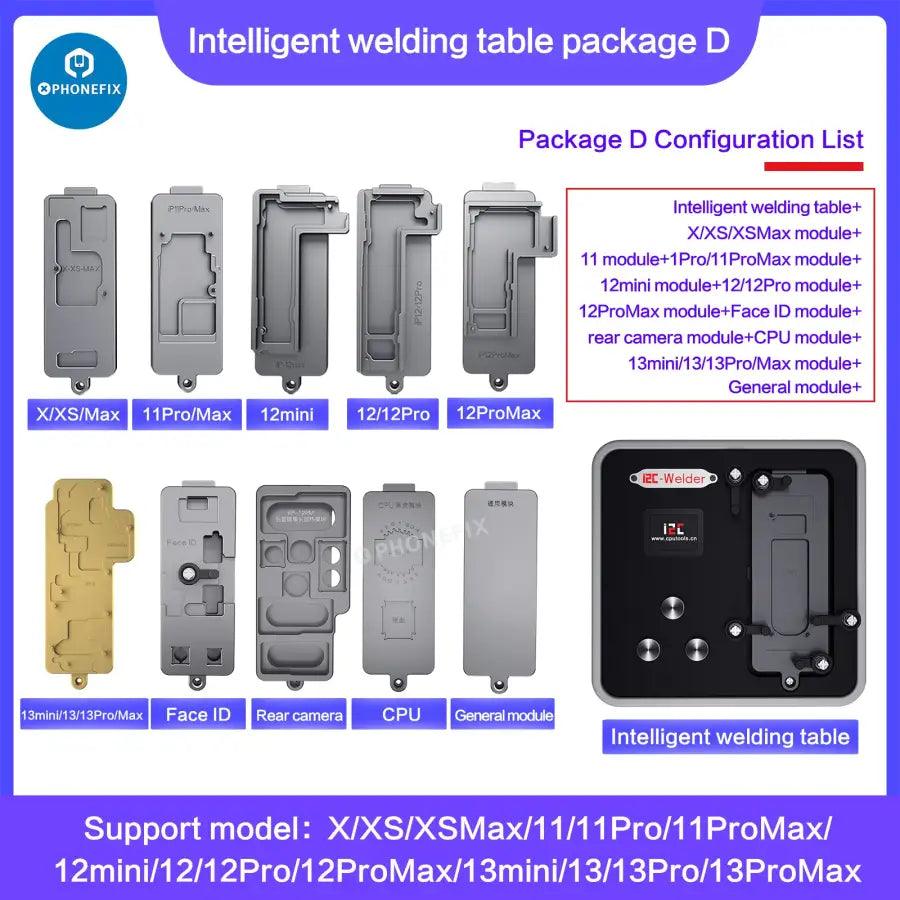

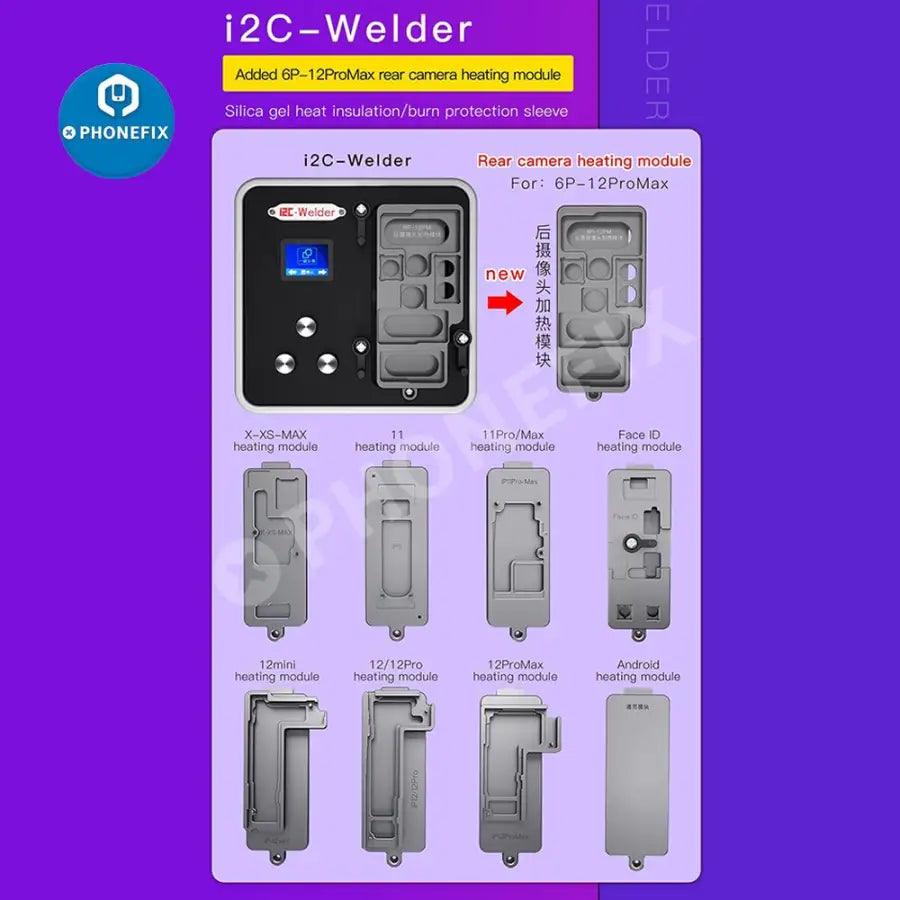

- Modular expansion
- Unlimited upgrade
- Intelligent explosion-proof tin

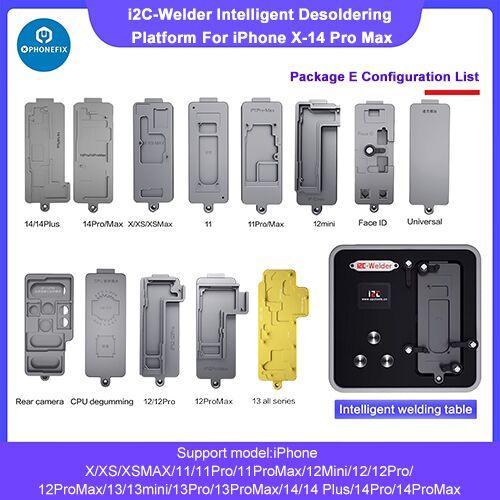

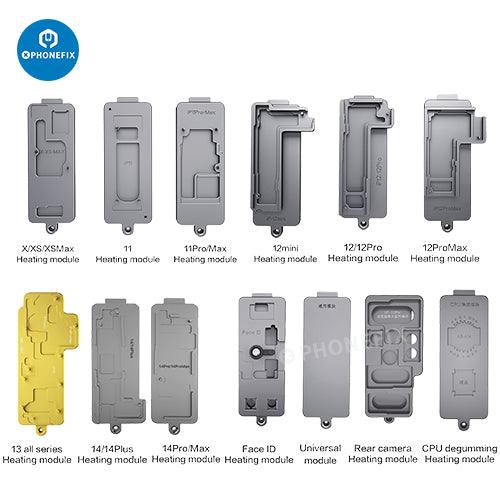

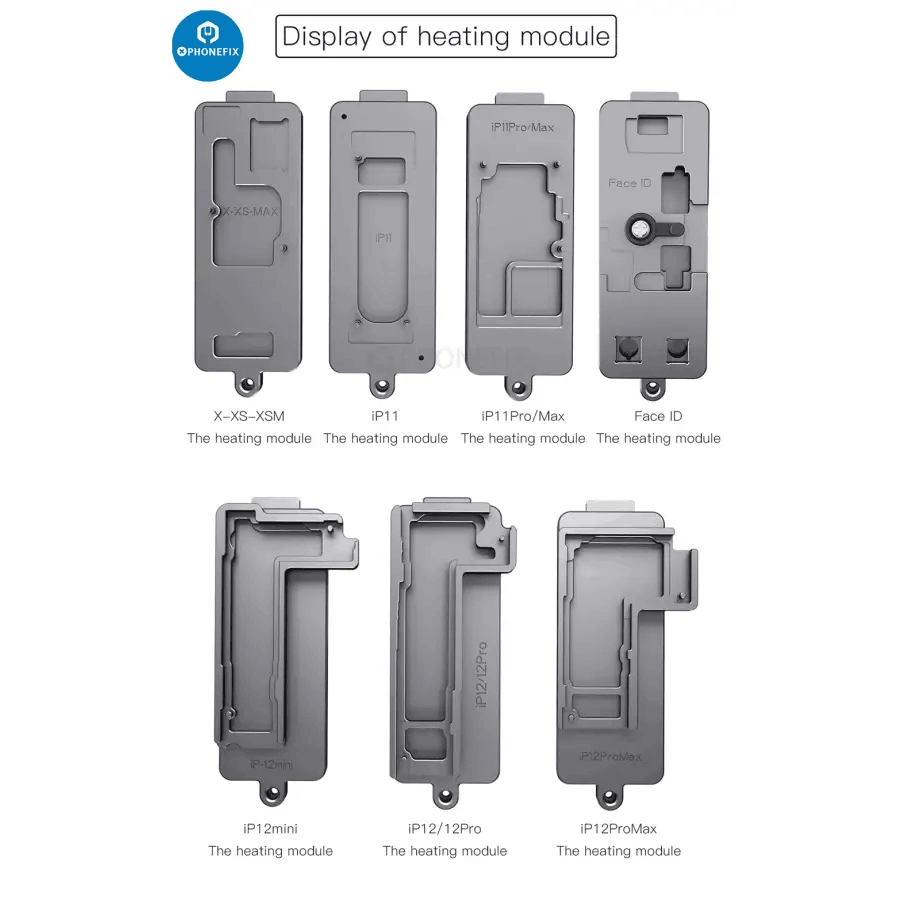

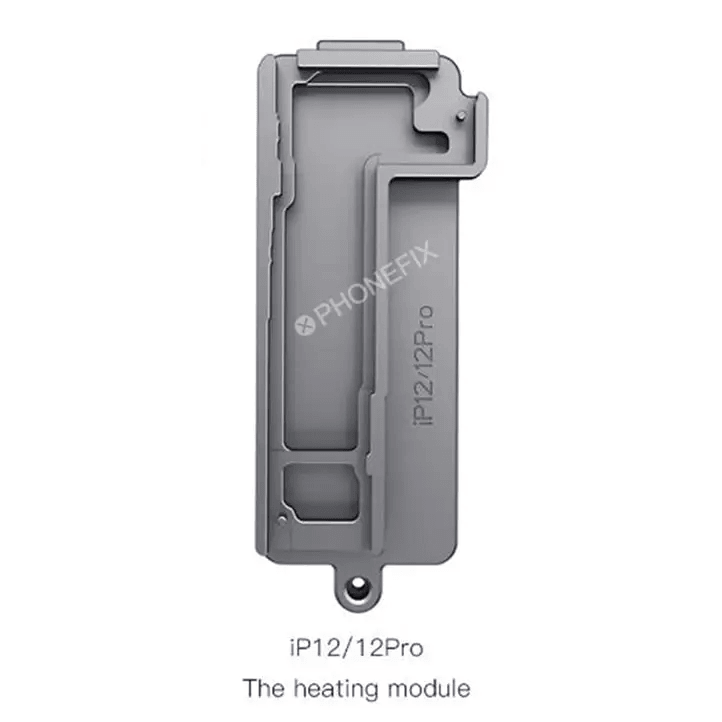

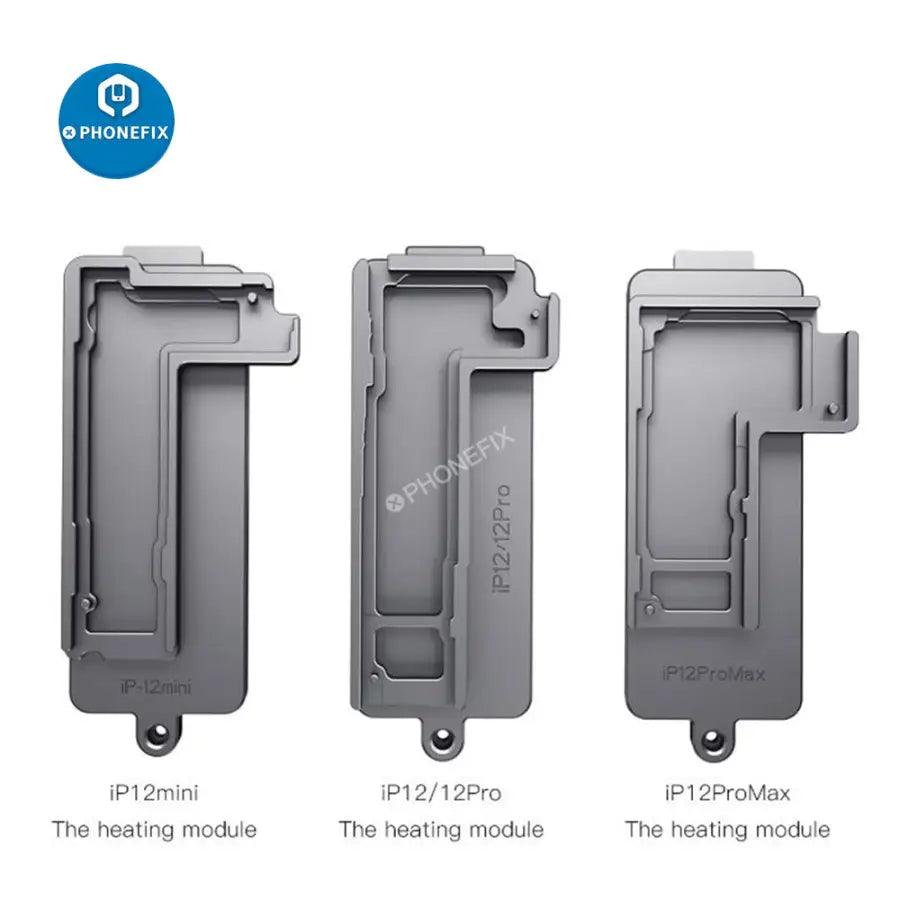

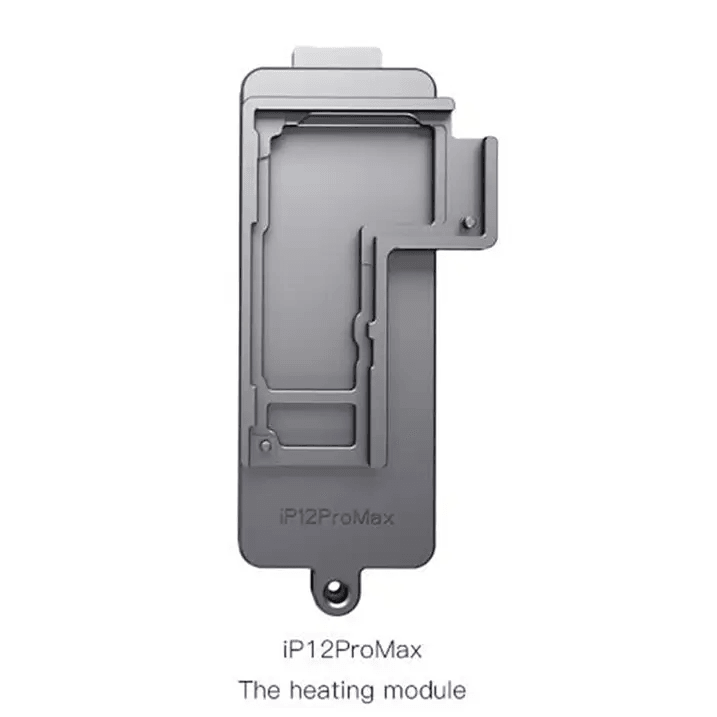

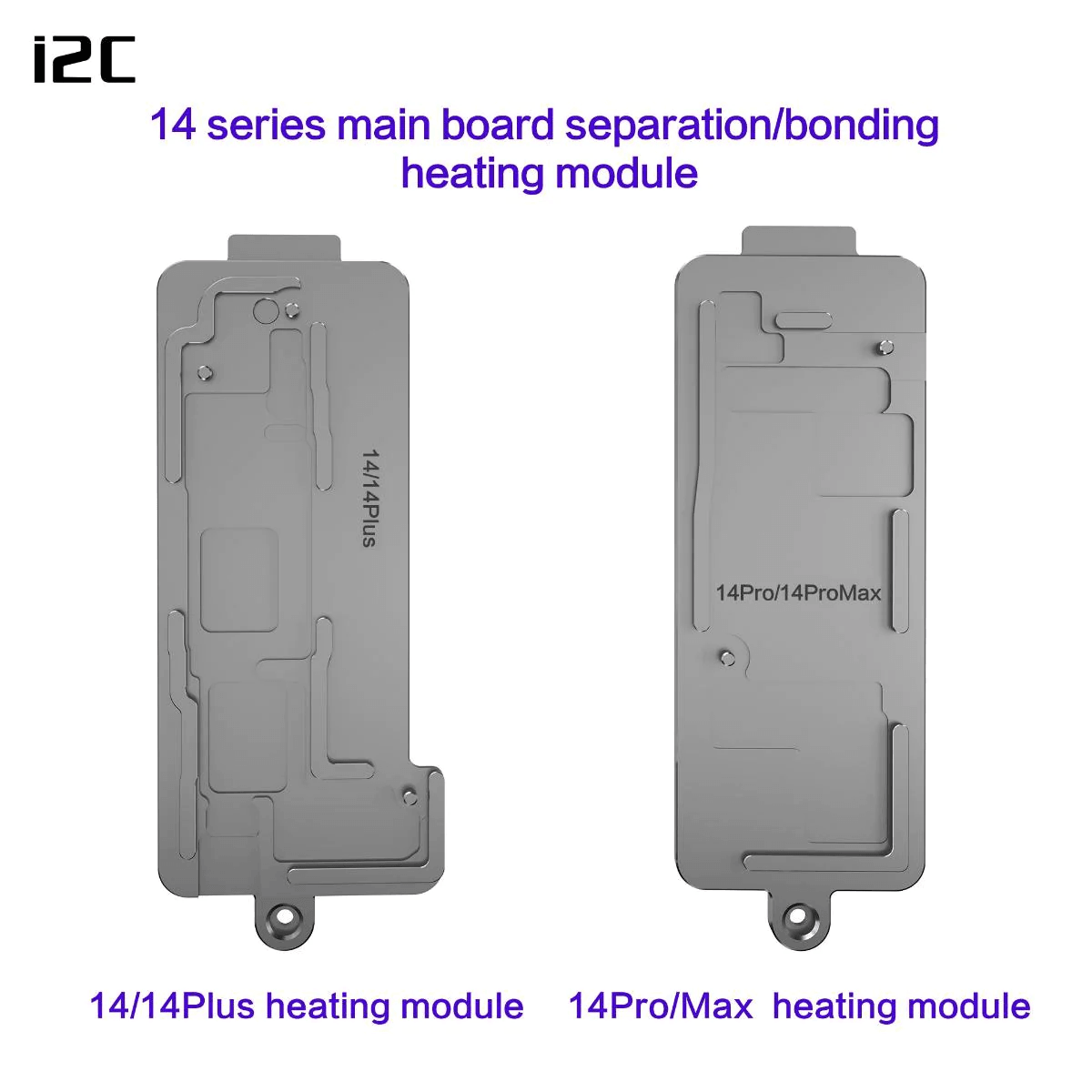

Compatible For iPhone X/XS/XSMAX/11/11Pro/11ProMax/12Mini/12/12Pro/12ProMax/13/13mini/13Pro/13ProMax/14/14 Plus/14Pro/14ProMax.

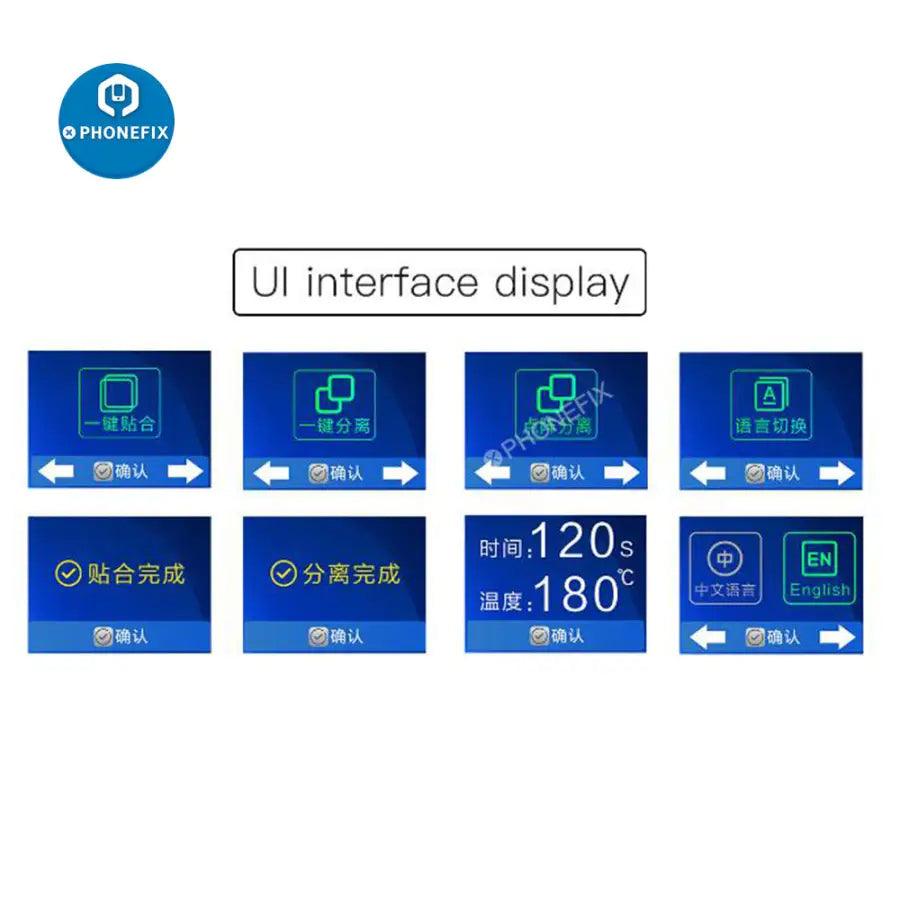

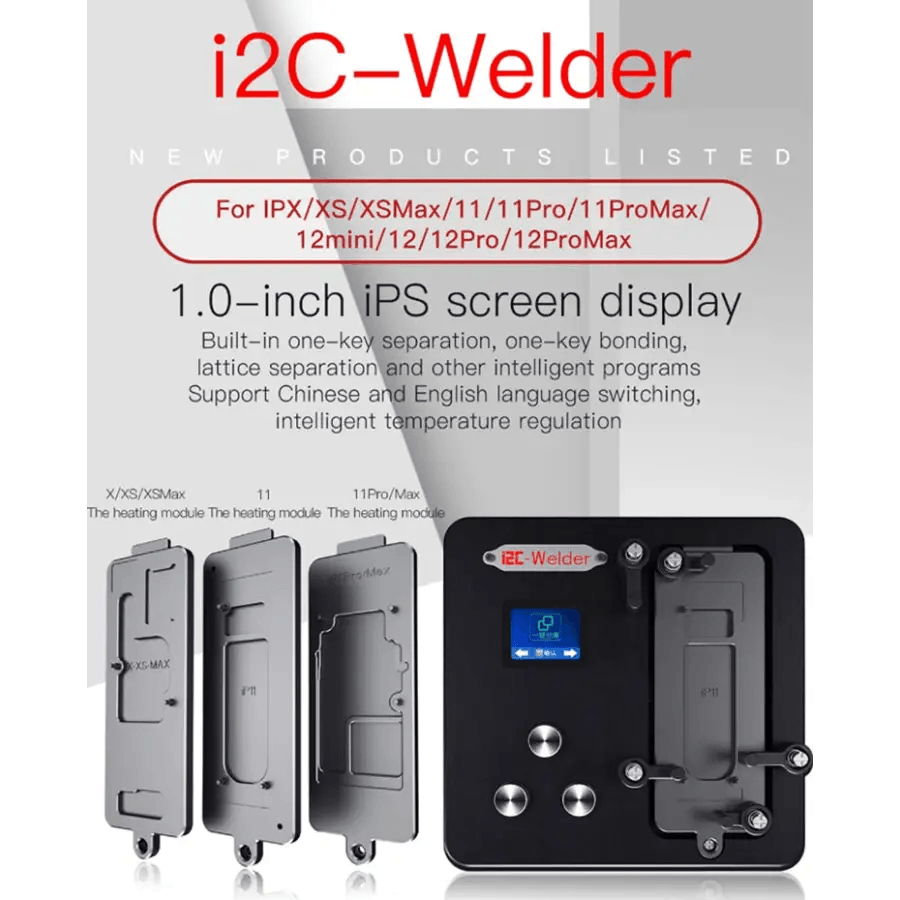

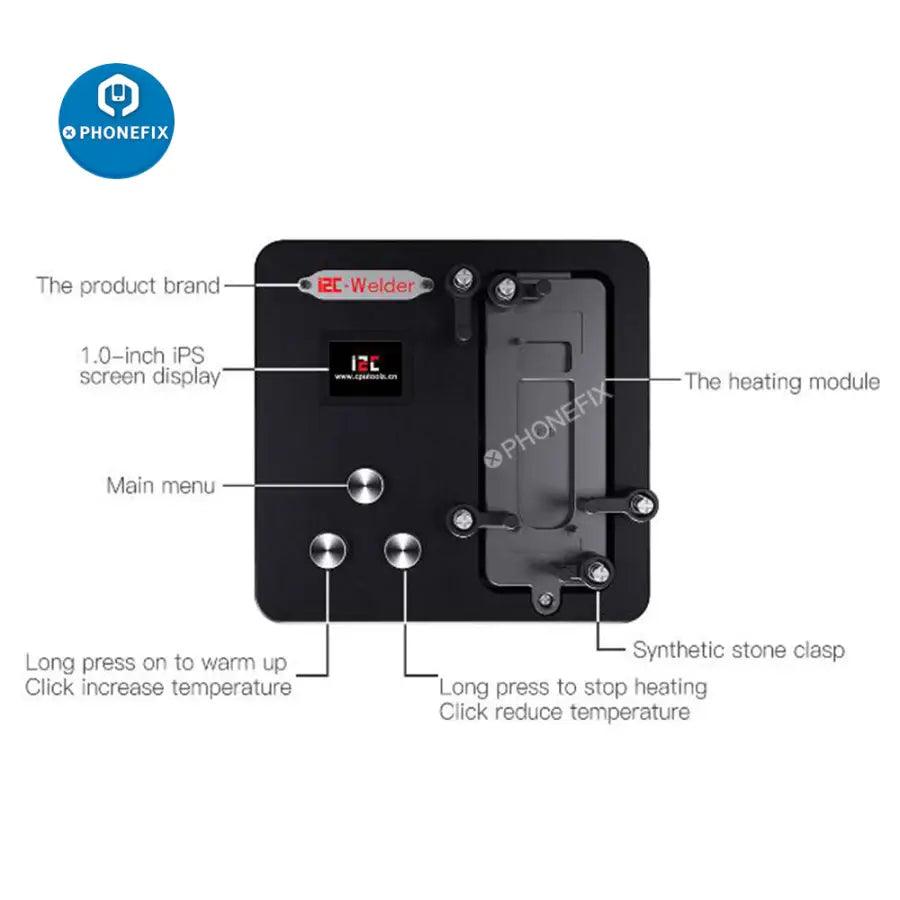

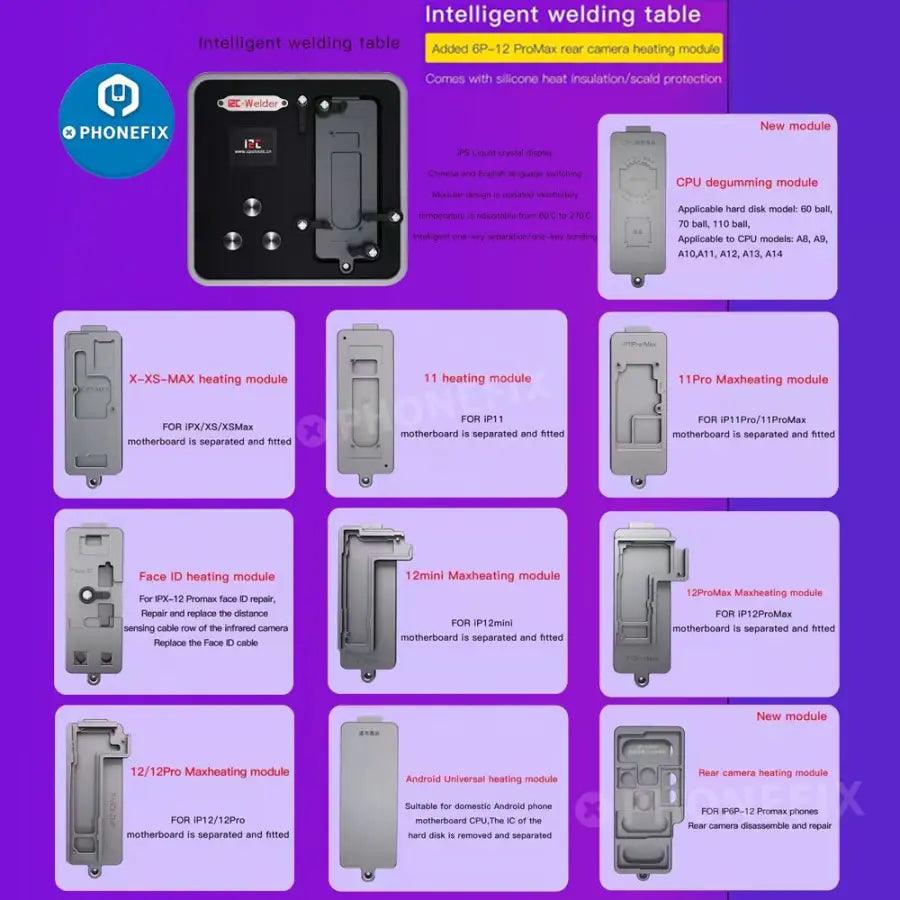

1.0 inch iPS screen display :
- Built-in one-key separation, one-key bonding, lattice separation and other intelligent programs. Support Chinese and English language switching, intelligent temperature regulation.
- Accurate positioning/rapid heating/no damage to the motherboard.
- Intelligent heat dissipation/high temperature protection/unlimited module expansion and upgrade.
Soldering Operation Demo :
-

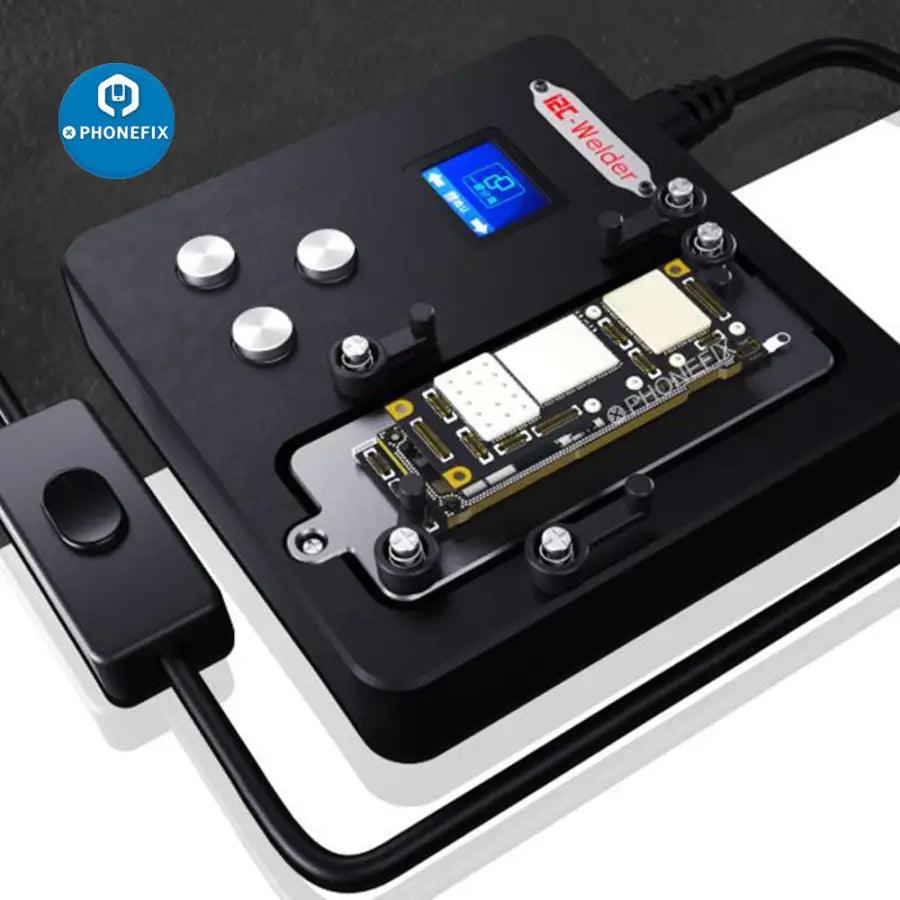

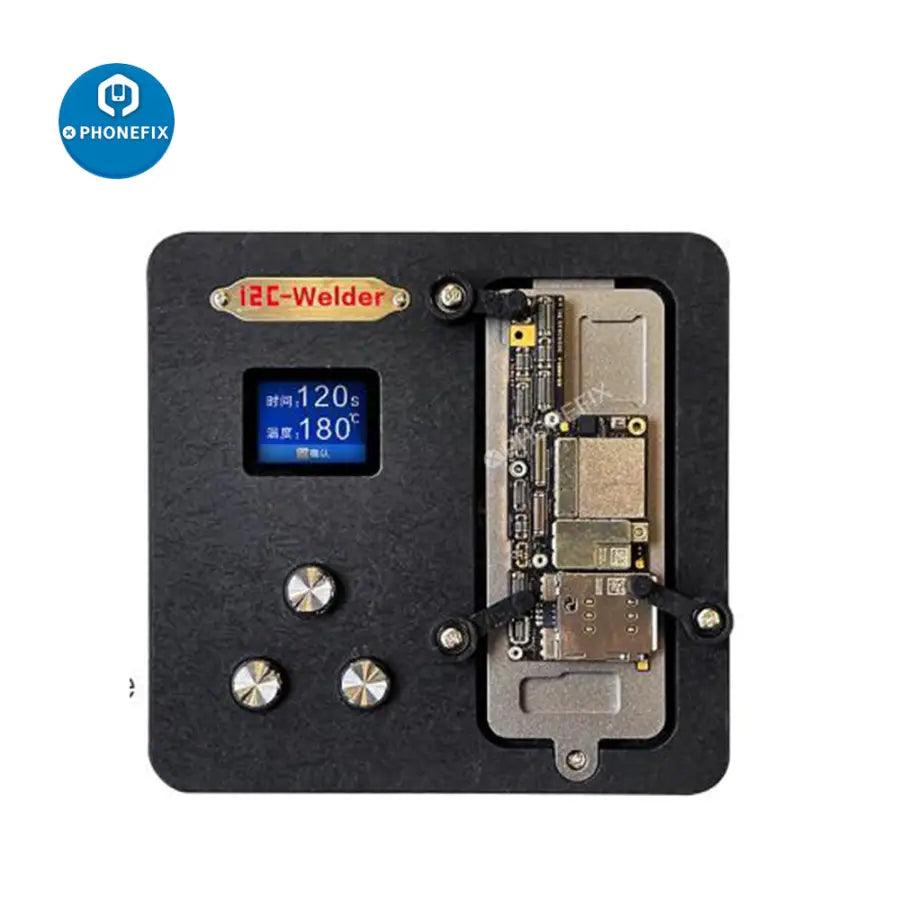

Step 1: After placing the motherboard that needs to be separated, buckle the pressure button and click the menu button to switch the interface to the one-key separation interface.
-
Step 2: Click the "OK" button, the temperature will be rapidly warmed to 180°. After reaching 180°, the motherboard will start to separate. The countdown will be 120 seconds, and the heating will stop after 120 seconds, and the temperature will be automatically cooled down.
-
Step 3: After the 120 seconds countdown, the upper main board is separated and the operation can be completed by taking out the upper main board.
Product Specification :
- Item name: i2C-Welder Preheating Platform
- Brand: i2C
- Model: i2C-Welder
- Compatible: iPhone X/XS/XS MAX/11/11 Pro/11 Pro Max/12 Mini/12/12 Pro/12 Pro Max/13/13 mini/13 Pro/13 Pro Max/14/14 Plus/14Pro/14ProMax.

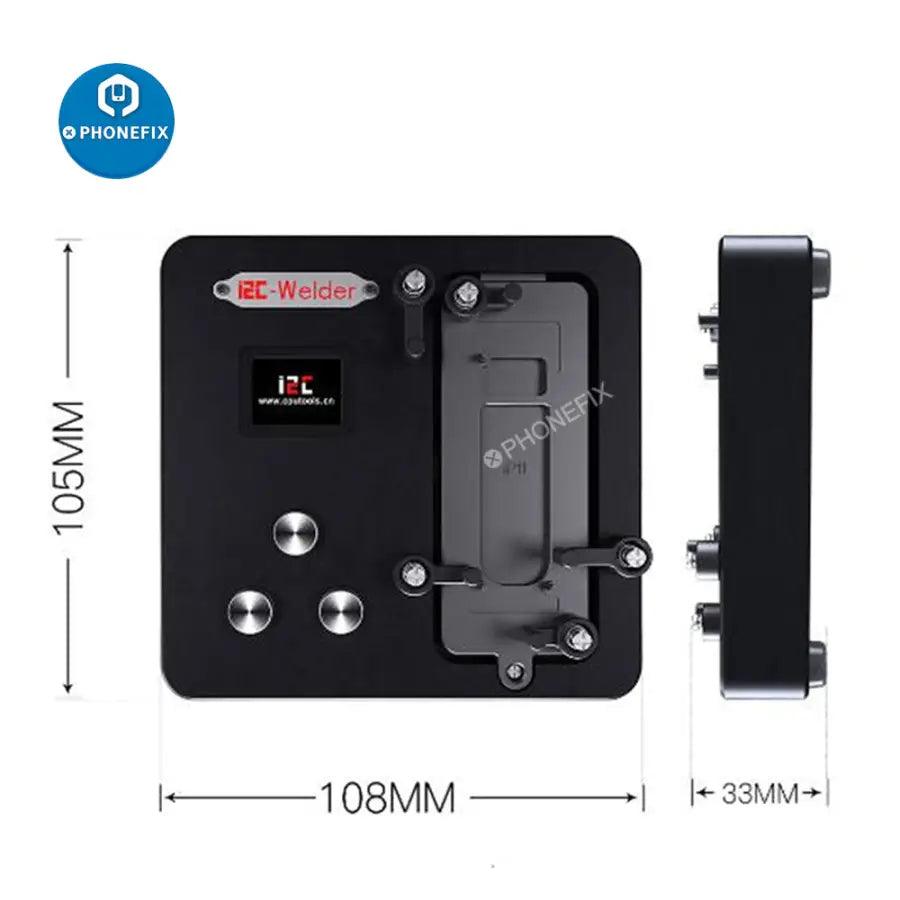

- Product Size: 108*105*33mm

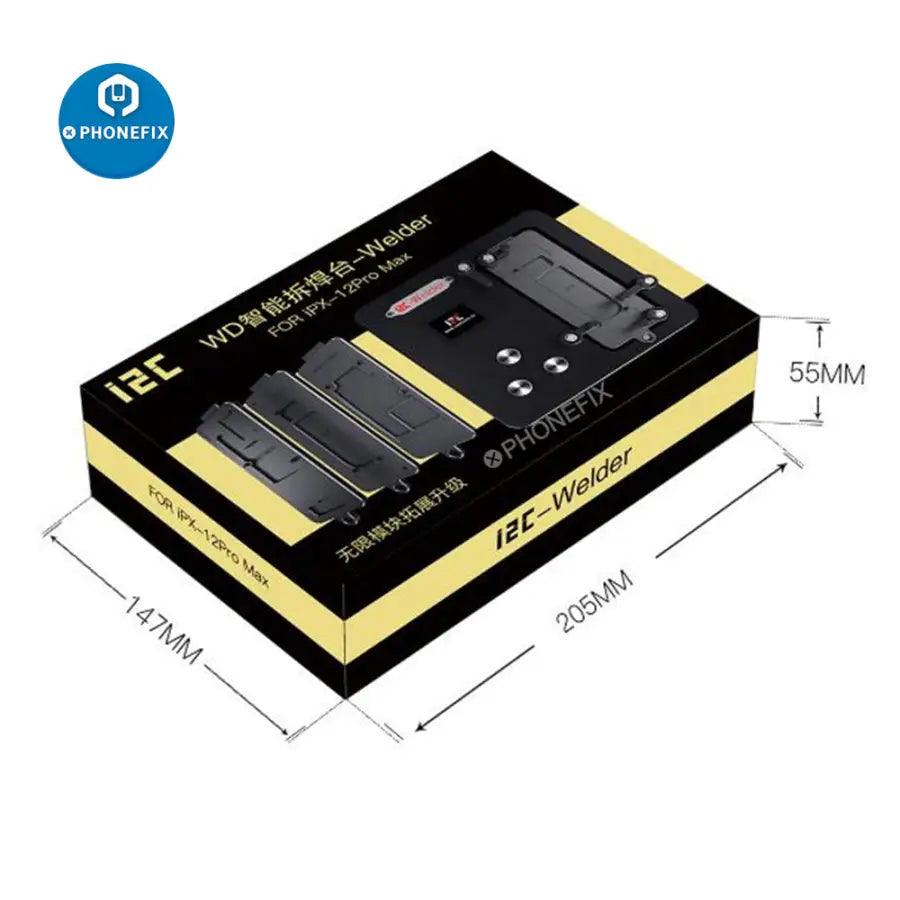

- Packing Size: 205*147*55mm
Packing List :
- 1pc x i2C-Welder Intelligent Preheating Platform
