i2C C09 and i2C C10 Digital Waveform Ammeter supports 0-40V dual-channel voltage and current test, 140W full protocol charging power test, voltage measurement, diode scanning measurement, etc. With pointer, curve, digital, three display modes, suitable for mobile phone repair shops and electronic repair centers. Thereby improving the efficiency and accuracy of troubleshooting.

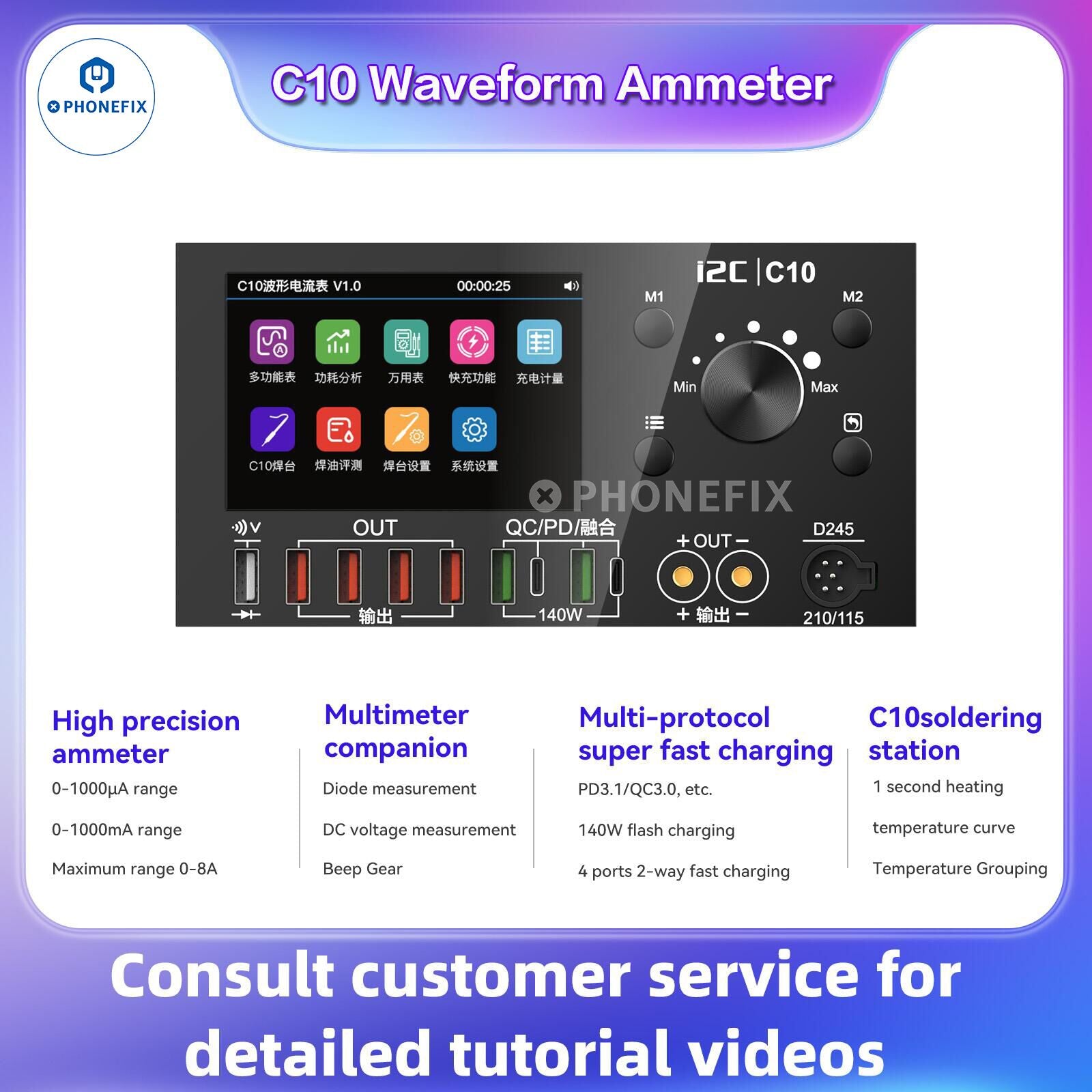

i2C C10 Features:
1. i2C C10 waveform ammeter, ultra-high precision 0.1uA-8A current
2. Accurate and reliable measurement data, easy to find leakage, helps you complete your work efficiently.
3. Multimeter Companion, switchable range data interface.

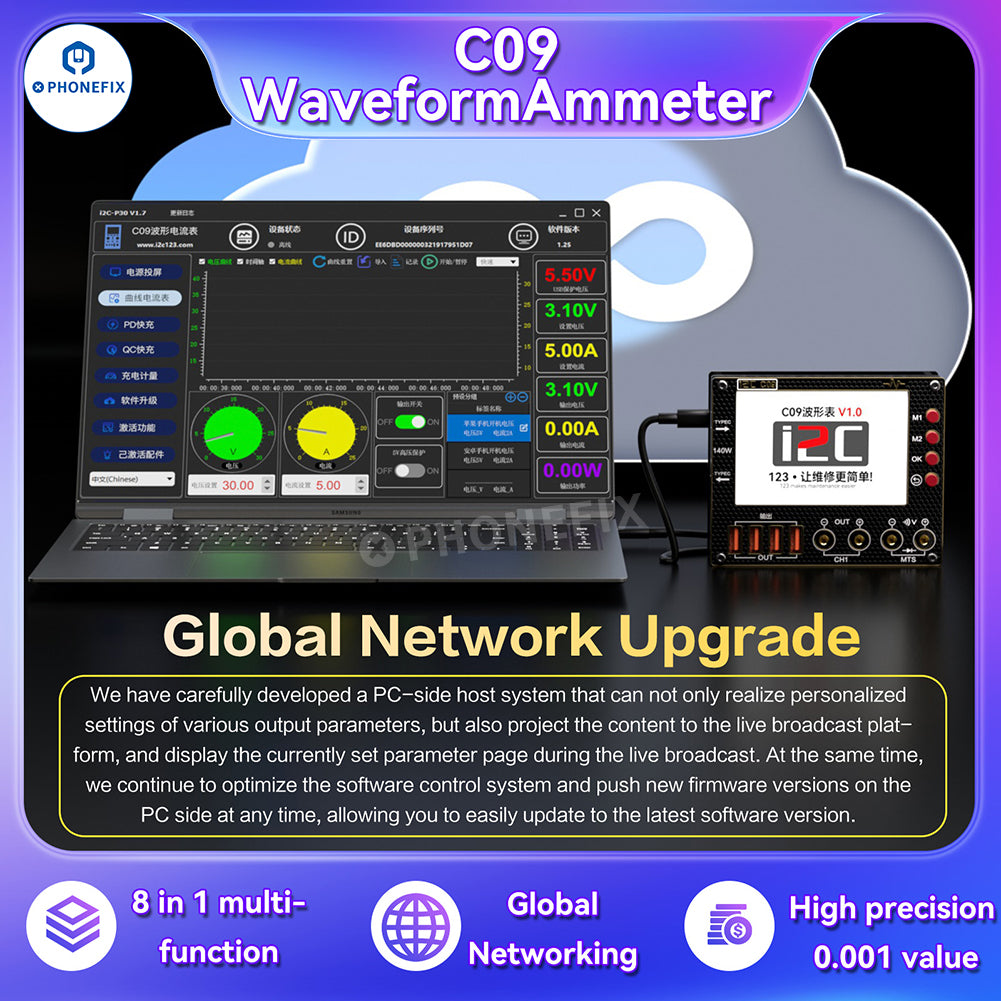

4. Supports live streaming and screen projection. When live broadcasting maintenance, the data can be projected onto the screen so that fans can see it more clearly.
5. Multi-protocol super fast charging, support PD3.1 PE2.0 BC1.2 FCP SCP QC3.0 VOC Super VOOC, and other charging protocols.
5. With soldering station function, support D115/D210/D245 controllers.
6. C10 soldering station features: Pick up the handle, and it will heat up in 1 second, tin in 3 seconds, and automatically sleep when you put down the handle.
7. Support temperature curve, temperature grouping, and new UI interface.
8. DC voltage and current Measurement parameters:
Input voltage: 0~36V
Input current: 1uA~8A
Voltage resolution: ≥0.1V
Current resolution: ≥0.1uA
9. Multimeter companion measurement parameters:
Buzzer gear: 0 ohm resistance
Diode: 0.001~1999
DC tes: 0~24V
Resistance range: 0~50K

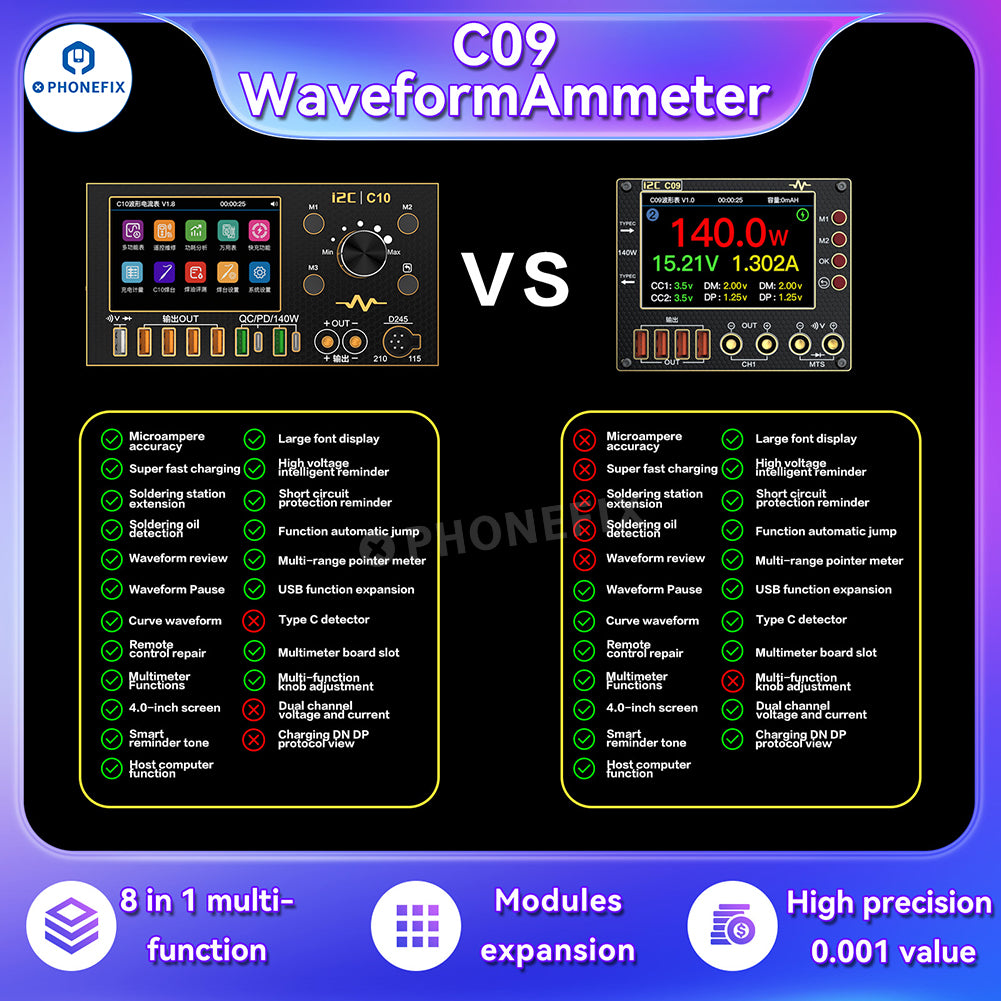

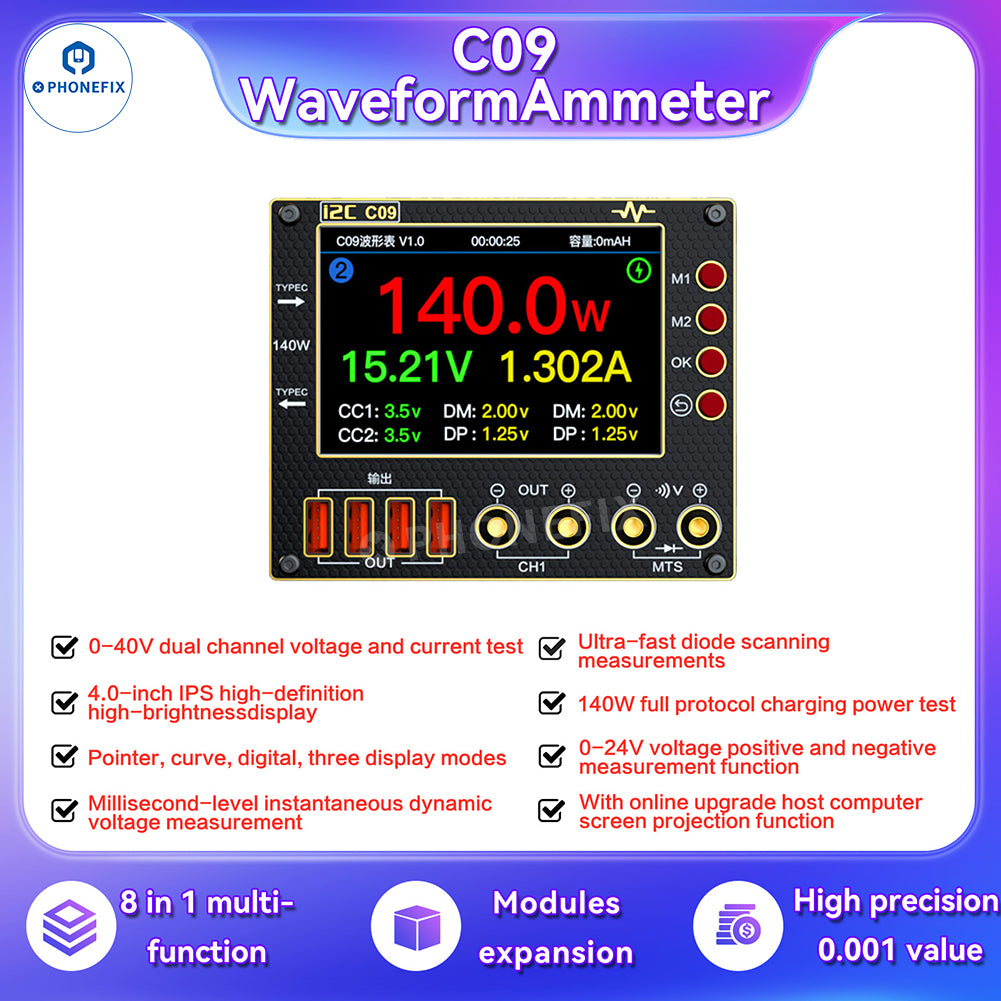

i2C C09 Features:

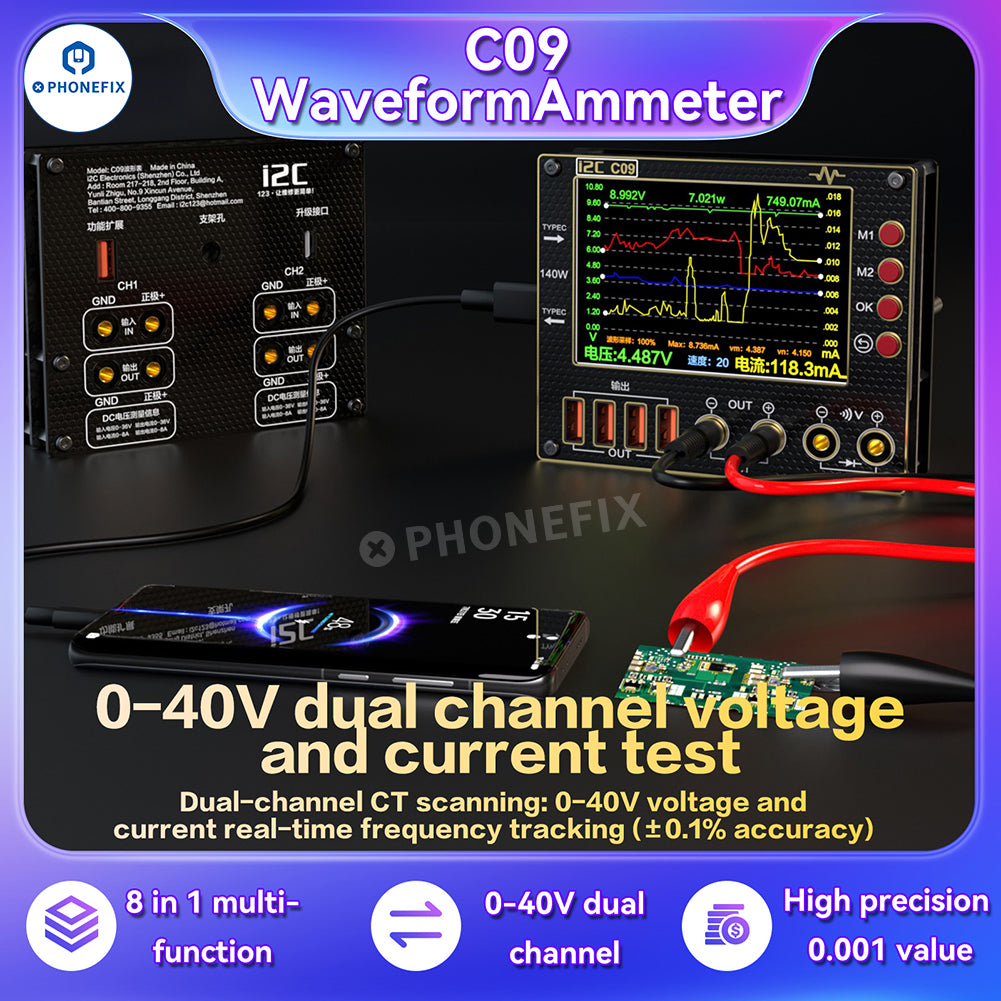

1. 0-40V dual-channel voltage and current test, dual-channel CT scanning: 0-40V voltage and current real-time frequency tracking (±0.1% accuracy).

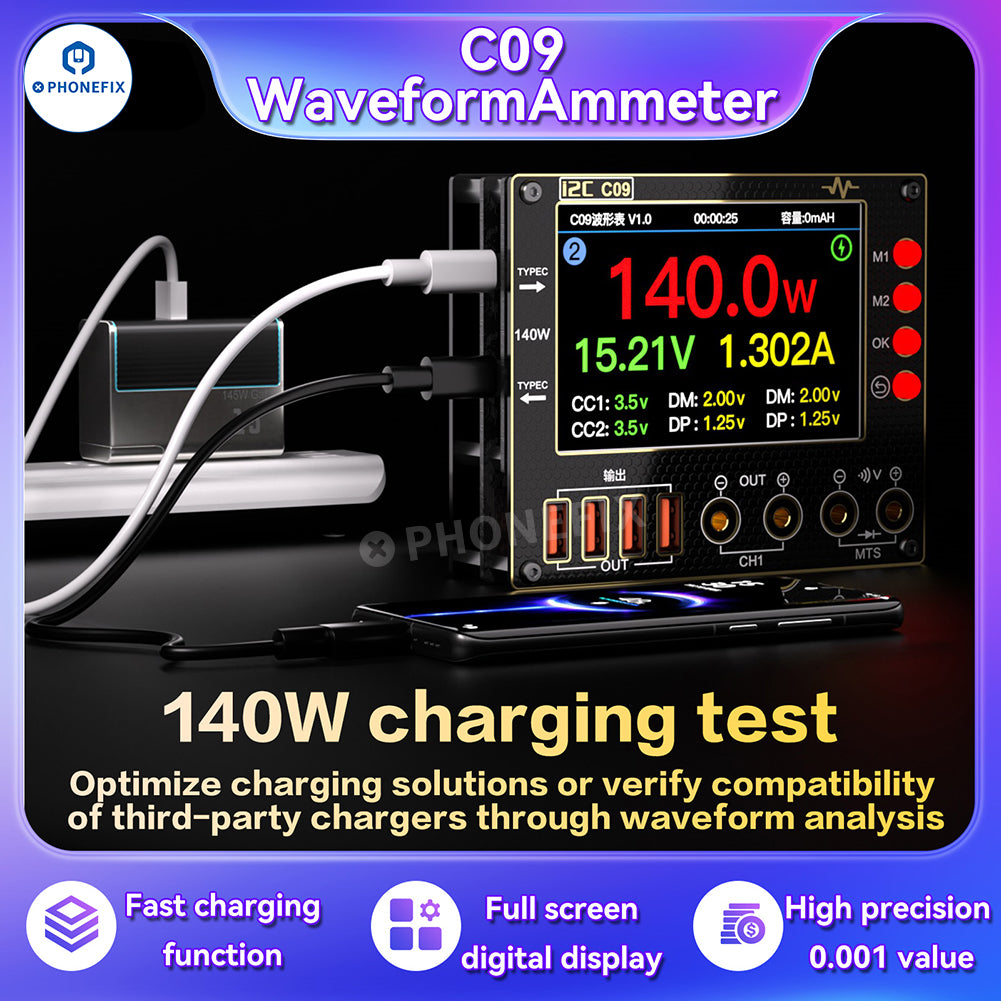

2. 140W charging test optimizes charging schemes or verifies compatibility of third-party chargers through waveform analysis.

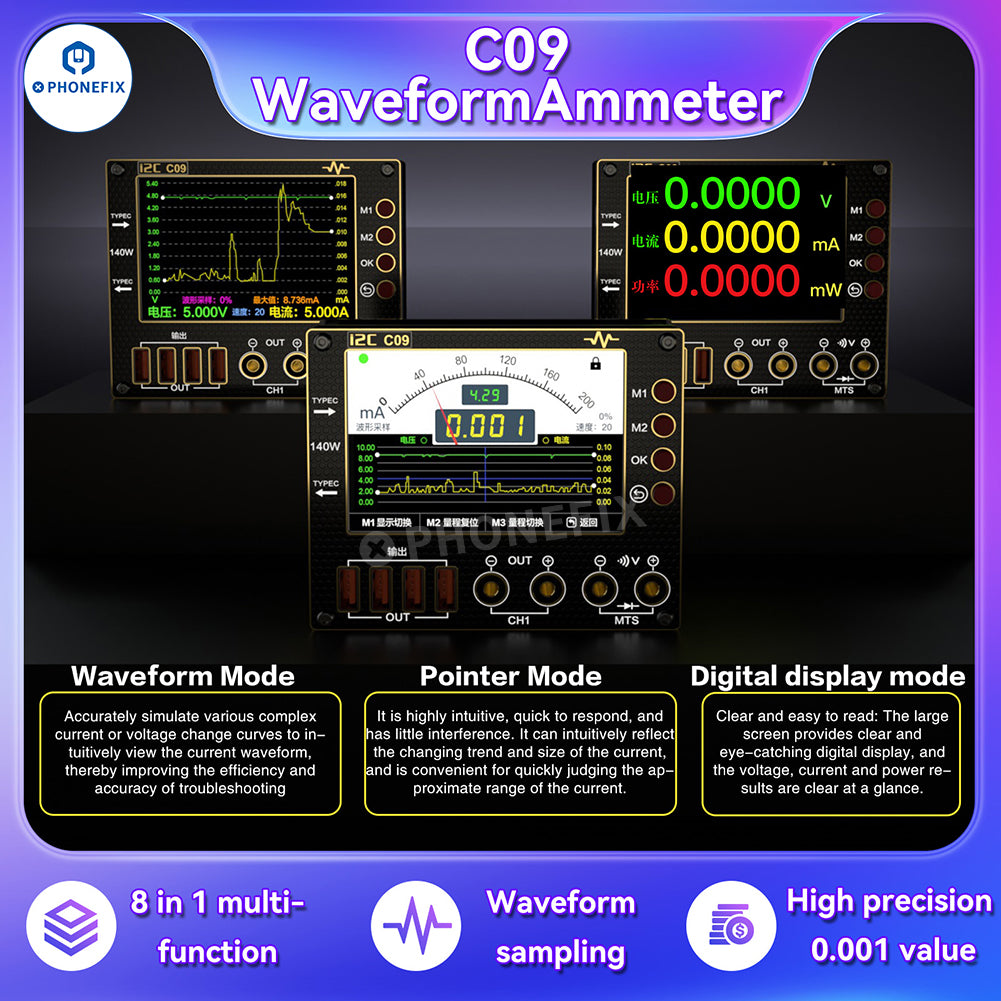

3. The waveform mode accurately simulates various complex current or voltage change curves, and intuitively views the current waveform, thereby improving the efficiency and accuracy of troubleshooting.
4. The pointer mode is intuitive, responsive, and has little interference. It can intuitively reflect the changing trend and size of the current, and facilitate quick judgment of the approximate range of the current.
5. Digital display mode is clear and easy to read. The large screen provides clear and eye-catching digital display, and the voltage, current, and power results are clear at a glance. Equip the voltage regulator with a CT scanner and equip the electronic engineer with a current microscope.

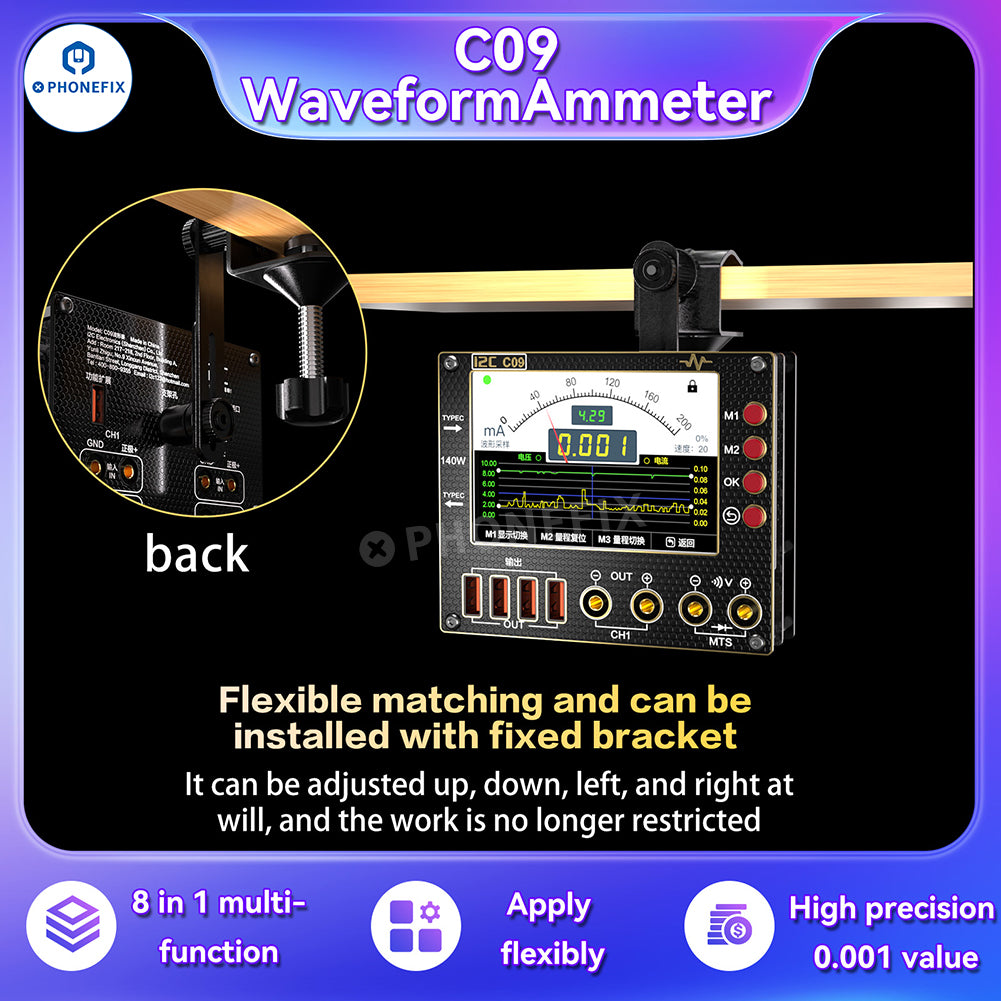

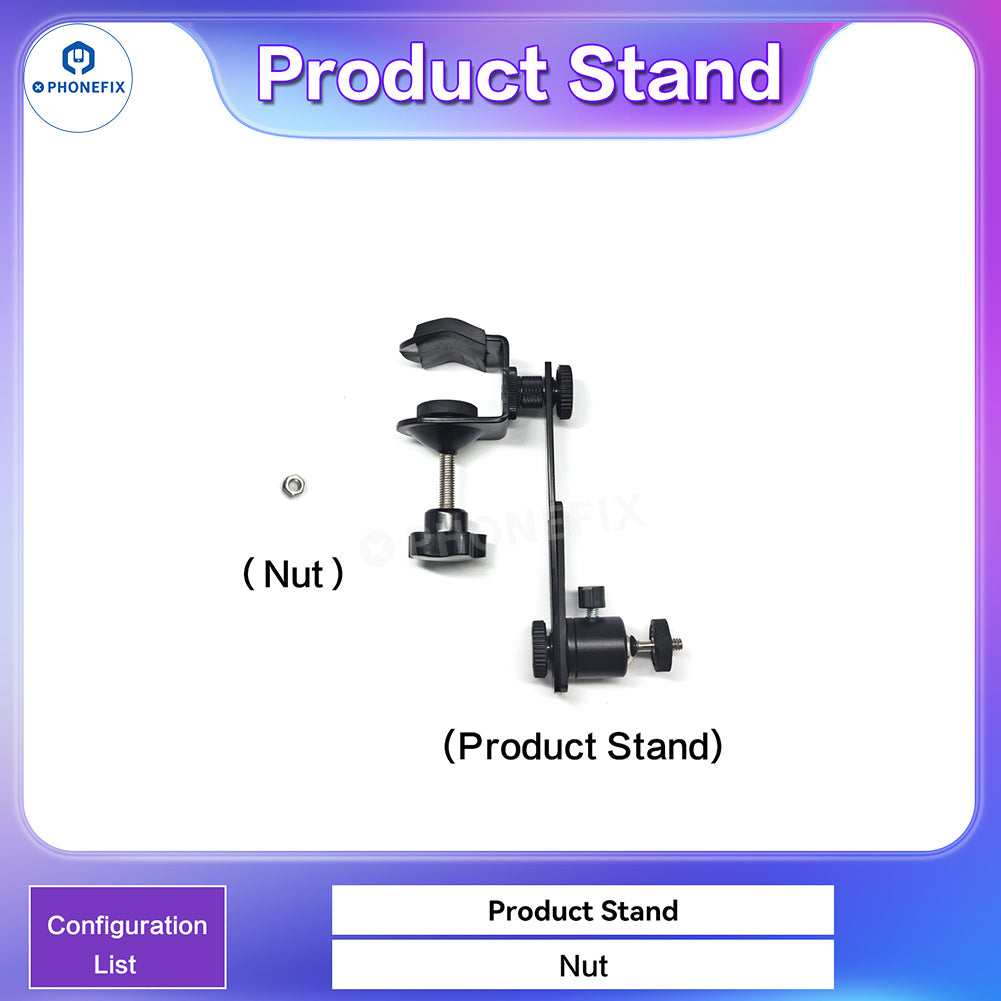

6. Split-screen charging fault quick inspection expert Modular upgrade Compatible with traditional equipment Fault prevention Performance is doubled. Flexible matching, fixed bracket can be installed, and can be adjusted up and down, left and right at will, and work is no longer restricted.

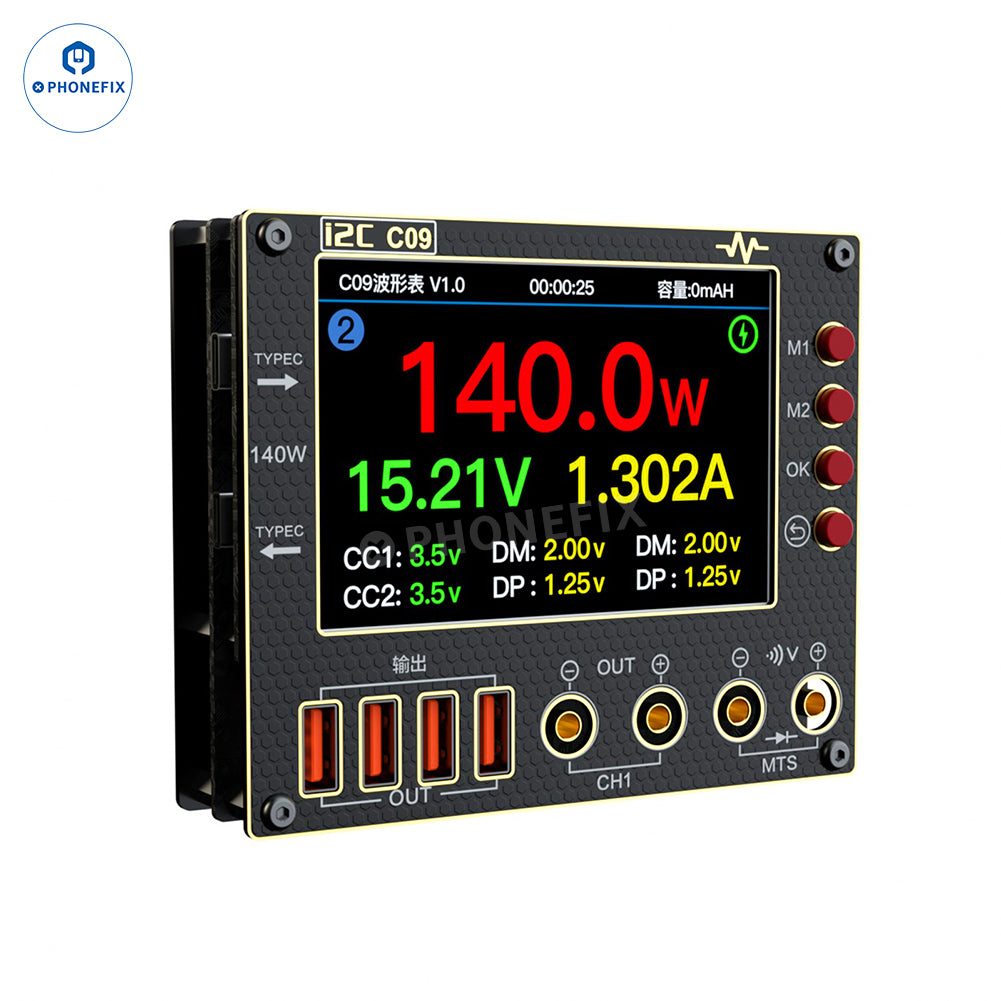

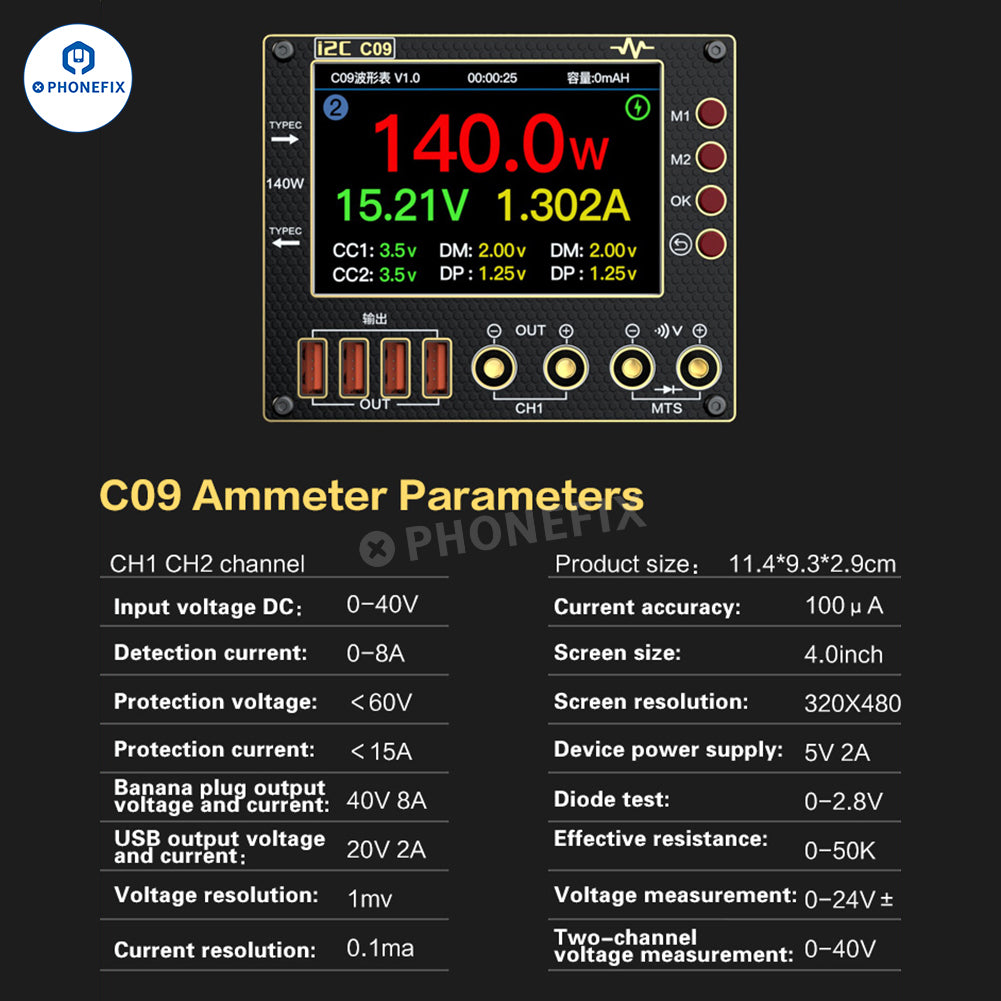

i2C C09 Ammeter Parameters:
CH1 CH2 channel
Input voltage DC: 0-40V
Detection current: 0-8A
Protection voltage: <60V
Protection current: <15A
Banana plug output voltage and current: 40V 8A
USB output voltage and current: 20V 2A
Voltage resolution: 1mV
Current resolution: 0.1ma
Product size: 11.4x9.3x2.9cm
Current accuracy: 100μA
Screen size: 4.0inch
Screen resolution: 320X480
Device power supply: 5V 2A
Diode test: 0-2.8V
Effective resistance: 0-50K
Voltage measurement: 0-24V±
Dual channel voltage measurement: 0-40V

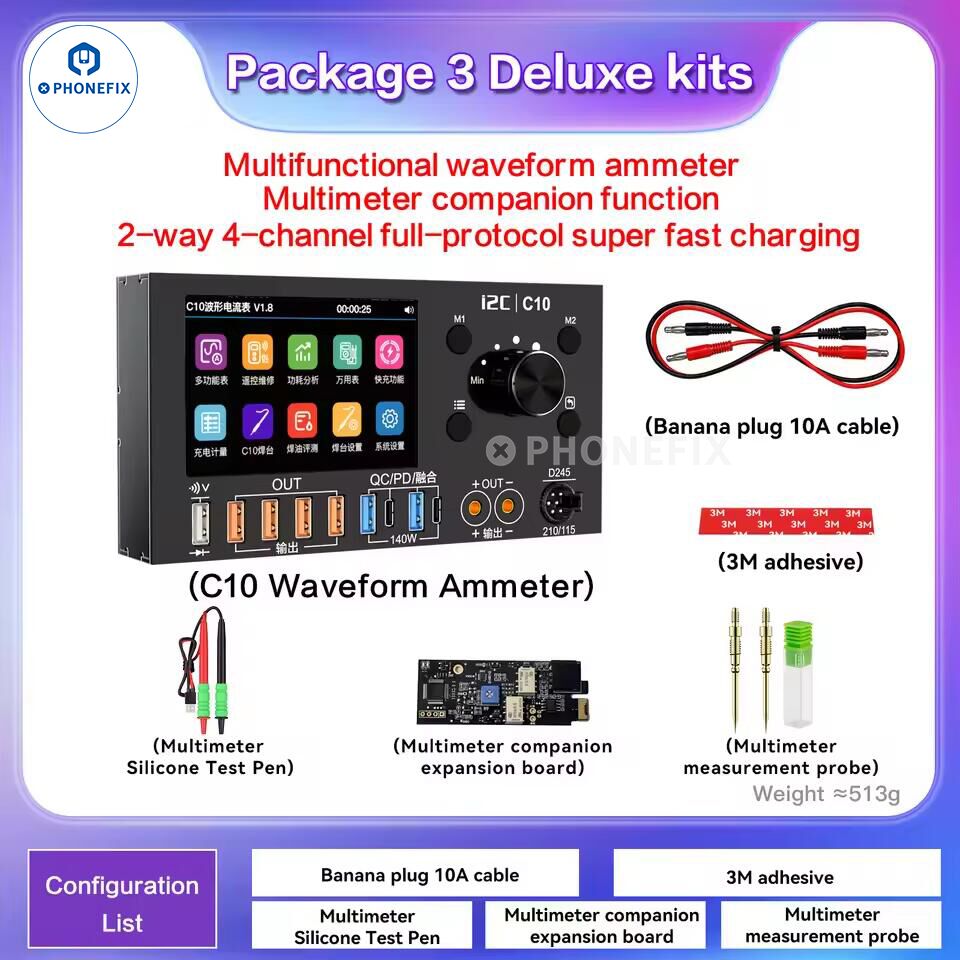

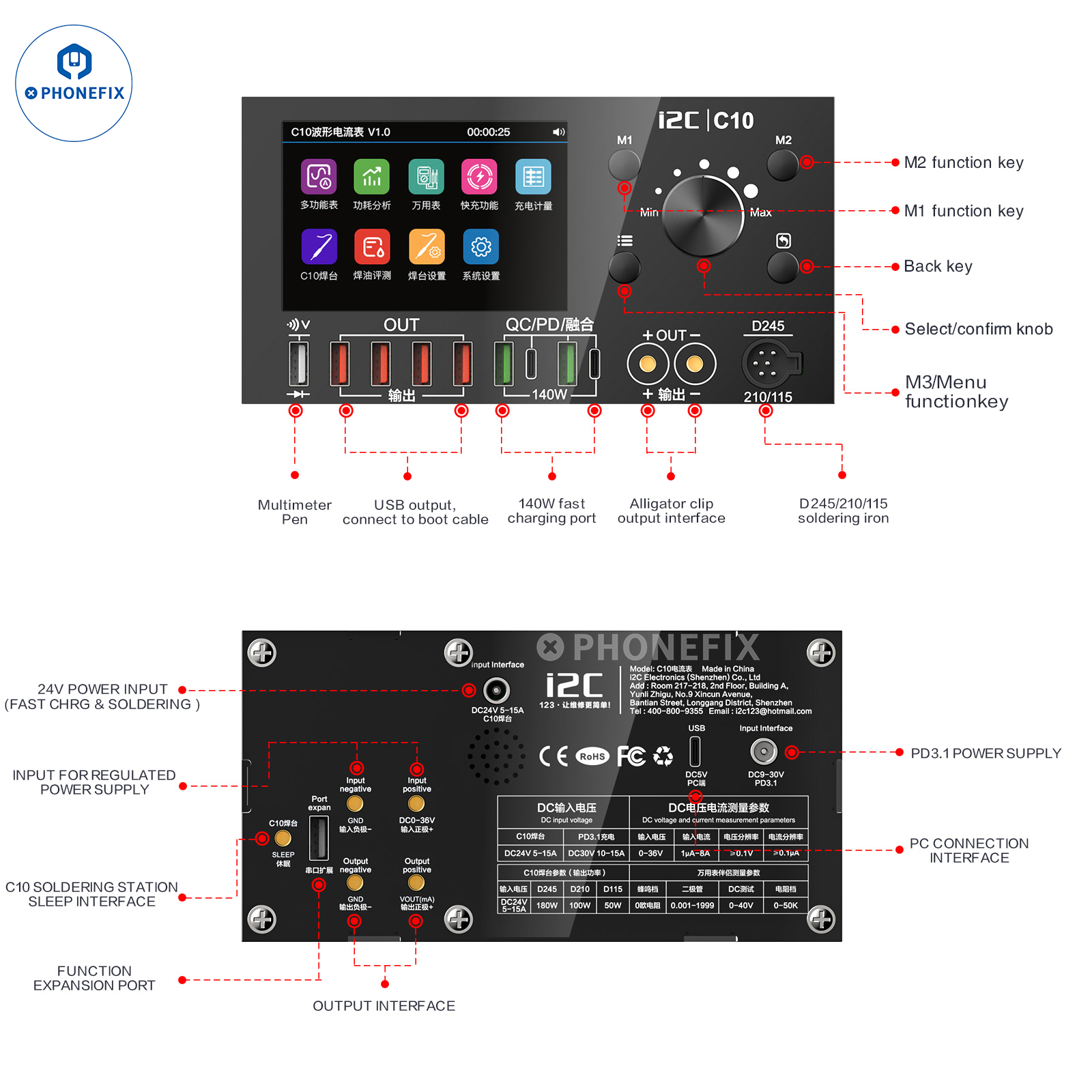

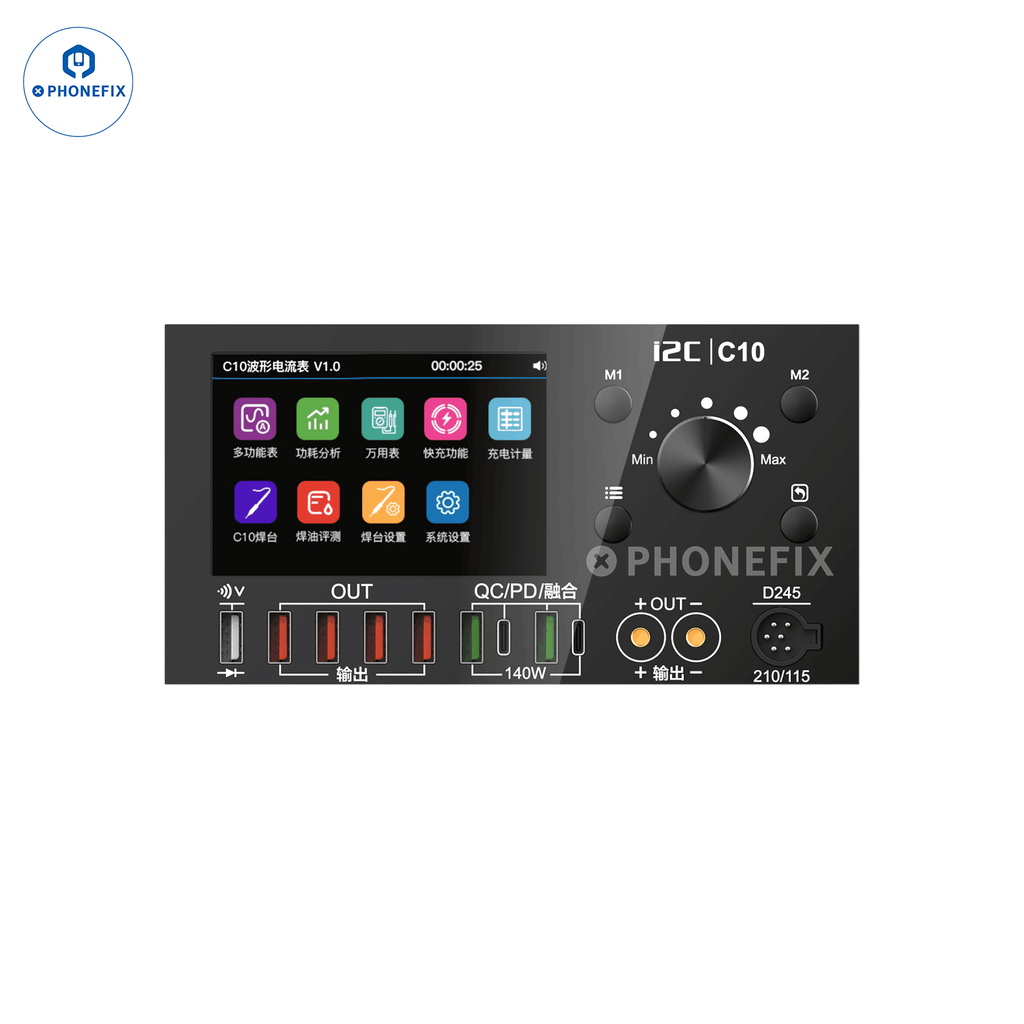

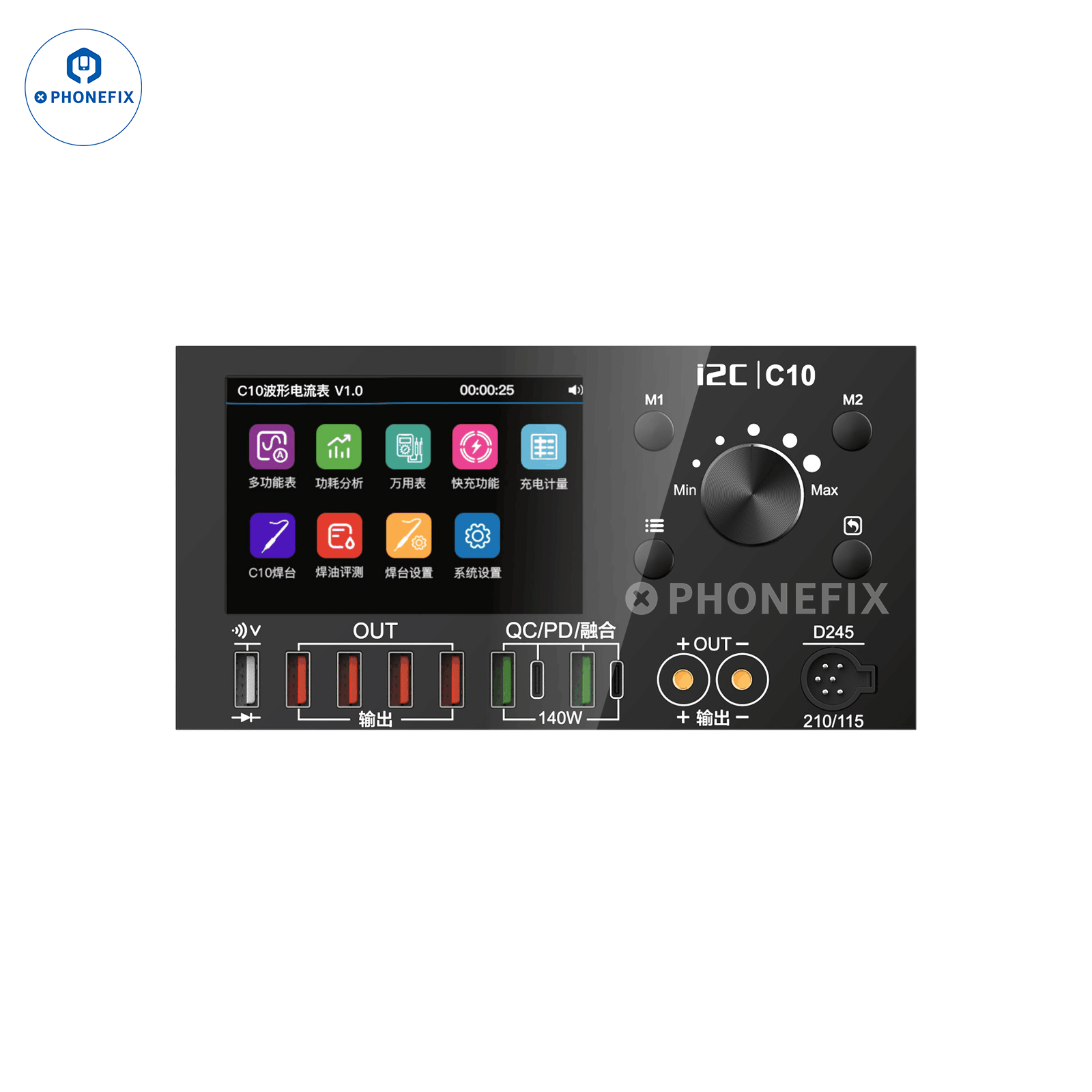

i2C C10 Specification:
Name: i2C C10 Waveform Ammeter
Soldering station input voltage: DC 24V/5-15A
PD3.1 Charging input voltage: DC 30V/10-15A
C10 soldering station output power: D245: 180W; D210: 100W; D115: 50W
