FNIRSI DST210 DST201 Digital Multimeter integrates Oscilloscope, Signal Generator and Multimeter into one with 100000μF Capacitor, 48MSa/s Sampling and 10MHz Bandwidth. 19999 Counts True RMS. Supports 13 waveforms with a frequency range of 0-10KHz and an adjustable output voltage of 3V. The frequency, amplitude and duty cycle can all be fine-tuned to meet various testing needs.
Features:

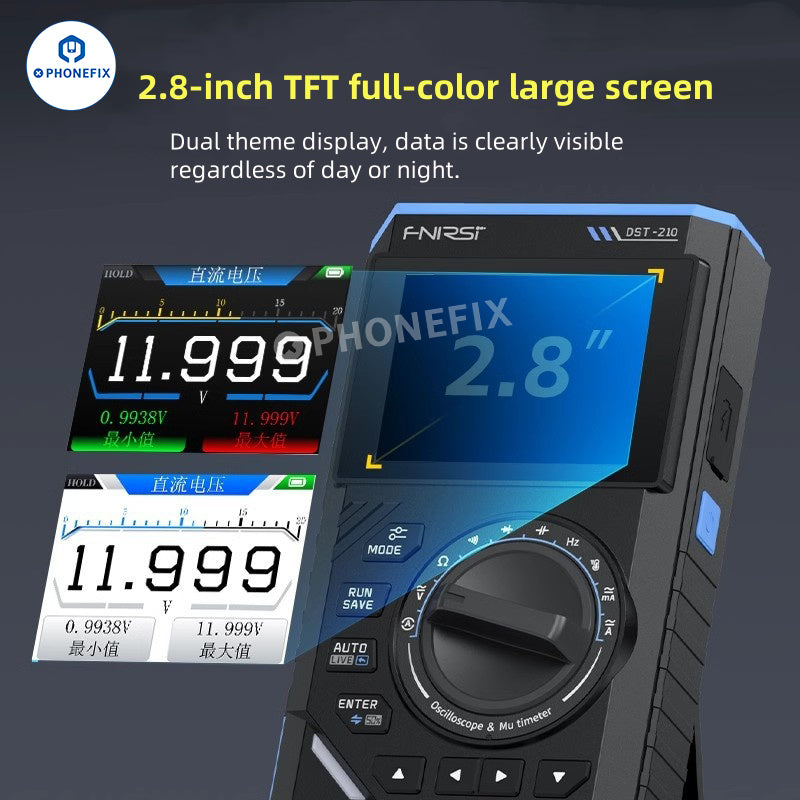

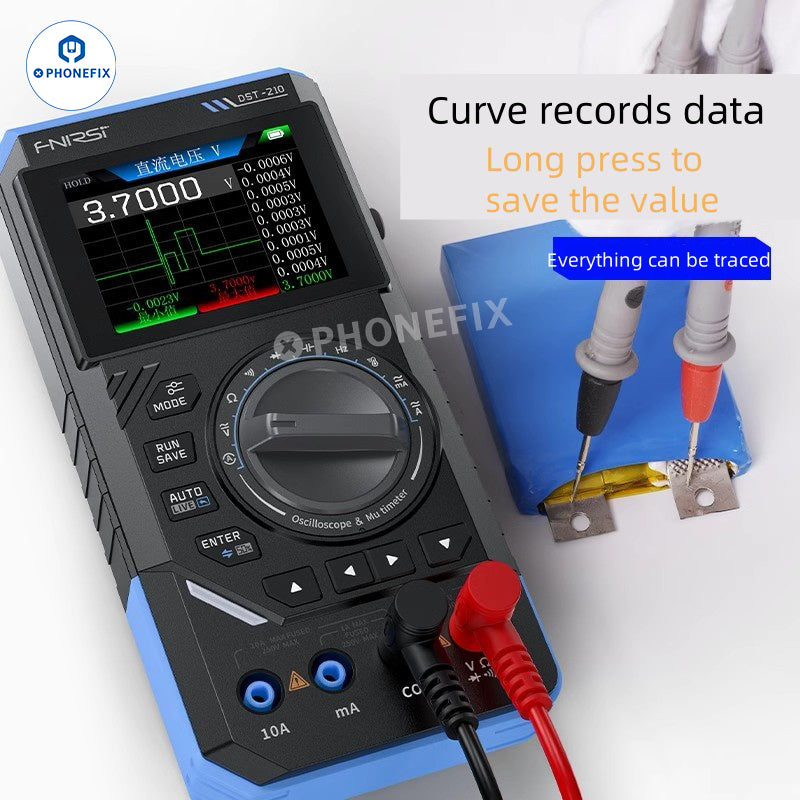

1. 2.8-inch TFT full-color large screen, dual-theme display, data is clearly visible whether it is day or night.The curve records data, long press to save the value, everything can be traced back.

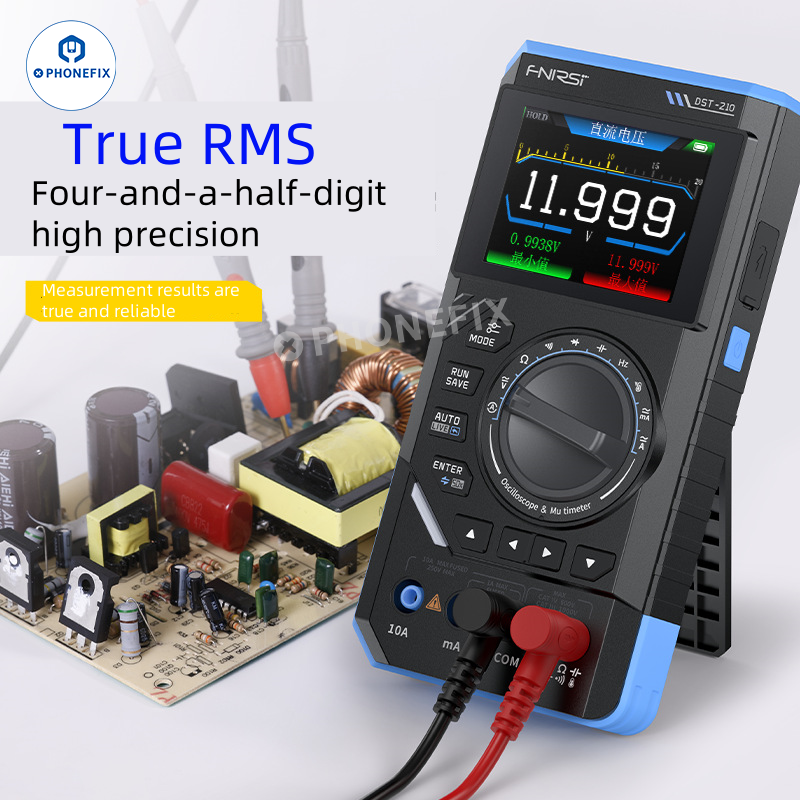

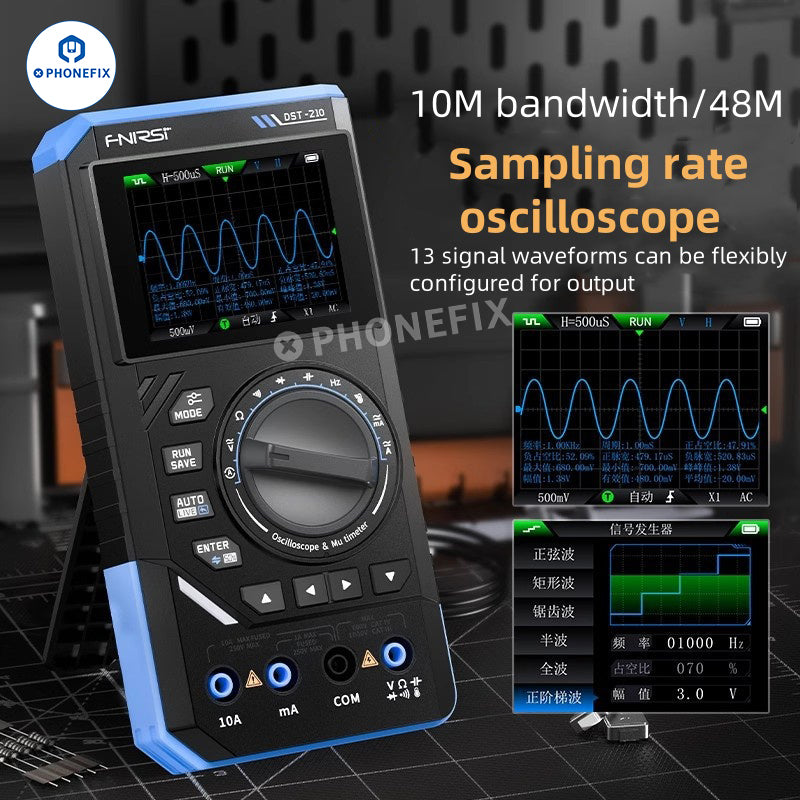

2. The 10M bandwidth/48M sampling rate oscilloscope can flexibly configure 13 signal waveform outputs. The true RMS four-and-a-half-digit high-precision measurement results are true and reliable.
3. The high-precision oscilloscope function provides a sampling rate of 5MSa/s and an analog bandwidth of 1MHz, and the DST-210 provides a sampling rate of 48MSa/s and an analog bandwidth of 10MHz to ensure waveform analysis. Equipped with voltage protection up to ±400V, it is suitable for a wide range of applications.
4. Comprehensive multimeter functions include recording mode, automatic measurement, AC/DC voltage, AC/DC current, resistance, capacitance, diode/on/off, frequency, temperature, data hold and LIVE zero/live line and other functions, providing powerful functions for various measurements.
5. Overload protection and portable design Equipped with overload protection and low battery warning for added safety. Its compact and lightweight design, as well as the 2.8-inch TFT color display, ensures clear and intuitive visuals. The built-in 3000mAh rechargeable battery supports up to 15 hours of standby time, which is ideal for mobile use.
6. User-friendly and versatile Powerful and flexible, simple to operate, it is an ideal multi-functional instrument for professionals, factories, schools, hobbyists and home users.

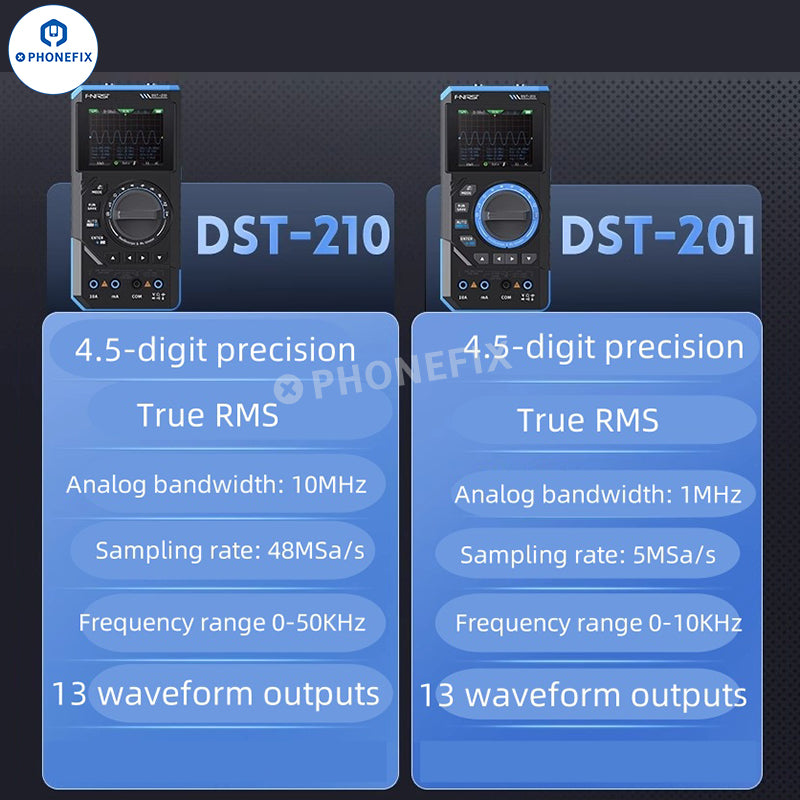

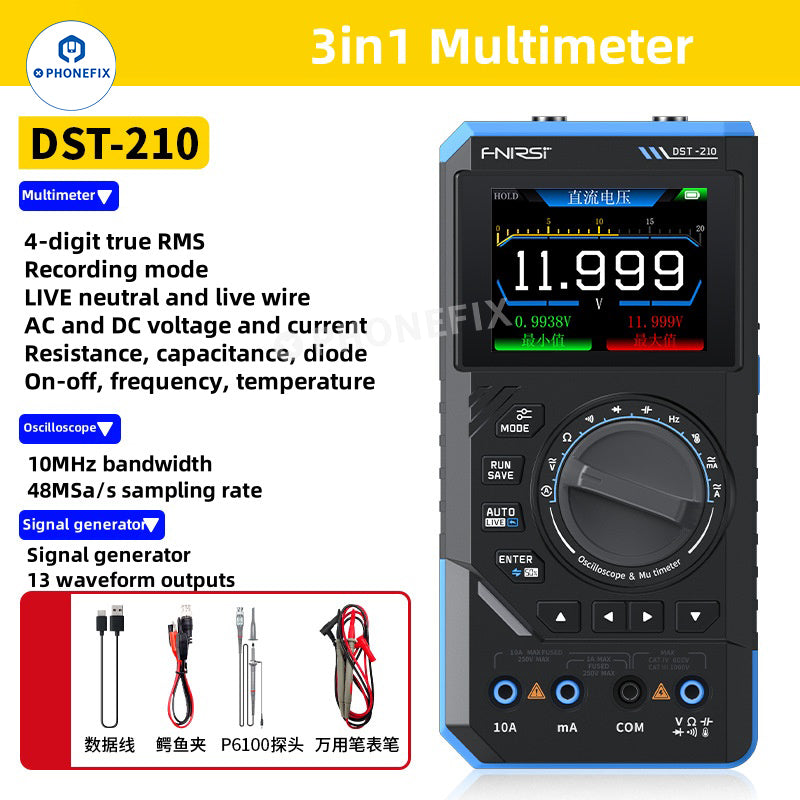

DST-210 Product Parameter:
True RMS
4.5-digit precision
13 waveform outputs
Analog bandwidth:10MHz
Sampling rate:48MSa/s
Frequency range: 0-50KHz

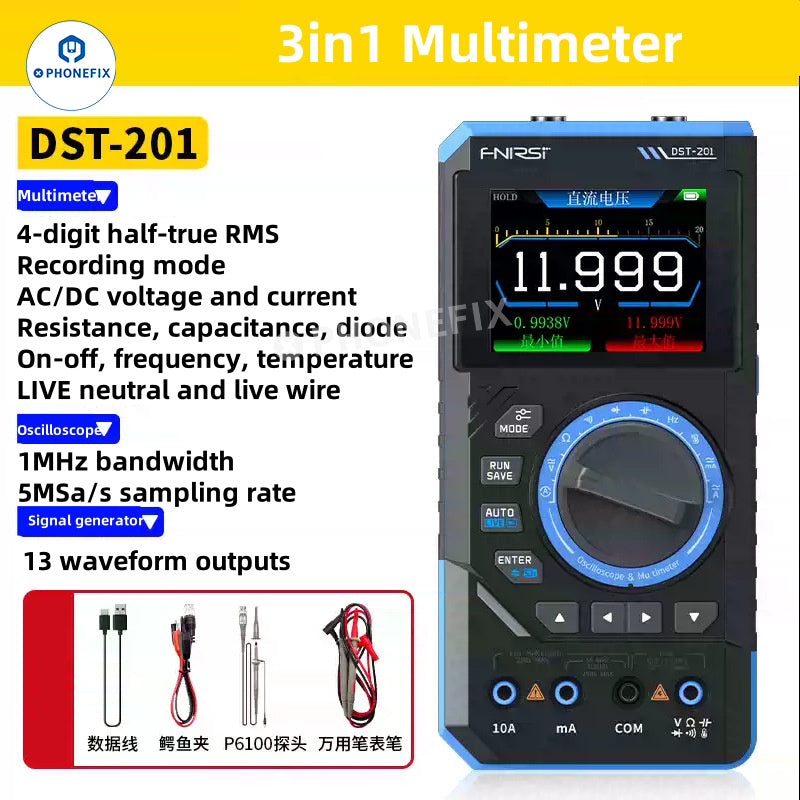

DST-201Product Parameter:
True RMS
4.5-digit precision
13 waveform outputs
Analog bandwidth:1MHz
Sampling rate:5Msa/s
Frequency range: 0-10KHz
