Description

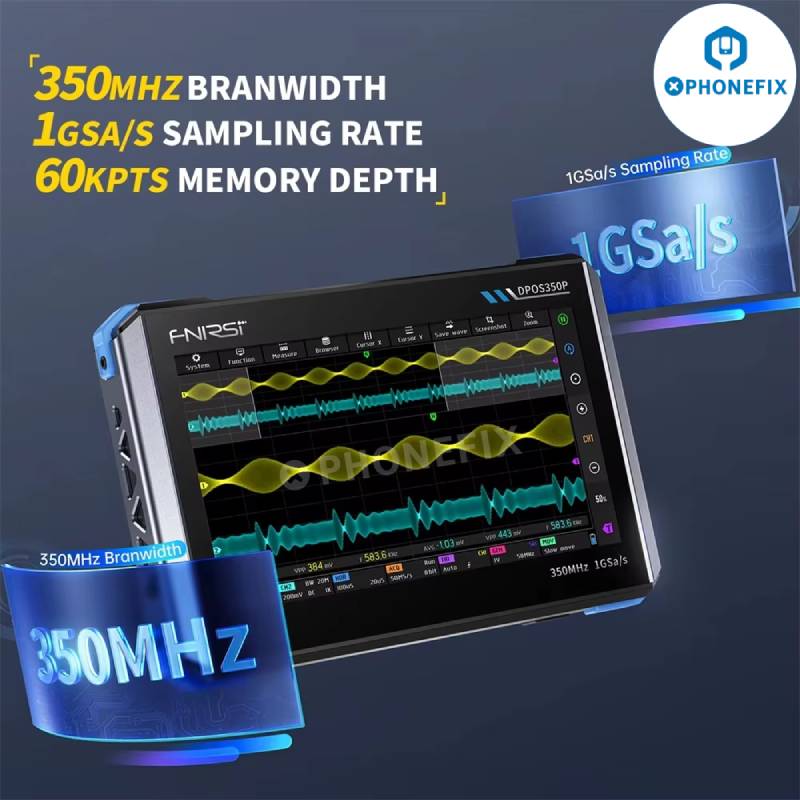

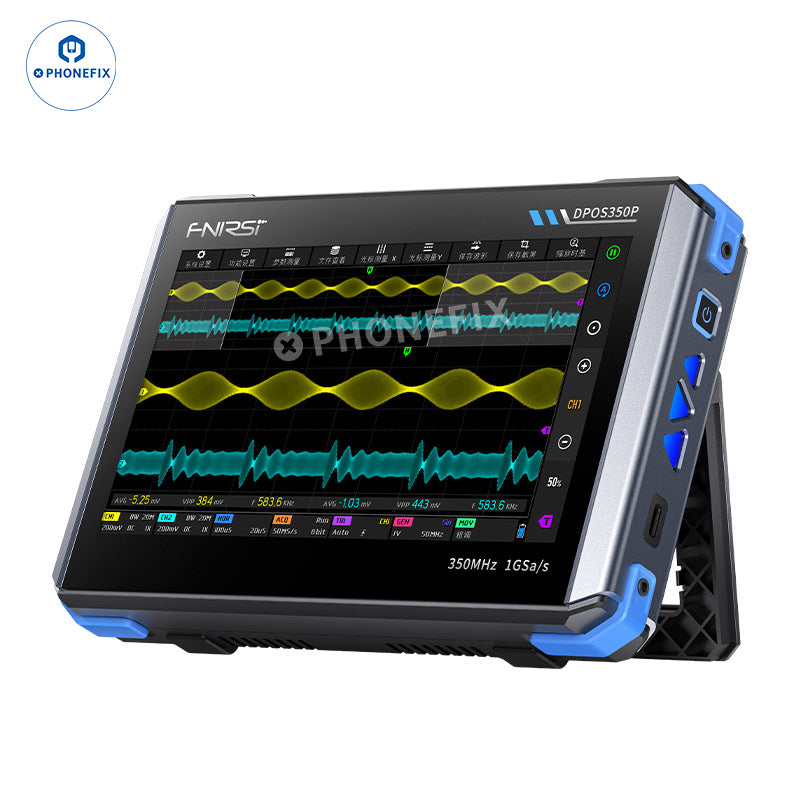

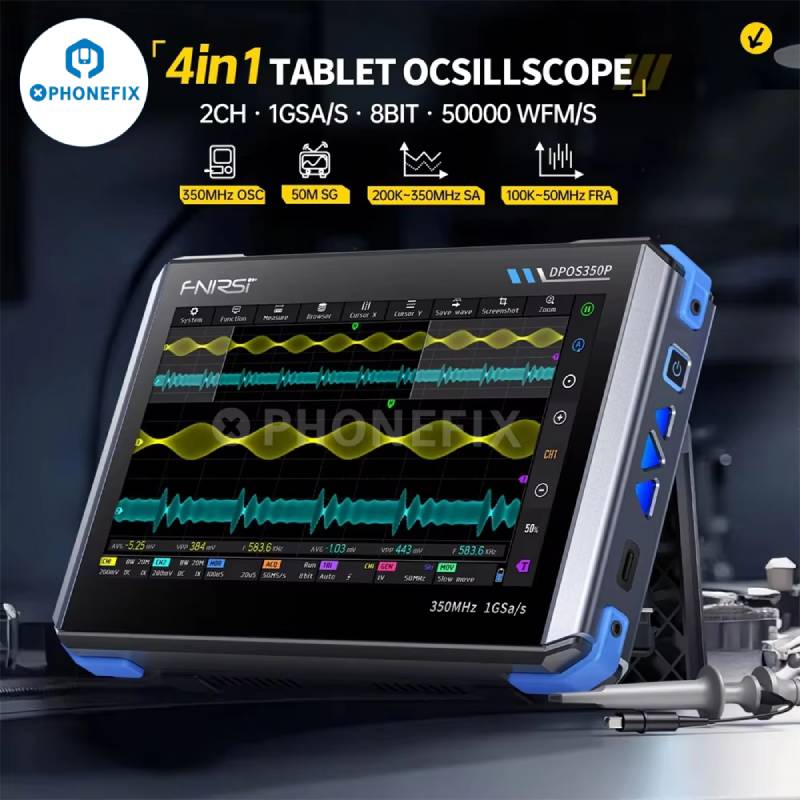

DPOS350P 4in1 350MHZ Tablet Oscilloscope is a digital phosphor oscilloscope + full-function signal generator + spectrum analyzer + frequency response analyzer. Supports four languages with touch operation, high speed, accurate, high voltage protection. 350MHZ bandwidth, 1GSA/S sampling rate, 60KPTS storage depth sampling, dual channels.
Features:

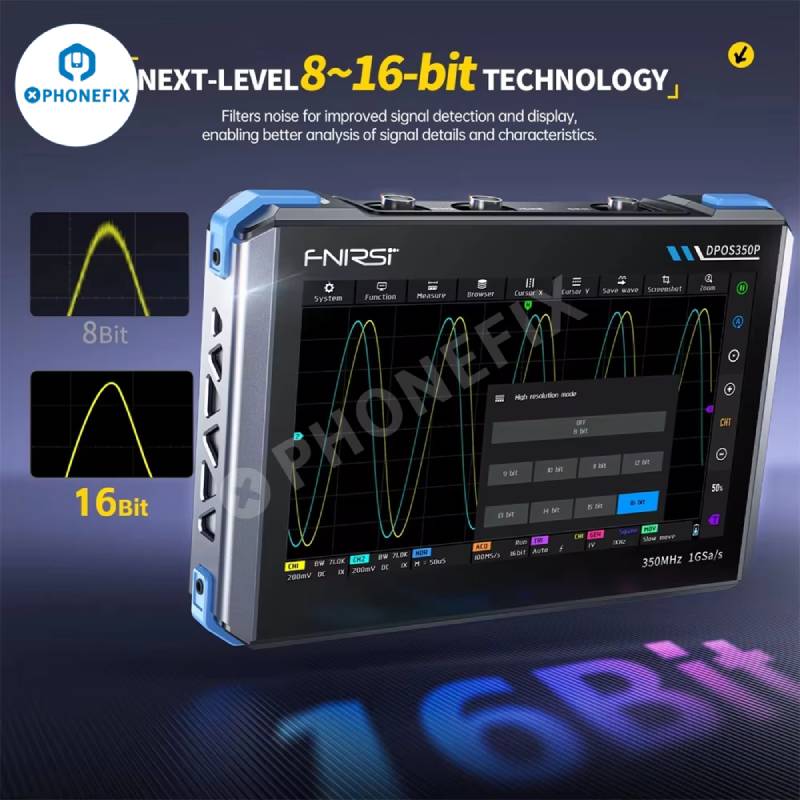

1. NEXT-LEVEL8~16-bit technology, filtering noise to improve signal detection and display, so as to better analyze signal details and characteristics.

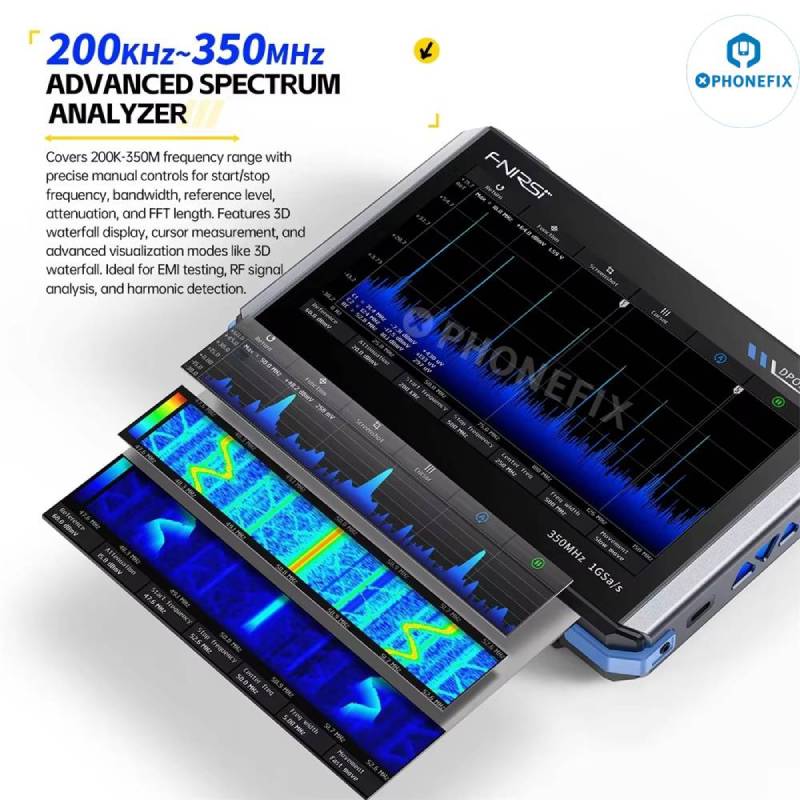

2. 200KHz~350MHz Advanced Spectrum Analyzer Covering 200K-350M frequency range, precise manual control of start/stop frequency, bandwidth, reference level, attenuation and FFT length. With advanced visualization modes such as 3D waterfall display, cursor measurement and 3D waterfall. Very suitable for EMI testing, RF signal, analysis and harmonic detection.
3. 7-inch IPS high-definition touch screen The touch screen adopts tempered glass design, which can effectively prevent surface scratches, and the touch mode is capacitive touch screen.
4 Dual-channel input has 2 input channels, input impedance 1M ohm (18PF), and can measure 2 sets of different signals at the same time.

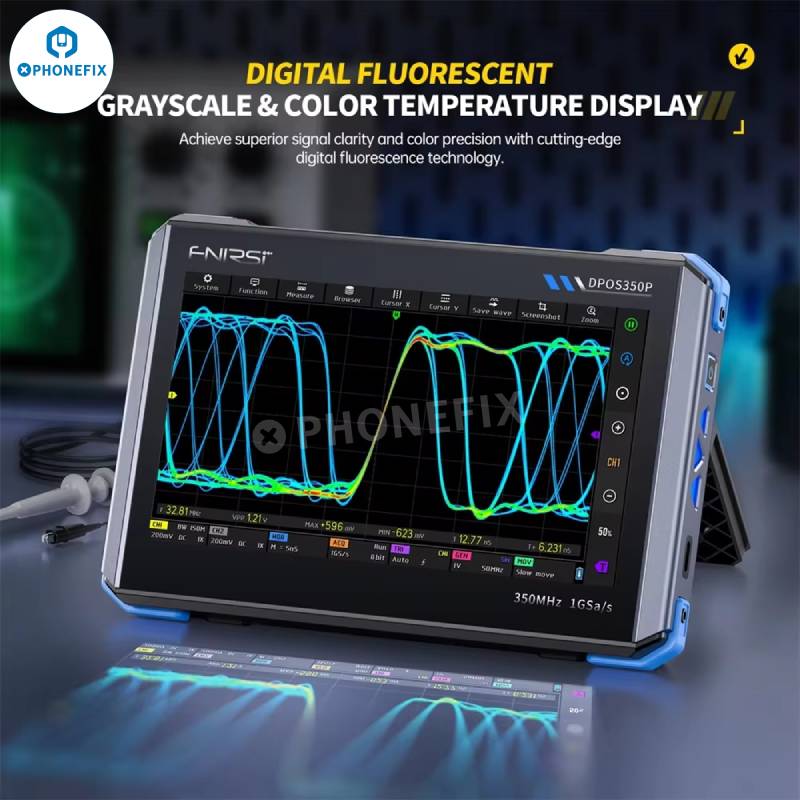

5. Digital fingerprint technology grayscale and color temperature display, fingerprint display technology grayscale and color temperature display, can further see the distribution and probability characteristics of the signal.
6. The full-function signal generator can output 14 kinds of waveform signals, and the output frequency (0-50MHz), rise and fall (0-5V), offset (±2.5V), and duty cycle (0.1%-99.9%) are adjustable. The original clip wave output function can customize up to 500 signals.
7. USB data export, you can connect to the computer through the USB data cable to view or copy the stored screenshots, and also copy the system image file to the desktop for system upgrade.
8. High-voltage burn-proof protection, the analog interface input stage design adopts high-voltage resistant design, which can reach more than 400V voltage resistance without being burned in any gear.
9. QC fast charging lithium battery direct charge, built-in 3.7V/8000mah lithium battery, integrated QC2.0 protocol, up to 18W, full power can work continuously for about 3 hours.
10. Cyber aesthetic hard-core performance, using anodized aluminum alloy material with ABS+PC injection molded back shell, beautiful while having heat dissipation and solid chassis.

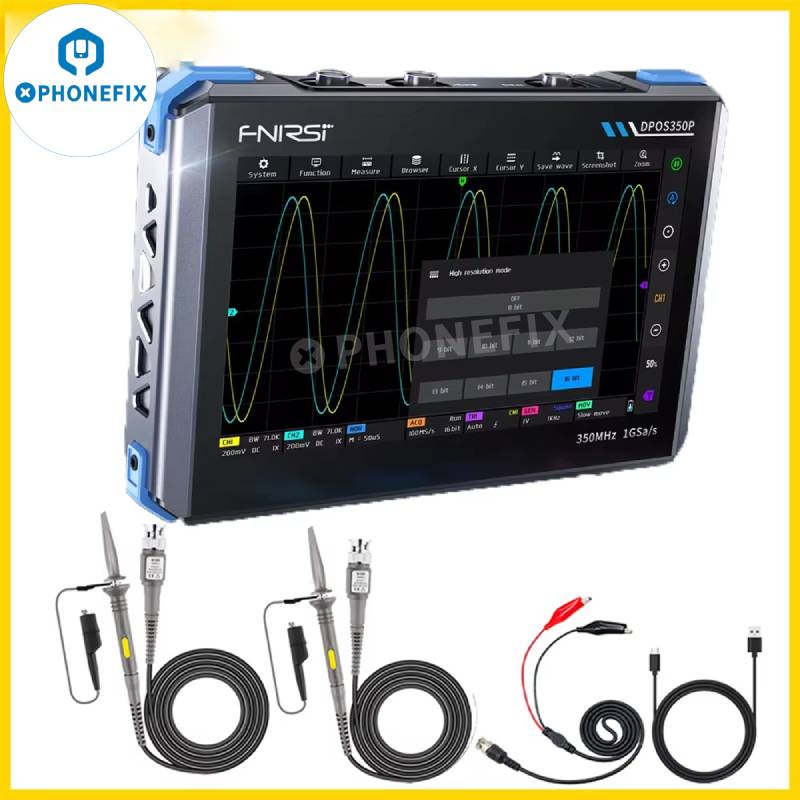

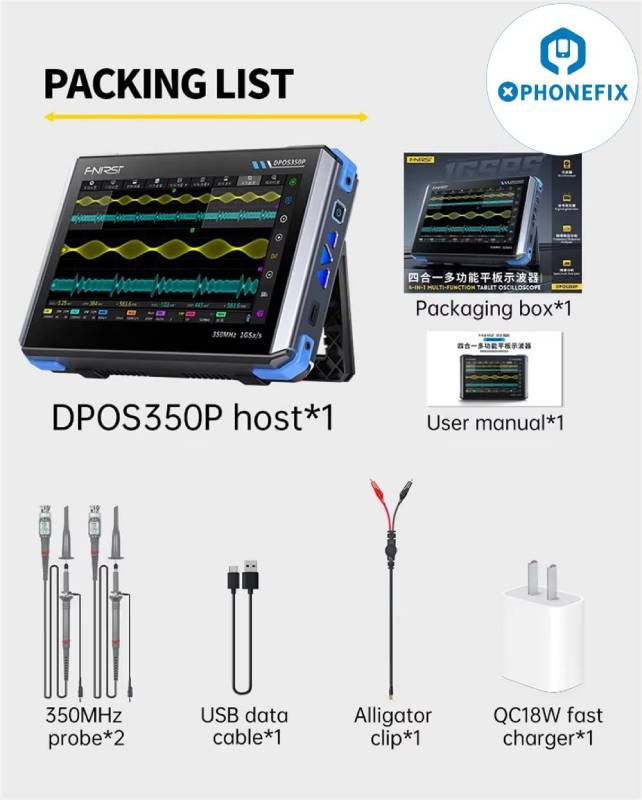

Packing Lists:
User manual x1
Alligator clip x1
Packaging box x1
350MHz probe x2
USB data cable x1
DPOS350P host x1
QC18W fast charger x1
Product Parameters:
