USB tester DC voltmeter current meters power bank battery capacity monitor QC3.0 phone charger detector, USB meter tester is mainly used to detect USB charging current, voltage, discharge capacity, quantity of electric charge, power, timing and so on. It supports QC2.0/QC3.0,BC1.2, for iPhone 2.4A and other quick charging styles of cellphone and chargers.
USB Charger Tester Power Meter Timing Ammeter Digital Monitor Cut-off Power Indicator - BlackFeatures :
- Perfect for evaluating whether or not the computer, USB wall charger, USB car charger are outputting acceptable voltage and current range for the device you are connecting.
- This Power Meter Tester can plugs directly into any USB socket or cable, which displays on the screen the voltage, current and capacity.
- It provides you a rough estimate of the capacity of the device you are charging.
-
Unit-in more Safety: Real-time monitoring of charge data, USB monitor will automatically cut off when the device is full charged, makes it controllable and more secure when charging, effectively protect your device.
-

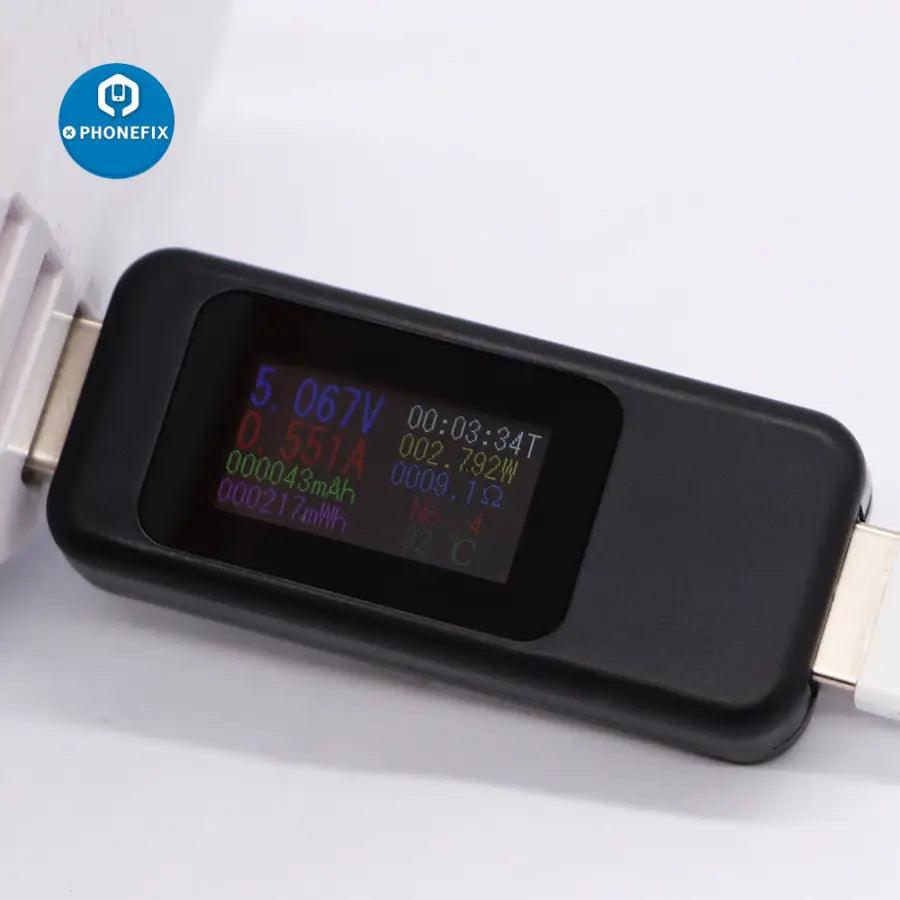

Premium LCD Display: To monitor the parameters on the screen. Comes with three various display modes for your choosing. It allows you to find the charging problem of the USB cables, wall chargers, and car charges more easily.
-
Wide Testing Range & Simple Operation: Input/Output Voltage: DC3-30V, Current Range: 0-5.1A. Symmetrical and reversible connector,plug and play,easy to carry
- 5-bit resolution for more accurate measurements. The screen can be turned off with one button and has a flip screen function. Thermometer function using high-precision thermistor sensor, celsius and fahrenheit free switching.
- power-off storage function, which can store capacity and energy data when the mobile power is cut off, which is convenient for subsequent viewing and convenient for capacity energy measurement of mobile power.Note: Other USB testers that do not have a power-down storage function cannot test capacity and energy.
- Measure the quality of the charger: connect the same load, compare the no-load and the load, the greater the voltage drop, the worse the charger capacity is, the worse the quality; the voltage drop is not obvious or the voltage rises, the load capacity of the charger and the quality be better.
Specification :
- Input/Output voltage: 3V- 30V, Voltage Resolution: 0.01V
- Current test range: 0- 5.1A, precision 0.01A
- Cumulative capacity range: 0- 99999 mAh, precision 0.001Ah
- Cumulative power range: 0- 999999mWh, precision 0.001Wh
- Power calculation range: 0- 299.999W, precision 0.001W
- Timing maximum time: 0- 999hours 59min 59s, accuracy:1s
- Accuracy: ±1%
- Line loss: 0.1Ω
- Product size: 65mm * 24mm * 14mm
Operation Introduction :
- The short press is the interface switch, and long press is battery capacity and other data reset;
- In the main interface, five-press is the setting of automatic power outages and timing turn-off(Five-press in the main interface, the character in the lower right corner of the display stars flashing, choose three settings of ’AO.. / OFF / 1-24H’ by clicking or double-clicking, and when the flashing stops, it means the system saves the current settings automatically);
- Six-press is Chinese/English interface conversion.
Note : This power meter tester may not support fast charging for some type of smartphones and devices.Package includes :
- 1pcs x Current Voltage Test Meter
