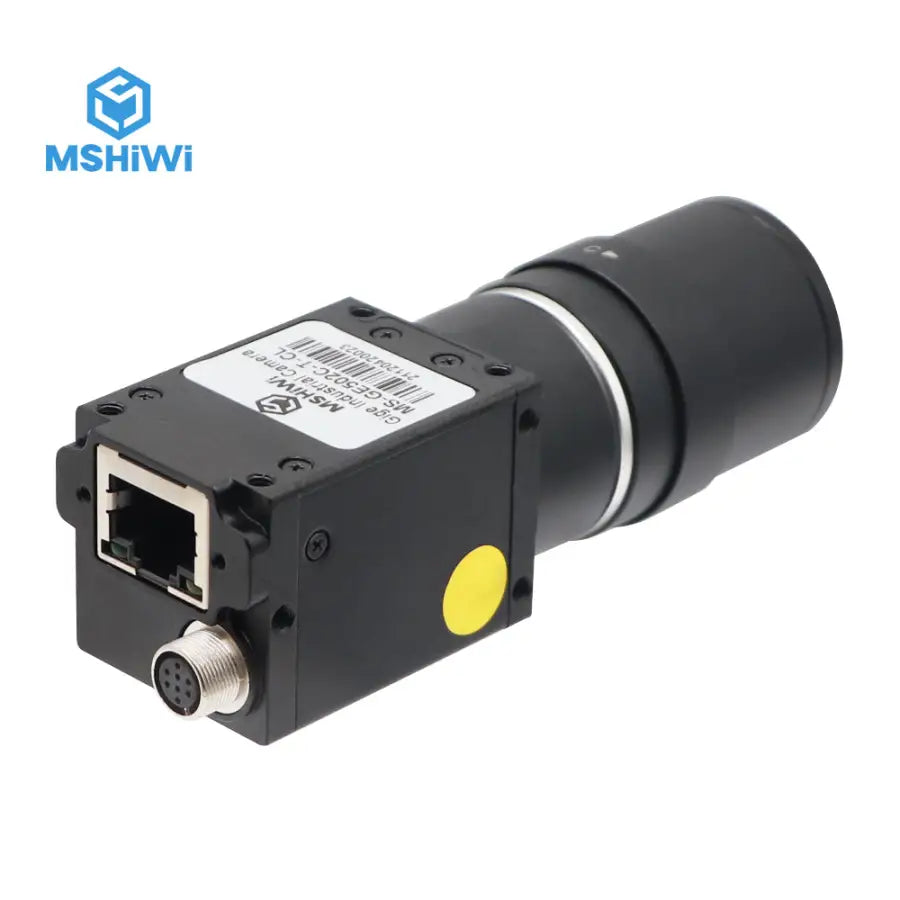

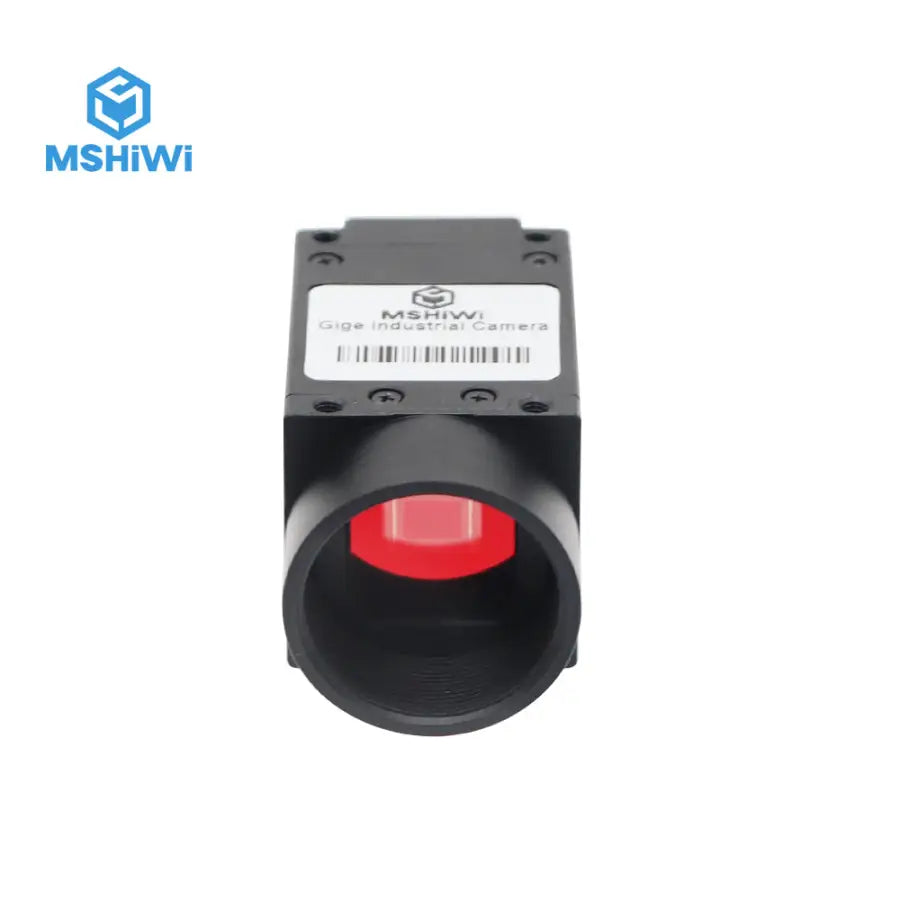

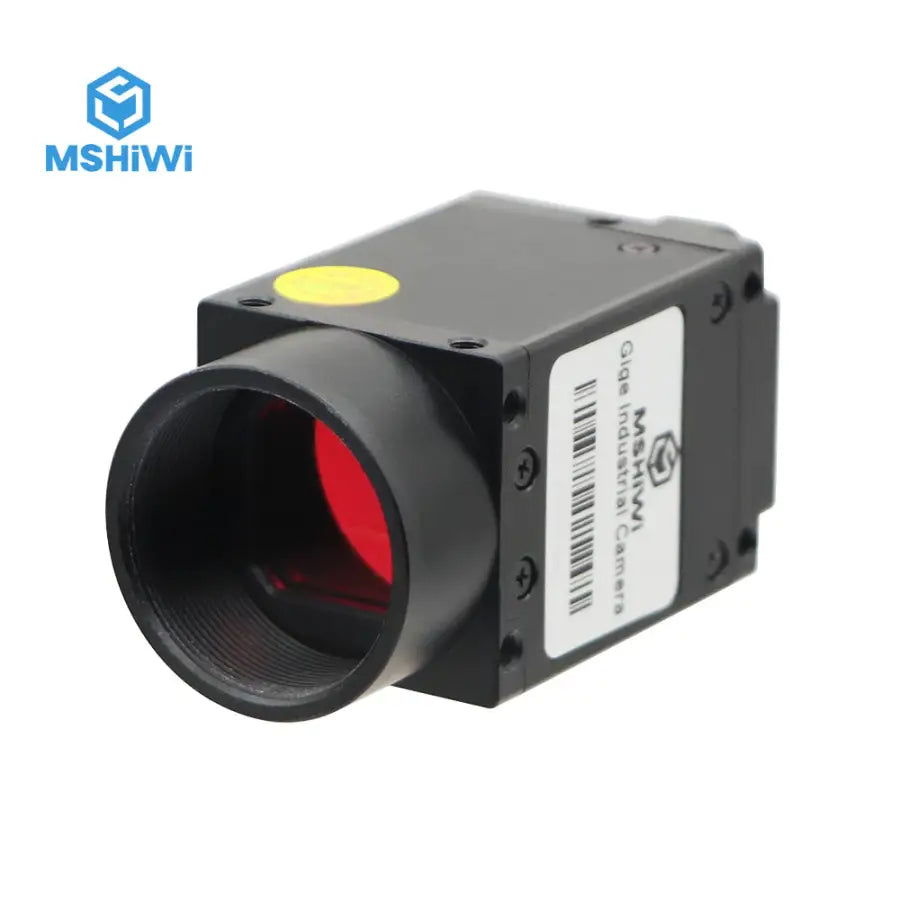

16.0MP GigE industrial camera 1/2.3 CMOS Rolling Shutter

Roll over image to zoom in Click on image to zoom

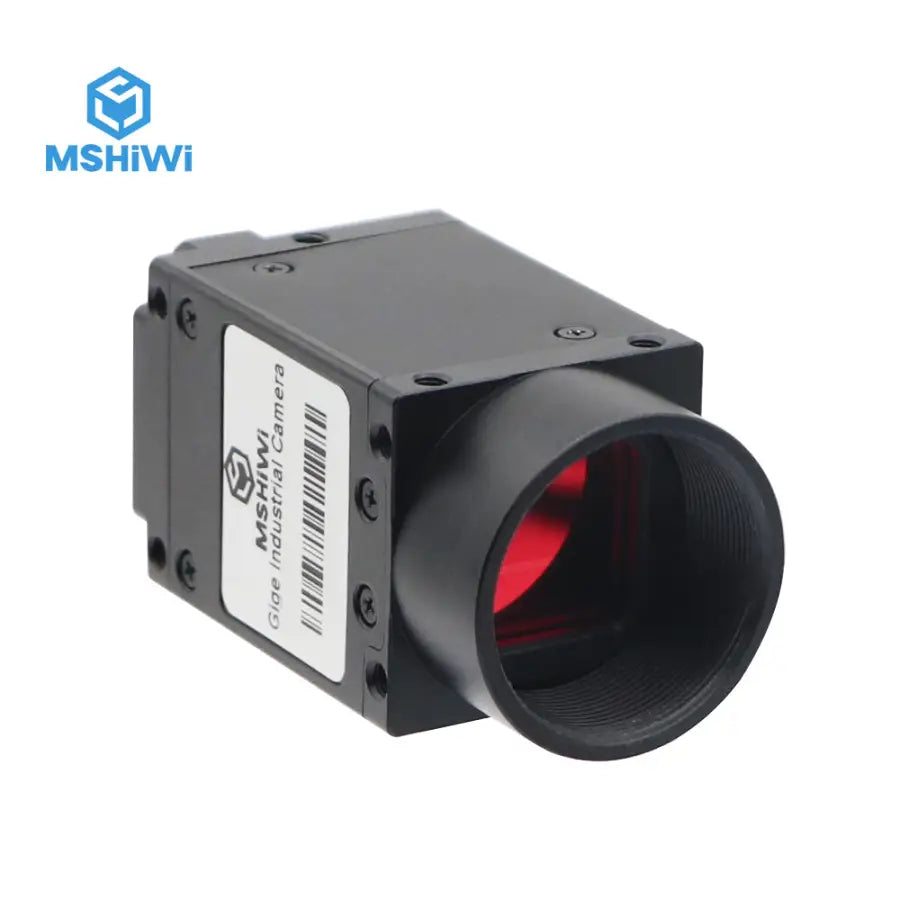

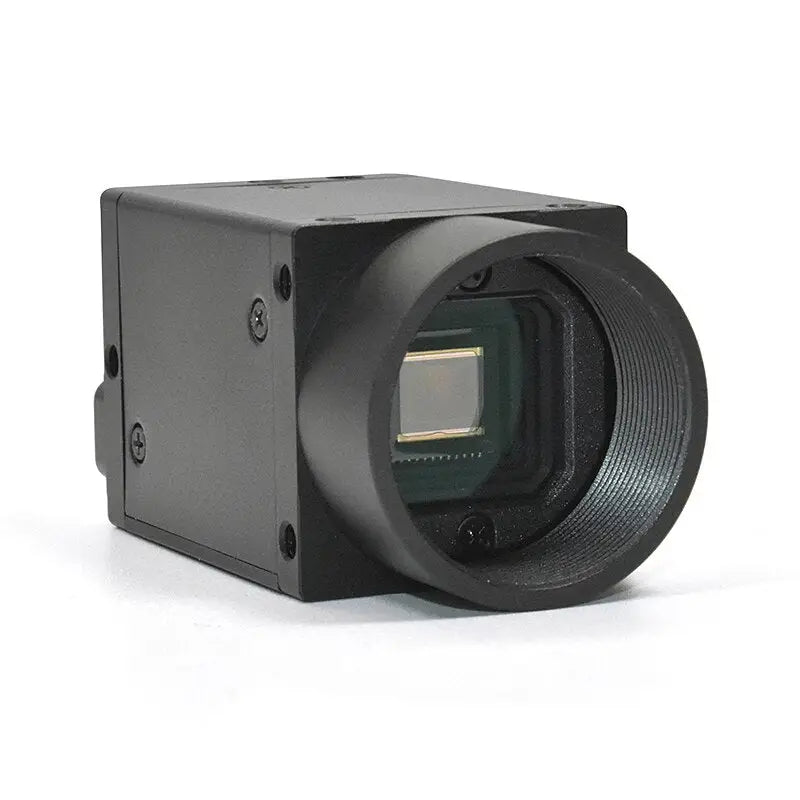

16.0MP GigE industrial camera, 1/2.3" CMOS, Rolling Shutter, Color

Save $33.60

PHONEFIXSKU: HW050

Option: Color

Variant

Price:

$339.00 USD $372.60 USD

Shipping calculated at checkout

Stock:

In stock

Quantity:

Share this product

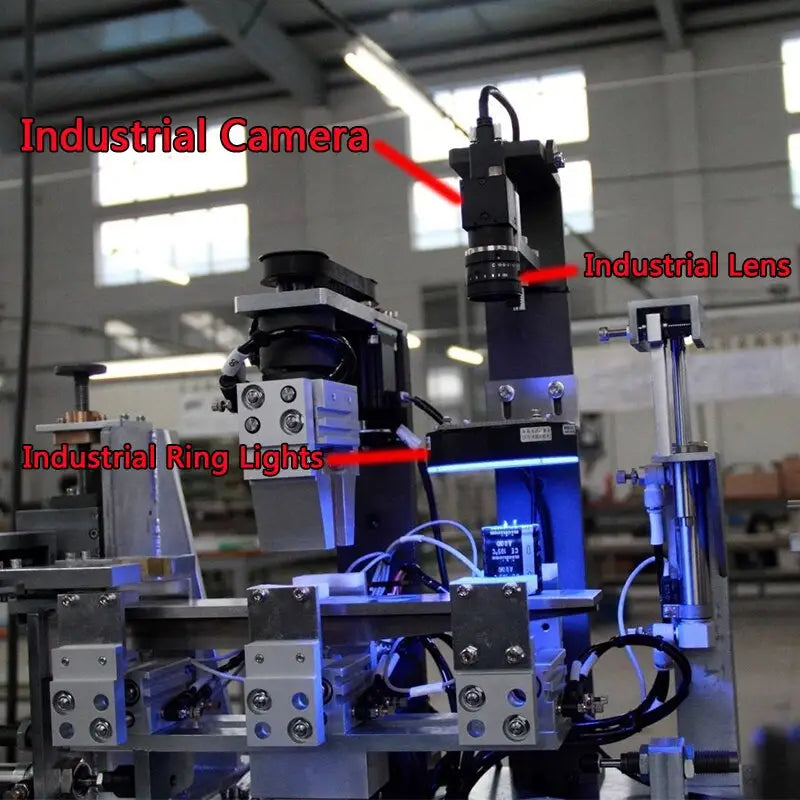

high-speed GigE industrial camera for Vision Automated Inspection Measuring, resolution of 4608X3456 (16.0 Megapixel), 1/2.3" CMOS, pixel size 1.34μm*1.34μm, max. frame rate 7fps, Color, rolling shutter, optional 8-bit, 10-bit, 12-bit depth, GigE interface with long transmission distance, high cost performance, use advanced indsutrial image sensor, superior image quality and high resolution.

16.0MP GigE Color Rolling Shutter Camera

GigE Series Features:
1) Support 100 meters transmission or POE (optional).
2) Compatible with gige vision standard.
3) With hardware image processing acceleration.
4) Support multiple cameras to work at the same time.
5) Data packet retransmission technology to ensure reliable data transmission.
6) Provide SDK, easy to use and convenient.
7) Support external trigger and flash.
8) SDK supports Windows and Linux systems.
9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.

Feature Product:
1) Camera parameter archive is saved as a file.
2) Camera name can be modified to easily distinguish multiple cameras.
3) With a maximum of 16K bytes of data storage.
4) Support 8bit, 24bit, 32bit image format output.
5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.

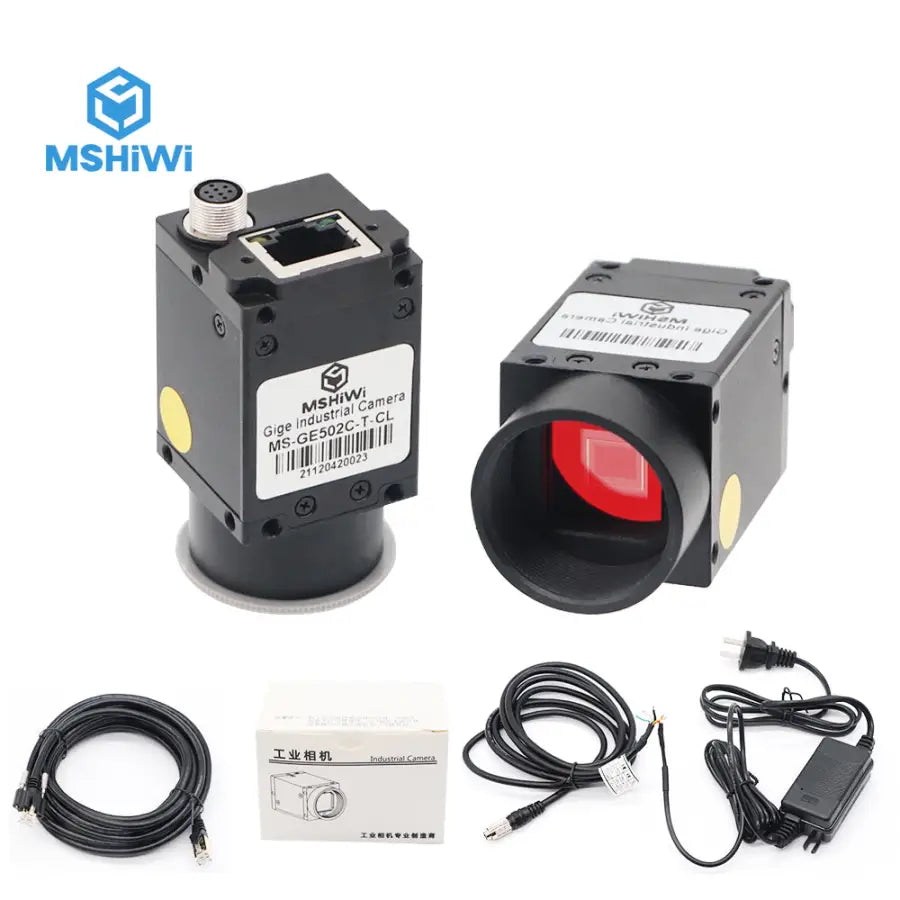

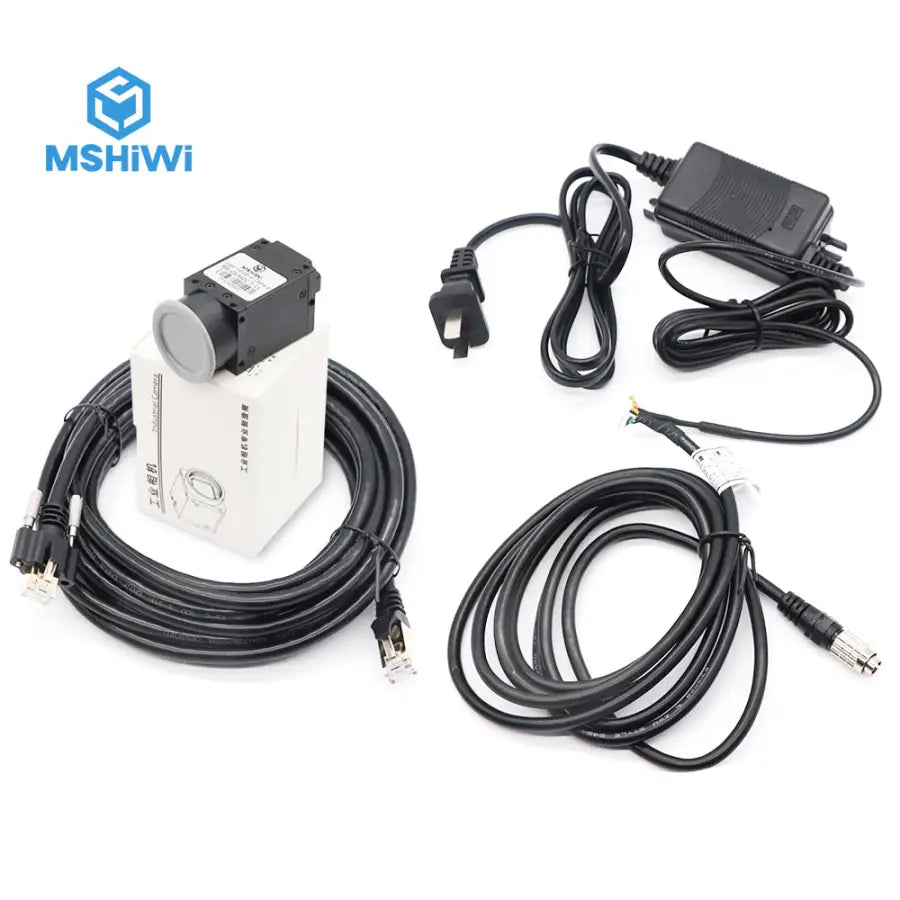

Package incluede:
1 x Industrial Camera (No Include Lens)
1 x Trigger line
1 x 5 Meters Gigabit Ethernet Cable
1 x 12V Power Supply

Industrial Camera Parameters：

Model	HT-GE1600C-T-CL

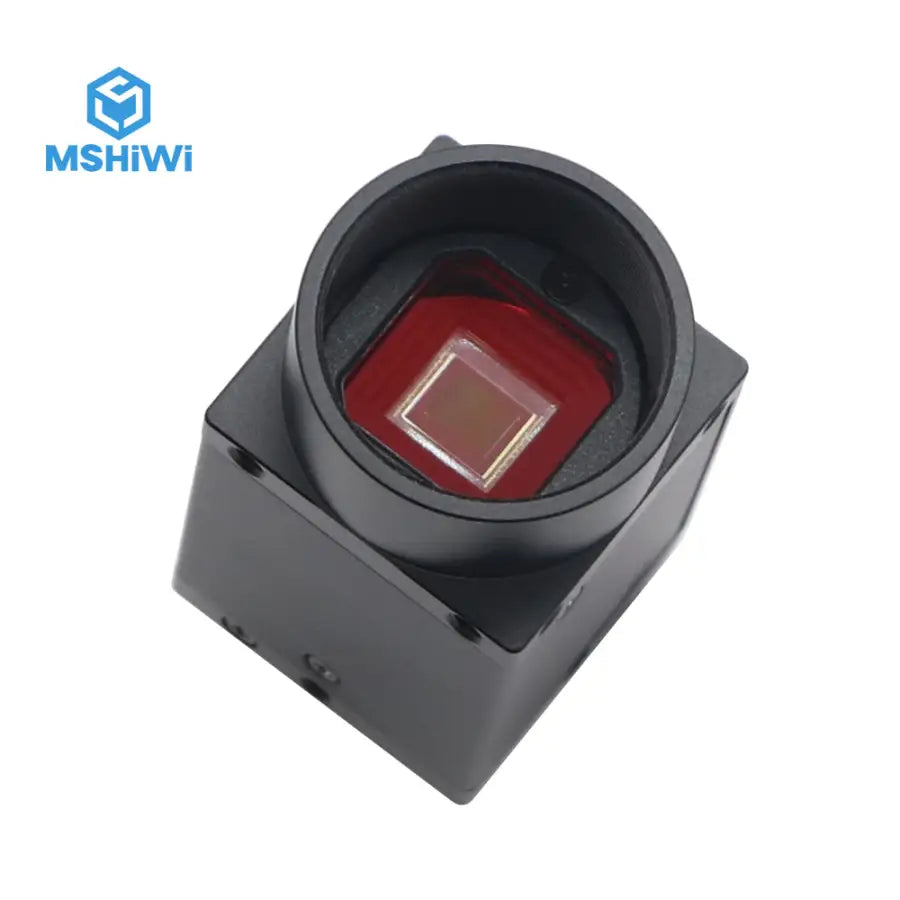

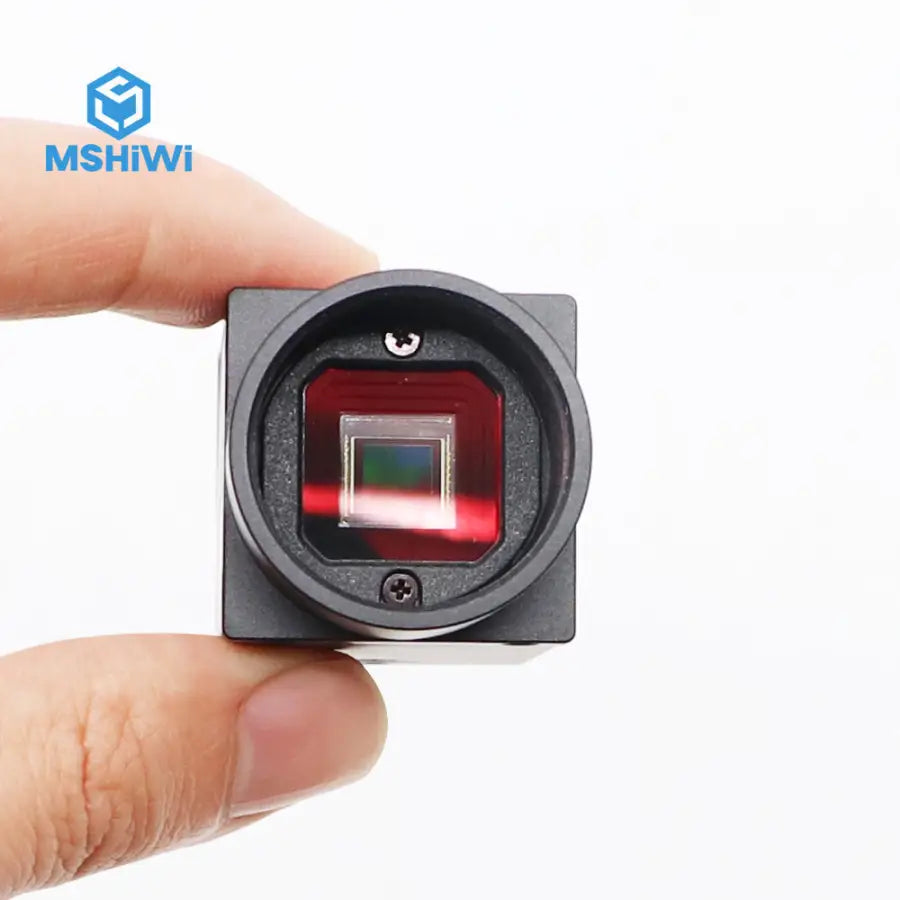

Sensor	1/2.3" CMOS
Shutter Type	Rolling Shutter
Camera Type	Color
Pixel Size	1.34X1.34μm
Effective Pixels	16.0 MP
Resolution @FPS	4608X3456@7FPS
	4096X3072@9FPS
	2592X1944@20FPS
Pixel Bit Depth	12bit
Sensitivity	1096mV 1/30s

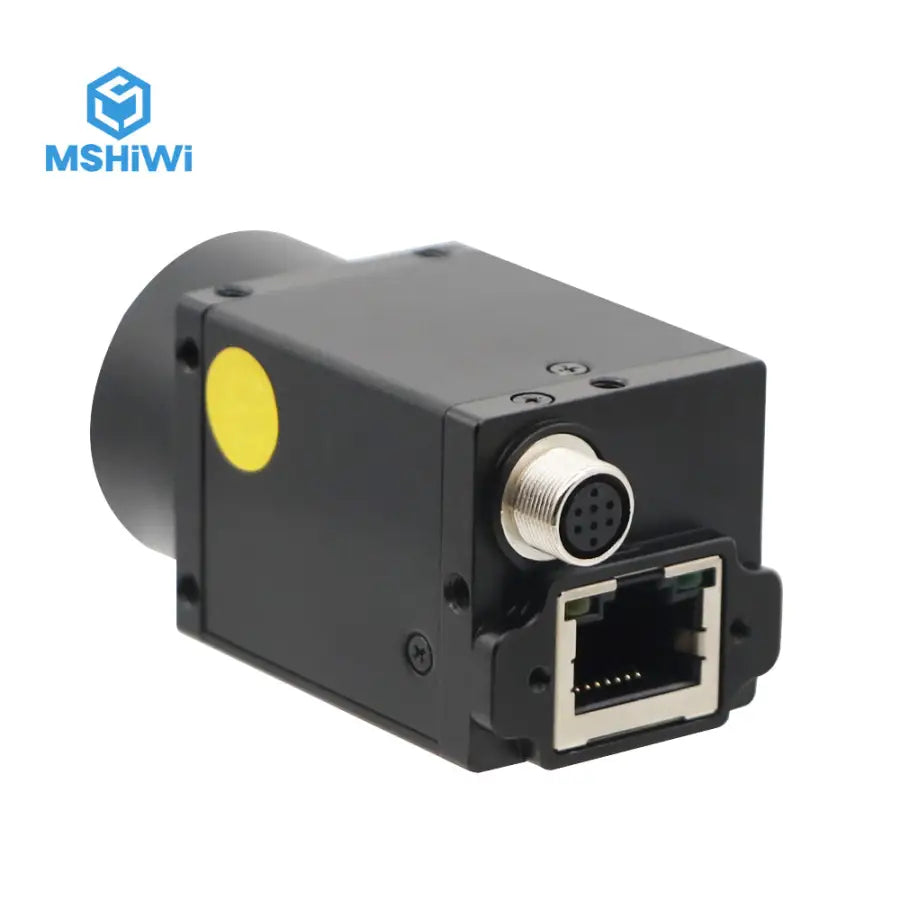

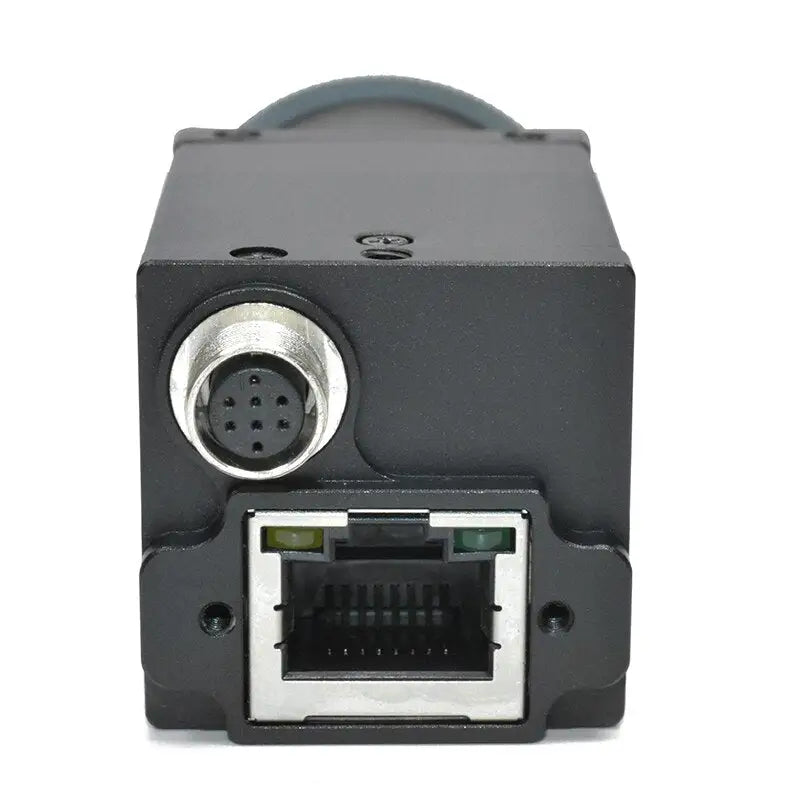

GPIO	6-pin Hirose Connector
Acquisition	Continuity/Soft Trigger/Hard Trigger
Maximum Gain (multiple)	16
Exposure Time (ms)	0.037~12275
Filters	650nm Infrared Filter
Frame Buffer	32M Bytes
Custom Data	2K Bytes
Video Output Format	Bayer8、Bayer12、Mono8、Mono12、Mono16、RGB8、RGB32、RGB48
Visual Standard Protocol	GigE Vision 、GenICam
Lens Interface	C Mouth

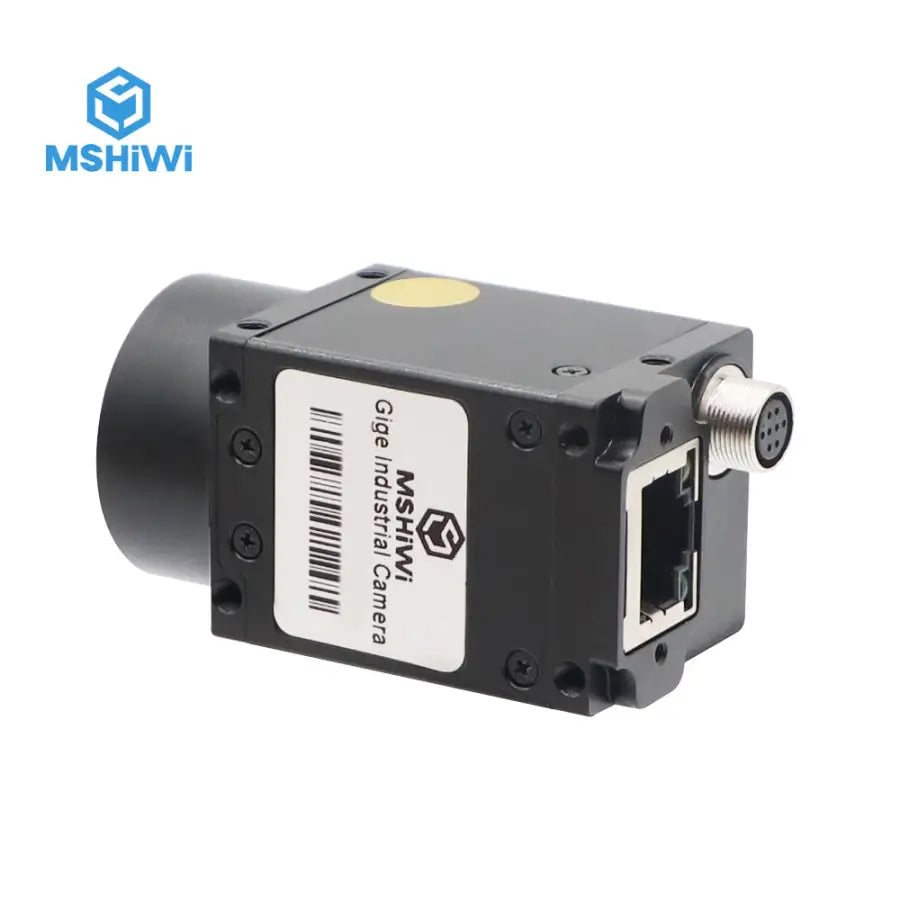

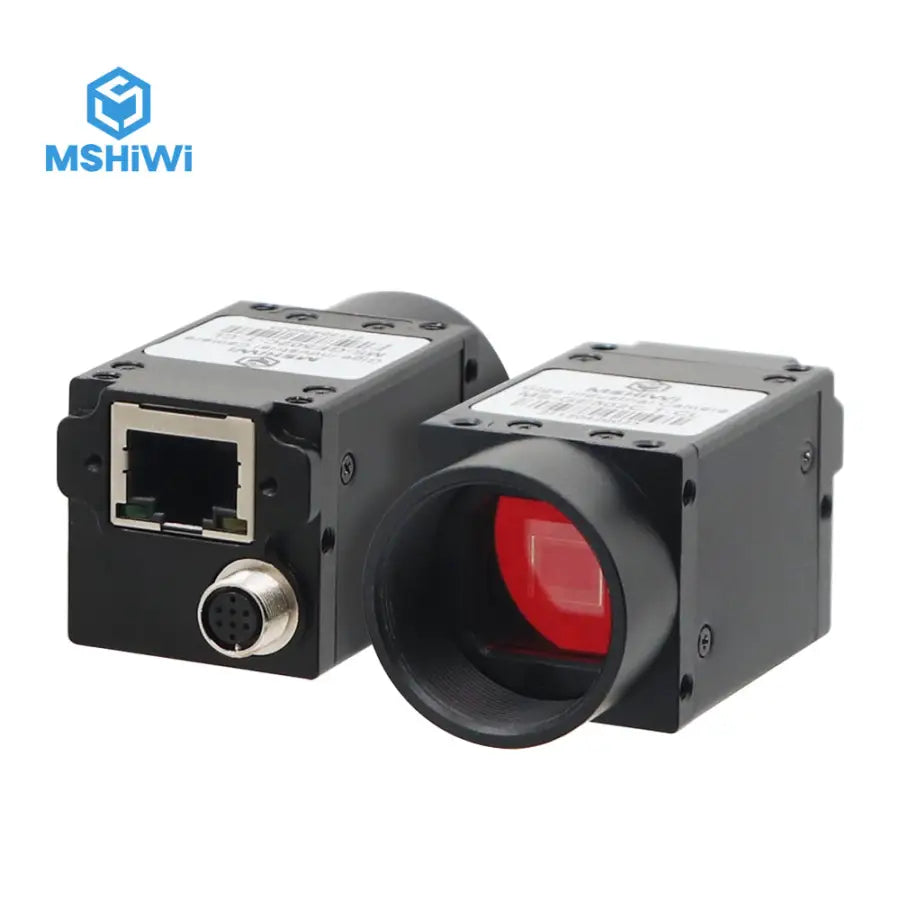

Data Interface	RJ45 Gigabit Ethernet interface
Power Supply	12V(Optional POE Power Supply)
Power	<2.5W

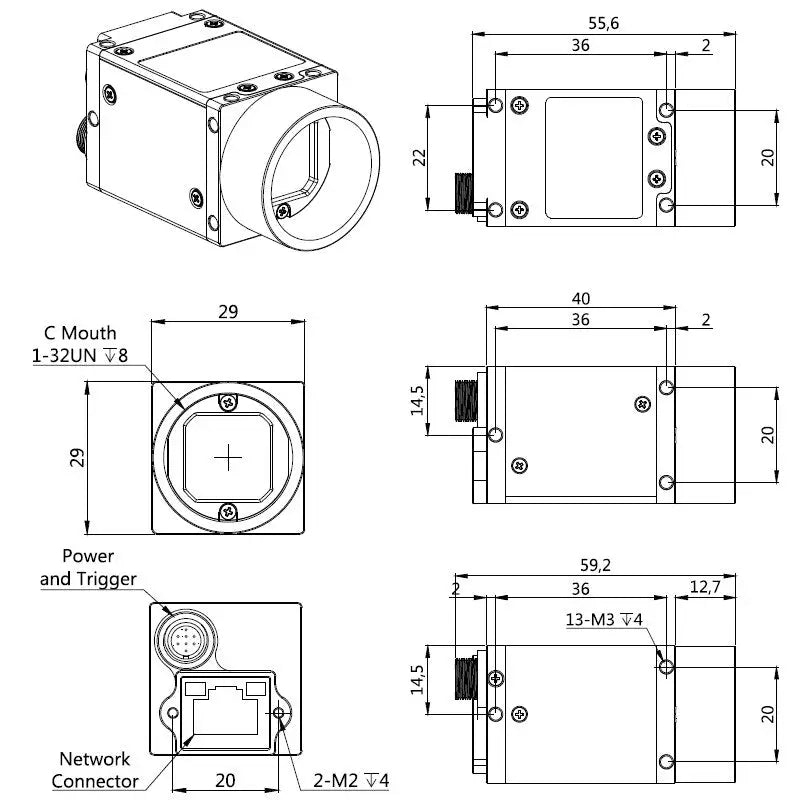

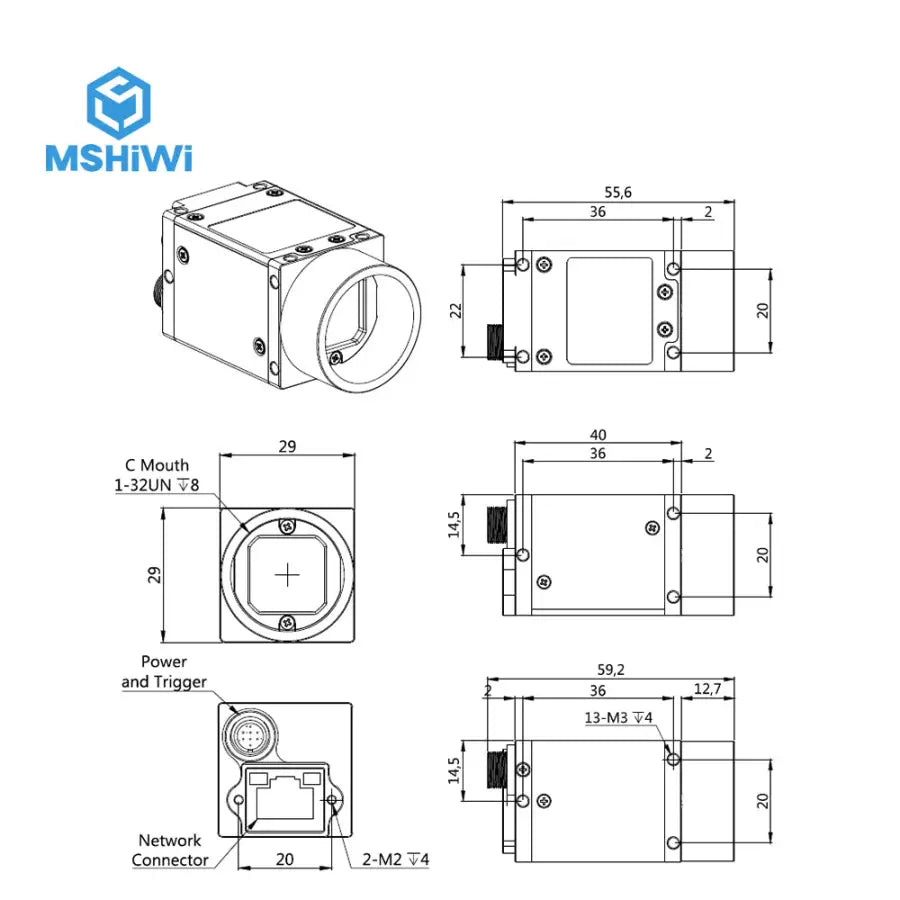

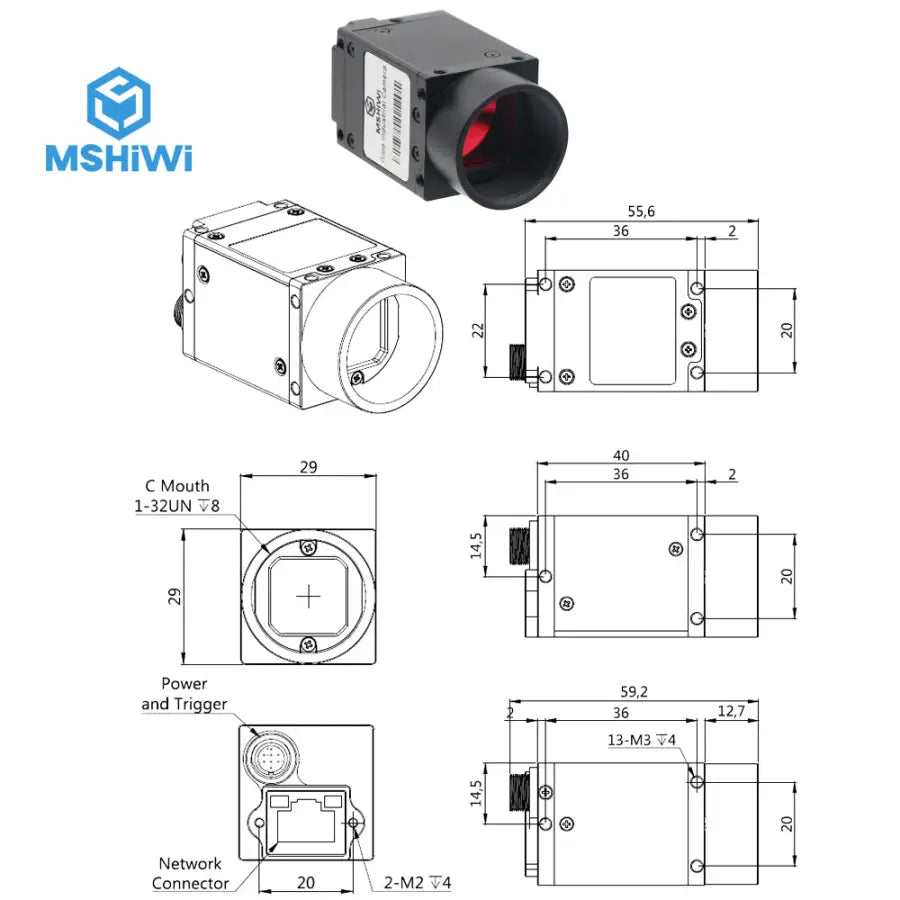

Dimensions	29(mm)X29(mm)X40(mm)
Weight	< 75g
Operating Temperature	0~50 Degrees
Operating System	Support WIN7/8/10 32&64 System; PC Linux System
Driver	Directshow; Halcon; Labview; OCX; TWAIN Component
Programming Ianguage	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/OpenCV
Other Functions	Support ROI resolution, contrast and gamma adjustment, saturation adjustment, etc.
